Content Classifier Example

This example demonstrates conditional routing — a classify node inspects the input and a route handler directs execution to one of several specialised handlers, all without external events.

Overview

The content classifier graph:

1. Classifies the input text by category and sentiment
2. Routes to the appropriate handler based on category
3. Handles the content with a specialised response
4. Summarizes the result

flowchart TD
    A[classify] -->|question| B[handle_question]
    A -->|complaint| C[handle_complaint]
    A -->|feedback| D[handle_feedback]
    B --> E[summarize]
    C --> E
    D --> E

State Model

from pydantic import BaseModel


class ContentState(BaseModel):
    text: str
    category: str | None = None
    sentiment: str | None = None
    response: str | None = None
    summary: str | None = None

Node Handlers

classify

Determines category and sentiment from the input text:

def classify(state: ContentState) -> dict:
    lower = state.text.lower()

    if "?" in state.text or any(w in lower for w in ("how", "what", "why", "when")):
        category = "question"
    elif any(w in lower for w in ("broken", "terrible", "worst", "complaint", "angry")):
        category = "complaint"
    else:
        category = "feedback"

    positive = {"great", "good", "love", "excellent", "thanks"}
    negative = {"bad", "broken", "terrible", "worst", "angry", "hate"}
    words = set(lower.split())
    if words & negative:
        sentiment = "negative"
    elif words & positive:
        sentiment = "positive"
    else:
        sentiment = "neutral"

    return {"category": category, "sentiment": sentiment}

route_after_classify

Uses RouteDecision.next() to direct execution based on category:

from azure_functions_durable_graph import RouteDecision


def route_after_classify(state: ContentState) -> RouteDecision:
    handler_map = {
        "question": "handle_question",
        "complaint": "handle_complaint",
        "feedback": "handle_feedback",
    }
    target = handler_map.get(state.category or "", "handle_feedback")
    return RouteDecision.next(target)

Specialised handlers

Each handler generates a category-appropriate response:

def handle_question(state: ContentState) -> dict:
    return {
        "response": (
            "Thank you for your question. Our team will research this "
            "and get back to you within 24 hours."
        ),
    }


def handle_complaint(state: ContentState) -> dict:
    return {
        "response": (
            "We're sorry to hear about your experience. A support specialist "
            "has been assigned to resolve this issue."
        ),
    }


def handle_feedback(state: ContentState) -> dict:
    return {
        "response": "Thank you for your feedback! We appreciate you taking the time to share.",
    }

summarize

Combines all fields into a final summary:

def summarize(state: ContentState) -> dict:
    return {
        "summary": (
            f"Category: {state.category} | Sentiment: {state.sentiment} | "
            f"Response: {state.response}"
        ),
    }

Graph Definition

from azure_functions_durable_graph import ManifestBuilder, RouteDecision

builder = ManifestBuilder(
    graph_name="content_classifier",
    state_model=ContentState,
    version="0.1.0",
    metadata={"example": True, "profile": "routing"},
)
builder.set_entrypoint("classify")
builder.add_node("classify", classify, route=route_after_classify)
builder.add_node("handle_question", handle_question, next_node="summarize")
builder.add_node("handle_complaint", handle_complaint, next_node="summarize")
builder.add_node("handle_feedback", handle_feedback, next_node="summarize")
builder.add_node("summarize", summarize, terminal=True)

registration = builder.build()

Running the Example

Wire it into your function_app.py:

from azure_functions_durable_graph import DurableGraphApp
from examples.content_classifier.graph import registration

runtime = DurableGraphApp()
runtime.register_registration(registration)
app = runtime.function_app

Start a run — question

curl -X POST http://localhost:7071/api/graphs/content_classifier/runs \
  -H "Content-Type: application/json" \
  -d '{"input": {"text": "How do I reset my password?"}}'

Start a run — complaint

curl -X POST http://localhost:7071/api/graphs/content_classifier/runs \
  -H "Content-Type: application/json" \
  -d '{"input": {"text": "This product is terrible and broken"}}'

Check status

curl http://localhost:7071/api/runs/{instance_id}

Expected final state (for a question):

{
  "state": {
    "text": "How do I reset my password?",
    "category": "question",
    "sentiment": "neutral",
    "response": "Thank you for your question. Our team will research this and get back to you within 24 hours.",
    "summary": "Category: question | Sentiment: neutral | Response: Thank you for your question. Our team will research this and get back to you within 24 hours."
  }
}

Key Patterns Demonstrated

• Conditional routing: route_after_classify picks different nodes based on state
• Fan-in topology: multiple handler nodes converge to a single summarize node
• RouteDecision.next(): simple programmatic routing without external events
• State enrichment: each node adds specific fields while preserving existing state

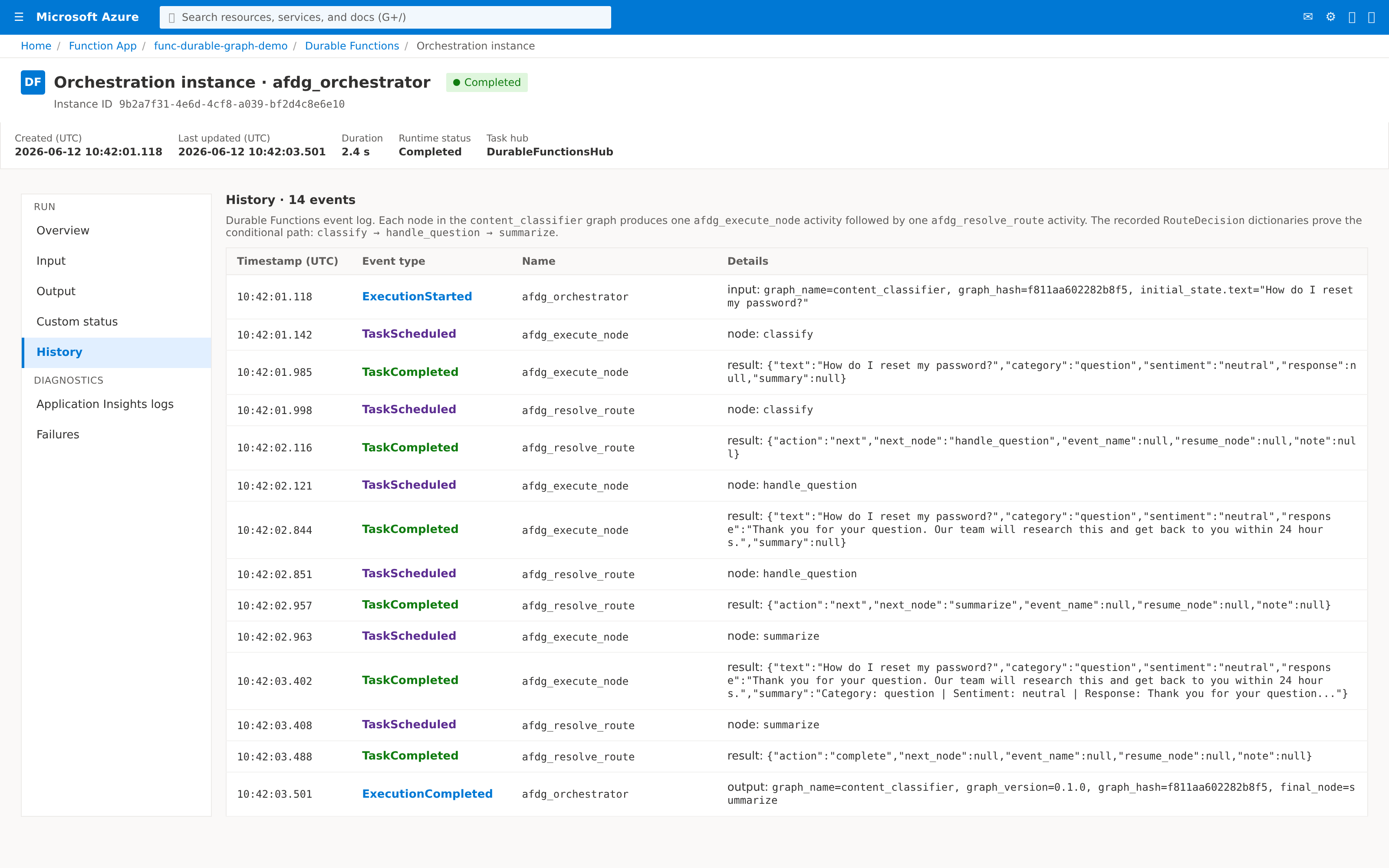

Verify Routing in Azure Portal

The conditional routing is visible in the Durable Functions History view for any run. Each node produces one afdg_execute_node activity followed by one afdg_resolve_route activity, and the RouteDecision dictionary returned by route_after_classify is recorded verbatim as the result of the route activity.

For an input of "How do I reset my password?", the recorded path is classify → handle_question → summarize:

You can use the same view to verify other branches: a complaint-style input takes the handle_complaint path and a generic message takes handle_feedback.
