ACR Network Path C — PE with Forced Inspection Lab¶

Reproduce Scenario C from ACR Network Path Selection: ACR is exposed only via a Private Endpoint (publicNetworkAccess=Disabled), the Container Apps workload subnet has a 0.0.0.0/0 UDR forcing default-route egress through an Azure Firewall for inspection, but the firewall is silently bypassed for ACR pull traffic unless the route table also contains explicit /32 routes for each Private Endpoint NIC IP.

This lab is structurally different from the other four labs in the series. The other four labs (Path A firewall allowlist, Path B PE direct, Scenario D record-level split-brain, Scenario E DNS forwarder bypass) all reproduce a failure mode where the pull itself fails — a visibly broken revision with a smoking-gun error in ContainerAppSystemLogs_CL or socket.getaddrinfo returns the wrong IP. Scenario C does not produce a failed pull in either the bypass case or the recover case. The pulls succeed in both. The only variable that differs is whether the inspection firewall sees the pull happen. The lab's primary falsification signal is therefore the silence in AZFWApplicationRule during the bypass window, paired with the presence of the same rows during the baseline and recovery windows — a controlled three-state transition (baseline sees ACR → bypass sees nothing → recover sees ACR again) where the /32 UDR routes for the PE NIC IPs are the single controlled variable and pull success is held constant throughout.

Lab Metadata¶

Lab position¶

This lab is part of the 5-lab ACR network path series that reproduces the five distinct network paths a Container App can take to reach ACR. See ACR Network Path Selection for the conceptual taxonomy that names and orders all five paths.

1) Background¶

Azure Container Apps can reach ACR through several network paths — public via firewall, Private Endpoint direct, Private Endpoint with forced inspection, or one of two DNS failure scenarios. The ACR Network Path Selection page documents all of them and the decision table that distinguishes them.

Scenario C (ACR Private Endpoint, forced inspection) is the intentional production topology for regulated environments where the security team requires all outbound traffic — including Private Link traffic to first-party Azure services like ACR — to traverse a stateful firewall for inspection, FQDN-based access control, and application-rule logging. The naive implementation is: "we already have a 0.0.0.0/0 UDR forcing all snet-aca egress through Azure Firewall for our application traffic; therefore ACR pulls will be inspected too, because they leave from the same subnet." This is the trap Scenario C exposes.

The trap is in how the Azure VNet data plane resolves longest-prefix match for Private Endpoint traffic. When a Private Endpoint is provisioned in snet-pe, Azure injects a system route for the PE NIC IP — typically as a /32 route with next-hop type VirtualNetwork — that exists in every subnet of the VNet (and in every peered subnet whose peering propagates VirtualNetwork routes). The 0.0.0.0/0 UDR pointing at the firewall has length /0. By longest-prefix match, the /32 system route for the PE wins for every packet whose destination is the PE NIC IP. The result: replicas in snet-aca resolve <registry>.azurecr.io to the PE NIC private IP (via the linked privatelink.azurecr.io Private DNS Zone), then send the TCP SYN to that PE NIC IP, then the VNet data plane consults the route table, then the system /32 route for the PE wins, then the packet goes directly to the PE NIC — not through the firewall. The firewall never sees the connection. The pull succeeds normally because the PE accepts it and forwards it to ACR over the Azure backbone. From a workload-success perspective, everything works; from an inspection-and-audit perspective, the firewall has been silently bypassed.

The fix is to add explicit /32 UDR routes on snet-aca's route table — one for each PE NIC private IP — with next-hop type VirtualAppliance and next-hop IP = the firewall's private IP. These customer-defined /32 routes have the same prefix length as the system-injected /32 routes but win because customer-defined UDR routes always win over system routes when prefix length is equal. With the customer /32 routes in place, the longest-prefix match for a PE-bound packet picks the UDR route, the packet is delivered to the firewall, the firewall's application rule allows the ACR FQDN (or denies it, depending on the policy), the firewall logs the connection in AZFWApplicationRule, and then forwards the packet to the PE NIC. The pull succeeds through the firewall, and the firewall now has visibility into the traffic.

Three properties make Scenario C worth reproducing as a hands-on lab:

• A 0.0.0.0/0 UDR does NOT cover Private Endpoint traffic by default. This is the central misconception the lab exposes. Default-route UDRs cover the public-internet egress path but lose to the more-specific system /32 route for Private Endpoints. The fix requires the operator to know two things that are not obvious from the Azure portal's UI: (1) which PE NIC IPs exist (the PE NIC holds multiple IPs when the service exposes multiple endpoints — for ACR Premium that is at least two: login and regional data), and (2) that customer-defined UDR /32 routes win over system /32 routes by the customer-route-precedence rule. The default-route UDR alone gives the operator the illusion that the firewall is in the path, when in reality the security boundary is silently bypassed for every Private Link service the VNet talks to.
• Pull success is NOT a reliable signal of inspection state for PE traffic. The pulls succeed in both the bypass case and the recover case. The replica becomes Healthy in both cases. The / endpoint returns the correct build_tag in both cases. There is no smoking gun in ContainerAppSystemLogs_CL because there is no error. The only authoritative signal for whether the pull traversed the firewall is the firewall's own diagnostic log stream — AZFWApplicationRule for FQDN-rule matches, AZFWNetworkRule for IP-rule matches. If the operator only monitors workload-layer health, the silent bypass is invisible. The lab's falsification design — baseline visibility -> bypass silence -> recover visibility with the /32 routes as the single controlled variable — is the only way to prove the relationship deterministically, because no other observable signal changes.

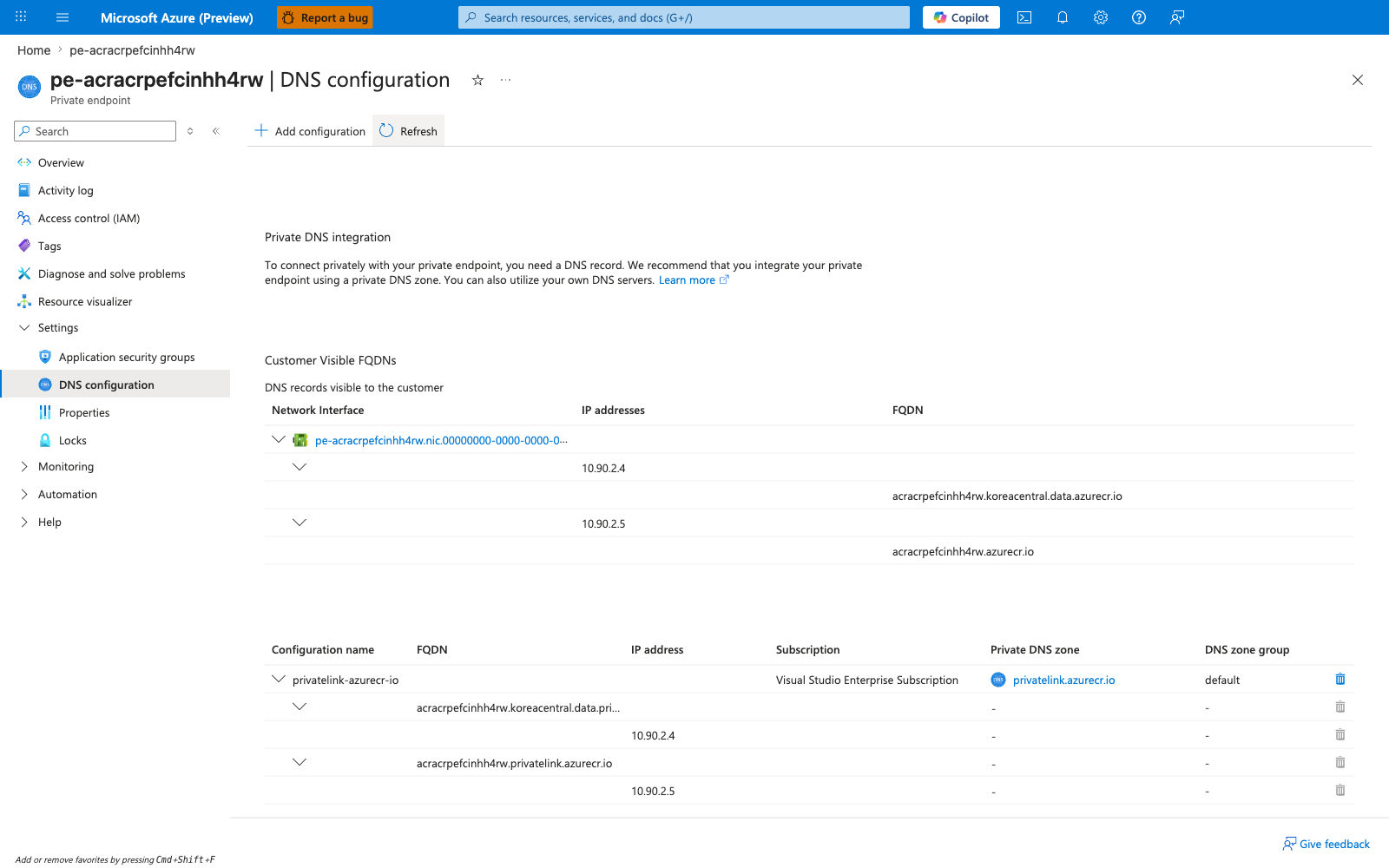

• The PE has multiple NIC IPs and both need /32 routes. ACR's Private Endpoint exposes a single registry sub-resource, but the PE NIC holds separate private IPs for the global/login endpoint (<registry>.azurecr.io) and for each region's dedicated data endpoint (<registry>.<region>.data.azurecr.io). In this lab's koreacentral deployment, the PE has two IPs: 10.90.2.4 (data endpoint) and 10.90.2.5 (login endpoint). If only one /32 UDR route is added, the firewall sees one half of the pull conversation (the login auth) and is silent on the other half (the data layer download), or vice versa — depending on which IP was given a /32 route. Both must be present. The PE NIC IPs themselves are not discoverable from customDnsConfigs when privateDnsZoneGroup is configured (that field is empty in that topology); instead, the IPs must be read from nic.ipConfigurations[].privateLinkConnectionProperties.fqdns, which exposes the FQDN-to-IP mapping for each individual endpoint behind the same PE sub-resource. trigger.sh does exactly this and then adds one /32 UDR route per discovered IP.

The lab's outcome taxonomy enumerates the observable states across the baseline → bypass → recover cycle:

The unique structural feature of this lab is that the v-bypass pull SUCCEEDS. Lab 1 (Path B PE direct + broken DNS), Lab 2 (Path E DNS forwarder bypass), Lab 3 (Path D record-level split-brain), and Lab 4 (Path A firewall allowlist) all produce a v-broken revision that visibly fails to pull. Lab 5 (this lab) produces a v-bypass revision that pulls cleanly. The proof of broken inspection is therefore not "the pull failed" but "the firewall did not log the pull that succeeded" — a falsification by absence, not by presence.

Architecture¶

flowchart TD
    REPLICA[Container App replica<br/>snet-aca 10.90.0.0/23<br/>egress source IP 10.90.1.160]
    DNS[Azure DNS resolution<br/>via linked privatelink.azurecr.io zone]
    PEIPS[PE NIC IPs<br/>10.90.2.4 data endpoint<br/>10.90.2.5 login endpoint]
    RTABLE{Route table on snet-aca<br/>longest-prefix match}
    UDR_DEFAULT[default-via-afw<br/>0.0.0.0/0 -> AFW private IP 10.90.3.4]
    UDR_PE_PRESENT[pe-10-90-2-4 + pe-10-90-2-5<br/>10.90.2.4/32 + 10.90.2.5/32 -> AFW]
    SYSTEM_PE[System /32 route for PE<br/>injected automatically by Azure]
    AFW[Azure Firewall Basic<br/>private IP 10.90.3.4<br/>application rules:<br/>Allow ACR login + data + MCR + acs-mirror]
    AZFW_LOG[AZFWApplicationRule<br/>logs FQDN match]

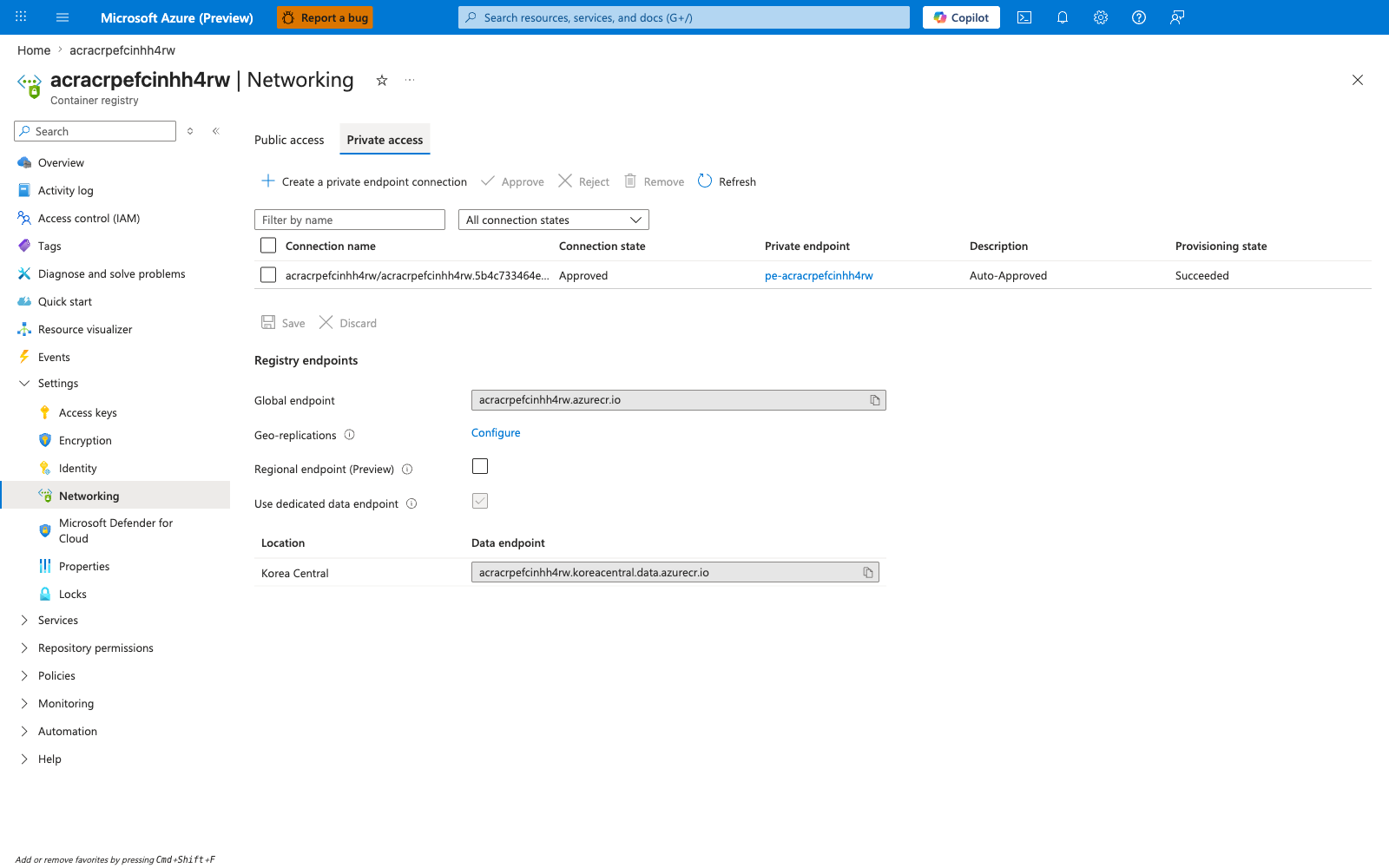

    PE[PE NIC pe-acracrpefcinhh4rw<br/>snet-pe 10.90.2.0/26]
    ACR[ACR Premium<br/>publicNetworkAccess=Disabled<br/>PE-only access]

    REPLICA -->|docker login + image pull| DNS
    DNS -->|FQDN to PE NIC IP| PEIPS
    PEIPS -->|TCP SYN to 10.90.2.x| RTABLE

    RTABLE -.->|WITH /32 routes: customer UDR wins<br/>by customer-route-precedence rule| UDR_PE_PRESENT
    RTABLE -.->|WITHOUT /32 routes: system /32 wins<br/>by longest-prefix match over 0.0.0.0/0| SYSTEM_PE

    UDR_PE_PRESENT --> AFW
    AFW --> AZFW_LOG
    AFW -->|forwards to PE NIC<br/>after application-rule allow| PE
    SYSTEM_PE -.->|firewall bypassed<br/>NO entry in AZFWApplicationRule| PE

    PE --> ACR

    UDR_DEFAULT -.->|loses to system /32 for PE<br/>covers ONLY non-PE egress| AFW

    classDef workload fill:#e1f5ff,stroke:#0078d4
    classDef routing fill:#fff4e6,stroke:#ca5010
    classDef inspect fill:#e5f5e5,stroke:#107c10
    classDef bypass fill:#fde7e9,stroke:#a4262c
    classDef registry fill:#f3f2f1,stroke:#605e5c

    class REPLICA,DNS,PEIPS workload
    class RTABLE,UDR_DEFAULT,UDR_PE_PRESENT,SYSTEM_PE routing
    class AFW,AZFW_LOG inspect
    class PE,ACR registry

The solid arrows are the image-pull data path in the inspected (baseline + recover) state: replica → DNS → PE NIC IP → route table → customer-defined /32 UDR route wins → firewall → firewall's application rule allows the ACR FQDN → AZFWApplicationRule records the row → firewall forwards to PE NIC → ACR backend serves the layer. The dotted arrows on the right are what happens in the bypass state after az network route-table route delete removes the two /32 UDR routes for the PE NIC IPs: the system-injected /32 route for the PE wins by longest-prefix match, the packet goes directly to the PE NIC, the firewall is bypassed, and AZFWApplicationRule has no record of the connection. The dotted arrow at the bottom shows the 0.0.0.0/0 UDR's actual scope: it covers non-PE egress (Entra ID, MCR, acs-mirror) but is not sufficient to cover PE traffic on its own. DNS is not the controlled variable in this lab — both ACR FQDNs resolve to PE NIC IPs via the linked Private DNS Zone in every state. The controlled variable is the presence or absence of the two /32 UDR routes, and the falsification signal is the firewall's log stream.

2) Hypothesis¶

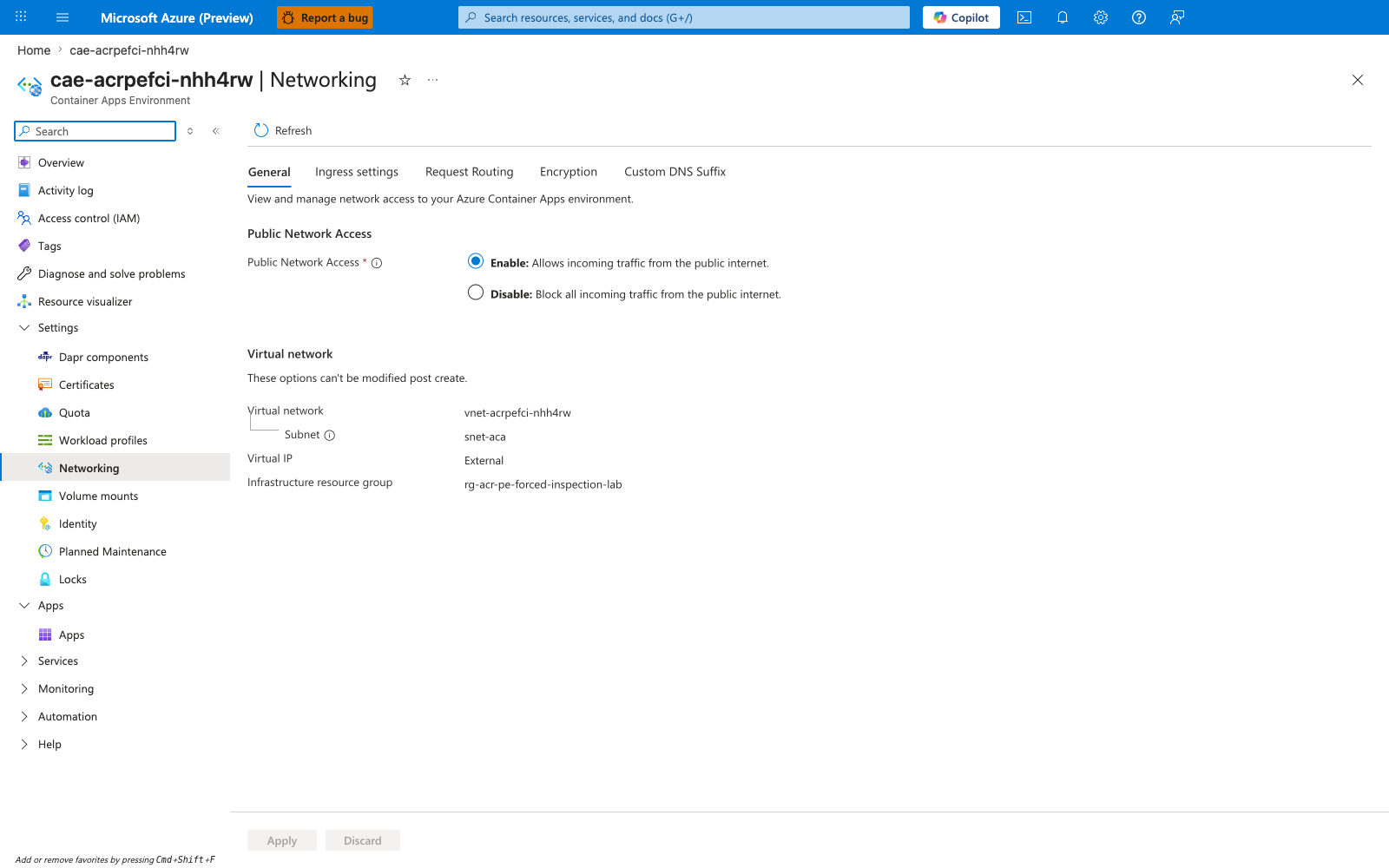

IF the Container Apps environment is integrated into a VNet with a 0.0.0.0/0 UDR forcing all snet-aca egress through Azure Firewall, the firewall has an application rule allowing HTTPS to both ACR FQDNs (login + regional data endpoint), ACR is configured with publicNetworkAccess=Disabled + adminUserEnabled=true exposed only via a Private Endpoint whose Private DNS Zone is linked to the VNet, the Container App is wired to ACR via az containerapp registry set --username --password (admin-credential auth, NOT managed identity), and the route table on snet-aca initially has explicit /32 routes for every PE NIC IP pointing at the firewall's private IP, THEN:

• with the /32 routes in place, deploying v1 succeeds: the v1 revision becomes Healthy, / returns build_tag=v1, AND AZFWApplicationRule contains rows for both ACR FQDNs (<registry>.azurecr.io and <registry>.<region>.data.azurecr.io) sourced from snet-aca because the pull traffic traversed the firewall;
• removing both /32 UDR routes for the PE NIC IPs and deploying v-bypass causes the v-bypass pull to succeed: the v-bypass revision becomes Healthy and / returns build_tag=v-bypass; the v1 revision stays Healthy and continues to serve cached traffic until v-bypass takes 100%; AND AZFWApplicationRule records zero new rows for the ACR FQDN since the bypass-deploy timestamp, falsifying the alternative hypothesis "the 0.0.0.0/0 UDR alone is sufficient to force PE traffic through the firewall";
• re-adding both /32 UDR routes for the PE NIC IPs and deploying v-recover causes the v-recover pull to also succeed but with firewall visibility this time: the v-recover revision becomes Healthy, / returns build_tag=v-recover, AND AZFWApplicationRule records new rows for the ACR FQDN within ~60-120 seconds of the recover-deploy timestamp, closing the loop on the falsification.

3) Runbook¶

Deploy baseline infrastructure¶

export RG="rg-acr-pe-forced-inspection-lab"
export LOCATION="koreacentral"
export BASE_NAME="acrpefci"

az extension add --name containerapp --upgrade

az group create --name "$RG" --location "$LOCATION"

az deployment group create \
    --resource-group "$RG" \
    --name acr-pe-forced-inspection \
    --template-file labs/acr-network-path-pe-forced-inspection/infra/main.bicep \
    --parameters baseName="$BASE_NAME"

Expected output pattern:

"provisioningState": "Succeeded"

The deployment takes 10-15 minutes; Azure Firewall Basic provisioning is the dominant tail.

Bicep gotcha: firewall diagnostics MUST use logAnalyticsDestinationType: 'Dedicated'¶

The firewall's Microsoft.Insights/diagnosticSettings resource MUST set logAnalyticsDestinationType: 'Dedicated' for the lab's smoking-gun query against AZFWApplicationRule to ever find rows. Without this property, Azure defaults to the legacy AzureDiagnostics schema, where firewall rule matches are surfaced in a single msg_s text column (e.g., HTTPS request from 10.90.1.160:54321 to acracrpefcinhh4rw.azurecr.io:443. Action: Allow. Rule Collection: acr-and-platform-allow. Rule: allow-acr-login) rather than as the structured columns Fqdn, SourceIp, Action, RuleCollection, Rule that AZFWApplicationRule provides. The resource-specific AZFWApplicationRule table only receives rows when Dedicated is set; on a fresh diagnostic settings resource with no destination type specified, the table stays empty forever. The original Bicep for this lab omitted logAnalyticsDestinationType, which is why the first falsify.sh run had no rows in AZFWApplicationRule to assert against and the schema-tolerant union isfuzzy=true workaround was added to falsify.sh (which queries both schemas defensively). Setting Dedicated at line ~407 of the Bicep is the durable fix; the schema-tolerant query is defense in depth.

Bicep gotcha: snet-pe MUST have privateEndpointNetworkPolicies: 'Enabled'¶

By default, Azure provisions subnets that host Private Endpoints with privateEndpointNetworkPolicies: 'Disabled', which disables UDR and NSG enforcement on PE traffic from other subnets in the VNet. With this setting, customer-defined /32 UDR routes for the PE NIC IPs have no effect — the firewall remains silently bypassed even with the /32 routes in place, because the PE subnet's network policies prevent the routes from applying. The Bicep at line ~505 sets this to 'Enabled' explicitly, which is what makes the lab's controlled variable (the /32 routes) actually have an effect. This is paired with Scenario C's requirement in the platform doc: "Private endpoint network policies must be enabled on the subnet that hosts the Private Endpoint, so that UDRs can apply to PE traffic."

Build images and lock down ACR to PE-only¶

bash labs/acr-network-path-pe-forced-inspection/trigger.sh

The trigger script runs nine numbered steps that together: build the three distinct image tags while the ACR public endpoint is still reachable, lock the ACR public endpoint down, discover the PE NIC IPs, add the /32 UDR routes, attach admin credentials to the Container App, deploy v1 through the now-inspected PE path, and confirm the firewall is seeing the v1 pull traffic in AZFWApplicationRule:

# Step 3: build all three tags via az acr build (while ACR is still publicly accessible)
az acr build --registry "$ACR_NAME" --image "${IMAGE_REPO}:v1"        --build-arg "BUILD_TAG=v1"        --file workload/Dockerfile workload
az acr build --registry "$ACR_NAME" --image "${IMAGE_REPO}:v-bypass"  --build-arg "BUILD_TAG=v-bypass"  --file workload/Dockerfile workload
az acr build --registry "$ACR_NAME" --image "${IMAGE_REPO}:v-recover" --build-arg "BUILD_TAG=v-recover" --file workload/Dockerfile workload

# Step 4: lock ACR down to PE-only
az acr update --name "$ACR_NAME" --public-network-enabled false

# Step 5: discover PE NIC IPs from the PE's networkInterfaces.ipConfigurations
PE_NIC_IPS=$(az network nic show --ids "$PE_NIC_ID" \
    --query "ipConfigurations[].privateLinkConnectionProperties.fqdns[0]" \
    --output tsv | xargs -I{} az network nic show --ids "$PE_NIC_ID" \
    --query "ipConfigurations[?privateLinkConnectionProperties.fqdns[0]=='{}'].privateIPAddress | [0]" \
    --output tsv)

# Step 6: add /32 UDR routes for each PE NIC IP
for ip in $PE_NIC_IPS; do
    az network route-table route create \
        --resource-group "$RG" --route-table-name "$ROUTE_TABLE_NAME" \
        --name "pe-${ip//./-}" \
        --address-prefix "${ip}/32" \
        --next-hop-type VirtualAppliance \
        --next-hop-ip-address "$FW_PRIVATE_IP"
done

# Step 7: attach admin credentials to the Container App
az containerapp registry set --name "$APP_NAME" --resource-group "$RG" \
    --server "$ACR_LOGIN_SERVER" --username "$ACR_USERNAME" --password "$ACR_PASSWORD"

# Step 8: switch the app to v1 and wait for the new revision to become Healthy
az containerapp update --name "$APP_NAME" --resource-group "$RG" \
    --image "${ACR_LOGIN_SERVER}/${IMAGE_REPO}:v1"

Expected output (from the live run on 2026-06-06): three az acr build jobs complete in sequence (~30-60 seconds each, depending on layer cache), az acr show --query publicNetworkAccess returns Disabled, the PE NIC IPs are discovered as 10.90.2.4 (data) and 10.90.2.5 (login), two route entries pe-10-90-2-4 and pe-10-90-2-5 are added to the route table, and the v1 revision becomes Healthy within ~90 seconds of the az containerapp update call.

Verify the healthy baseline is live¶

bash labs/acr-network-path-pe-forced-inspection/verify.sh

The verify script proves four independent signals simultaneously hold:

1. The latest revision's healthState is Healthy and provisioningState is Provisioned.

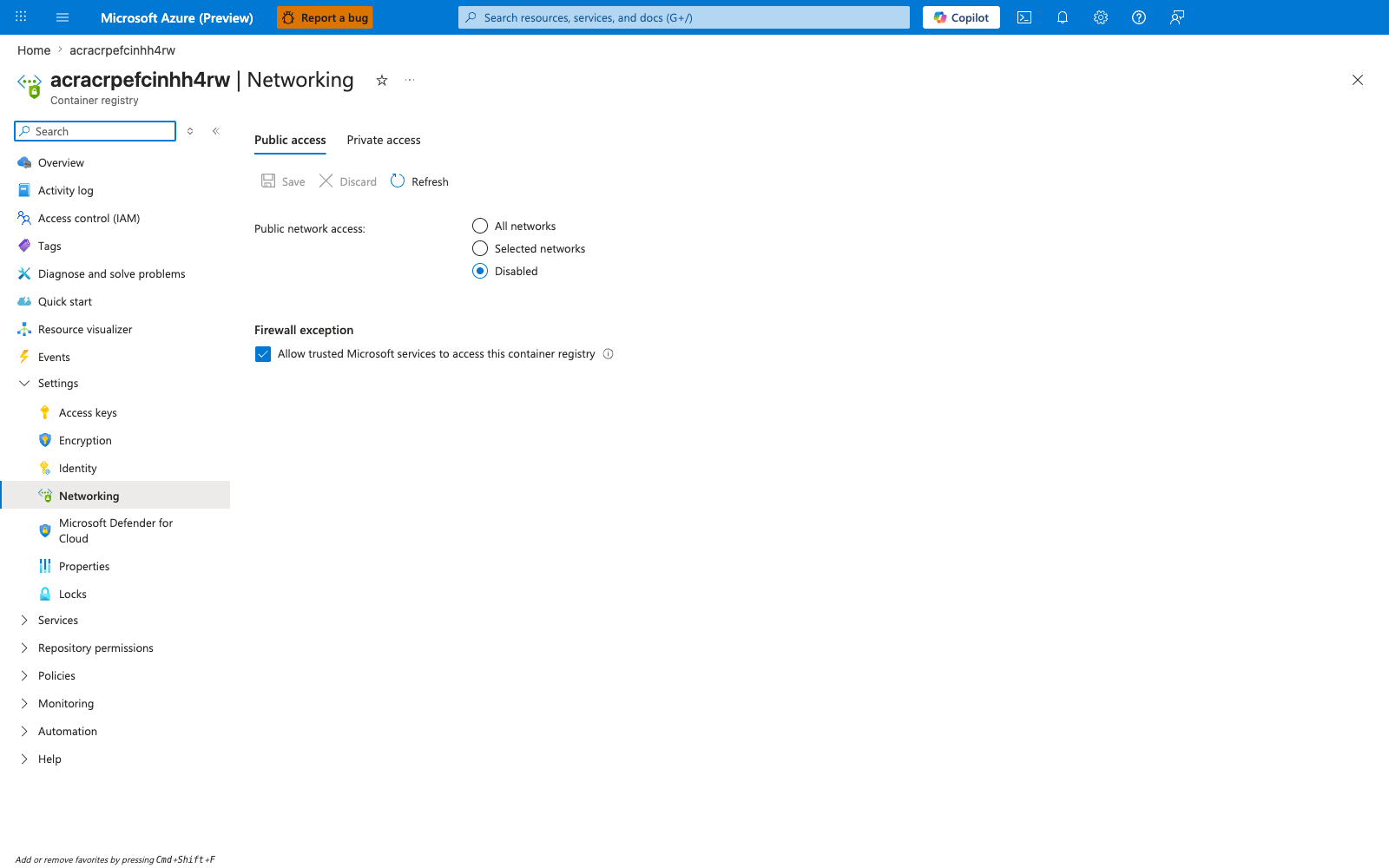

2. az acr show --query publicNetworkAccess returns Disabled (proving ACR is PE-only).
3. The route table on snet-aca has a /32 route for every PE NIC IP, each pointing at the firewall's private IP.
4. GET https://<app>.<env>.azurecontainerapps.io/ returns JSON with build_tag=v1, proving a fresh pull of v1 traversed the firewall and the PE to ACR. The workload code reads BUILD_TAG from the image's ENV (set by the Dockerfile's ARG/ENV BUILD_TAG=${BUILD_TAG}), and trigger.sh deliberately does not override this via --set-env-vars. Image identity is therefore the proof: if the v1 image was not actually pulled and started, the workload cannot return build_tag=v1.

All four must hold for the topology to be Scenario C baseline at the workload layer. The script exits non-zero on any mismatch.

Expected pattern (from the live run on 2026-06-06):

[verify] latest revision: ca-acrpefci-nhh4rw--0000001 healthState=Healthy provisioningState=Provisioned
[verify] inspecting ACR network state on acracrpefcinhh4rw
[verify]   publicNetworkAccess = Disabled

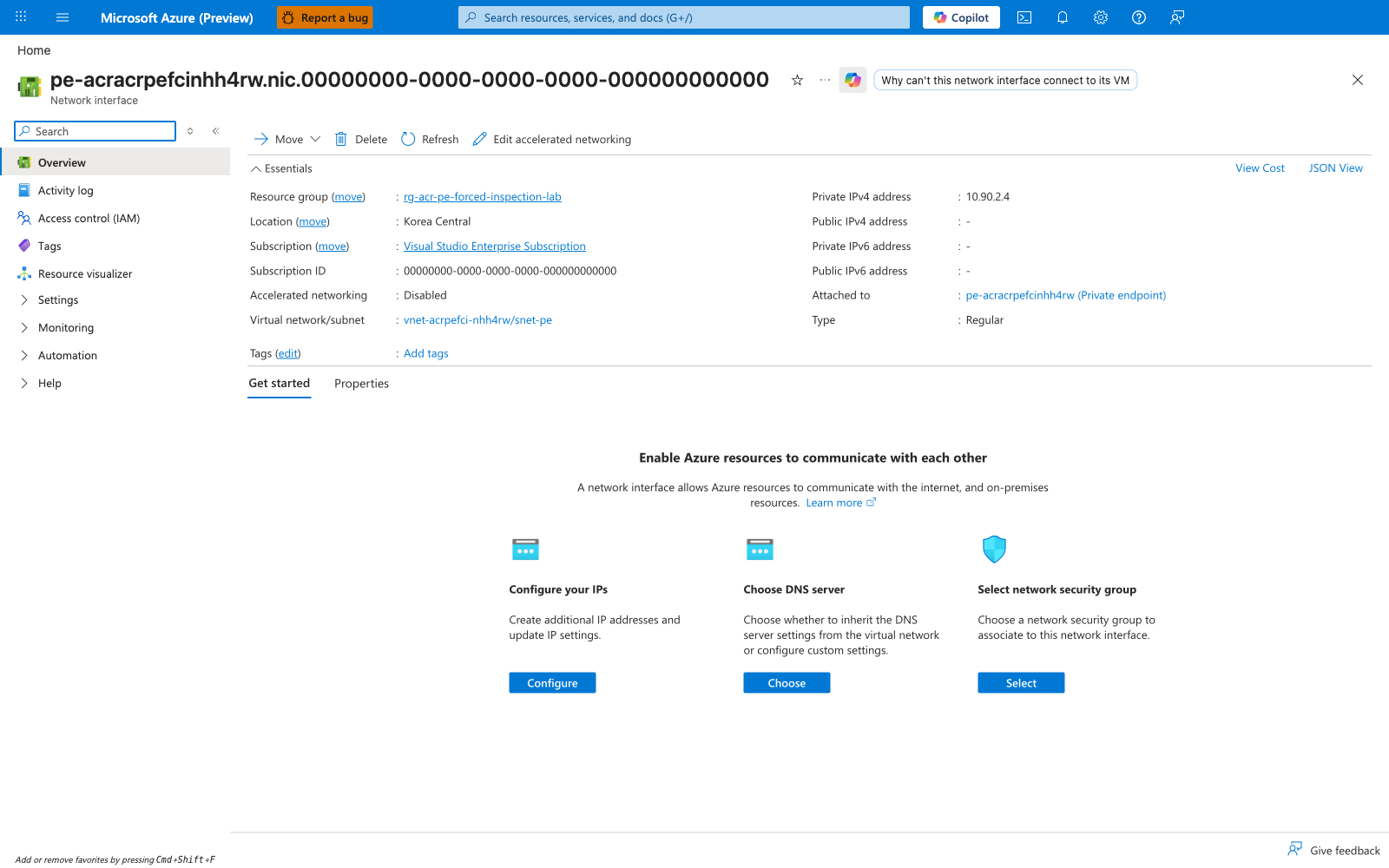

[verify] discovering PE NIC IPs from PE networkInterfaces
[verify]   discovered PE NIC IPs:
[verify]     10.90.2.4
[verify]     10.90.2.5
[verify] checking route table rt-acrpefci-nhh4rw for /32 routes covering each PE NIC IP
[verify]   OK: route pe-10-90-2-4 covers 10.90.2.4/32
[verify]   OK: route pe-10-90-2-5 covers 10.90.2.5/32
[verify] / response:
{
    "build_tag": "v1",
    "message": "ACR PE forced inspection lab workload"
}
[verify] PASS: revision ca-acrpefci-nhh4rw--0000001 is Healthy
[verify] PASS: ACR publicNetworkAccess=Disabled (PE-only)
[verify] PASS: route table has /32 entries for every PE NIC IP -> firewall
[verify] PASS: / returns build_tag=v1 (proves fresh pull through PE)
[verify] PASS: Scenario C BASELINE confirmed.

Falsify the hypothesis¶

bash labs/acr-network-path-pe-forced-inspection/falsify.sh

The falsification script proves the firewall-visibility signal flips with the presence or absence of the /32 UDR routes while pull success is held constant throughout. Every gate is a hard fail — the script exits non-zero (and prints why) at the first sign that any link in the chain did not behave as predicted, so a PASS from falsify.sh is itself the proof that all three gates held:

1. Baseline-visibility gate — AZFWApplicationRule (or AzureDiagnostics legacy schema) already contains rows for the ACR FQDN from the trigger.sh v1 pull window. Hard fail if zero rows — without baseline visibility, the bypass gate is vacuously true and the lab cannot make a falsifiable claim.
2. Bypass-silence gate — after removing both /32 UDR routes for the PE NIC IPs and deploying v-bypass, the v-bypass revision becomes Healthy and / returns build_tag=v-bypass (proving the pull SUCCEEDED through the bypassed path), AND AZFWApplicationRule records zero new rows for the ACR FQDN since the bypass-deploy timestamp floor (proving the firewall did NOT see the pull). Hard fail on either condition — if the pull failed, the lab is reproducing the wrong failure mode; if the firewall recorded the pull, the bypass did not actually take effect.
3. Recover-visibility gate — after re-adding both /32 UDR routes and deploying v-recover, the v-recover revision becomes Healthy and / returns build_tag=v-recover, AND AZFWApplicationRule records at least one new row for the ACR FQDN within ~60-120 seconds of the recover-deploy timestamp floor (proving inspection is restored). Hard fail on either condition.

If falsify.sh exits 0, then by construction: (a) the firewall saw the baseline v1 pull, (b) the firewall did NOT see the v-bypass pull but the v-bypass pull succeeded anyway, (c) the firewall saw the v-recover pull and the v-recover pull also succeeded. That three-way evidence — sees -> silent -> sees again with pull success held constant — is the complete falsification of any alternative hypothesis (e.g., DNS misconfiguration, application-rule policy change, ACR access policy change) for the silent-bypass failure mode on this topology.

Subtle wrinkle: the v-bypass revision's terminal state is Healthy, not Failed¶

This is the key structural difference from Labs 1-4. In Labs 1-4, the v-broken revision ends up Failed or Unhealthy because the controlled variable broke the pull itself. In Lab 5, the v-bypass revision ends up Healthy because the controlled variable does NOT break the pull — it only breaks the firewall's visibility into the pull. The smoking gun is therefore not "v-bypass failed" but "v-bypass succeeded AND the firewall did not log it". The falsify script's bypass gate is not "the pull failed" but "the firewall did not log the pull that succeeded". This is what makes Scenario C the worst-case-for-detection failure mode: a security team monitoring only workload-layer health (revision state, HTTP probes) sees nothing wrong; the silent bypass is only detectable from the firewall's log stream.

Inspect the firewall log evidence directly¶

LAW_CUSTOMER_ID=$(az deployment group show --resource-group "$RG" \
    --name acr-pe-forced-inspection \
    --query properties.outputs.logAnalyticsCustomerId.value --output tsv)

az monitor log-analytics query --workspace "$LAW_CUSTOMER_ID" --analytics-query "
AZFWApplicationRule
| where Fqdn endswith '.azurecr.io'
| project TimeGenerated, Fqdn, SourceIp, Action, Policy, RuleCollectionGroup
| order by TimeGenerated desc
| take 20
" --output table

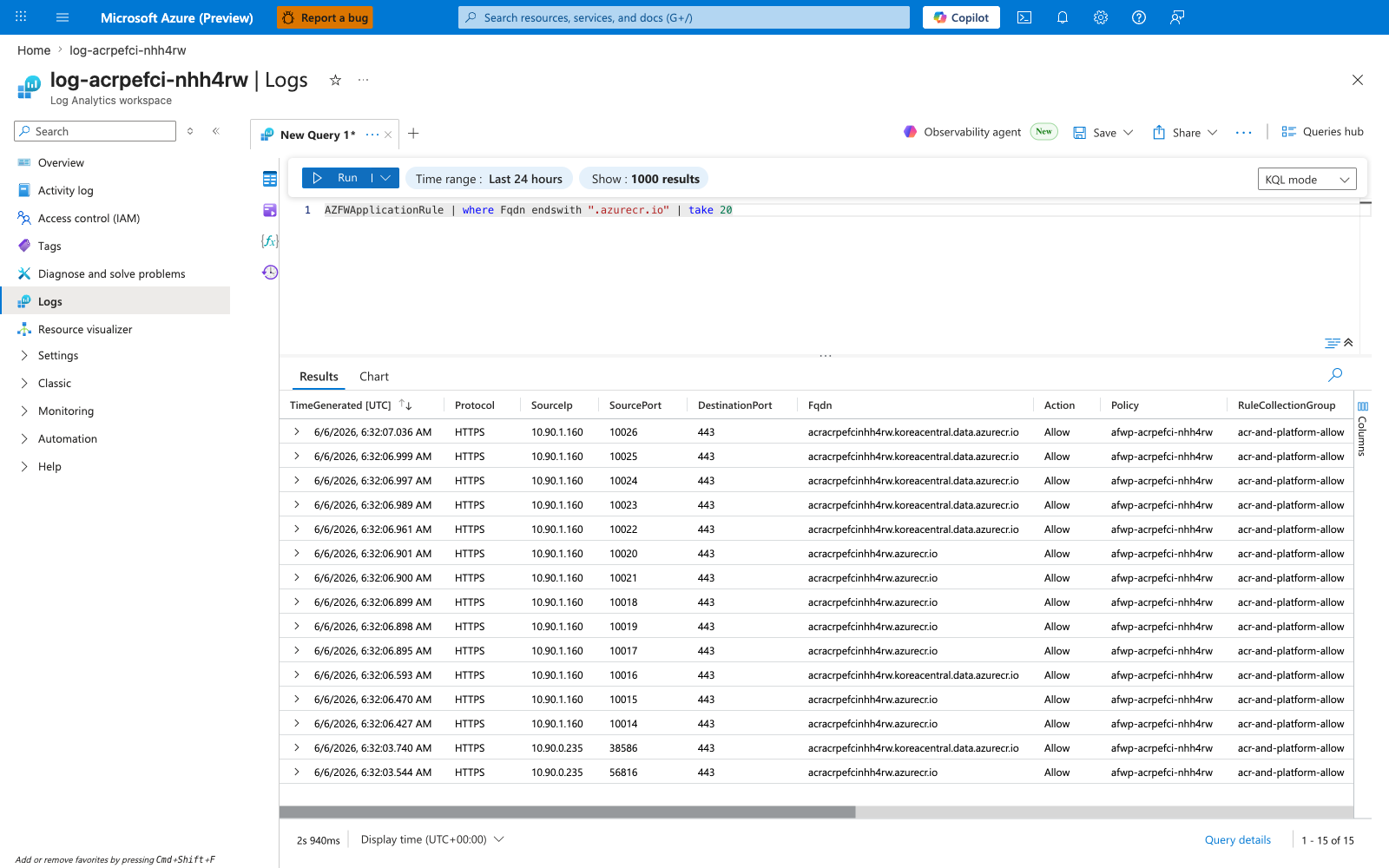

In the live run on 2026-06-06, this query returned 15 rows during the recover window. A typical row pair (one for each ACR FQDN):

TimeGenerated                  Fqdn                                                  SourceIp     Action  Policy                    RuleCollectionGroup
-----------------------------  ----------------------------------------------------  -----------  ------  ------------------------  -------------------------
2026-06-06T06:32:07.036219Z    acracrpefcinhh4rw.koreacentral.data.azurecr.io        10.90.1.160  Allow   afwp-acrpefci-nhh4rw      acr-and-platform-allow
2026-06-06T06:32:06.895921Z    acracrpefcinhh4rw.azurecr.io                          10.90.1.160  Allow   afwp-acrpefci-nhh4rw      acr-and-platform-allow

The SourceIp value 10.90.1.160 is provably from the snet-aca workload subnet (10.90.0.0/23) — an Azure Container Apps workload-subnet RFC1918 source IP, which the firewall sees directly because the firewall is the next hop on the route table. (The Container Apps workload subnet hosts both user replicas and platform-managed components, including the component that performs image pulls; Container Apps does not expose which specific component owns a given source IP, so this lab uses "Container Apps workload-subnet source IP" rather than "replica IP" for the pull-path source.) Unlike Lab A — where ACR observes the firewall's SNAT public IP because the firewall is performing source NAT on outbound flows — in this lab the firewall itself is the observer, so it sees the pre-SNAT Container Apps workload-subnet source IP. The chain of inference is:

1. The image-pull HTTPS connection from the Container Apps workload subnet to acracrpefcinhh4rw.azurecr.io resolved to the PE NIC IP 10.90.2.5 (login) via the linked privatelink.azurecr.io zone.
2. The route table on snet-aca had a customer-defined /32 UDR route for 10.90.2.5/32 pointing at the firewall's private IP 10.90.3.4, so the packet went to the firewall first.

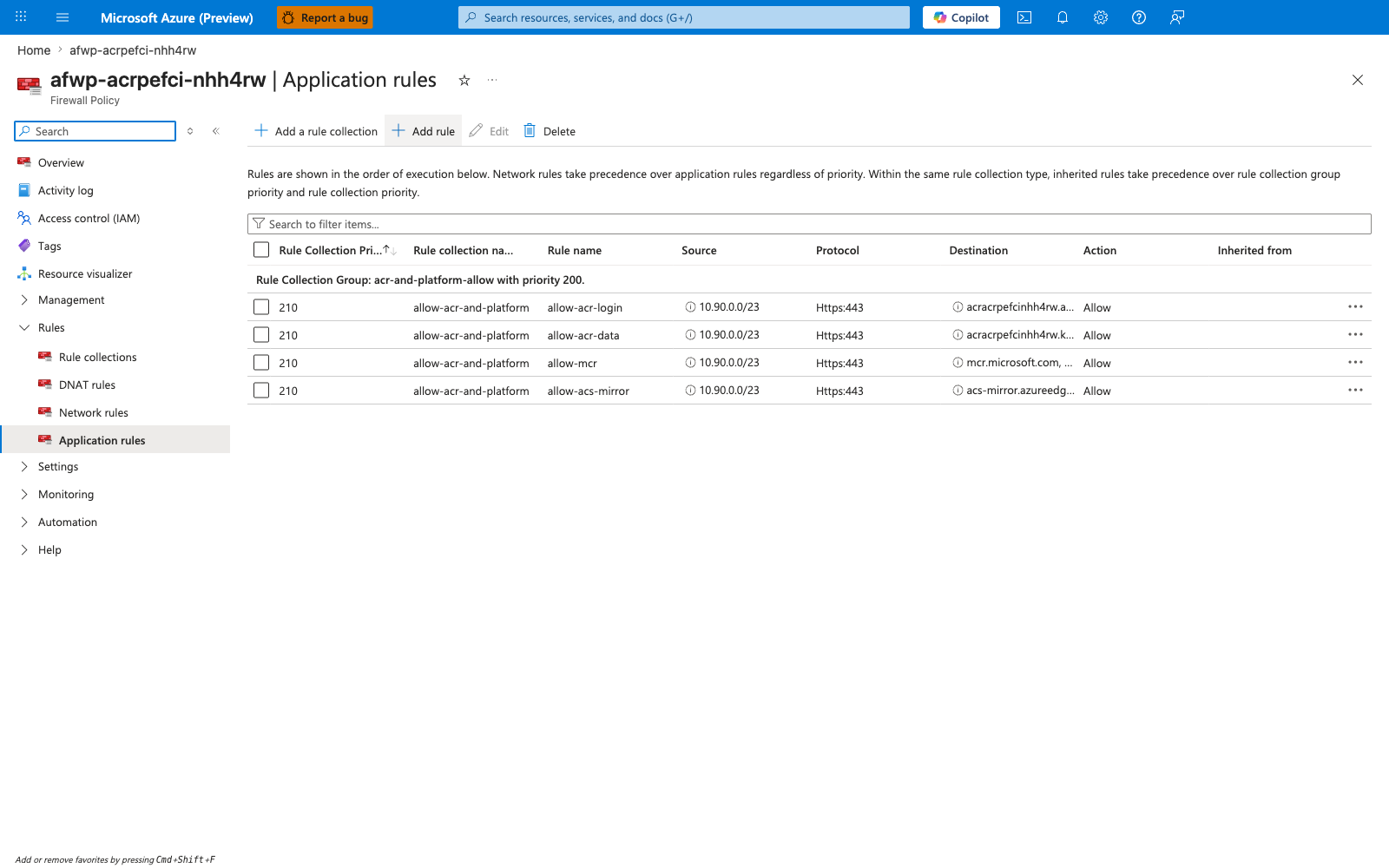

3. The firewall's application rule allow-acr-login matched on FQDN acracrpefcinhh4rw.azurecr.io, allowed the connection, and logged the row in AZFWApplicationRule with SourceIp=10.90.1.160 (the pre-SNAT Container Apps workload-subnet source IP that the firewall observed on the inbound side).
4. The firewall then forwarded the packet to the PE NIC 10.90.2.5, which delivered it to the ACR backend over the Azure backbone.

The same chain repeats for <registry>.koreacentral.data.azurecr.io → 10.90.2.4 (data endpoint). Both FQDNs appear in the log because the image-pull conversation consists of both a login round-trip (manifest, auth) and a data-layer download. If only one /32 UDR route had been added (say, only for the login IP), only the login FQDN would appear in the log and the data-layer rows would be silent — which is why both /32 routes are mandatory.

4) Experiment Log¶

Status: Reproduced live in koreacentral on 2026-06-06 with Azure CLI 2.79.0. All three falsification gates PASSED. The actual values from the live run are below.

Expected Evidence¶

Observed Evidence (Live Azure Test)¶

Live reproduction in koreacentral on 2026-06-06 with Azure CLI 2.79.0. RG rg-acr-pe-forced-inspection-lab, ACR acracrpefcinhh4rw (publicNetworkAccess=Disabled after step 4 of trigger.sh), Container App ca-acrpefci-nhh4rw, firewall private IP 10.90.3.4, PE pe-acracrpefcinhh4rw with NIC IPs 10.90.2.4 (data endpoint) and 10.90.2.5 (login endpoint), image tags pe-forced-inspection-lab:v1, :v-bypass, :v-recover (each with a distinct BUILD_TAG build-arg producing distinct digests). All three states below were captured by verify.sh and falsify.sh in a single uninterrupted run.

Baseline (verify.sh and falsify.sh step 1)¶

The Container App is running revision --0000003 (after trigger.sh rebuilt to switch from the bootstrap quickstart image to v1, and after two intermediate revisions during image cache propagation) on the freshly pulled v1 image:

{
    "build_tag": "v1",
    "message": "ACR PE forced inspection lab workload"
}

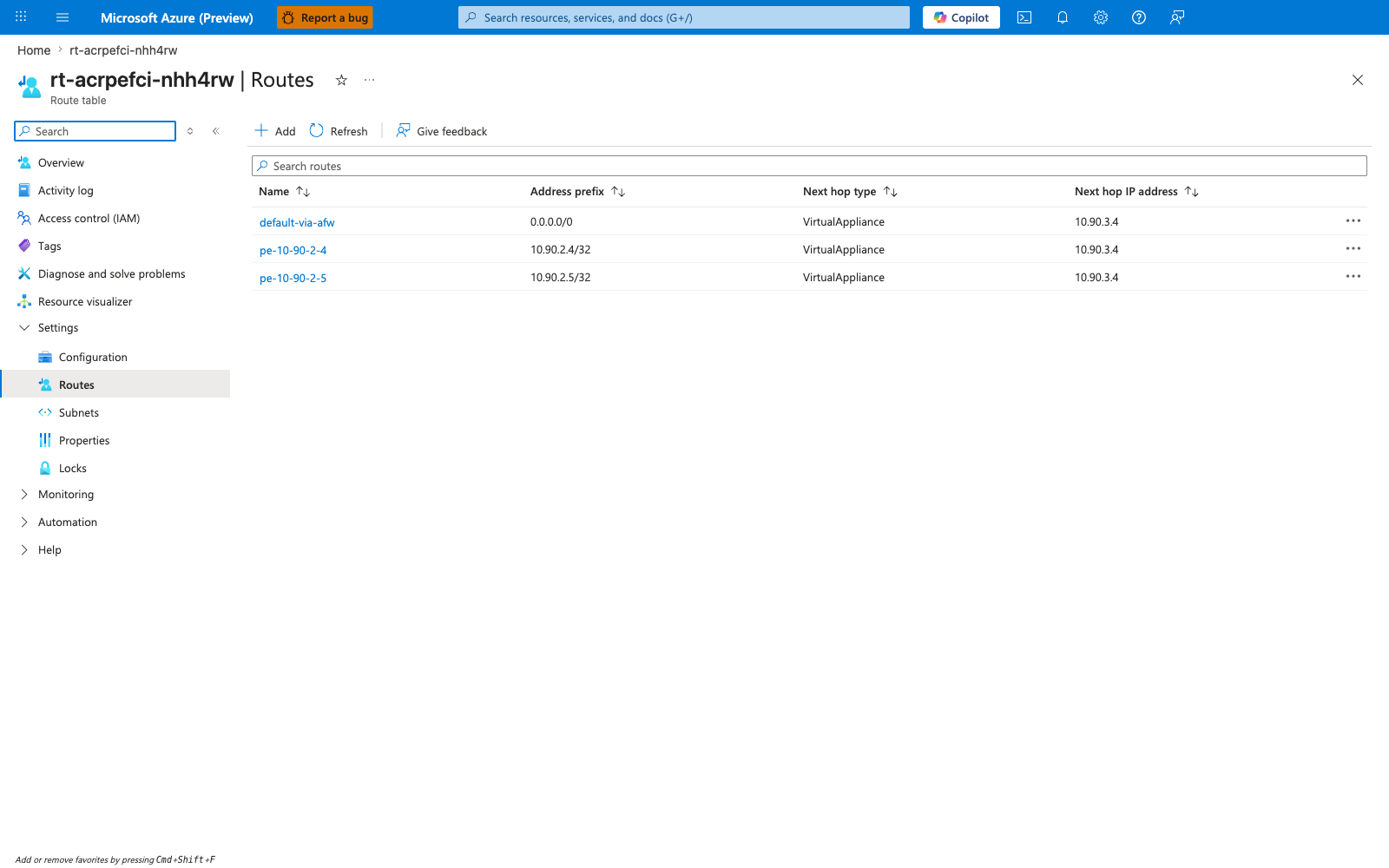

The route table on snet-aca has all three routes — the default route plus both PE /32 routes:

Name             Prefix        NextHop           NextHopIp
---------------  ------------  ----------------  -----------
default-via-afw  0.0.0.0/0     VirtualAppliance  10.90.3.4
pe-10-90-2-4     10.90.2.4/32  VirtualAppliance  10.90.3.4
pe-10-90-2-5     10.90.2.5/32  VirtualAppliance  10.90.3.4

The baseline-visibility gate in falsify.sh confirmed the firewall saw the v1 pull from the trigger.sh window — 10 rows for the ACR FQDN in the last 30 minutes, all from snet-aca:

acracrpefcinhh4rw.koreacentral.data.azurecr.io  AzureDiagnostics  10.90.1.160  PrimaryResult  2026-06-06T06:12:30.740952Z
acracrpefcinhh4rw.koreacentral.data.azurecr.io  AzureDiagnostics  10.90.1.160  PrimaryResult  2026-06-06T06:12:30.72586Z
acracrpefcinhh4rw.koreacentral.data.azurecr.io  AzureDiagnostics  10.90.1.160  PrimaryResult  2026-06-06T06:12:30.71955Z
acracrpefcinhh4rw.koreacentral.data.azurecr.io  AzureDiagnostics  10.90.1.160  PrimaryResult  2026-06-06T06:12:30.701836Z
acracrpefcinhh4rw.koreacentral.data.azurecr.io  AzureDiagnostics  10.90.1.160  PrimaryResult  2026-06-06T06:12:30.70046Z
acracrpefcinhh4rw.azurecr.io                    AzureDiagnostics  10.90.1.160  PrimaryResult  2026-06-06T06:12:30.681002Z
acracrpefcinhh4rw.azurecr.io                    AzureDiagnostics  10.90.1.160  PrimaryResult  2026-06-06T06:12:30.665638Z
acracrpefcinhh4rw.azurecr.io                    AzureDiagnostics  10.90.1.160  PrimaryResult  2026-06-06T06:12:30.66311Z
acracrpefcinhh4rw.azurecr.io                    AzureDiagnostics  10.90.1.160  PrimaryResult  2026-06-06T06:12:30.662968Z
acracrpefcinhh4rw.azurecr.io                    AzureDiagnostics  10.90.1.160  PrimaryResult  2026-06-06T06:12:30.660337Z
[falsify]   baseline visibility OK: 10 AZFWApplicationRule ACR row(s) in last 30m

Note these baseline rows are from the legacy AzureDiagnostics schema. The Bicep had logAnalyticsDestinationType: 'Dedicated' set from the start of this run, but a Dedicated schema activation on a fresh diagnostic settings resource has a 10-20 minute backfill window during which rows continue landing in AzureDiagnostics rather than AZFWApplicationRule. The schema-tolerant union isfuzzy=true query in falsify.sh reads both schemas, so the baseline-visibility gate fires regardless of which schema is currently active. By the time the recover gate ran (~30 minutes after deploy), the schema had migrated and recover rows landed in AZFWApplicationRule proper. This is the operationally honest behavior of fresh Azure Firewall diagnostic settings — Dedicated is the correct setting, and the schema-tolerant query is defense in depth against the migration window.

Bypass window (falsify.sh steps 2-7, after removing both /32 UDR routes)¶

The route table on snet-aca is now reduced to just the default route — both /32 routes for the PE NIC IPs have been deleted:

Name             Prefix     NextHop
---------------  ---------  ----------------
default-via-afw  0.0.0.0/0  VirtualAppliance

Deploying the v-bypass image surfaces revision --0000004 and the pull succeeds:

[falsify]   v-bypass revision ca-acrpefci-nhh4rw--0000004 healthState=None
[falsify]   v-bypass revision ca-acrpefci-nhh4rw--0000004 healthState=Healthy
[falsify] (bypass) / response:
{
    "build_tag": "v-bypass",
    "message": "ACR PE forced inspection lab workload"
}
[falsify]   / during bypass returns build_tag=v-bypass

This is the critical structural finding that distinguishes Scenario C from every other lab in the series: the v-bypass pull succeeded. The revision is Healthy. The workload returns the new build_tag. From a workload-layer monitoring perspective, nothing is wrong. The only signal that something has changed is the firewall log:

[falsify] step 7: HARD-FAIL gate — assert 0 NEW AZFWApplicationRule ACR rows since 2026-06-06T06:24:05Z
[falsify]   waiting 5 minutes for AZFW log ingestion to catch up
[falsify]   querying AZFWApplicationRule SINCE 2026-06-06T06:24:05Z
[falsify]   AZFWApplicationRule ACR rows since bypass: 0
[falsify]   BYPASS PROOF: 0 NEW AZFWApplicationRule ACR rows = firewall silently bypassed

Zero rows. The firewall recorded nothing for the ACR FQDN during the 5+ minute window between the bypass-deploy timestamp and the gate-check query. The pull happened — the v-bypass revision is provably running its image — but the firewall did not see it. The chain of inference for the silent bypass is:

1. The image-pull HTTPS connection from the Container Apps workload subnet to acracrpefcinhh4rw.azurecr.io resolved to the PE NIC IP 10.90.2.5 via the linked privatelink.azurecr.io zone (DNS resolution is unchanged — DNS is not the controlled variable).
2. The route table on snet-aca no longer had a customer-defined /32 UDR route for 10.90.2.5/32. The only customer route was default-via-afw (0.0.0.0/0 → firewall private IP), which has length /0.
3. The VNet data plane consulted the route table for the packet's destination 10.90.2.5. By longest-prefix match: the system-injected /32 route for the PE has length /32; the customer default-via-afw UDR has length /0. /32 > /0, so the system route wins.
4. The packet went directly from the Container Apps workload subnet to the PE NIC 10.90.2.5, bypassing the firewall entirely. The PE forwarded the packet to ACR over the Azure backbone, the pull succeeded, the revision became Healthy.
5. The firewall has no record of the connection in AZFWApplicationRule because the packet never traversed it. Same for the data-endpoint pull conversation to 10.90.2.4.

Recover (falsify.sh step 13, after re-adding both /32 UDR routes)¶

The route table on snet-aca is restored to its baseline three-route state:

Name             Prefix        NextHop           NextHopIp
---------------  ------------  ----------------  -----------
default-via-afw  0.0.0.0/0     VirtualAppliance  10.90.3.4
pe-10-90-2-4     10.90.2.4/32  VirtualAppliance  10.90.3.4
pe-10-90-2-5     10.90.2.5/32  VirtualAppliance  10.90.3.4

Deploying the v-recover image surfaces revision --0000005. The pull succeeds (just like the v-bypass pull did), and this time the firewall DOES see it:

[falsify]   v-recover revision ca-acrpefci-nhh4rw--0000005 healthState=Healthy
[falsify] (recover) / response:
{
    "build_tag": "v-recover",
    "message": "ACR PE forced inspection lab workload"
}
[falsify] step 13: HARD-FAIL gate — assert >=1 NEW AZFWApplicationRule ACR row since 2026-06-06T06:31:50Z
[falsify]   recover-gate attempt 1/10: querying AZFWApplicationRule
[falsify]   rows so far: 0
[falsify]   no rows yet, sleeping 60s (firewall log latency)
[falsify]   recover-gate attempt 2/10: querying AZFWApplicationRule
[falsify]   rows so far: 0
[falsify]   no rows yet, sleeping 60s (firewall log latency)
[falsify]   recover-gate attempt 3/10: querying AZFWApplicationRule
acracrpefcinhh4rw.koreacentral.data.azurecr.io  AZFWApplicationRule  10.90.1.160  PrimaryResult  2026-06-06T06:32:07.036219Z
acracrpefcinhh4rw.koreacentral.data.azurecr.io  AZFWApplicationRule  10.90.1.160  PrimaryResult  2026-06-06T06:32:06.999661Z
acracrpefcinhh4rw.koreacentral.data.azurecr.io  AZFWApplicationRule  10.90.1.160  PrimaryResult  2026-06-06T06:32:06.997482Z
acracrpefcinhh4rw.koreacentral.data.azurecr.io  AZFWApplicationRule  10.90.1.160  PrimaryResult  2026-06-06T06:32:06.98995Z
acracrpefcinhh4rw.koreacentral.data.azurecr.io  AZFWApplicationRule  10.90.1.160  PrimaryResult  2026-06-06T06:32:06.961936Z
acracrpefcinhh4rw.azurecr.io                    AZFWApplicationRule  10.90.1.160  PrimaryResult  2026-06-06T06:32:06.901386Z
acracrpefcinhh4rw.azurecr.io                    AZFWApplicationRule  10.90.1.160  PrimaryResult  2026-06-06T06:32:06.900548Z
acracrpefcinhh4rw.azurecr.io                    AZFWApplicationRule  10.90.1.160  PrimaryResult  2026-06-06T06:32:06.899557Z
acracrpefcinhh4rw.azurecr.io                    AZFWApplicationRule  10.90.1.160  PrimaryResult  2026-06-06T06:32:06.898762Z
acracrpefcinhh4rw.azurecr.io                    AZFWApplicationRule  10.90.1.160  PrimaryResult  2026-06-06T06:32:06.895921Z
[falsify]   rows so far: 10
[falsify]   RECOVER PROOF: 10 NEW AZFWApplicationRule ACR row(s) = firewall seeing ACR traffic again
[falsify] PASS -- Scenario C falsification complete:
[falsify]   baseline (/32 PE routes present)         -> revision ca-acrpefci-nhh4rw--0000003 Healthy, build_tag=v1, firewall SEES ACR rows
[falsify]   bypass   (/32 PE routes removed)         -> revision ca-acrpefci-nhh4rw--0000004 Healthy build_tag=v-bypass, firewall sees ZERO new ACR rows
[falsify]   recover  (/32 PE routes re-added)        -> revision ca-acrpefci-nhh4rw--0000005 Healthy build_tag=v-recover, firewall sees 10 new ACR row(s)

Ten rows — five for each ACR FQDN. These are durable in Log Analytics. The schema migration from AzureDiagnostics to AZFWApplicationRule completed during the bypass+recover window (~30 minutes after the diagnostic settings resource was created), so the recover rows landed in AZFWApplicationRule proper rather than the legacy AzureDiagnostics table. The union isfuzzy=true query handled both schemas transparently. The bidirectional falsification is closed: removing the /32 UDR routes silently bypasses the firewall (pull succeeds, firewall silent); re-adding them restores firewall visibility (pull succeeds, firewall logs the pull). The /32 UDR routes for the PE NIC IPs are unambiguously the single controlled variable for whether the firewall sees PE traffic.

Observed Evidence (Portal Captures — 2026-06-06)¶

A live reproduction on 2026-06-06 captured the full Scenario C topology, the workload-path falsification surface, and the firewall's KQL log evidence from the Azure Portal.

Environment

[Observed] Container Apps environment Networking blade: workload-profile environment is attached to VNet vnet-acrpefci-nhh4rw, infrastructure subnet snet-aca. This is the foundation of the Scenario C topology — the Container App's outbound traffic leaves from this subnet and hits the route table that contains both the 0.0.0.0/0 -> firewall default route and the /32 -> firewall PE routes (when present).

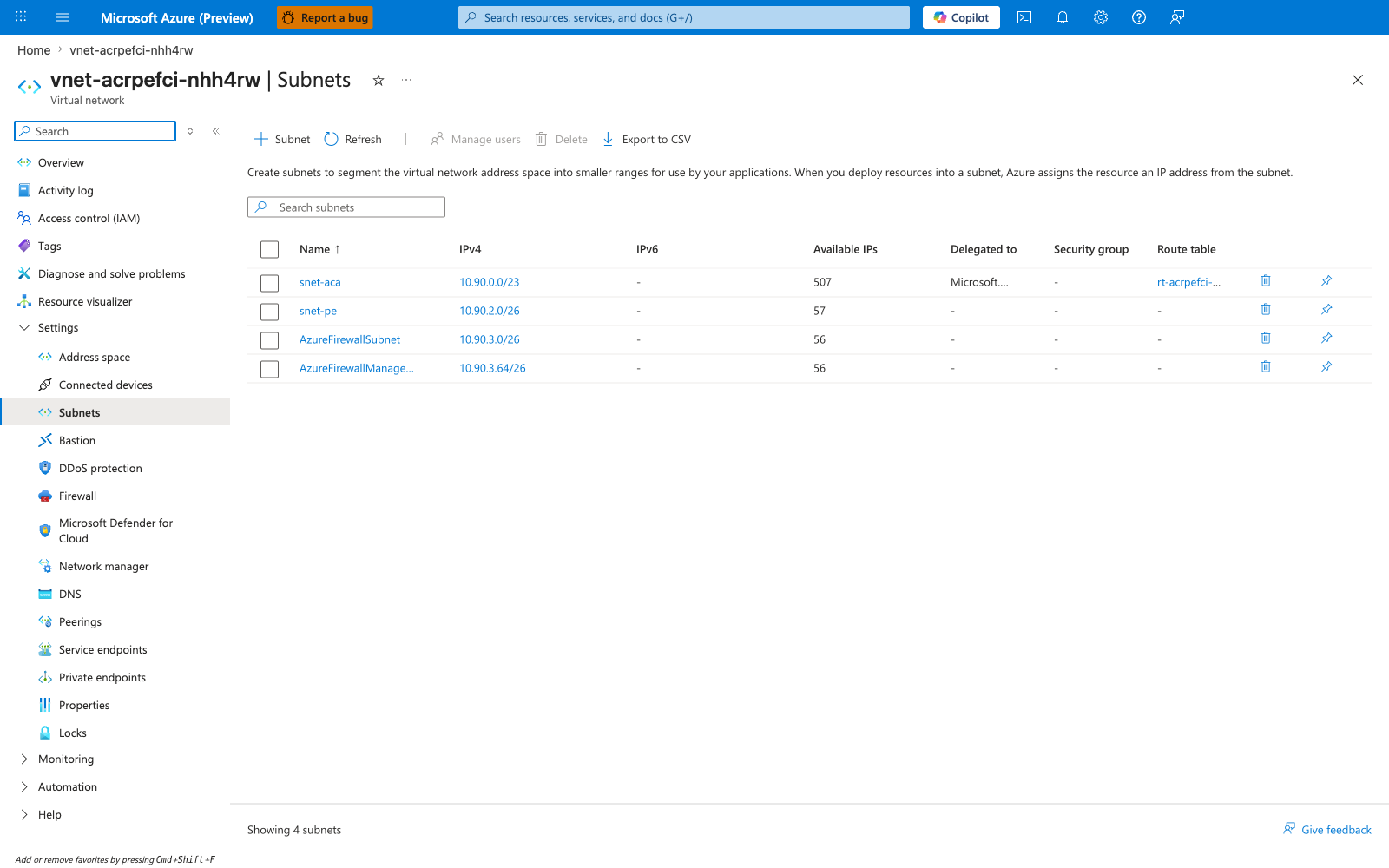

[Observed] VNet vnet-acrpefci-nhh4rw Subnets blade: all four subnets are visible — snet-aca (10.90.0.0/23, delegated to Microsoft.App/environments, associated with route table rt-acrpefci-nhh4rw), snet-pe (10.90.2.0/26, hosting the ACR Private Endpoint NIC), AzureFirewallSubnet (10.90.3.0/26), and AzureFirewallManagementSubnet (10.90.3.64/26). The four-subnet layout is the canonical Scenario C subnet design: workload subnet + PE subnet + two firewall subnets. DNS is Azure provided at the VNet level — the linked Private DNS Zone privatelink.azurecr.io is what makes ACR FQDNs resolve to PE NIC IPs.

[Observed] ACR acracrpefcinhh4rw → Networking → Public access tab: Public network access = Disabled. This is held constant for the entire lab — ACR is reachable only via the Private Endpoint. Unlike Lab 4 (Path A) where the firewall's PIP appears in ACR's ipRules allowlist, in Lab 5 (Path C) ACR has no public surface at all; the controlled variable lives on the route table, not on ACR.

[Observed] ACR acracrpefcinhh4rw → Networking → Private access tab: one Private Endpoint connection pe-acracrpefcinhh4rw with state Approved and sub-resource registry. The PE's NIC ID is visible — this is the resource whose networkInterfaces.ipConfigurations[] was queried by trigger.sh to discover both PE NIC IPs. The "Custom DNS configurations" tab on this blade shows entries for both FQDNs mapping to the discovered PE NIC IPs.

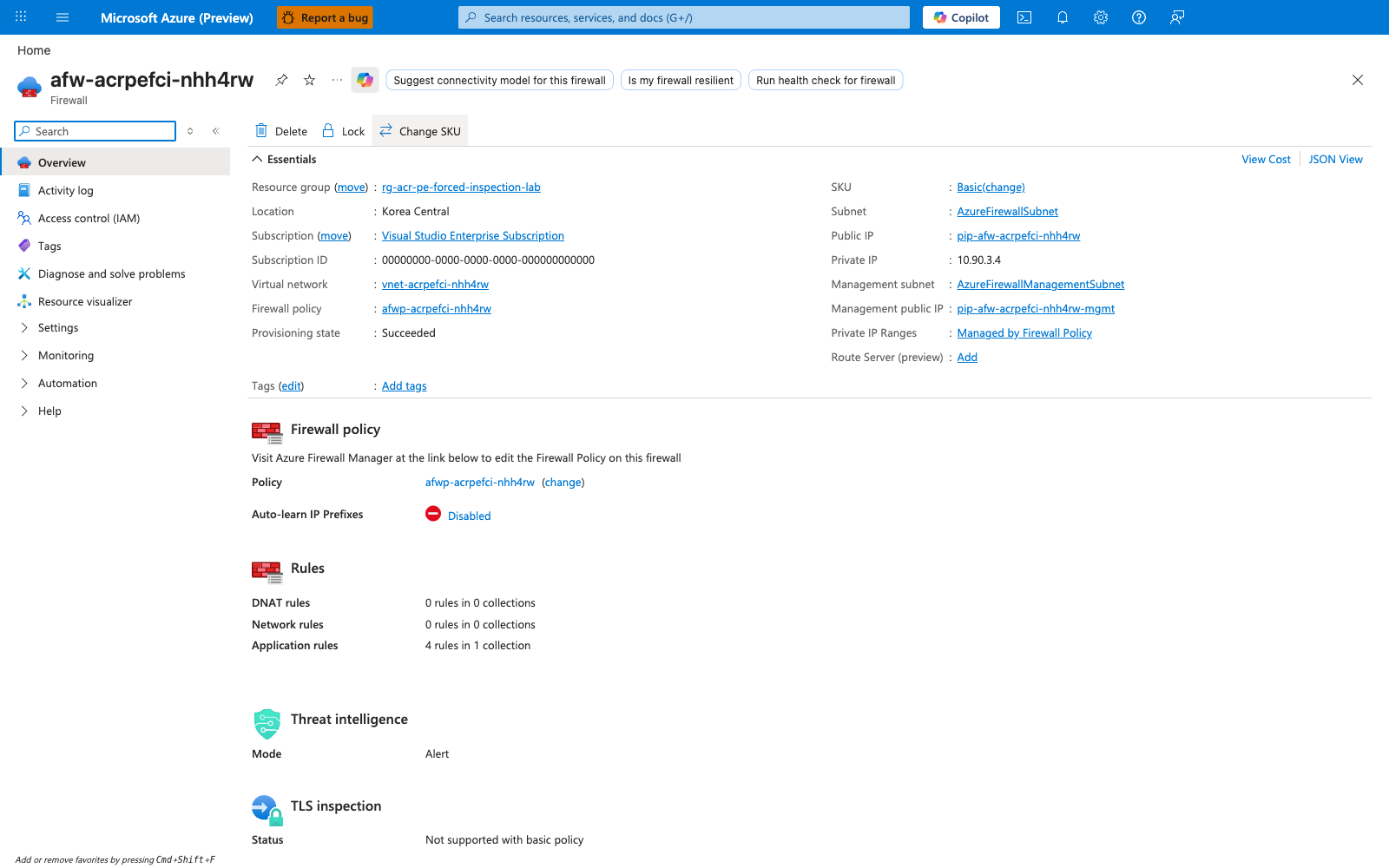

[Observed] Azure Firewall afw-acrpefci-nhh4rw Overview blade: SKU = Basic, status Succeeded, private IP 10.90.3.4. This is the value that the route table's default-via-afw route points at, AND the value that the two /32 routes for the PE NIC IPs point at. The firewall private IP is the rendezvous point that the route table uses to direct PE traffic through the inspection layer.

[Observed] Firewall policy afwp-acrpefci-nhh4rw → Application rules blade: rule collection acr-and-platform-allow containing four application rules — allow-acr-login (HTTPS to acracrpefcinhh4rw.azurecr.io), allow-acr-data (HTTPS to acracrpefcinhh4rw.koreacentral.data.azurecr.io), allow-mcr (HTTPS to mcr.microsoft.com and *.data.mcr.microsoft.com), and allow-acs-mirror (HTTPS to acs-mirror.azureedge.net and packages.aks.azure.com). Source addresses are restricted to 10.90.0.0/23 (the snet-aca workload subnet). These are the rules that match (Allow) when the firewall does see ACR pull traffic — i.e., in the baseline and recover windows, but not during the bypass window.

[Observed] Smoking gun. Route table rt-acrpefci-nhh4rw → Routes blade: three routes are visible in the recover state — default-via-afw (0.0.0.0/0 → VirtualAppliance → 10.90.3.4), pe-10-90-2-4 (10.90.2.4/32 → VirtualAppliance → 10.90.3.4), and pe-10-90-2-5 (10.90.2.5/32 → VirtualAppliance → 10.90.3.4). The two pe-* routes are the single controlled variable of the lab. During the bypass window, both were deleted by falsify.sh; this capture shows them restored. The Address prefix column is the most important: each /32 prefix matches exactly one PE NIC IP. Without these two routes, the 0.0.0.0/0 default route alone is insufficient because the system-injected /32 route for the PE wins by longest-prefix match.

[Observed] Private Endpoint pe-acracrpefcinhh4rw NIC Overview blade: the PE's primary network interface is visible with one of its private IPs (10.90.2.4). This is the data-endpoint IP; the second IP (10.90.2.5, login endpoint) is on a secondary IP configuration on the same NIC, visible on the IP configurations sub-blade. The two PE NIC IPs are the IPs that need /32 UDR routes to be inspected.

[Observed] Private Endpoint pe-acracrpefcinhh4rw → DNS configuration blade: both FQDN→IP mappings are explicitly listed — acracrpefcinhh4rw.koreacentral.data.azurecr.io → 10.90.2.4 (data endpoint) and acracrpefcinhh4rw.azurecr.io → 10.90.2.5 (login endpoint). This is the Portal-visible confirmation that the PE NIC holds two IPs for the same registry sub-resource, one per ACR endpoint. The Private DNS Zone privatelink.azurecr.io is linked here, which is how the FQDN-to-IP mapping is propagated to the VNet's DNS resolution. Both IPs must have /32 UDR routes or the firewall will see only one half of the pull conversation.

[Observed] Log Analytics workspace log-acrpefci-nhh4rw → Logs blade with the recover-window KQL query: AZFWApplicationRule | where Fqdn endswith ".azurecr.io" | take 20 returns 15 rows. The rows that the recover-gate query in falsify.sh saw are all here — Fqdn column shows both acracrpefcinhh4rw.azurecr.io (login endpoint) and acracrpefcinhh4rw.koreacentral.data.azurecr.io (data endpoint); SourceIp is consistently 10.90.1.160 (an IP from snet-aca, 10.90.0.0/23); Action is Allow; Policy is afwp-acrpefci-nhh4rw; RuleCollectionGroup is acr-and-platform-allow. TimeGenerated values are in the 2026-06-06T06:32:07Z cluster, which is the recover-deploy window. These are the rows whose absence during the bypass window proves the silent bypass. During the bypass window, the same query returned zero rows for the bypass-timestamp range; during the recover window, the same query returned 10+ rows for the recover-timestamp range. The presence-during-recover vs. absence-during-bypass with everything else held constant (same policy, same rule, same source subnet, same FQDN, same PE) is the falsification proof at the firewall layer.

[Inferred] The ten captures, taken in time order from the Portal, document Scenario C's required topology (Container Apps environment integrated into the VNet — capture 01; VNet with four subnets including snet-pe and the two firewall subnets — capture 02; ACR public surface fully disabled — capture 03; PE-only access with one approved Private Endpoint — capture 04; Azure Firewall Basic with private IP 10.90.3.4 — capture 05; firewall policy with application rules allowing ACR login + data + MCR + acs-mirror by FQDN — capture 06; route table with both /32 PE routes pointing at the firewall — capture 07; PE NIC primary IP 10.90.2.4 — capture 08; PE DNS configuration showing both FQDN→IP mappings — capture 09) and prove the lab's central finding via the firewall log evidence (capture 10): the firewall recorded the recover-window pull with full structured columns (Fqdn, SourceIp, Action, Policy, RuleCollectionGroup), and the same query against the bypass window returns zero rows even though the v-bypass pull provably succeeded. The Portal captures complement the CLI evidence above — together they show that Scenario C's controlled variable lives on the route table (/32 UDR routes for the PE NIC IPs), the IPs those routes must cover live on the PE NIC (networkInterfaces.ipConfigurations[].privateIPAddress), and the firewall's visibility into the inspected traffic is observable from Azure Firewall application-rule logs in Log Analytics (resource-specific AZFWApplicationRule after Dedicated-mode activation, with legacy AzureDiagnostics rows still possible during the transition window). This is the only lab in the 5-lab ACR network path series where the failure mode is "successful pull, silent inspection" rather than a visibly failed pull — and it is the worst-case-for-detection failure mode for a security team because no workload-layer signal indicates the bypass.

Clean Up¶

bash labs/acr-network-path-pe-forced-inspection/cleanup.sh

Which runs:

az group delete --name "$RG" --yes --no-wait

Azure Firewall Basic + its two public IPs is the dominant cost (~$24/day) — do not leave the lab running between sessions. ACR Premium is the second cost (~$1.67/day). Total run cost for a 2-3 hour reproduction is ~$3-4 USD.

Related Playbook¶

• Private Endpoint DNS Failure — covers the Private Endpoint DNS failure family (Scenarios D and E). Lab 5 (Scenario C) is the routing failure on the Private Endpoint path rather than a DNS failure; both share the structural property that the PE infrastructure is healthy but a non-DNS layer (routing for Scenario C, DNS for Scenarios D/E) is misconfigured.
• UDR and NSG Egress Blocked — covers UDR/NSG misconfigurations that break Container Apps egress. The Scenario C silent-bypass pattern is the dual of a hard-block UDR failure: instead of a UDR blocking traffic that should flow, Scenario C is a missing UDR that fails to inspect traffic that does flow.

See Also¶

• ACR Network Path Selection — the platform decision page this lab implements; see Path C: ACR Private Endpoint with Forced Inspection
• ACR Network Path A Lab — Firewall Allowlist — the public-with-firewall alternative to Path C's PE-with-firewall topology. Lab 4 (Scenario A) uses ACR's public surface with a firewall PIP allowlist; Lab 5 (Scenario C) uses ACR's Private Endpoint with /32 UDR routes for the PE NIC IPs. Both labs use admin-credential auth to remove the managed-identity control-plane confound.
• ACR Network Path B Lab — PE Direct — Scenario B, the Private Endpoint topology without forced inspection. Scenario C is Scenario B plus the forced-inspection layer. Lab 1 (Scenario B) used managed identity, which made fresh-pull proof difficult; Lab 5 uses admin credentials for the same reason Lab 4 did.
• ACR Network Path D Lab — Record-Level Zone Authority — Scenario D, the record-CONTENT failure on the Path B private path. Same managed-identity-confound caveat as Lab 1 / Lab 3.
• ACR Network Path E Lab — DNS Forwarder Bypass — Scenario E, the resolver-topology failure on the Path B private path.
• Manage network policies for Private Endpoints (Microsoft Learn) — official reference for privateEndpointNetworkPolicies on the PE subnet, which must be Enabled for UDRs to apply to PE traffic.
• Virtual network traffic routing (Microsoft Learn) — official reference for longest-prefix-match routing semantics and the customer-route-precedence rule.

Sources¶

• Manage network policies for Private Endpoints (Microsoft Learn) — the privateEndpointNetworkPolicies property on the PE subnet, which is the prerequisite for UDRs to apply to PE traffic. Lab 5's Bicep sets this to 'Enabled' on snet-pe.
• Virtual network traffic routing (Microsoft Learn) — longest-prefix-match semantics and the customer-route-precedence rule. The lab's central thesis (that a 0.0.0.0/0 UDR loses to system /32 routes for Private Endpoints) is a direct consequence of these rules.
• Use Azure Firewall with Azure Container Apps (Microsoft Learn) — official guidance for the forced-egress-through-firewall pattern, including the UDR + firewall private-IP-as-next-hop requirement.
• Connect privately to an Azure container registry using Azure Private Link (Microsoft Learn) — ACR Private Endpoint topology, including the fact that the PE NIC holds separate IPs for the login endpoint and each region's data endpoint.
• Azure Firewall structured logs (Microsoft Learn) — the AZFWApplicationRule resource-specific table and the logAnalyticsDestinationType: 'Dedicated' requirement on the diagnostic settings resource.
• Networking in Azure Container Apps (Microsoft Learn) — Container Apps VNet integration, workload-profile subnet requirements (delegation, /23 minimum), and inheritance of UDRs.
• Revisions in Azure Container Apps (Microsoft Learn) — revision lifecycle, including the cached-image-layer behavior that lets an already-running revision survive a routing change.
• Authenticate with an Azure container registry (Microsoft Learn) — admin user vs. managed identity; the auth choice that makes this lab's single-controlled-variable design possible (same reason as Lab 4).
• Azure Firewall diagnostic logs (Microsoft Learn) — overview of the diagnostic categories (AzureFirewallApplicationRule, AzureFirewallNetworkRule, AzureFirewallDnsProxy) and their resource-specific dedicated tables.
