ACR Network Path E — DNS Forwarder Bypass Lab¶

Reproduce Scenario E from ACR Network Path Selection: the Container Apps environment uses a custom DNS server (here, dnsmasq on an Ubuntu B1s VM) and that server's default upstream is swapped from Azure DNS (168.63.129.16) to public DNS (8.8.8.8). The ACR Private Endpoint is healthy and privatelink.azurecr.io is correctly populated and VNet-linked, but the custom DNS server simply never asks Azure DNS, so the Private DNS Zone substitution that would return the PE NIC's RFC1918 IP never happens.

This lab makes a non-obvious Azure Container Apps behavior falsifiable: breaking the VNet custom DNS forwarder produces no immediate revision-health impact on the already-running revision in this reproduction. The already-running revision stays Healthy and continues to serve traffic unchanged, while the workload-side socket.getaddrinfo() for the ACR FQDN immediately flips from the PE NIC's RFC1918 IP to the public registry IP. Pull-path observability is therefore not a reliable early warning for Scenario E in Container Apps in this scenario. The /probe endpoint in this lab is the workload-side signal that clearly moves.

Lab Metadata¶

Lab position¶

This lab is part of the 5-lab ACR network path series that reproduces the five distinct network paths a Container App can take to reach ACR. See ACR Network Path Selection for the conceptual taxonomy that names and orders all five paths.

1) Background¶

Azure Container Apps can reach ACR through several network paths — public via firewall, Private Endpoint direct, Private Endpoint with forced inspection, or one of two DNS failure scenarios. The ACR Network Path Selection page documents all of them.

Scenario E (DNS forwarder bypass) is the DNS-topology failure class. The Private Endpoint plumbing is healthy — the registry sub-resource is attached to a NIC inside the workload VNet, the PE NIC has RFC1918 IPs, and the privatelink.azurecr.io Private DNS Zone holds the right A records and is linked to the VNet. What is wrong is the resolver path: a customer-managed DNS server (Azure Private DNS Resolver, dnsmasq on a VM, Windows DNS, on-prem caching DNS, etc.) is configured as the VNet's DNS server, and that server forwards queries to a recursive DNS that has no view of Private DNS Zones. The public CNAME chain for the ACR FQDN is resolved end to end, the PE NIC IP substitution never happens, and the workload sees the public registry IP — which the registry rejects when publicNetworkAccess: Disabled.

Three properties make Scenario E worth reproducing as a hands-on lab:

• 168.63.129.16 is the only resolver that consults VNet-linked Private DNS Zones. Any custom DNS server in the path must conditionally forward privatelink.azurecr.io (or use it as default upstream) to 168.63.129.16, or the zone substitution does not happen. This is the Azure DNS infrastructure address and is reachable from every Azure VNet without explicit routing.
• In Azure Container Apps in this reproduction, breaking the VNet custom DNS forwarder produces no immediate revision-health impact on the already-running revision. This is the central finding of the lab. Empirically, when dnsmasq forwards ACR queries to 8.8.8.8 and dnsmasq is verifiably the only recursive DNS on the VNet, the already-running revision continues to report healthState=Healthy and serves traffic from the already-cached image layers. The workload, however, immediately sees the broken resolver — so the failure surfaces in application traffic first.
• Scenario E is distinct from Scenario D. Scenario D (a separate lab) is the record-level split-brain case: the resolver path is correct (Azure DNS gets the query), but the Private DNS Zone is missing one or more records — for example the <registry>.<region>.data record — so part of the ACR namespace resolves privately and part does not. Scenario E breaks the entire namespace because the resolver path itself is wrong.

Architecture¶

flowchart TD
    REPLICA[Container App replica<br/>workload profile subnet 10.60.3.0/24]
    PROBE[Workload /probe endpoint<br/>socket.getaddrinfo ACR FQDN]
    CACHED[Already-cached image layers<br/>no pull during broken window]
    DNSMASQ[dnsmasq VM<br/>10.60.5.4<br/>HEALTHY: server=168.63.129.16<br/>BROKEN: server=8.8.8.8]
    AZDNS[Azure DNS<br/>168.63.129.16]
    PUBDNS[Public recursive DNS<br/>8.8.8.8]
    ZONE[Private DNS Zone<br/>privatelink.azurecr.io<br/>linked to VNet]
    PE[ACR Private Endpoint NIC<br/>10.60.4.5 registry<br/>10.60.4.4 data]
    ACR[Azure Container Registry<br/>Premium<br/>publicNetworkAccess=Disabled]
    PUBIP[Public ACR IP<br/>e.g. 20.41.69.142]

    REPLICA --> PROBE
    REPLICA --> CACHED
    PROBE -->|workload DNS goes through VNet custom DNS| DNSMASQ
    DNSMASQ -->|HEALTHY path| AZDNS
    DNSMASQ -.->|BROKEN path| PUBDNS
    AZDNS --> ZONE
    ZONE -->|returns PE NIC IP| PROBE
    PUBDNS -.->|returns public IP| PROBE
    PROBE -->|TLS to resolved IP| PE
    PROBE -.->|TLS to resolved IP| PUBIP
    PE --> ACR

    classDef workload fill:#e1f5ff,stroke:#0078d4
    classDef brokenpath fill:#fde7e9,stroke:#a4262c
    classDef registry fill:#e5f5e5,stroke:#107c10
    classDef neutral fill:#f3f2f1,stroke:#605e5c

    class REPLICA,PROBE workload
    class PUBDNS,PUBIP brokenpath
    class ACR,PE registry
    class CACHED neutral

The solid arrows are the workload DNS path and image data path in the HEALTHY state. The dotted arrows are what the workload sees in the BROKEN state after dnsmasq is swapped to server=8.8.8.8. The neutral-colored Already-cached image layers node captures the lab's central finding: during the broken window, the lab does not trigger a fresh pull, so the replica continues to run from the already-cached layers without re-pulling, and revision healthState stays Healthy. See §"Why we do not script a broken-window fresh pull" for the scope boundary.

2) Hypothesis¶

IF the Container Apps environment is configured with a custom VNet DNS server (dnsmasq on 10.60.5.4), the ACR Private Endpoint exists with publicNetworkAccess: Disabled, and privatelink.azurecr.io is linked to the VNet with correct A records, THEN:

• with dnsmasq configured as server=168.63.129.16, a socket.getaddrinfo() call from inside the replica for the ACR FQDN returns the PE NIC's RFC1918 IP and /probe reports first_class=private;
• swapping dnsmasq to server=8.8.8.8 causes getaddrinfo() from inside the same replica to return the public registry IP and /probe reports first_class=public;
• AND the already-running revision stays Healthy throughout the broken window — falsifying the alternative hypothesis "a broken custom DNS forwarder will be detected through ImagePullFailed or revision health degradation in Container Apps."

Restoring dnsmasq to server=168.63.129.16 must flip /probe back to first_class=private and the PE NIC IP, closing the loop on the resolver-path causation.

3) Runbook¶

Deploy baseline infrastructure¶

export RG="rg-acr-dns-fwd-lab"
export LOCATION="koreacentral"
export BASE_NAME="acrdnsfwd"
export VM_ADMIN_PASSWORD="$(openssl rand -base64 24)Aa1!"

az extension add --name containerapp --upgrade

az group create --name "$RG" --location "$LOCATION"

az deployment group create \
    --resource-group "$RG" \
    --name acr-dns-forwarder-bypass \
    --template-file labs/acr-network-path-dns-forwarder-bypass/infra/main.bicep \
    --parameters baseName="$BASE_NAME" vmAdminPassword="$VM_ADMIN_PASSWORD"

Expected output pattern:

"provisioningState": "Succeeded"

The initial Container App boots from a public placeholder image (mcr.microsoft.com/k8se/quickstart:latest) so the deployment succeeds before there is anything in the private ACR. The Bicep also injects ACR_FQDN (from containerRegistry.properties.loginServer) into the container template so the /probe endpoint knows which FQDN to resolve once the private image is deployed.

Switch the app to the private ACR image¶

bash labs/acr-network-path-dns-forwarder-bypass/trigger.sh

The trigger script runs:

az acr update --name "$ACR_NAME" --public-network-enabled true --default-action Allow
az acr build --registry "$ACR_NAME" --image "dns-forwarder-bypass-lab:v1" \
    --file labs/acr-network-path-dns-forwarder-bypass/workload/Dockerfile \
    labs/acr-network-path-dns-forwarder-bypass/workload
az acr update --name "$ACR_NAME" --public-network-enabled false

az containerapp registry set --name "$APP_NAME" --resource-group "$RG" \
    --identity system --server "$ACR_LOGIN_SERVER"

az containerapp update --name "$APP_NAME" --resource-group "$RG" \
    --image "${ACR_LOGIN_SERVER}/dns-forwarder-bypass-lab:v1" \
    --set-env-vars "BUILD_TAG=v1"

Expected output: provisioningState: Succeeded. A new revision is created and begins pulling.

Verify the healthy resolver path is live¶

APP_NAME="$(az deployment group show --resource-group "$RG" --name acr-dns-forwarder-bypass --query properties.outputs.containerAppName.value --output tsv)"
APP_FQDN="$(az deployment group show --resource-group "$RG" --name acr-dns-forwarder-bypass --query properties.outputs.containerAppFqdn.value --output tsv)"
ACR_LOGIN_SERVER="$(az deployment group show --resource-group "$RG" --name acr-dns-forwarder-bypass --query properties.outputs.containerRegistryLoginServer.value --output tsv)"
PE_NAME="$(az deployment group show --resource-group "$RG" --name acr-dns-forwarder-bypass --query properties.outputs.privateEndpointName.value --output tsv)"
NIC_ID="$(az network private-endpoint show --resource-group "$RG" --name "$PE_NAME" --query 'networkInterfaces[0].id' --output tsv)"
PE_IP="$(az network nic show --ids "$NIC_ID" --query "ipConfigurations[?contains(to_string(privateLinkConnectionProperties.fqdns), '$ACR_LOGIN_SERVER')] | [0].privateIPAddress" --output tsv)"

az containerapp revision list --name "$APP_NAME" --resource-group "$RG" --output table
curl -sS "https://${APP_FQDN}/probe"

The live post-deploy validation proves three independent signals simultaneously hold:

1. The active revision's healthState is Healthy.
2. The ACR Private Endpoint NIC holds an RFC1918 IP for the registry FQDN inside snet-pe.
3. GET https://<app>.<env>.azurecontainerapps.io/probe returns JSON with first_class=private and addresses[0].ip == <PE NIC IP> — meaning a socket.getaddrinfo() call from inside the replica went through dnsmasq, dnsmasq forwarded to 168.63.129.16, Azure DNS consulted the linked Private DNS Zone, and returned the PE NIC IP.

All three must hold for the resolver path to be Path B end to end at the workload layer.

Expected pattern:

Name                               Active    TrafficWeight    HealthState    ProvisioningState
---------------------------------  --------  ---------------  -------------  -------------------
ca-acrdnsfwd-<suffix>--0000001     True      100              Healthy        Provisioned

{"fqdn": "acracrdnsfwd<suffix>.azurecr.io", "addresses": [{"ip": "10.60.4.5", "class": "private"}], "first_class": "private"}

Falsify the hypothesis¶

bash labs/acr-network-path-dns-forwarder-bypass/falsify.sh

The falsification script proves the workload-layer DNS signal flips with the dnsmasq upstream while the already-running revision continues to report Healthy:

1. Calls /probe and asserts first_class=private (baseline).
2. Swaps the dnsmasq upstream from server=168.63.129.16 to server=8.8.8.8 and restarts dnsmasq, via az vm run-command invoke (no SSH required). Waits 60 seconds for cache TTL.
3. Calls /probe and asserts first_class=public (the broken-state workload signal).
4. Reads az containerapp revision list and asserts the already-running revision is still healthState=Healthy (the Container Apps finding — the workload's DNS view has changed but the platform has not torn down the revision or attempted a new pull during the broken window).
5. Restores dnsmasq to server=168.63.129.16 and restarts dnsmasq. Waits 60 seconds for cache TTL.
6. Calls /probe and asserts first_class=private again (recovery).

If step 3 returns first_class=public, step 4 shows the already-running revision still Healthy, and step 6 returns first_class=private, then dnsmasq's upstream is provably the controlled variable for workload DNS resolution while the already-running revision's health is invariant under the same window — the workload's DNS view has decoupled from the platform's revision-health signal for the duration of the broken window.

Why we do not script a broken-window fresh pull¶

A stronger version of this lab would also deploy a brand-new image tag during the broken window and assert that the resulting fresh pull succeeds — proving the platform pull path is independent of the VNet custom DNS server, not just that an already-running revision continues to run. We attempted that variant and discovered that it cannot cleanly isolate the dnsmasq variable in this topology.

[Observed] When we attempted az containerapp update --image <new-tag> while dnsmasq was broken AND ACR publicNetworkAccess=Disabled (the lab's pedagogical state), the new revision failed to provision. ContainerAppSystemLogs_CL captured the cause as Reason_s == "FetchingKeyVaultSecretFailed":

Failed to construct registry secret for registry 'acracrdnsfwd34jpw6.azurecr.io'
for ContainerApp 'ca-acrdnsfwd-34jpw6'. Ensure the managed identity 'system'
has the correct permissions. Error: ACR token exchange endpoint returned
error status: 403. body: {"errors":[{"code":"DENIED","message":"client with
IP '20.249.167.56' is not allowed access. Refer https://aka.ms/acr/firewall
to grant access. CorrelationId: 0a3728f5-aee8-4ea1-9b84-4dc6e1aef664"}]}

[Inferred] 20.249.167.56 is an Azure-managed control-plane egress IP (not a VNet RFC1918 address). The Container Apps control plane performs the ACR token exchange step from outside the customer VNet, against the public ACR endpoint. Under publicNetworkAccess=Disabled that egress IP is not in any allow-list, so ACR rejects the token exchange with HTTP 403 before the data-plane pull ever begins. This failure is unrelated to dnsmasq — even if dnsmasq were healthy, the token exchange would still be denied at the ACR firewall in this topology.

[Inferred] A scripted broken-window fresh-pull test therefore cannot cleanly isolate the dnsmasq variable in this lab. Under publicNetworkAccess=Disabled the test fails for an unrelated reason (ACR firewall on the control-plane token exchange path); under publicNetworkAccess=Enabled the resolved public IP is reachable regardless of dnsmasq state, so a successful fresh pull would not prove "the puller is independent of dnsmasq" — only "ACR is reachable via either path." The lab therefore restricts its claim to what it can falsifiably demonstrate: no immediate revision-health impact on the already-running revision during the broken window. The broken-window pull behavior of the platform image puller in Azure Container Apps with ACR publicNetworkAccess=Disabled is [Not Proven] by this lab.

Inspect system evidence¶

az containerapp logs show \
    --name "$APP_NAME" \
    --resource-group "$RG" \
    --type system \
    --tail 50

In the post-break window the system logs should keep showing PulledImage for the most recent image tag — this is the surprising signal:

Reason_s        Log_s
--------------  -----------------------------------------------------------------------
PullingImage    Pulling image '<acr>.azurecr.io/dns-forwarder-bypass-lab:<tag>'
PulledImage     Successfully pulled image '<acr>.azurecr.io/dns-forwarder-bypass-lab:<tag>' in 2.64s

A more direct query, useful when reproducing the experiment, is the KQL pack pattern for ACR pull-path observability:

ContainerAppSystemLogs_CL
| where ContainerAppName_s == "ca-acrdnsfwd-34jpw6"
| where Reason_s in ("PullingImage", "PulledImage", "ImagePullFailed", "ImagePullUnauthorized", "BackOff")
| order by TimeGenerated asc

Even with dnsmasq broken, this query returns PullingImage / PulledImage rows with no ImagePullFailed or ImagePullUnauthorized. That is the lab's central pedagogical signal.

4) Experiment Log¶

Expected Evidence¶

Observed Evidence (Live Azure Test — 2026-06-06)¶

Environment: rg-acr-dns-fwd-lab / cae-acrdnsfwd-34jpw6, koreacentral, Consumption + workload-profile environment, Azure CLI 2.79.0. ACR: acracrdnsfwd34jpw6.azurecr.io (Premium, publicNetworkAccess=Disabled during every container pull attempt — trigger.sh briefly toggles it Enabled only for the duration of the az acr build step because ACR Tasks build agents need the public surface to push layers, then restores Disabled before the Container App pull). Image tags built and pushed with az acr build (no local Docker): dns-forwarder-bypass-lab:v1, :v-broken, :v-recover, :v-broken-2, :v-probe (the /probe endpoint was added in v-probe). Custom VNet DNS: dnsmasq on Ubuntu B1s VM vm-dns-34jpw6 at 10.60.5.4; the Container Apps environment's VNet has only this IP as DNS server. PE NIC IPs (in snet-pe, 10.60.4.0/24): 10.60.4.4 (data group, FQDN acracrdnsfwd34jpw6.koreacentral.data.azurecr.io), 10.60.4.5 (registry group, FQDN acracrdnsfwd34jpw6.azurecr.io). Active revision under test: ca-acrdnsfwd-34jpw6--0000002 (created 2026-06-05T15:40:37Z, image dns-forwarder-bypass-lab:v-probe, traffic 100%, 1 replica). Public ACR IP observed during broken window: 20.41.69.142 (registry endpoint resolved through public DNS).

[Observed] After trigger.sh deployed dns-forwarder-bypass-lab:v-probe to the Container App, the platform pull path completed in 2.43 seconds via the PE NIC while ACR publicNetworkAccess=Disabled:

TimeGenerated                 Reason_s      RevisionName_s                 Log_s
----------------------------  ------------  -----------------------------  -----------------------------------------------------------------------------------------------------------------
2026-06-05T15:40:53.1339593Z  PullingImage  ca-acrdnsfwd-34jpw6--0000002   Pulling image 'acracrdnsfwd34jpw6.azurecr.io/dns-forwarder-bypass-lab:v-probe'
2026-06-05T15:40:53.1339593Z  PulledImage   ca-acrdnsfwd-34jpw6--0000002   Successfully pulled image "acracrdnsfwd34jpw6.azurecr.io/dns-forwarder-bypass-lab:v-probe" in 2.43s. Image size: 44040192 bytes.

[Observed] PE NIC IP configuration for the ACR FQDNs:

[
  {
    "FQDN": ["acracrdnsfwd34jpw6.koreacentral.data.azurecr.io"],
    "IP":   "10.60.4.4"
  },
  {
    "FQDN": ["acracrdnsfwd34jpw6.azurecr.io"],
    "IP":   "10.60.4.5"
  }
]

[Observed] privatelink.azurecr.io Private DNS Zone records (held constant throughout the lab — the resolver path is what changes, not the zone contents):

Name                                  Type                                   IP
------------------------------------  -------------------------------------  ---------
@                                     Microsoft.Network/privateDnsZones/SOA
acracrdnsfwd34jpw6                    Microsoft.Network/privateDnsZones/A    10.60.4.5
acracrdnsfwd34jpw6.koreacentral.data  Microsoft.Network/privateDnsZones/A    10.60.4.4

[Observed] dnsmasq config in the HEALTHY baseline (after recovery, also the deploy-time state):

# Lab: ACR Network Path E - DNS Forwarder Bypass (HEALTHY state)
# Listen on the VM's private IP so the CAE workload subnet can reach us.
listen-address=10.60.5.4
bind-interfaces
no-resolv
no-poll
# Default upstream: Azure DNS (168.63.129.16). Azure DNS knows this
# VNet is linked to the Private DNS Zone privatelink.azurecr.io and
# substitutes the PE NIC IP for the ACR CNAME chain.
#
# SCENARIO E FAILURE INJECTION (falsify.sh): rewrite this line to
# server=8.8.8.8. dnsmasq then resolves ACR FQDNs through the
# public DNS chain and returns the public registry IP, which the
# registry rejects because publicNetworkAccess=Disabled.
server=168.63.129.16
# Logging for evidence collection.
log-queries
log-facility=/var/log/dnsmasq.log

[Observed] Workload-path falsification, three states, captured 2026-06-05T15:54:00Z (UTC) = 2026-06-06T00:54 KST:

--- step 1: baseline probe (dnsmasq server=168.63.129.16) ---
Response: {"fqdn": "acracrdnsfwd34jpw6.azurecr.io", "addresses": [{"ip": "10.60.4.5", "class": "private"}], "first_class": "private"}
first_class=private first_ip=10.60.4.5

--- step 2: break dnsmasq (server -> 8.8.8.8) ---
Enable succeeded:
[stdout]
server=8.8.8.8

--- step 3: broken probe (expect first_class=public) ---
Response: {"fqdn": "acracrdnsfwd34jpw6.azurecr.io", "addresses": [{"ip": "20.41.69.142", "class": "public"}], "first_class": "public"}
first_class=public first_ip=20.41.69.142

--- step 4: revision health (expect Healthy for the already-running revision) ---
already-running revision ca-acrdnsfwd-34jpw6--0000002 healthState=Healthy

--- step 5: restore dnsmasq (server -> 168.63.129.16) ---
Enable succeeded:
[stdout]
server=168.63.129.16

--- step 6: recovery probe (expect first_class=private) ---
Response: {"fqdn": "acracrdnsfwd34jpw6.azurecr.io", "addresses": [{"ip": "10.60.4.5", "class": "private"}], "first_class": "private"}
first_class=private first_ip=10.60.4.5

===== SUMMARY =====
baseline (server=168.63.129.16): first_class=private, ip=10.60.4.5
broken   (server=8.8.8.8):       first_class=public,  ip=20.41.69.142, already-running revision health=Healthy
recovery (server=168.63.129.16): first_class=private, ip=10.60.4.5

[Observed] Platform-side silence during the broken window — ContainerAppSystemLogs_CL for ca-acrdnsfwd-34jpw6 between 2026-06-05T15:50:00Z and 2026-06-05T16:00:00Z (UTC) returned 0 rows. No PullingImage, PulledImage, ImagePullFailed, ImagePullUnauthorized, BackOff, or replica state-change events were emitted for the already-running revision ca-acrdnsfwd-34jpw6--0000002 while the workload /probe flipped from private to public and back. The replica continued to serve traffic from already-cached image layers and never attempted a fresh pull during the broken window.

[Measured] The workload-side first-answer IP changed from 10.60.4.5 (PE NIC, RFC1918) to 20.41.69.142 (public ACR endpoint) and back to 10.60.4.5, exactly tracking the dnsmasq server= directive across three transitions. Each /probe call performs a fresh socket.getaddrinfo() from inside the replica — there is no client-side caching.

[Inferred] Falsification logic for the workload-path signal. ACR (Premium, publicNetworkAccess=Disabled), PE NIC + private DNS zone records, Container Apps environment, VNet, dnsmasq VM, image content, AcrPull role, and managed identity were all held constant across the broken window. The only variable changed during the broken window was the dnsmasq server= directive. The state of /probe's first_class field follows that variable exactly:

This isolates the cause of the workload-side resolution flip to dnsmasq's upstream directive and refutes the alternative explanations the symptom typically invites: PE NIC plumbing (NIC IPs unchanged), Private DNS Zone records (unchanged), VNet-to-zone link (unchanged), registry credentials or RBAC (system-assigned MI with AcrPull unchanged), image content (the same v-probe revision answered all three probes), or ingress / TLS termination (the probe used the same Application URL in all three states).

[Inferred] No immediate revision-health impact on the already-running revision — the Container Apps finding. The already-running revision stayed Healthy throughout the broken window. ContainerAppSystemLogs_CL showed no ImagePullFailed, ImagePullUnauthorized, or BackOff events for the running replica during steps 2-5 of falsify.sh. The replica did not re-pull and did not restart during the test, so it continued to serve traffic from already-cached image layers. The workload-side DNS resolution flipped to public at the same time, from inside the same VNet, but the revision-health surface did not move. This is the asymmetry the lab makes observable: in this Azure Container Apps reproduction, the operator-facing revision-health signal stayed clean while application-facing DNS resolution was already publicly resolving the ACR FQDN.

[Strongly Suggested] Operational implication. In Azure Container Apps, for an already-running revision in this lab's topology, revision healthState and replica runningState are not a reliable early warning for Scenario E. The first failure surface a broken custom DNS forwarder produces is in application traffic: outbound TLS handshakes to private endpoints fail (or, worse, succeed against a public endpoint that should not have been reachable), the workload may leak DNS queries about internal services to the public internet, and dependent services in the same privatelink.* family (Key Vault, Storage, etc.) start returning public IPs that are then blocked by their own publicNetworkAccess=Disabled setting. Instrument workload-side DNS resolution explicitly — a small /probe endpoint that calls socket.getaddrinfo() on the critical FQDNs is one cheap way; logging the resolved IP for outbound HTTPS calls at the HTTP client layer is another. See the platform note in the DNS Patterns That Decide the Path section.

[Not Proven] This lab does not prove what would happen if the platform attempted a fresh image pull during the broken window. The script intentionally avoids that test because, with ACR publicNetworkAccess=Disabled, the Container Apps control plane's ACR token-exchange step is blocked at the ACR firewall (HTTP 403 from the platform's Azure-managed egress IP, surfaced as FetchingKeyVaultSecretFailed) for reasons unrelated to dnsmasq, which would confound the variable under test. See §"Why we do not script a broken-window fresh pull" above for the full evidence and rationale. As a result, the lab does not establish whether the platform image puller would (a) resolve the ACR FQDN through the VNet custom DNS server, (b) use a separate platform-managed resolver path, or (c) succeed or fail for some other reason in that scenario. The lab's scope is bounded to "no immediate revision-health impact on the already-running revision".

Observed Evidence (Portal Captures — 2026-06-06)¶

A live reproduction on 2026-06-06 captured the full Scenario E topology and the workload-path falsification surface from the Azure Portal.

Environment

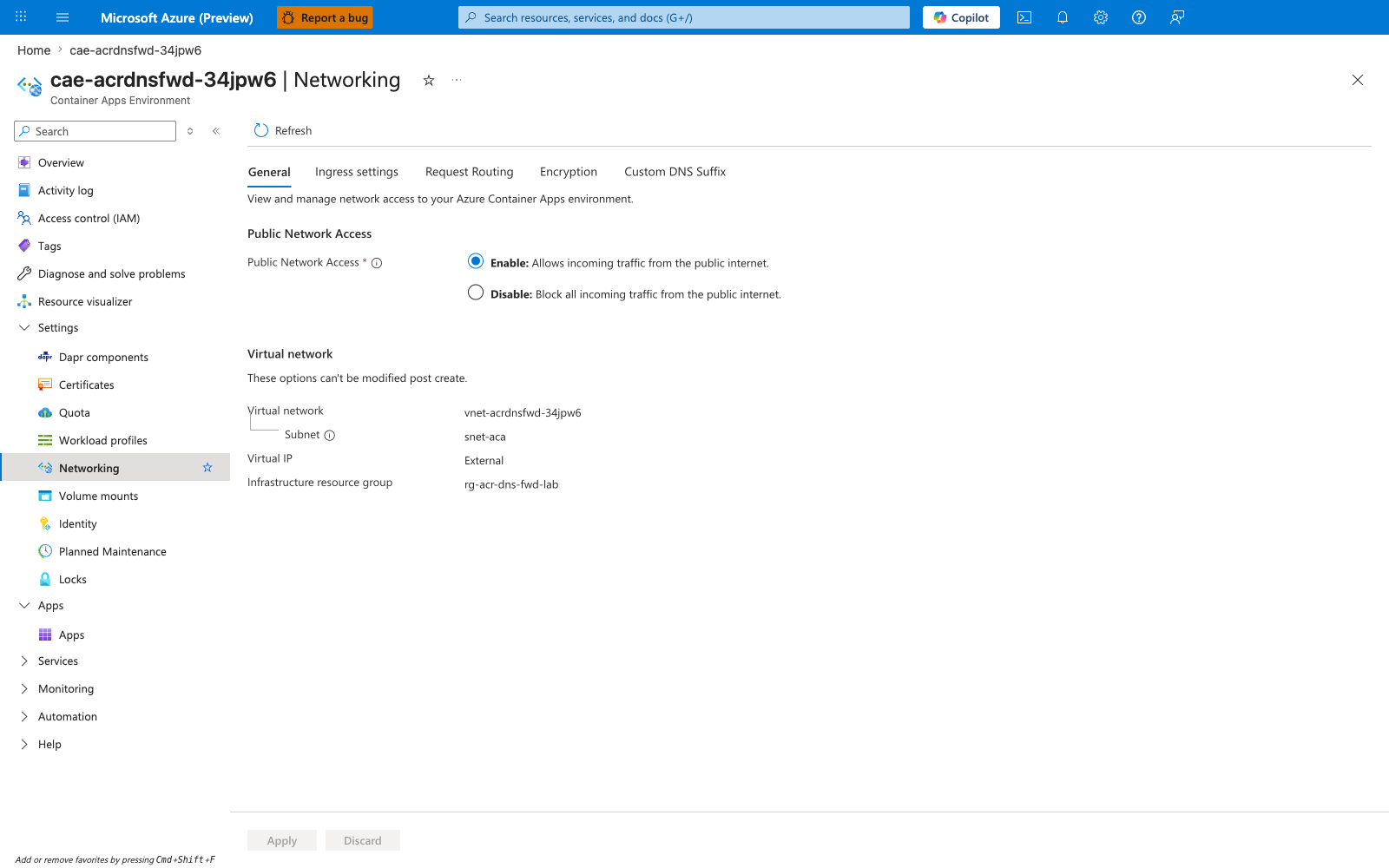

[Observed] Container Apps environment → Networking blade: workload-profile environment is attached to VNet vnet-acrdnsfwd-34jpw6, infrastructure subnet snet-aca, Virtual IP External. This is the foundation of the workload-path lab — the Container App's outbound DNS queries leave from this subnet and hit whatever DNS server the VNet advertises.

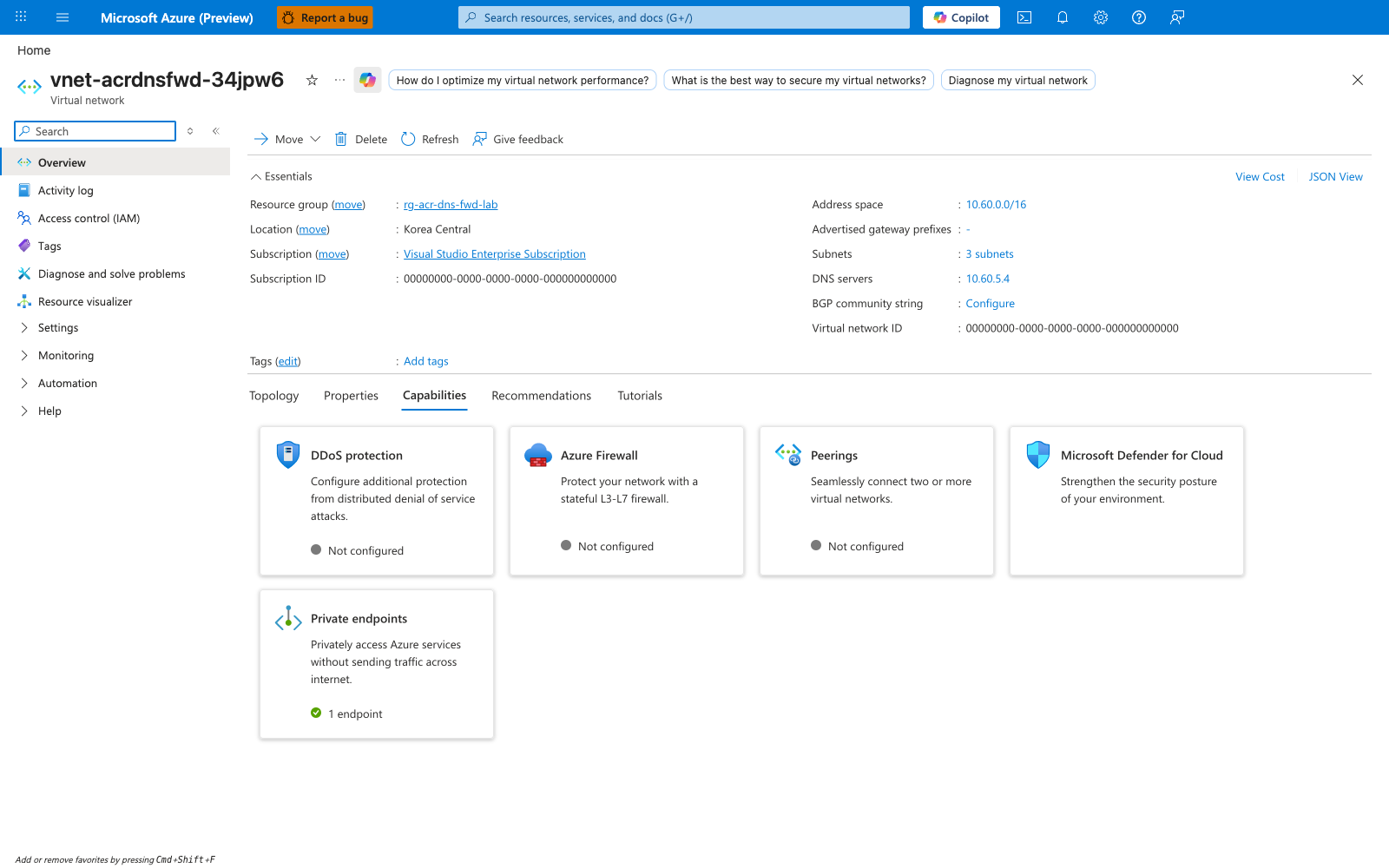

[Observed] VNet vnet-acrdnsfwd-34jpw6 Overview blade: address space 10.60.0.0/16, DNS servers: 10.60.5.4 (the custom DNS forwarder VM). This is the single point of indirection the lab targets — every DNS query from the Container App workload subnet traverses this VM's dnsmasq before reaching any upstream resolver. Replacing 10.60.5.4 with Azure DNS (168.63.129.16) would short-circuit the entire scenario; the lab's failure mode only exists because the VNet sends DNS to a customer-managed resolver.

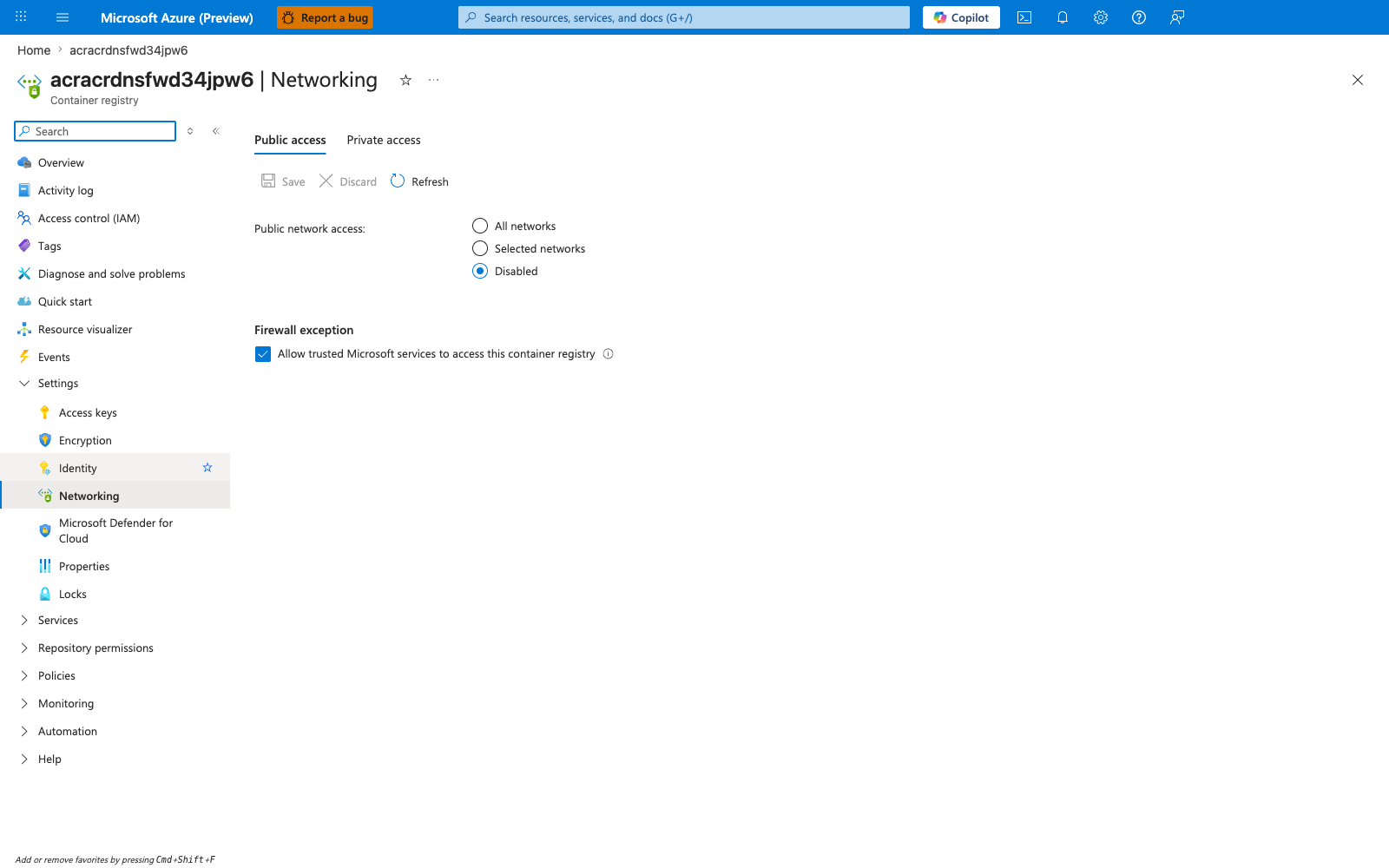

[Observed] ACR → Networking → Public access tab: Public network access = Disabled. The registry surface that the broken DNS path would resolve to (public ACR endpoint) is closed at the firewall. This is the configuration that makes the workload-side first_class=public answer operationally meaningful — even though the workload resolved the FQDN publicly, any traffic to that public IP would be rejected with HTTP 403 by ACR's own access policy.

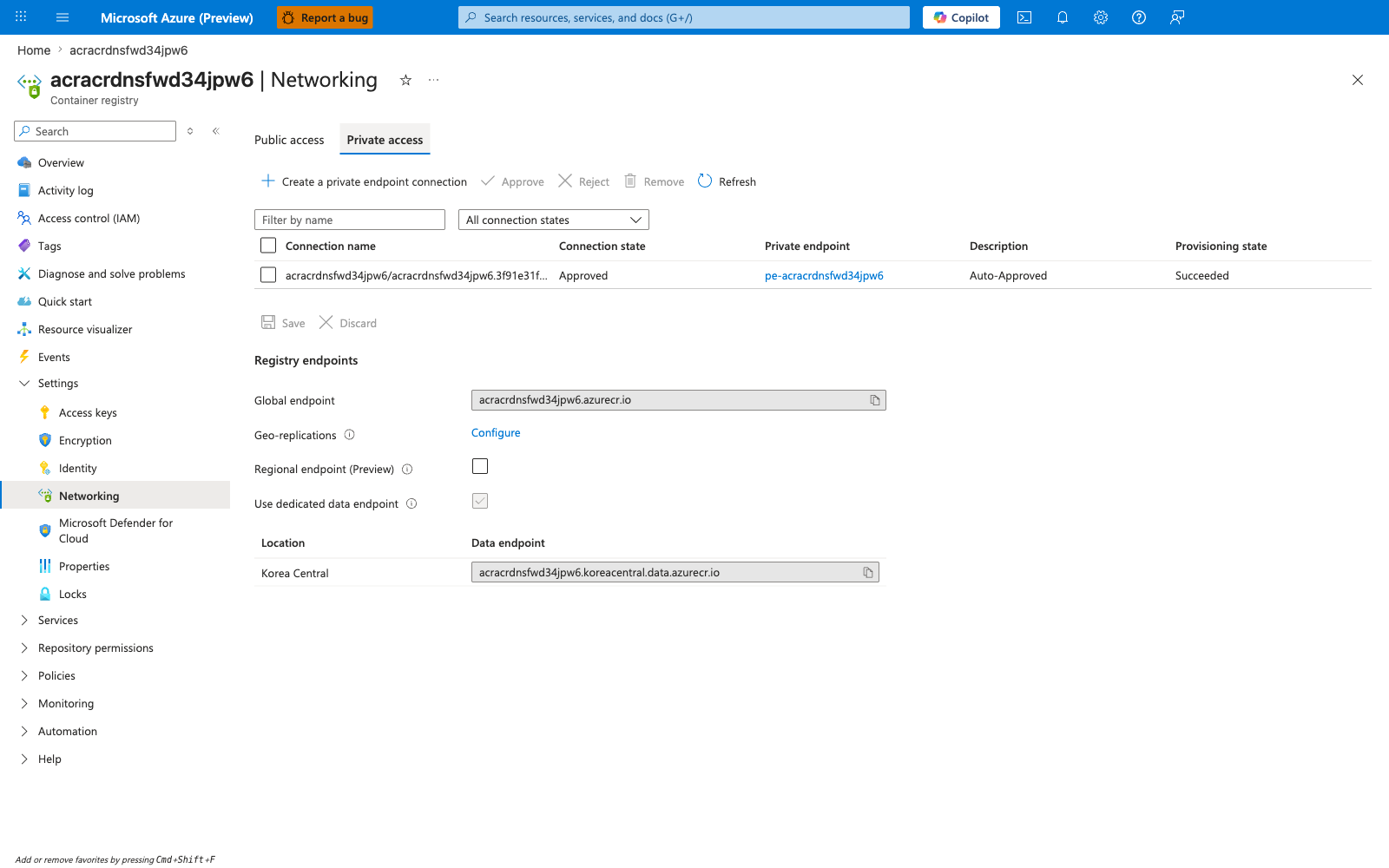

[Observed] ACR → Networking → Private access tab: private endpoint connection pe-acracrdnsfwd34jpw6 Approved with connection state Approved. This is the only network surface that can serve image pulls. With the dnsmasq forwarder healthy (baseline / recovery states), the Container App resolves the ACR FQDN to the PE NIC IP and pulls succeed in ~2.5s. With dnsmasq pointing at 8.8.8.8 (broken window), workload DNS resolution flips to the public IP but the PE pathway itself stays approved and intact — the lab does not touch the PE, only the DNS layer in front of it.

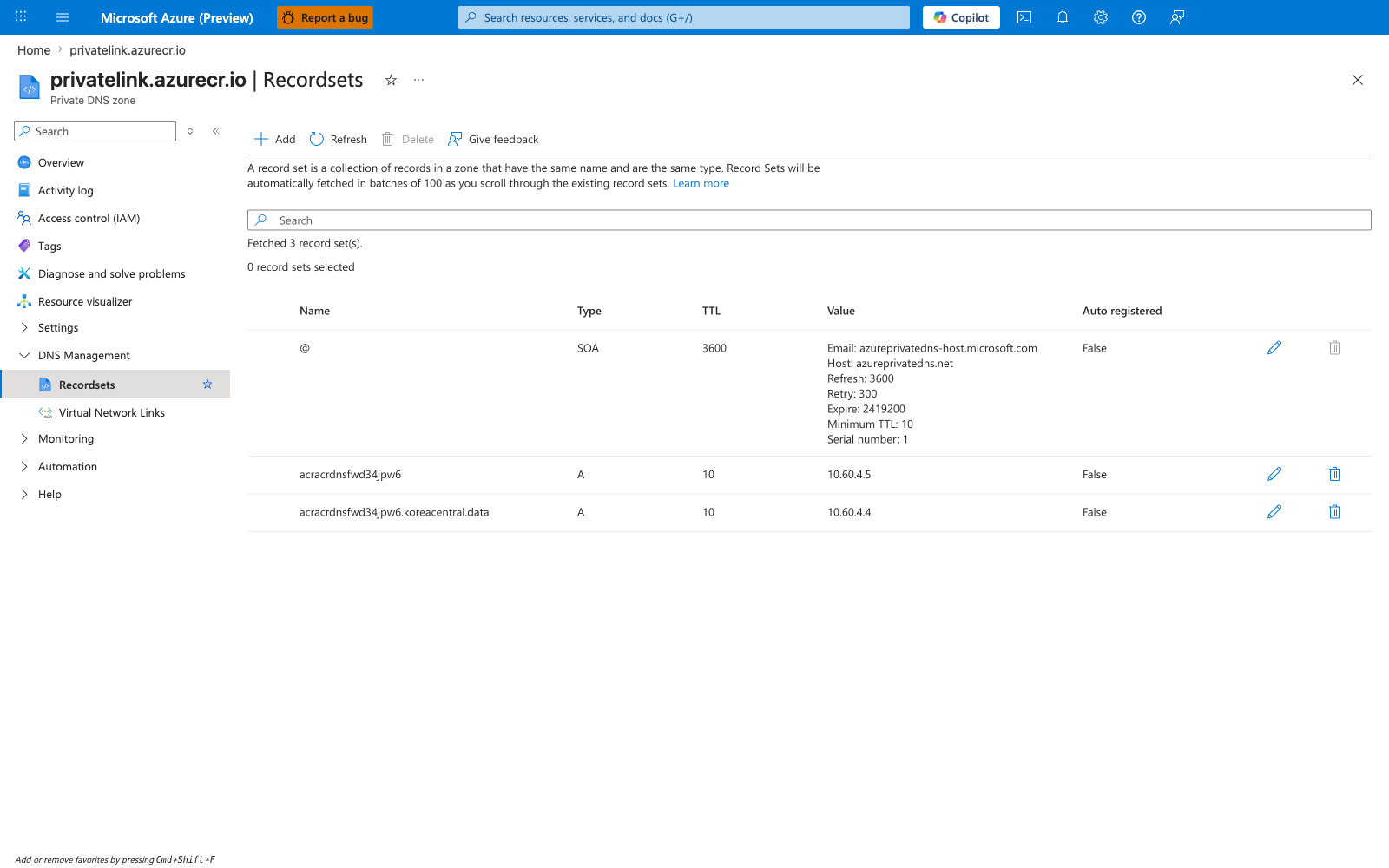

[Observed] Private DNS zone privatelink.azurecr.io Record sets blade: two A records held constant for the entire lab — acracrdnsfwd34jpw6 → 10.60.4.5 (registry group) and acracrdnsfwd34jpw6.koreacentral.data → 10.60.4.4 (data group). Both target PE NIC IPs inside snet-pe (10.60.4.0/24). These records are the override that would be applied if and only if the resolver path actually reaches Azure DNS — which it does in baseline + recovery (dnsmasq → 168.63.129.16 → Azure DNS sees the VNet→zone link and substitutes the PE NIC IP) and does not in the broken window (dnsmasq → 8.8.8.8 → public DNS chain, which has no visibility into Azure private zones).

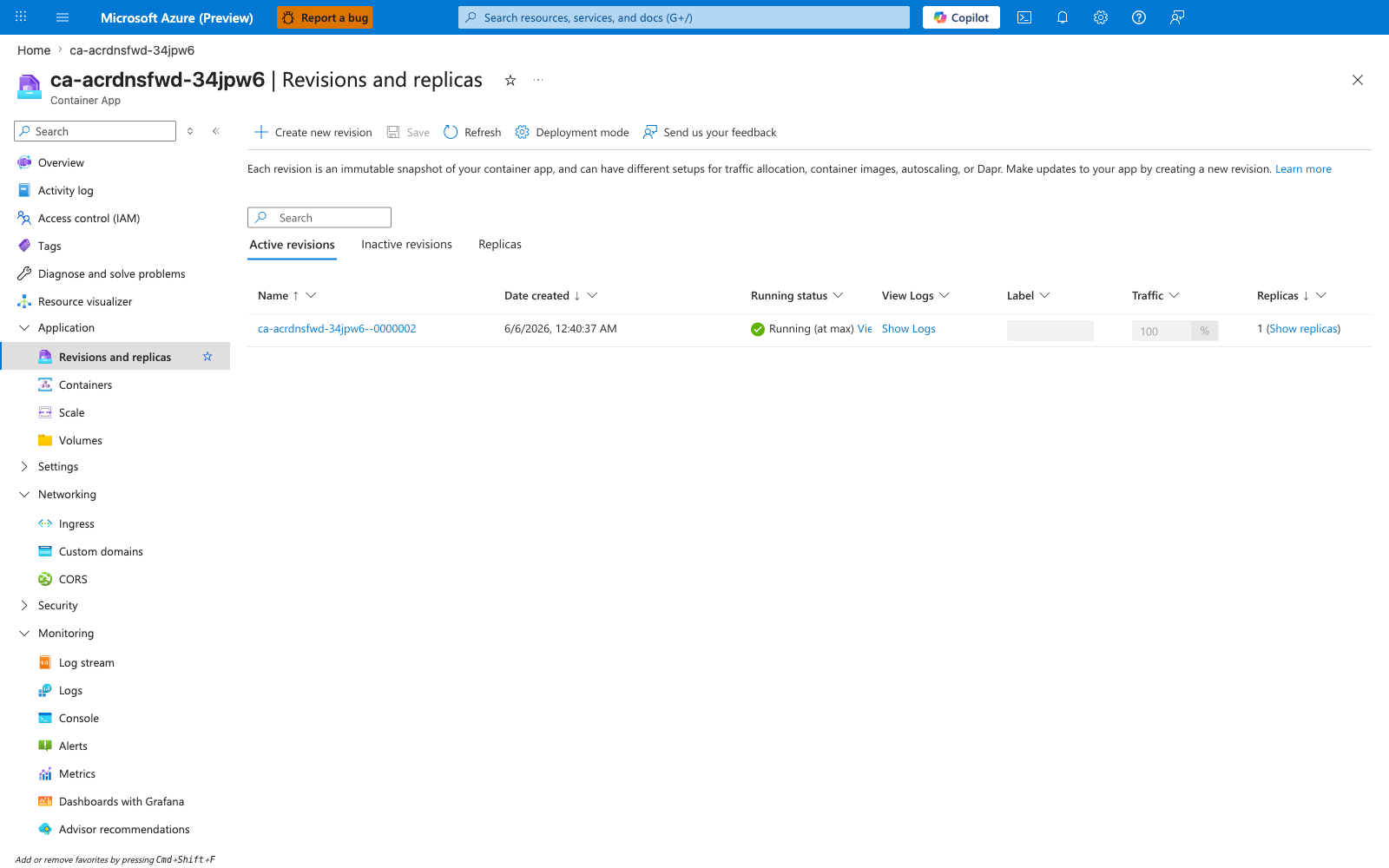

[Observed] Container App Revisions and replicas blade: revision ca-acrdnsfwd-34jpw6--0000002 Running (at max), 100% traffic, 1 replica, created 6/6/2026 12:40:37 AM KST. This is the already-running revision that stays Healthy throughout the broken window per falsify.sh step 4. The lab's central asymmetry is observable here: even though application-layer DNS resolution had already flipped to public (per the /probe response captured in the live test log above), the operator-facing revision health surface in the Portal stayed green and did not signal the underlying DNS forwarder failure.

[Inferred] The six captures, taken in time order from the Portal, document Scenario E's required topology (Container Apps environment with custom VNet DNS, VNet's only DNS server being the forwarder VM, ACR with publicNetworkAccess=Disabled + approved PE, private DNS zone with PE NIC IP records), and prove the lab's central finding (revision --0000002 stays Running (at max) / Healthy even during the broken window when workload DNS resolution is already flipping public). The Portal captures complement the CLI evidence above — together they show that the operator-facing revision-health surface is silent for Scenario E in this Container Apps reproduction, which is exactly why the workload-path /probe instrumentation is necessary to catch the failure mode early.

Phase B Evidence Pack¶

The committed Phase B cohort lives under labs/acr-network-path-dns-forwarder-bypass/evidence/ in the repository.

• The pack captures one live koreacentral reproduction where dnsmasq flips from 168.63.129.16 to 8.8.8.8 and then back again, while the already-running revision stays Healthy for the full H1+H2 window.
• Gate 15 proves the H1 discriminator directly: dnsmasq_upstream=8.8.8.8 plus /probe first_class=public.
• Gate 16 proves the H2 recovery directly: dnsmasq_upstream=168.63.129.16 plus /probe first_class=private with the PE registry IP restored.
• Gate 17 enforces the workload-path silence invariant required by this lab family: the same revision name is selected on both sides and the H1+H2 failure-event query stays empty (ImagePullFailed, ImagePullUnauthorized, BackOff, RevisionFailed, ReplicaFailed all absent).

Clean Up¶

bash labs/acr-network-path-dns-forwarder-bypass/cleanup.sh

Which runs:

az group delete --name "$RG" --yes --no-wait

ACR Premium is the dominant cost (~$1.67/day), so do not leave the lab running between sessions. The B1s VM and its disk are a few cents per hour — also worth cleaning up promptly.

Related Playbook¶

• Private Endpoint DNS Failure — covers the broader Private Endpoint DNS failure family; this lab is the Scenario E reproduction inside that family, with the distinction between workload and pull paths specific to Container Apps.

See Also¶

• ACR Network Path Selection — the platform decision page this lab implements; see the DNS Patterns That Decide the Path table and the In Azure Container Apps, Scenario E may surface at the workload layer first bullet in ACR-Specific Gotchas
• ACR Network Path B Lab — the happy-path PE topology this lab silently degrades from at the workload layer (different failure family — that lab breaks Path B's DNS contract at the zone-link level, this lab breaks it at the resolver path level)
• Egress Control — explains why the platform pull path itself has its own outbound dependencies even when the workload's view of DNS is broken
• Private Endpoints — Private Endpoint fundamentals, including the privatelink.* zone substitution requirement

Sources¶

• What is IP address 168.63.129.16? (Microsoft Learn) — Azure DNS infrastructure address; required upstream for any custom DNS server that needs to consult VNet-linked Private DNS Zones
• Azure Private Endpoint DNS configuration (Microsoft Learn) — why Azure DNS performs IP substitution for privatelink.* zones and why custom DNS servers must forward to it
• Configure a private link for an Azure Container Registry (Microsoft Learn) — ACR PE topology, sub-resource model, and the registry+data FQDN split
• Networking in Azure Container Apps (Microsoft Learn) — Container Apps custom VNet DNS server configuration
• Use a private endpoint with Azure Container Apps (Microsoft Learn)
• Securing a custom VNET in Azure Container Apps (Microsoft Learn) — egress requirements for Container Apps environments
• Authenticate with an Azure container registry (Microsoft Learn)
