Networking in Azure Container Apps¶

Networking in Azure Container Apps combines managed ingress with optional private networking controls. Understanding ingress mode, service discovery, and environment boundaries is key to secure and reliable architectures.

Start with Ingress in Azure Container Apps when you need the canonical explanation of external vs internal exposure, transport modes, TCP ingress, headers, and ingress edge features. Use this page for the broader networking map.

High-Level Network Flow¶

graph TD
    C[Client] --> E[Envoy Ingress]
    E --> A[Container App: Public API]
    A --> B[Container App: Internal Worker]
    A --> D[External Dependency]

    subgraph ENV[Container Apps Environment]
      E
      A
      B
    end

Envoy acts as the managed ingress layer, handling routing into app revisions and enforcing transport behavior.

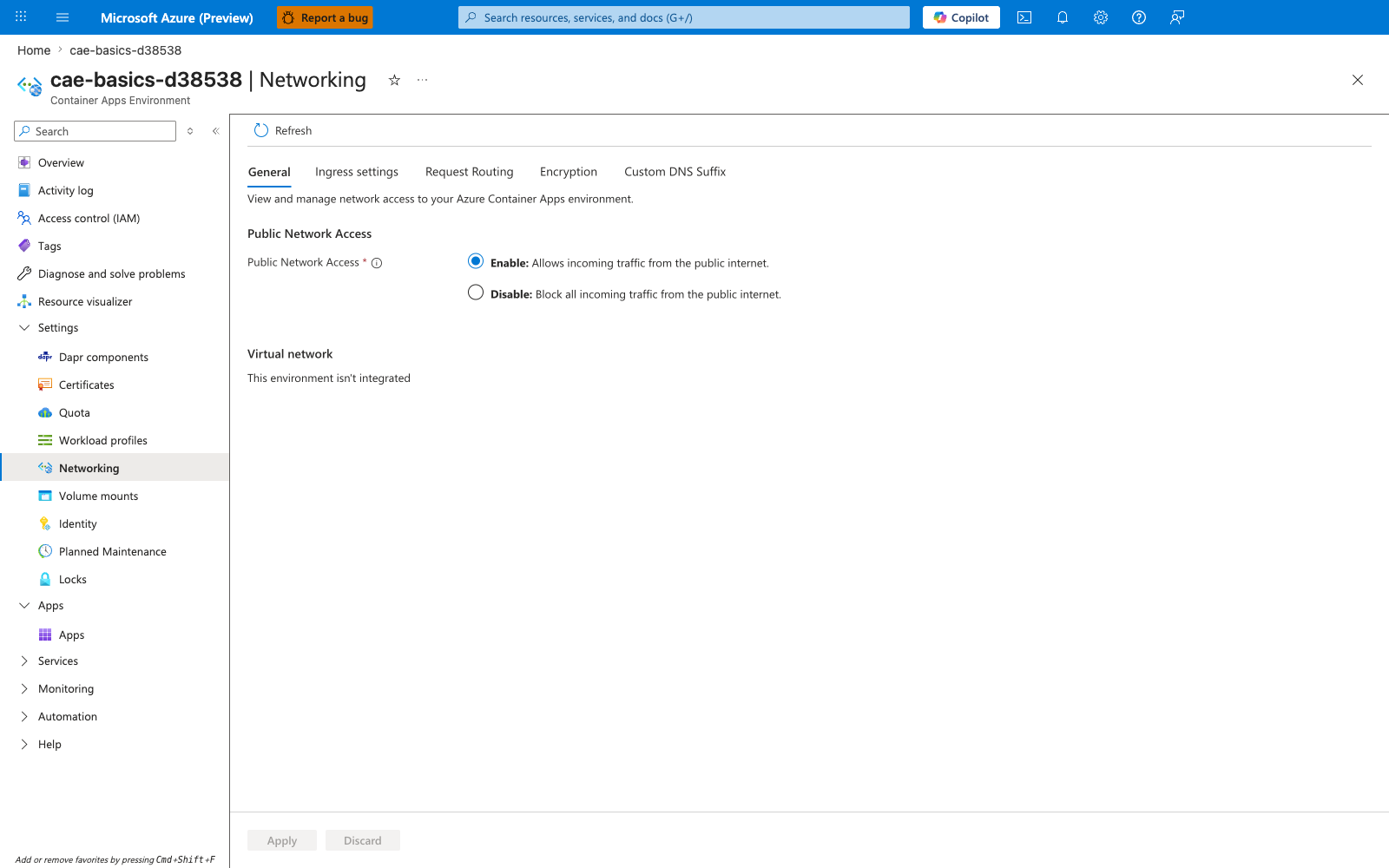

Portal view: environment Networking blade¶

The Networking blade on a Container Apps environment is where the environment-wide network posture is configured. App-level ingress (the Ingress page) sits underneath whatever this environment-level blade exposes.

• [Observed] The blade shows a tab strip with General, Ingress settings, Request Routing, Encryption, and Custom DNS Suffix. The General tab displays Public Network Access with two radios — Enable: Allows incoming traffic from the public internet. (selected) and Disable: Block all incoming traffic from the public internet. — and a Virtual network section reporting This environment isn't integrated. The left navigation under Settings lists Dapr components, Certificates, Quota, Workload profiles, Networking (selected), Volume mounts, Identity, Planned Maintenance, and Locks.
• [Inferred] Two of the networking dimensions discussed on this page appear to map to controls on this blade. Public Network Access is consistent with the environment-level public entry point that the Ingress Modes table describes, and its Disable option is consistent with the description ("Block all incoming traffic from the public internet.") rendered next to that radio. The Virtual network row appears to reflect whether the environment is VNet-integrated as covered in VNet Integration and Isolation; this sample environment is not integrated, which is consistent with no subnet, peering, or DNS settings being shown.
• [Not Proven] Many networking features that this guide covers are not visible in this capture. App-level ingress (external/internal, transport, IP restrictions, CORS, client certificates) and the per-app revision traffic split are not shown here. Workload profile placement, private endpoint configuration, custom DNS suffix details, and request-routing rules are not visible in the General tab captured above; whether they are reached through the other tabs visible here or through separate resources is not proven by this PNG alone.

Ingress Modes¶

Traffic Flow: External vs Internal Ingress¶

flowchart TD
    subgraph Public [Public Internet]
        U[Public User]
    end

    subgraph VNet [Virtual Network]
        subgraph CASubnet [Container Apps Subnet]
            subgraph Env [Environment]
                EXT[App: External Ingress]
                INT[App: Internal Ingress]
                ING[Managed Ingress: Envoy]
            end
        end

        subgraph PeeredVNet [Peered VNet / VPN / ER]
            C[Internal Client]
        end
    end

    U -- Public IP / DNS --> ING
    C -- Private IP / VNet DNS --> ING
    ING -- Public Hostname --> EXT
    ING -- Internal Hostname --> INT

VNet Integration and Isolation¶

Container Apps environments can integrate with virtual networks to control east-west and north-south traffic patterns.

VNet Integration Architecture¶

flowchart TD
    subgraph VNet ["Virtual Network (10.0.0.0/16)"]
        subgraph Subnet ["CAE Subnet (10.0.0.0/23)"]
            APP[Container App]
        end

        subgraph PE_Subnet ["PE Subnet (10.0.2.0/24)"]
            PE[Private Endpoint]
        end
    end

    subgraph Backbone [Microsoft Backbone]
        DB[Azure SQL / Storage]
    end

    APP -- 1. DNS Query --> VNET_DNS[VNet DNS Resolver]
    VNET_DNS -- 2. Returns Private IP --> APP
    APP -- 3. Connection --> PE
    PE -- 4. Private Link --> DB

Use VNet integration when you need:

• Private access to internal services.
• Controlled egress paths to dependencies.
• Alignment with enterprise network governance.

Service Discovery and East-West Calls¶

Apps in the same environment can use internal naming/service invocation patterns for service-to-service communication.

With optional Dapr integration, service invocation becomes more uniform across services while keeping networking concerns centralized.

Revisions and Traffic Routing¶

Ingress routes traffic to active revisions based on configured weights.

graph TD
    I[Envoy Ingress] --> R1[Revision v1 - 70%]
    I --> R2[Revision v2 - 30%]

This model supports canary testing without introducing an external traffic manager for basic progressive delivery.

TLS and Managed Certificates¶

For custom domains, managed certificates simplify HTTPS lifecycle operations:

• Certificate issuance and renewal are platform-managed.
• Teams avoid manual certificate rotation overhead.
• HTTPS posture remains consistent as apps evolve.

Practical Example: Public Edge + Private Backend¶

This pattern reduces attack surface while keeping the public API straightforward.

Advanced Topics¶

• Combining internal ingress with private endpoints for end-to-end private data paths.
• Zero-trust service segmentation across multiple environments.
• Egress governance and outbound allow-list strategies.
