How Container Apps Works¶

Azure Container Apps is a serverless container platform built on a managed, Kubernetes-based environment. This page provides the mental model you need for design reviews, deployment decisions, and production troubleshooting.

Architecture at a Glance¶

flowchart TD
    Deploy["Developer or CI/CD pipeline"]
    Client["Client or API consumer"]
    Events["Event sources<br/>Queues, Event Hubs, timers"]

    subgraph Control["Control plane"]
        ARM["Azure Resource Manager"]
        RP["Container Apps resource provider"]
    end

    subgraph Env["Container Apps environment"]
        Ingress["Envoy ingress proxy<br/>TLS termination and routing"]
        Scale["KEDA-based autoscaling"]
        Profiles["Workload profiles<br/>Consumption or Dedicated"]

        subgraph App["Container App"]
            RevA["Revision A<br/>Replicas"]
            RevB["Revision B<br/>Replicas"]
            Dapr["Dapr sidecar<br/>optional"]
        end
    end

    Logs["Azure Monitor<br/>Log Analytics"]
    Services["External services<br/>Databases, storage, APIs"]

    Deploy --> ARM --> RP
    RP --> Env
    Client --> Ingress
    Ingress --> RevA
    Ingress -. "weighted traffic" .-> RevB
    Events --> Scale
    Scale --> RevA
    Scale --> RevB
    Profiles --> RevA
    Profiles --> RevB
    RevA -. "sidecar" .- Dapr
    RevA --> Services
    RevA --> Logs

• The control plane starts when you deploy or update a container app through Azure Resource Manager, the Azure portal, the CLI, Bicep, or Terraform.
• The data plane starts when traffic reaches the environment's HTTP edge proxy, which terminates TLS and routes requests to the active revision and its replicas.
• The environment is the secure boundary for your apps and manages shared platform responsibilities such as workload placement, upgrades, failover, and resource balancing.
• Revisions are immutable deployment snapshots, so a single app can have multiple versions active at the same time for testing or weighted traffic rollout.
• Scaling is event-driven: HTTP traffic, TCP connections, CPU or memory thresholds, and external event sources can all influence replica count through the platform's KEDA-powered scaling model.

Control Plane vs Data Plane¶

flowchart TD
    subgraph CP["Control plane<br/>What you configure"]
        A1["Azure Portal, CLI, ARM, Bicep"]
        A2["App creation and deletion"]
        A3["Revision deployment"]
        A4["Scaling rules"]
        A5["Identity and RBAC assignment"]
        A6["Networking and ingress config"]
    end

    subgraph DP["Data plane<br/>What runs at runtime"]
        B1["Envoy ingress proxy"]
        B2["Container execution<br/>Replicas"]
        B3["KEDA scale decisions"]
        B4["Dapr service invocation"]
        B5["Log and metric collection"]
        B6["Health probes"]
    end

    CP --> DP

Understanding the split between management and runtime behavior helps you troubleshoot faster. If an app cannot be created, updated, or granted access, the problem usually starts in the control plane. If the app deploys successfully but returns 5xx responses, fails health probes, or scales unexpectedly, the problem is usually in the data plane.

Control Plane¶

The control plane is the configuration and orchestration layer for Azure Container Apps. It is where you declare desired state and where Azure applies platform-managed operations to reach that state.

What the control plane does¶

• Accepts resource creation and update requests through Azure Resource Manager.
• Stores app configuration such as image reference, ingress settings, secrets references, environment variables, scale rules, and revision mode.
• Creates new immutable revisions when you change revision-scope settings.
• Applies identity configuration, including system-assigned or user-assigned managed identity settings.
• Enforces access checks for management operations through Azure RBAC.
• Coordinates environment-level configuration such as networking boundaries, workload profiles, certificates, and diagnostics settings.

Why control-plane issues matter operationally¶

Many production incidents begin before a single request reaches your application code. Common examples include:

• A deployment fails because the caller lacks permission to update the container app.
• A new revision never becomes healthy because the platform cannot pull the image or resolve referenced secrets.
• A managed identity exists, but the required RBAC role assignment was never created on the downstream resource.
• Ingress was configured as internal when the expectation was public access.

These are control-plane failures because the platform cannot establish the desired runtime state. They are the right place to investigate when the Azure portal, CLI, ARM deployment output, or activity logs show errors before traffic is served.

Typical control-plane artifacts¶

Data Plane¶

The data plane is the runtime path that handles live application traffic, background events, container execution, and telemetry. Once a revision is active, most user-visible behavior happens here.

Core runtime components¶

• HTTP edge proxy: Microsoft Learn documents an HTTP edge proxy built on Envoy. It terminates TLS for inbound HTTPS traffic and routes requests to the correct app revision.
• Replicas: A revision runs as one or more replicas. Each replica hosts your container and, when enabled, sidecars such as Dapr.
• Scaling path: Azure Container Apps is powered by KEDA for autoscaling. HTTP traffic, CPU, memory, TCP, and event-driven rules can all affect scale decisions.
• Internal service connectivity: Microsoft Learn documents that Envoy also routes internal traffic inside clusters, which matters for internal ingress and service-to-service patterns.
• Observability pipeline: Logs, console output, and metrics are emitted from runtime components and can be sent to Azure Monitor and Log Analytics.

Typical data-plane symptoms¶

• Requests return 502, 503, or 504 even though deployment completed successfully.
• Health probes fail and the replica is restarted.
• Replica count oscillates unexpectedly under burst traffic.
• Event-driven scale-out does not happen because the queue trigger or scaler target is misconfigured.
• Dapr-based service invocation or pub/sub messaging fails while the app itself remains deployable.

Data-plane troubleshooting questions¶

Environment Internals¶

The Container Apps environment is the platform boundary that hosts one or more apps and jobs. Microsoft Learn describes it as a secure boundary around groups of container apps with shared networking, observability, and compute characteristics.

"A container apps environment is a secure boundary around a group of container apps. Container Apps environments provide a secure boundary where Container Apps can run, and they manage OS upgrades, scale operations, failover procedures, and resource balancing."
— Microsoft Learn, Environment in Azure Container Apps

That definition is important because it explains what you do and do not manage:

• You manage app-level configuration, identities, secrets references, networking choices, and scaling rules.
• Azure manages the underlying platform lifecycle for the environment, including OS upgrades and balancing capacity across the managed, Kubernetes-based environment.
• Apps in the same environment share environment-level capabilities such as logging destinations, virtual network integration choices, and workload profiles.

What the environment manages for you¶

Why environment design matters¶

An environment is more than a deployment target. It is also a blast-radius boundary. Placing multiple apps in one environment can simplify service discovery and shared operations, but it also means those apps share:

• Environment-level networking posture.
• Logging and diagnostics configuration.
• Workload profile choices and some capacity characteristics.
• Operational dependency on the same environment lifecycle.

Use that mental model during architecture review: first decide which apps should share an environment, then decide how those apps expose ingress, consume identities, and connect to downstream services.

Revision and Replica Model¶

Revisions are one of the most important architectural ideas in Azure Container Apps. Microsoft Learn defines revisions as immutable snapshots of an app version. When you change revision-scope settings, the platform creates a new revision instead of modifying the existing one in place.

Why revisions exist¶

• They allow safe rollout of configuration and image changes.
• They preserve previous versions for rollback or side-by-side validation.
• They let you use single revision or multiple revision mode depending on release strategy.
• They support traffic splitting so you can direct percentages of traffic to different revisions.

Revision lifecycle mental model¶

1. A deployment changes app configuration or template fields that affect revision state.
2. Azure Container Apps creates a new immutable revision.
3. The platform provisions replicas for that revision.
4. Health checks determine whether the new revision becomes ready.
5. Traffic is assigned based on revision mode and traffic rules.
6. Older revisions remain active, inactive, or deprovisioned according to your configuration and operational actions.

Revision versus replica¶

Scaling Model¶

Azure Container Apps is powered by KEDA for autoscaling. That phrasing matters because it explains why the platform can scale on more than CPU and memory alone. Container Apps can respond to runtime demand from HTTP traffic, TCP traffic, event sources, and other supported scaler types.

Key scaling ideas¶

• Scale to zero: Consumption-based apps can scale down to zero when no work is present, then scale back out when a request or event arrives.
• Event-driven scaling: Queue depth, message backlogs, or other event signals can trigger additional replicas.
• Resource-driven scaling: CPU and memory thresholds can influence scale decisions for running workloads.
• HTTP and TCP awareness: Ingress traffic can participate in scaling behavior when the app is exposed through supported networking modes.

Simplified scaling flow¶

1. A signal appears, such as HTTP requests, CPU pressure, or queue backlog.
2. The platform evaluates configured scale rules.
3. KEDA-powered scaling logic determines the desired replica count.
4. The environment provisions or removes replicas.
5. Health probes and readiness determine whether those replicas can serve live traffic.

What scaling does not solve by itself¶

Scaling more replicas does not fix every issue. You can still have:

• Slow downstream databases that become the real bottleneck.
• Long cold-start or initialization paths that delay readiness.
• Probe failures caused by missing dependencies or wrong ports.
• Message handling patterns that are not idempotent under parallel scale-out.

Networking Model¶

Networking in Azure Container Apps starts with the environment boundary and extends to ingress exposure, virtual network integration, internal service connectivity, and downstream egress paths.

Ingress and request routing¶

Microsoft Learn documents an HTTP edge proxy based on Envoy. This proxy terminates TLS, enforces ingress decisions, and routes inbound requests to the correct app revision. That architecture explains several common behaviors:

• TLS termination happens at the ingress layer rather than inside each application container by default.
• Traffic can be routed to different revisions according to configured percentages.
• The ingress endpoint can be configured for external or internal reachability depending on design requirements.

Internal and external exposure¶

Virtual network integration¶

The environment can be integrated with a virtual network, which is the right level to think about networking design. Instead of asking only whether one app is private, ask these broader questions:

• Which environments require private address space and tighter east-west controls?
• Which downstream services require private connectivity?
• Which apps need only internal ingress because they are consumed by peer services rather than internet clients?

Internal traffic inside the environment¶

Microsoft Learn notes that Envoy routes internal traffic inside clusters. In practice, that is useful for understanding internal ingress, service-to-service communication paths, and how requests can remain inside the platform boundary for private application topologies.

Optional Platform Features¶

Not every architecture needs every platform feature. Azure Container Apps adds capabilities incrementally, so it helps to treat these as optional building blocks rather than default requirements.

Dapr integration¶

Azure Container Apps supports Dapr integration for common distributed application patterns. Microsoft Learn documents Dapr support for:

• Service-to-service invocation
• State management
• Pub/sub messaging
• Bindings and actors scenarios, depending on component use

This feature is valuable when you want a consistent sidecar-based abstraction for service communication and eventing, but it also adds another runtime component to observe and troubleshoot.

Jobs¶

Azure Container Apps also supports jobs for work that should run to completion instead of serving long-lived request traffic. Jobs are useful for:

• Scheduled processing
• Manual administrative execution
• Event-driven batch work

Architecturally, jobs share the Container Apps platform model but differ from apps in one key way: the primary unit of work is an execution that runs to completion, not an ingress-exposed service that continuously receives requests.

Portal View¶

The diagrams above describe the architecture abstractly. This section walks through what those same concepts look like in the Azure portal, using a live Container Apps environment (cae-basics-d38538) and a sample app (ca-sample-d38538) deployed in Korea Central. Each capture is a real blade you can navigate to and confirm against your own deployment.

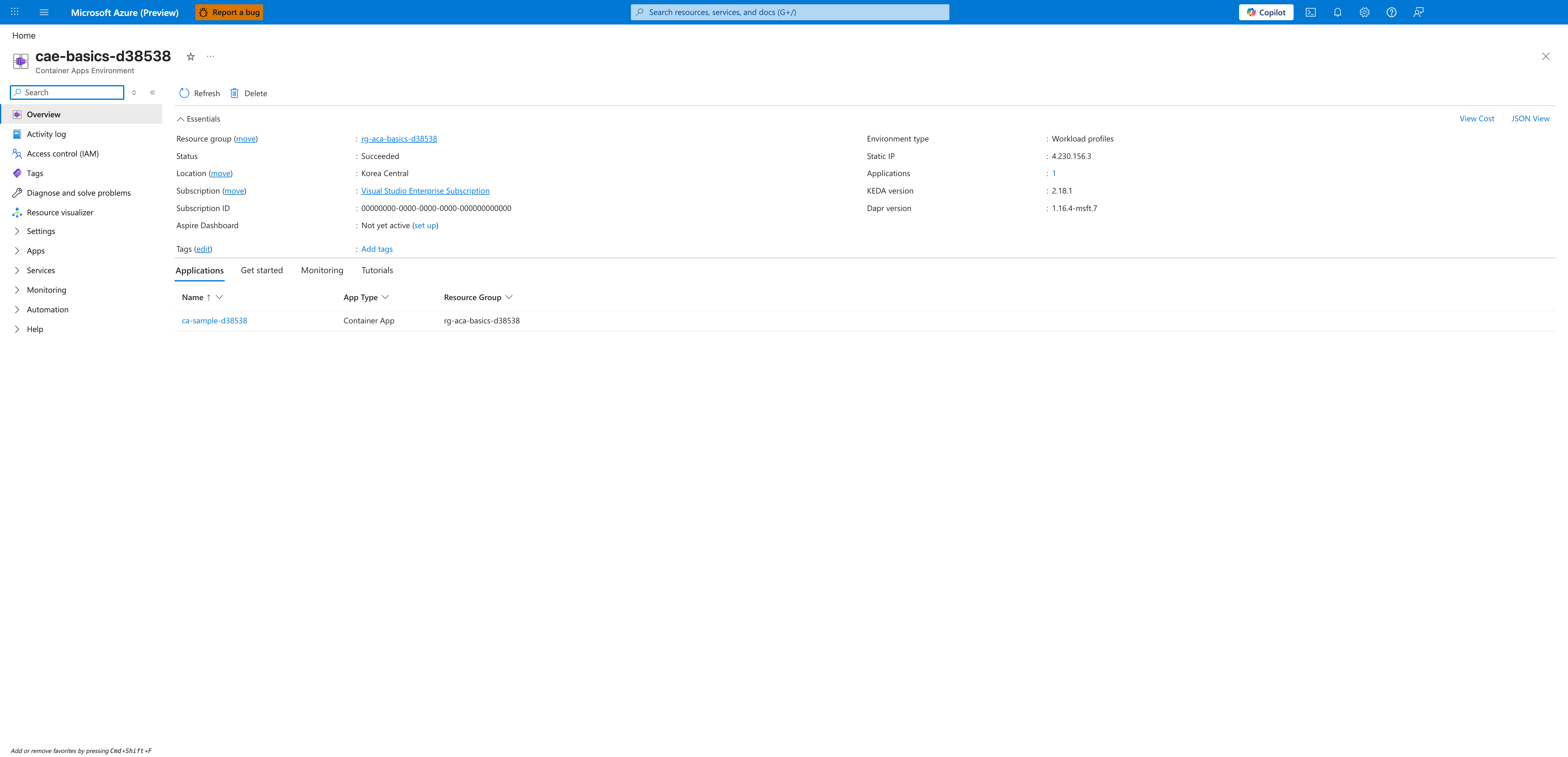

Step 1: Container Apps environment overview¶

Start at the Container Apps environment resource. The environment is the platform boundary discussed in the Environment Internals section above: it owns shared networking, the KEDA-powered scaling layer, the Dapr runtime, and the Envoy-based ingress proxy. Navigate to the environment resource (cae-basics-d38538 in the sample) to see this blade.

[Observed] The Essentials panel shows Status : Succeeded, Location : Korea Central, Environment type : Workload profiles, Static IP : 4.230.156.3, Applications : 1, KEDA version : 2.18.1, and Dapr version : 1.16.4-msft.7. The Applications tab below lists a single row, ca-sample-d38538, with App Type : Container App and Resource Group : rg-aca-basics-d38538.

[Inferred] The presence of KEDA version and Dapr version fields directly in the environment Essentials panel confirms what the architecture diagram shows: KEDA-powered scaling and the optional Dapr sidecar runtime are environment-level capabilities, not per-app installations. The Static IP field is the egress address shared by every app in this environment, which is why environment selection is a networking-design decision and not just a deployment-target choice.

[Not Proven] This blade does not show the Envoy ingress proxy as a discrete component. The proxy exists inside the environment per Microsoft Learn documentation but is not exposed as a separately addressable resource in the portal.

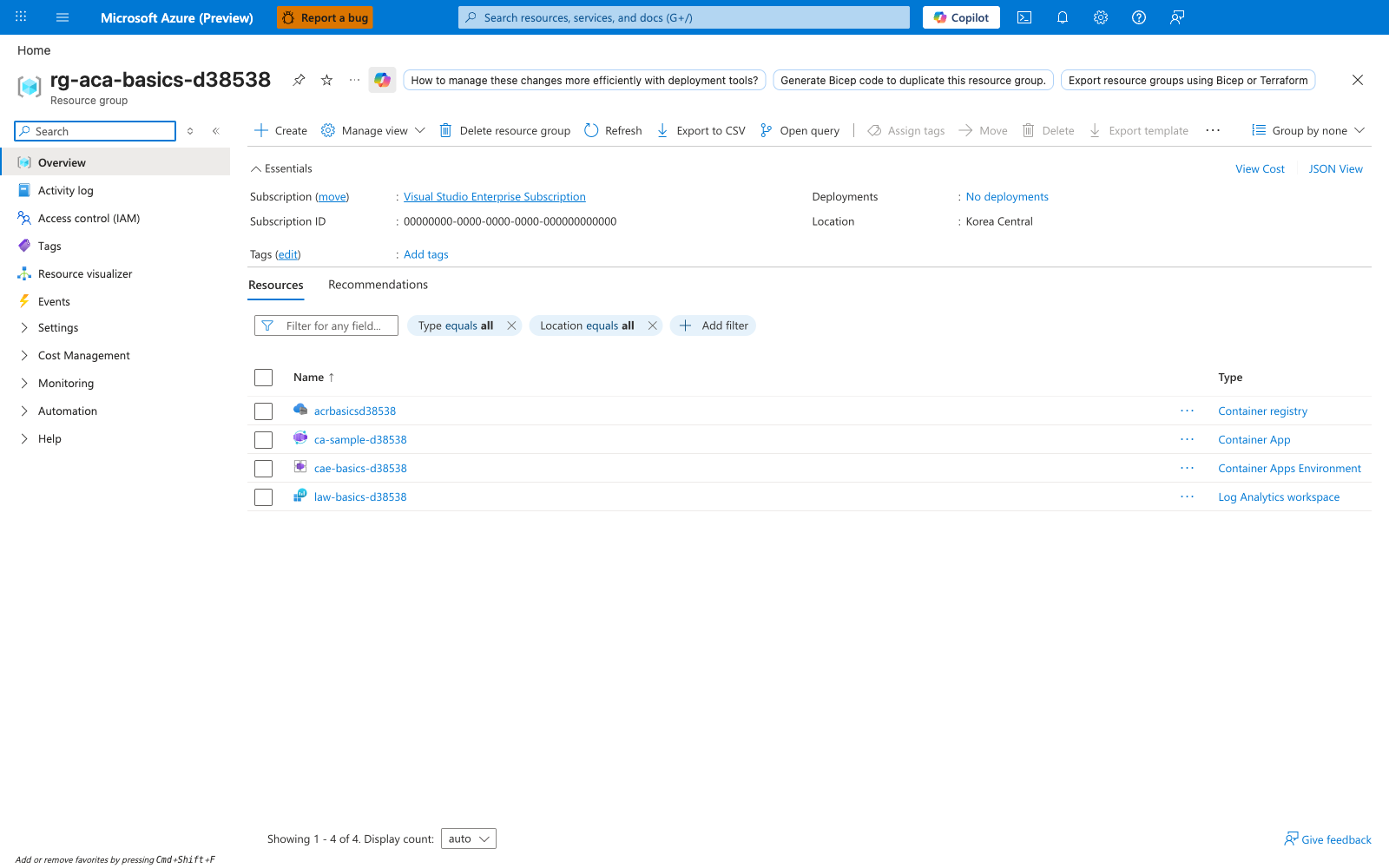

Step 2: Resource group view¶

Next, navigate to the parent resource group (rg-aca-basics-d38538) to see the full set of Azure resources the environment depends on.

[Observed] The Resources list shows four rows: acrbasicsd38538 typed Container registry, ca-sample-d38538 typed Container App, cae-basics-d38538 typed Container Apps Environment, and law-basics-d38538 typed Log Analytics workspace. The Essentials panel shows Location : Korea Central and Deployments : No deployments.

[Inferred] A working Container Apps deployment is a small graph of Azure resources, not a single object. The Container Apps Environment and the Container App are two distinct resource types with their own lifecycle. The Container Registry holds the images that revisions reference, and the Log Analytics workspace is the observability backend that the environment forwards logs to. Deleting any one of these resources independently is possible and will produce different failure modes — this is the boundary you reason about during incident response.

[Not Proven] The resource list does not show wiring: it cannot tell you which app uses which registry, or whether the Log Analytics workspace is the one the environment was configured to use. Those bindings live inside each resource's configuration and are visible from the corresponding blade.

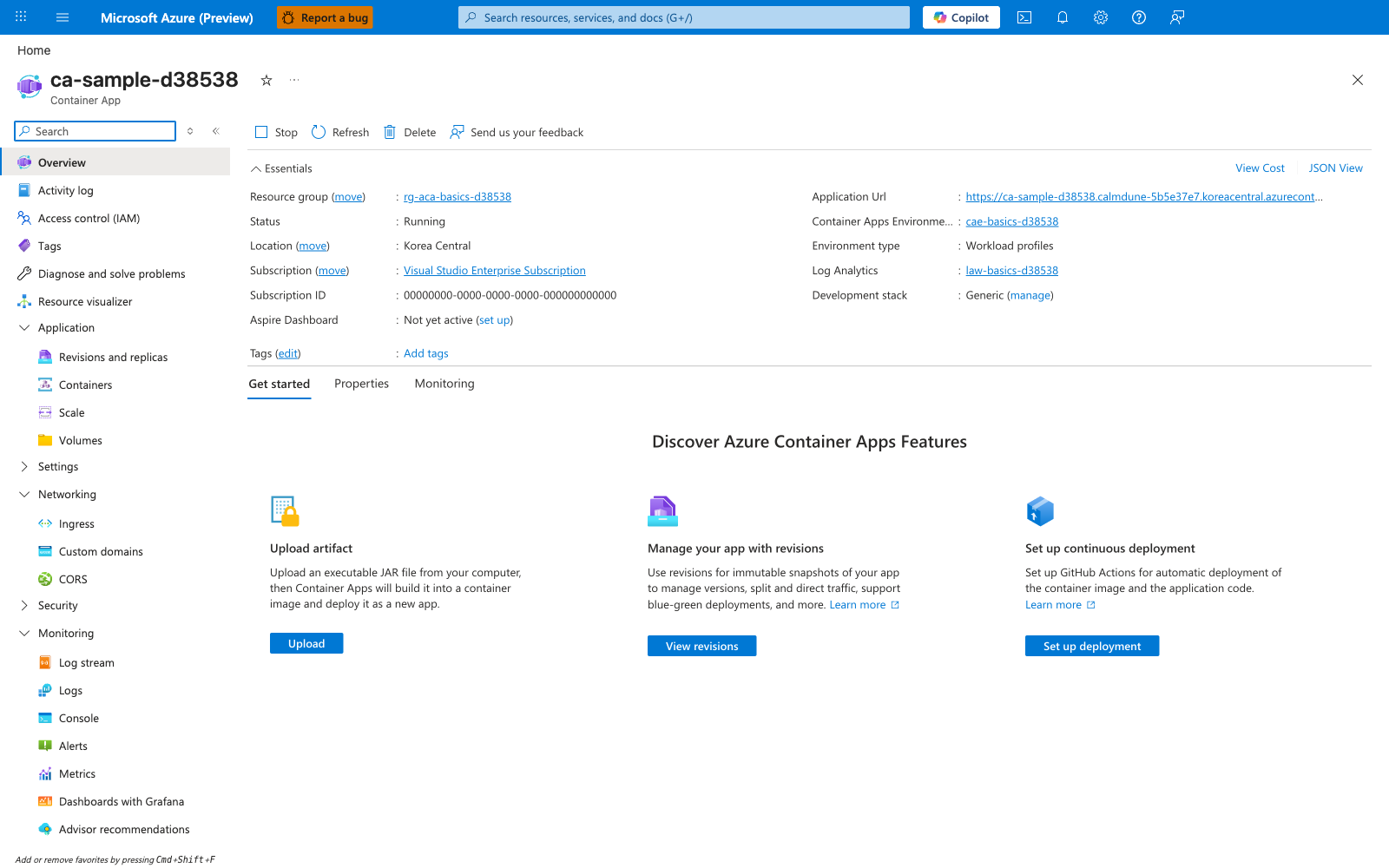

Step 3: Container App overview¶

Drill into the Container App resource itself (ca-sample-d38538). This is the unit you deploy, scale, and version.

[Observed] The Essentials panel shows Status : Running, Location : Korea Central, an Application Url field whose value is truncated with an ellipsis (visible prefix https://ca-sample-d38538.calmdune-5b5e37e7.koreacentral.azurecont…), Container Apps Environment : cae-basics-d38538, Environment type : Workload profiles, Log Analytics : law-basics-d38538, and Development stack : Generic. The left navigation has expandable groups for Application (with child entries Revisions and replicas, Containers, Scale, Volumes), Networking (Ingress, Custom domains, CORS), Security, and Monitoring (Log stream, Logs, Console, Alerts, Metrics, Dashboards with Grafana, Advisor recommendations).

[Inferred] The Essentials panel surfaces both runtime-oriented fields (Status, Application Url) and configuration-time bindings (Container Apps Environment, Log Analytics) on the same blade, which mirrors the control-plane vs data-plane split discussed earlier on this page. The left-navigation grouping also mirrors the architecture sections of this doc — Revisions and replicas for the revision model, Scale for the scaling model, Ingress and Custom domains for the networking model, and Log stream/Logs for the observability pipeline.

[Not Proven] The overview blade exposes an Application Url field but does not by itself prove whether the ingress is configured as external or internal, or whether the URL is reachable from the public internet — that decision lives in the Networking > Ingress child blade.

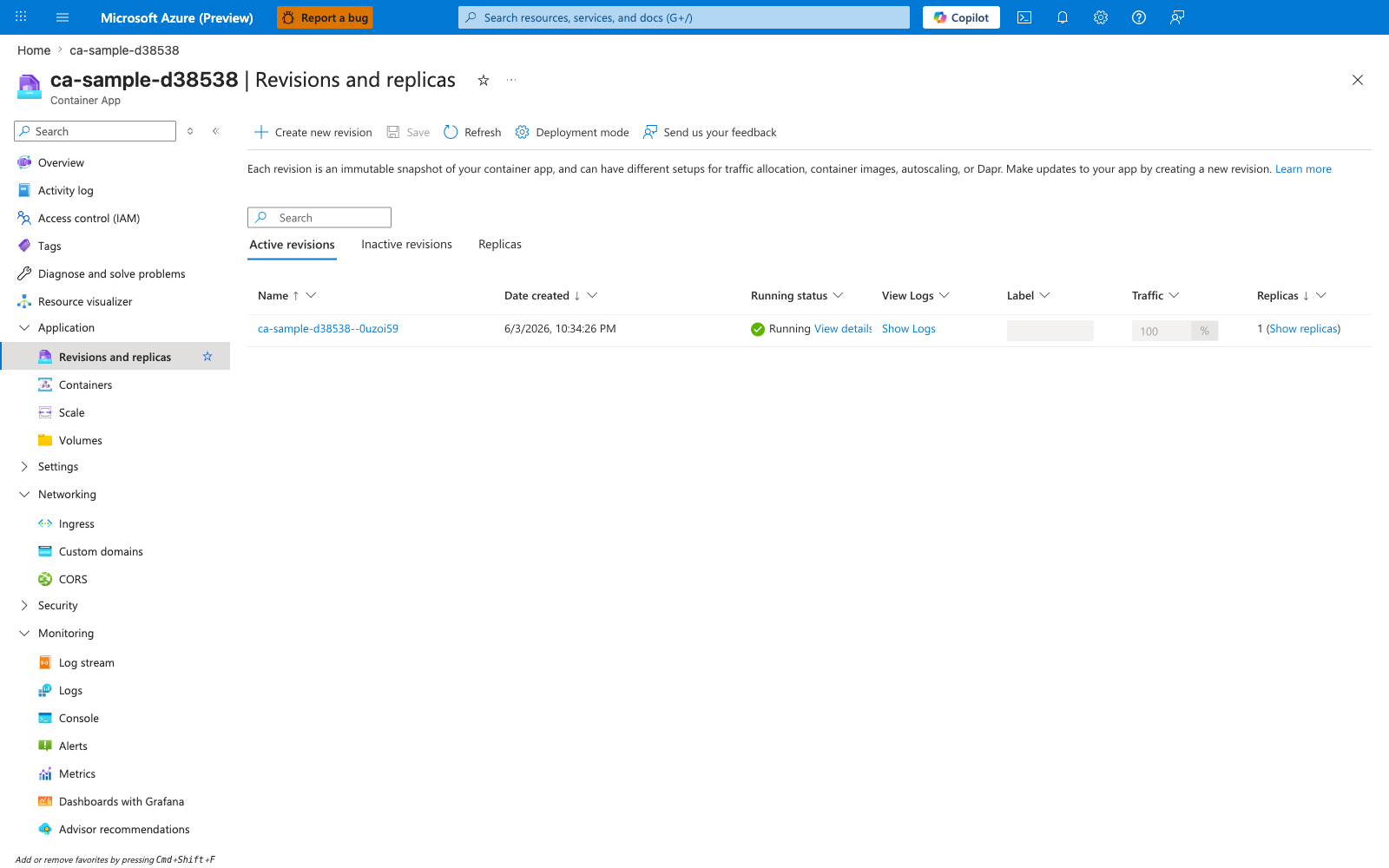

Step 4: Revisions and replicas¶

Open the Revisions and replicas blade to see the revision model in practice. This is the same concept described in the Revision and Replica Model section above.

[Observed] The blade header is ca-sample-d38538 | Revisions and replicas and includes the descriptive text "Each revision is an immutable snapshot of your container app, and can have different setups for traffic allocation, container images, autoscaling, or Dapr." Three tabs are visible: Active revisions, Inactive revisions, Replicas. The Active revisions table has one row: ca-sample-d38538--0uzoi59, Date created : 6/3/2026, 10:34:26 PM, Running status : Running, Traffic : 100%, Replicas : 1.

[Inferred] The revision suffix (--0uzoi59) is appended to the app name to form a revision-specific identifier. The fact that Traffic and Replicas are columns on a per-revision row — not on the app itself — confirms that traffic splitting and replica scaling are revision-scoped properties, which is why revisions are the right unit for rollout and rollback. The separate Inactive revisions and Replicas tabs reflect the lifecycle described in the Revision lifecycle mental model table: revisions can be active or inactive, and replicas are the running instances of an active revision.

[Not Proven] This blade shows the revision identifier and traffic state but does not by itself show the image tag, environment variables, or scale rules that define what makes this revision distinct from any prior revision. Those details require opening the revision's detail panel (View details link) or comparing JSON snapshots between revisions.

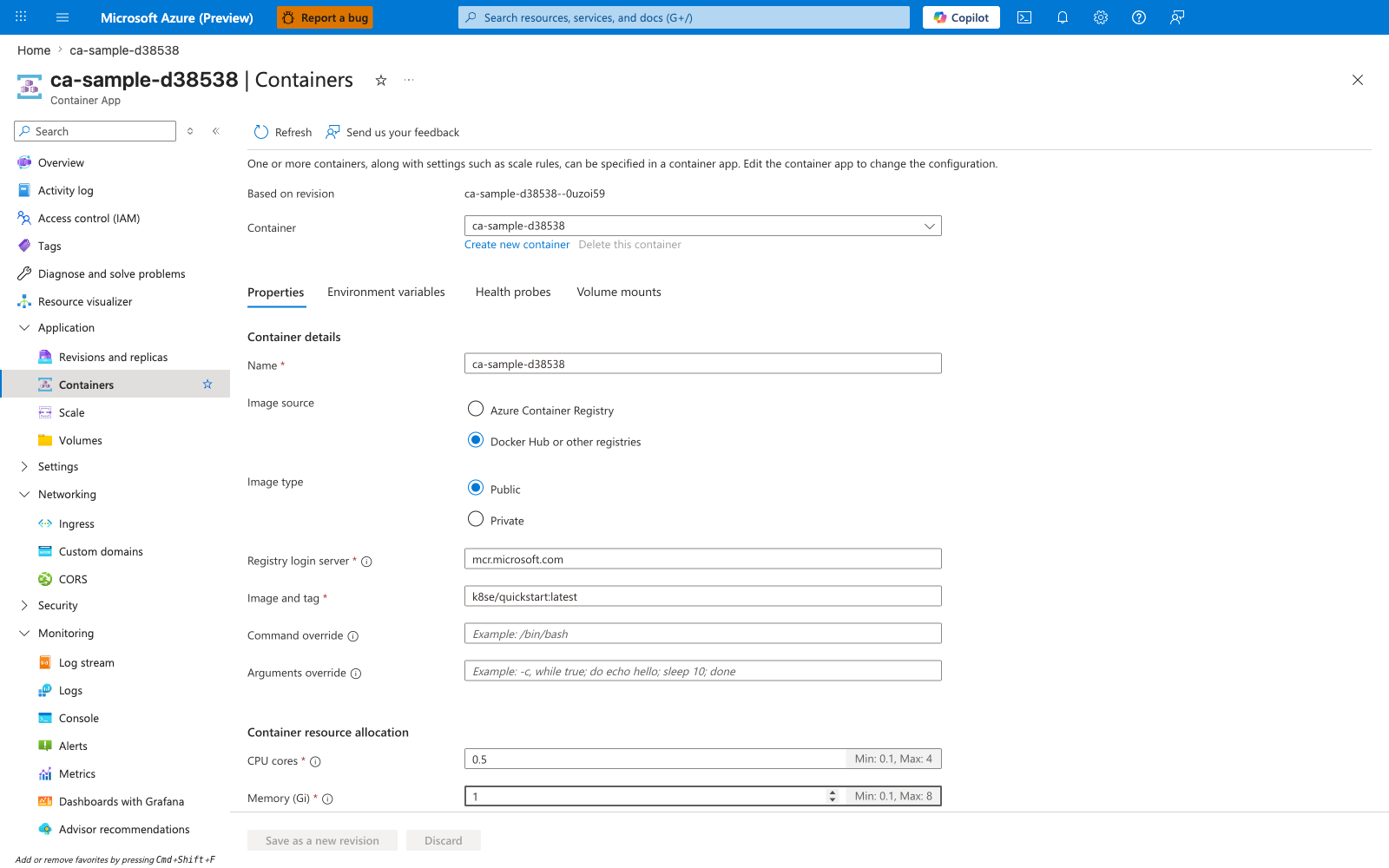

Step 5: Containers blade (revision-bound template)¶

The Containers blade is where you see why revisions are immutable: every change here saves as a new revision rather than mutating the current one. This is the concrete implementation of the Revision and Replica Model discussed above.

[Observed] The blade header is ca-sample-d38538 | Containers and the page begins with the text "One or more containers, along with settings such as scale rules, can be specified in a container app. Edit the container app to change the configuration." The Based on revision field shows ca-sample-d38538--0uzoi59. The Container dropdown is set to ca-sample-d38538 with Create new container and Delete this container links below it. Four tabs are visible: Properties (active), Environment variables, Health probes, Volume mounts. Under Container details: Name : ca-sample-d38538, Image source : Docker Hub or other registries, Image type : Public, Registry login server : mcr.microsoft.com, Image and tag : k8se/quickstart:latest, Command override (empty), Arguments override (empty). Container resource allocation shows CPU cores : 0.5 (Min: 0.1, Max: 4) and Memory (Gi) : 1 (Min: 0.1, Max: 8). The bottom action buttons are Save as a new revision and Discard.

[Inferred] The label Based on revision : ca-sample-d38538--0uzoi59 (read-only, not editable) plus the bottom action button literally named Save as a new revision is the strongest visible proof of the immutable-revision model. You cannot edit the current revision in place — any change here forks a new revision. The four tabs (Properties, Environment variables, Health probes, Volume mounts) enumerate the revision-scope fields that, when changed, will produce a new revision; this directly mirrors the Revision lifecycle mental model step 1 ("A deployment changes app configuration or template fields that affect revision state").

[Not Proven] The blade shows the current image (mcr.microsoft.com/k8se/quickstart:latest) but does not show image digest, signature, or whether the registry is private — the Image type : Public radio reflects the user's configuration intent, not a runtime verification of registry access.

Step 6: Scale blade (KEDA-powered rules)¶

The Scale blade exposes the KEDA-powered scaling model described above as a concrete configuration surface. This is where you see that scale rules are revision-scoped and that the rule type — not just min/max replicas — drives behavior.

[Observed] The Based on revision field shows ca-sample-d38538--0uzoi59. The Scale rule settings explanation reads "Control automatic scaling by setting the range of application replicas that'll be deployed in response to a trigger event. Use scale rules to determine the type of events that trigger scaling." Fields: Min replicas : 1 (Min: 0), Max replicas : 3 (Max: 1000), Cooldown period : 300, Polling interval : 30, Current number of replicas : 1 (View Details). The Scale rules table has one row: Name : http-scaler, Type : HTTP scaling.

[Inferred] The fact that Type is a column (alongside Name) — not a fixed property of every app — confirms what the architecture diagram showed: scaling is pluggable, and HTTP, TCP, CPU, memory, and event-driven scalers are different rule types that share the same min/max/cooldown surface. The visible Min replicas : 0 floor in the helper text (Min: 0) is the concrete entry point for "scale to zero" described in the Scaling Model section. The Polling interval : 30 field is the cadence at which the configured scaler queries its source — this is why event-driven scale-out is not instantaneous.

[Not Proven] The blade shows that an HTTP scaler exists but the row alone does not show the rule's threshold (concurrent requests target). That detail lives behind the rule name link. Likewise, Current number of replicas : 1 is a point-in-time read; it does not prove how the platform reached that count or how long it has been steady.

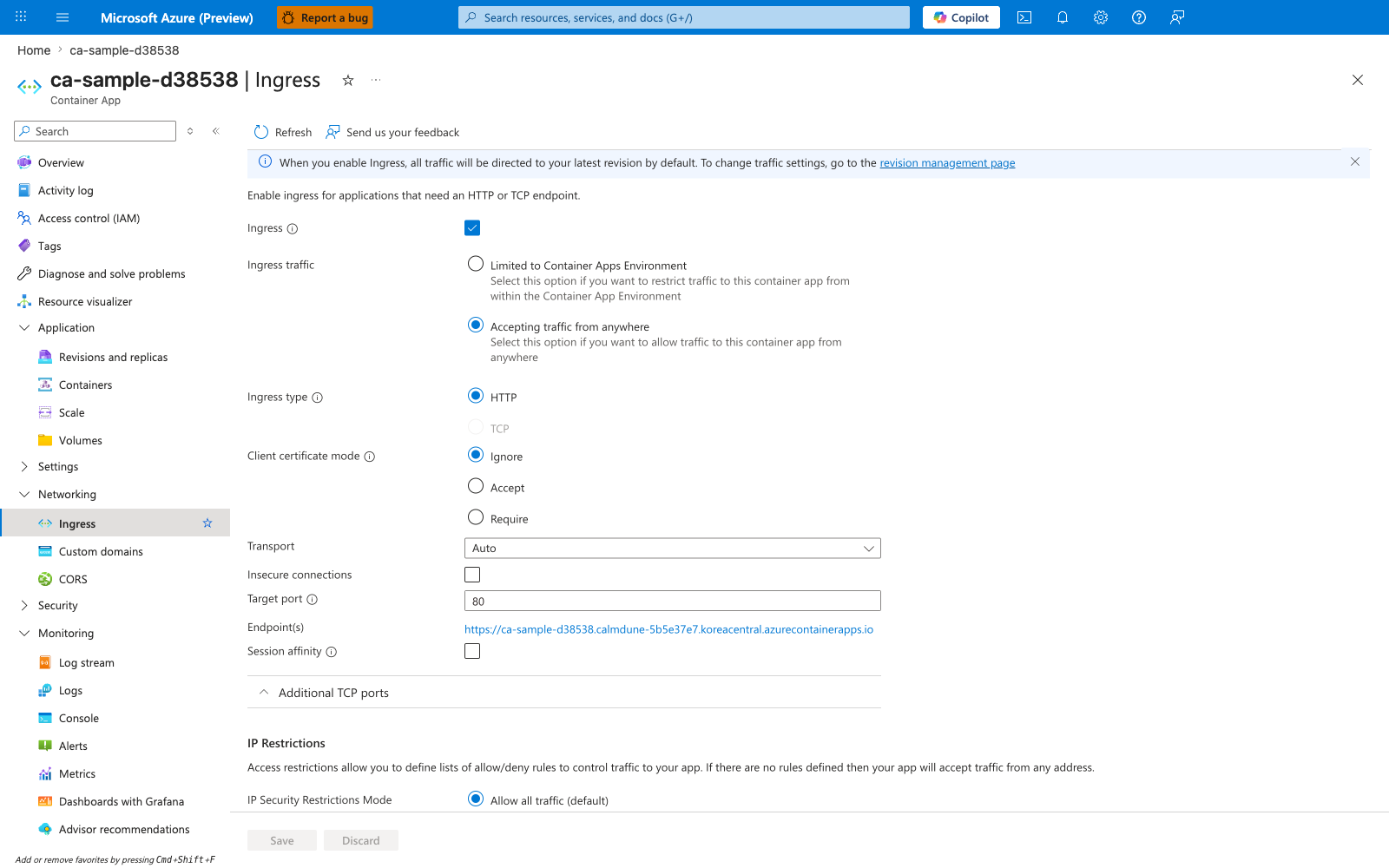

Step 7: Ingress blade (Envoy proxy configuration)¶

The Ingress blade is where the Envoy-based HTTP edge proxy described in the Networking Model section becomes visible as a configuration surface — terminating TLS, exposing the external endpoint, and binding to a container port.

[Observed] A blue info banner reads "When you enable Ingress, all traffic will be directed to your latest revision by default. To change traffic settings, go to the revision management page." Below: "Enable ingress for applications that need an HTTP or TCP endpoint." The Ingress toggle is checked. Ingress traffic has two radio options — Limited to Container Apps Environment (unselected) and Accepting traffic from anywhere (selected). Ingress type shows HTTP selected and TCP greyed out. Client certificate mode has Ignore selected (alternatives Accept, Require). Transport : Auto. Insecure connections : (unchecked). Target port : 80. Endpoint(s) : https://<your-app-name>.<env-suffix>.koreacentral.azurecontainerapps.io. Session affinity : (unchecked). A collapsed Additional TCP ports panel is below. An IP Restrictions section reads "Access restrictions allow you to define lists of allow/deny rules to control traffic to your app. If there are no rules defined then your app will accept traffic from any address." with IP Security Restrictions Mode : Allow all traffic (default).

[Inferred] The split between Ingress traffic (external vs internal-only) and Target port (the port your container listens on) is the concrete realization of the architecture statement that the Envoy proxy "terminates TLS and routes requests to the correct app revision." The Endpoint(s) URL uses https:// even though Target port is 80 — this confirms TLS is terminated at the ingress layer, not inside the container, which is exactly the data-plane responsibility described in the Networking Model section. The info banner about "all traffic will be directed to your latest revision by default" plus the link to "the revision management page" connects this blade to Step 4: traffic splitting between revisions is configured there, not here.

[Not Proven] This blade shows that ingress is configured as external (Accepting traffic from anywhere) but does not by itself prove that any specific request was served — that requires log stream evidence or the Endpoint(s) URL responding. Likewise, IP Security Restrictions Mode : Allow all traffic (default) shows no IP allowlist is configured, but the blade does not show whether environment-level network policies (e.g., a VNet integration with NSGs) further restrict reachability.

Design Review Checklist¶

Use this page as a quick architecture review guide before you deploy a new workload:

• Have you separated control-plane concerns from data-plane runtime concerns?
• Is the environment boundary appropriate for the apps that will share networking, logging, and operational lifecycle?
• Do you understand which changes create a new revision and how rollback will work?
• Are scale rules aligned with real workload signals rather than guesses?
• Is ingress configured correctly for external versus internal exposure?
• Are identity and RBAC dependencies documented for every downstream Azure resource?
• If Dapr or Jobs are enabled, is the team prepared to operate those additional runtime patterns?

See Also¶

• Resource Relationships
• Networking
• Scaling
• Availability and Non-Guarantees — the five best-effort contracts the platform scheduler and rollout mechanism do NOT promise, with the Microsoft Learn disclosure for each.

Sources¶

• Azure Container Apps overview (Microsoft Learn)
• Environment in Azure Container Apps (Microsoft Learn)
• Networking in Azure Container Apps (Microsoft Learn)
• Set scaling rules in Azure Container Apps (Microsoft Learn)
• Revisions in Azure Container Apps (Microsoft Learn)
• Dapr integration in Azure Container Apps (Microsoft Learn)
• Managed identities in Azure Container Apps (Microsoft Learn)
• Ingress in Azure Container Apps (Microsoft Learn)
• Jobs in Azure Container Apps (Microsoft Learn)
