Alerting for Container Apps¶

Alerting translates platform telemetry into actionable incident signals. This page provides a baseline alert set for production Container Apps.

Prerequisites¶

export RG="rg-myapp"
export APP_NAME="ca-myapp"
export JOB_NAME="job-myapp"

Key Metrics to Alert On¶

Prioritize metrics that indicate user impact or workload instability:

• Replica count dropping unexpectedly or pinned at max replicas
• HTTP 5xx rate rising above baseline
• Response latency p95/p99 exceeding SLO thresholds
• CPU/Memory utilization sustained near limits
• Job execution failures for scheduled/event-driven jobs

For a question-driven selection table that maps each incident question to the exact metric, aggregation, split dimension, and a starting threshold, see Metric alerts by incident question.

Azure Monitor Alert Rules¶

Use metric alerts for fast detection and log alerts for richer context.

Metric alert examples:

• High server error percentage over 5 minutes
• High memory working set over 10 minutes
• Zero ready replicas for active production app

Create a metric alert with Azure CLI:

az monitor metrics alert create \
  --name "aca-high-memory" \
  --resource-group "$RG" \
  --scopes "/subscriptions/<subscription-id>/resourceGroups/$RG/providers/Microsoft.App/containerApps/$APP_NAME" \
  --condition "avg WorkingSetBytes > 800000000" \
  --window-size "PT5M" \
  --evaluation-frequency "PT1M" \
  --severity 2 \
  --action "/subscriptions/<subscription-id>/resourceGroups/$RG/providers/microsoft.insights/actionGroups/ag-oncall"

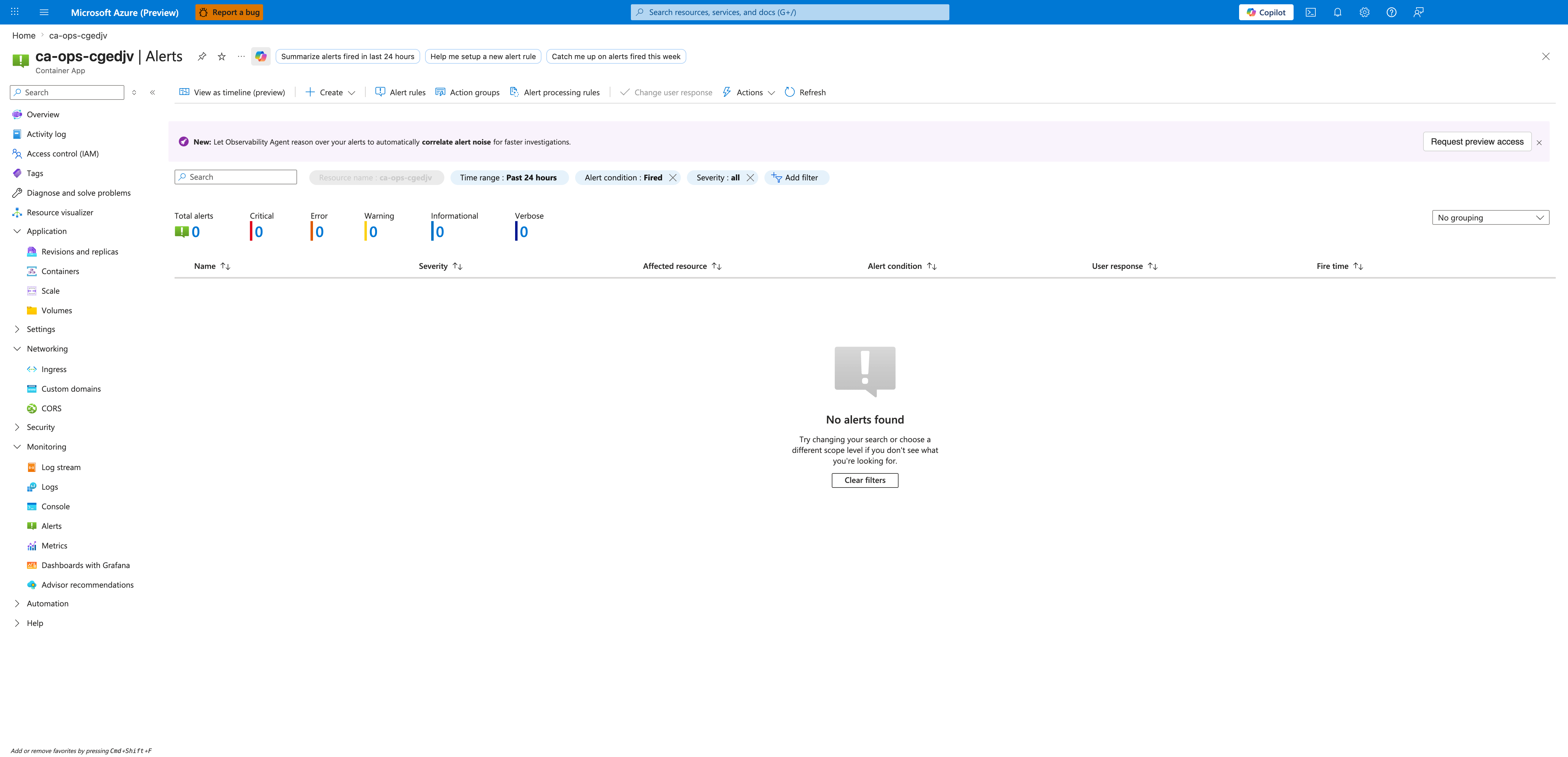

Portal view: Container App Alerts blade¶

Open the Container App in the Azure Portal, then choose Monitoring → Alerts in the left navigation. This per-resource Alerts blade is scoped to a single Container App and lists fired alert instances (not the rule definitions themselves).

[Observed] The header row reads ca-ops-cgedjv | Alerts. The pinned filter chips read Resource name : ca-ops-cgedjv (greyed out and pre-scoped to this Container App), Time range : Past 24 hours, Alert condition : Fired, and Severity : all. The summary tiles report Total alerts: 0 with per-severity counters Critical: 0, Error: 0, Warning: 0, Informational: 0, Verbose: 0. The empty-state panel in the grid area shows the heading No alerts found, the body text Try changing your search or choose a different scope level if you don't see what you're looking for, and a Clear filters button.

[Inferred] An empty Fired list with Severity : all means no alert rule scoped to this Container App has transitioned to the Fired state inside the 24-hour window. This view does not prove that no rules exist - it only proves that none of the existing rules have produced a firing instance. To verify rule definitions and their enabled state, the toolbar Alert rules button must be opened (next capture).

[Not Proven] This blade does not display rule scope, condition, severity, or action group binding. It also does not distinguish between "no rule exists" and "a rule exists but its condition has not been met". Inspection of the Alert rules sub-blade is required to confirm what is being evaluated.

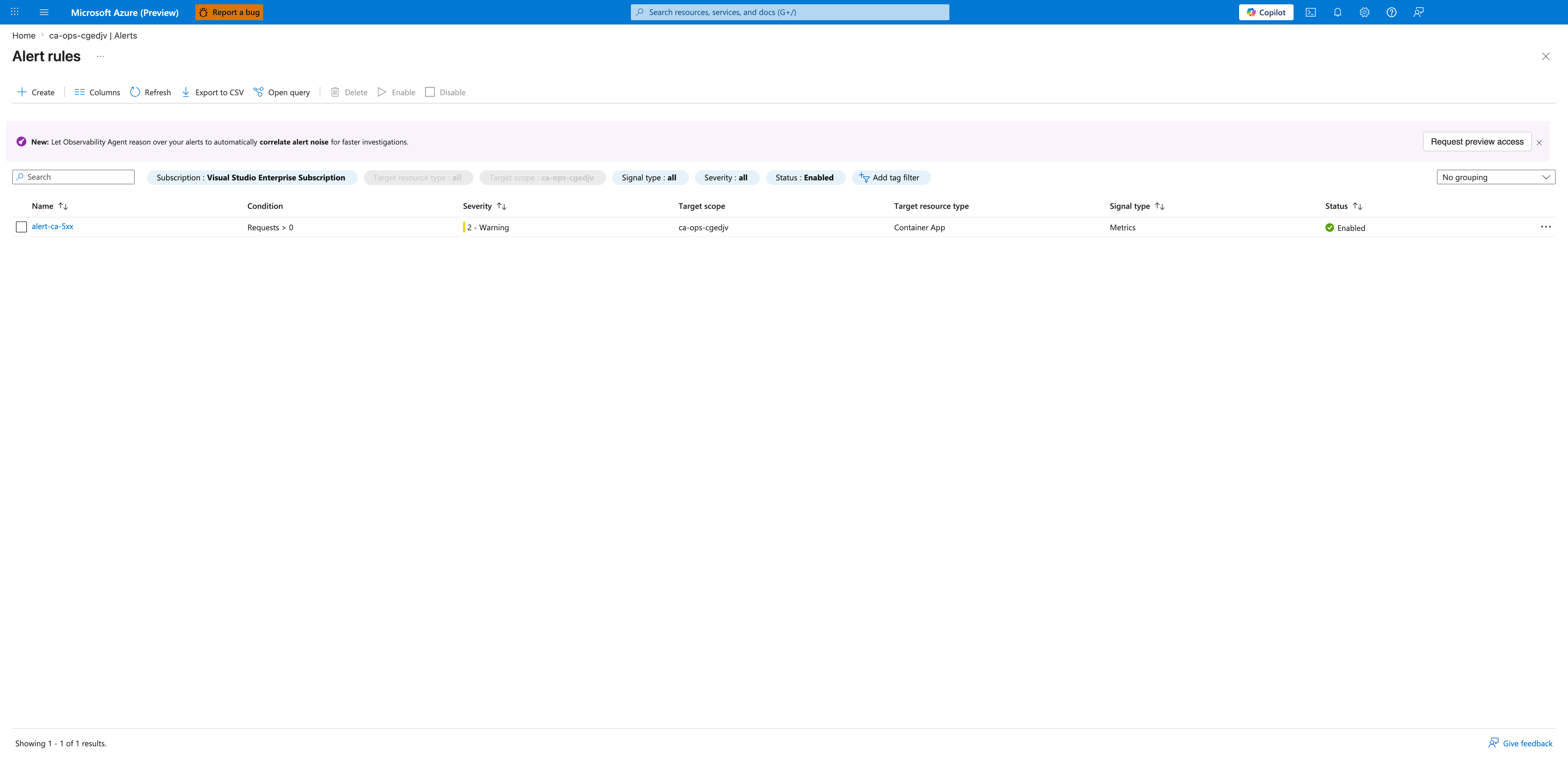

Portal view: Azure Monitor alert rules¶

From the Alerts blade toolbar, choose Alert rules. The Alert rules blade lists every alert rule whose scope includes the current resource and surfaces the rule's enabled state, severity, and condition summary.

[Observed] Exactly one row is rendered: Name: alert-ca-5xx, Condition: Requests > 0, Severity: 2 - Warning, Target scope: ca-ops-cgedjv, Target resource type: Container App, Signal type: Metrics, Status: Enabled with a green check icon. The filter chips show Subscription : Visual Studio Enterprise Subscription, Target resource type : all, Target scope : ca-ops-cgedjv, Signal type : all, Severity : all, Status : Enabled. The grid footer reads Showing 1 - 1 of 1 results.

[Inferred] The Status: Enabled flag together with the green check confirms the rule is currently armed and will evaluate every aggregation window. Because Signal type reports Metrics, this is a metric alert rule and its evaluation cadence is governed by the rule's evaluation-frequency and window-size properties, not by log ingestion latency. The single-row result is consistent with the prior CLI-created alert-ca-5xx rule; because the grid is filtered to Status : Enabled, this view confirms only that exactly one enabled metric alert rule is currently scoped to this Container App and does not rule out the existence of additional disabled rules.

[Not Proven] This grid does not reveal the action group bound to the rule, the resolved condition expression (only the truncated summary Requests > 0), or the evaluation window. The rule detail blade must be opened to see scope hierarchy, condition aggregation, and the action group binding.

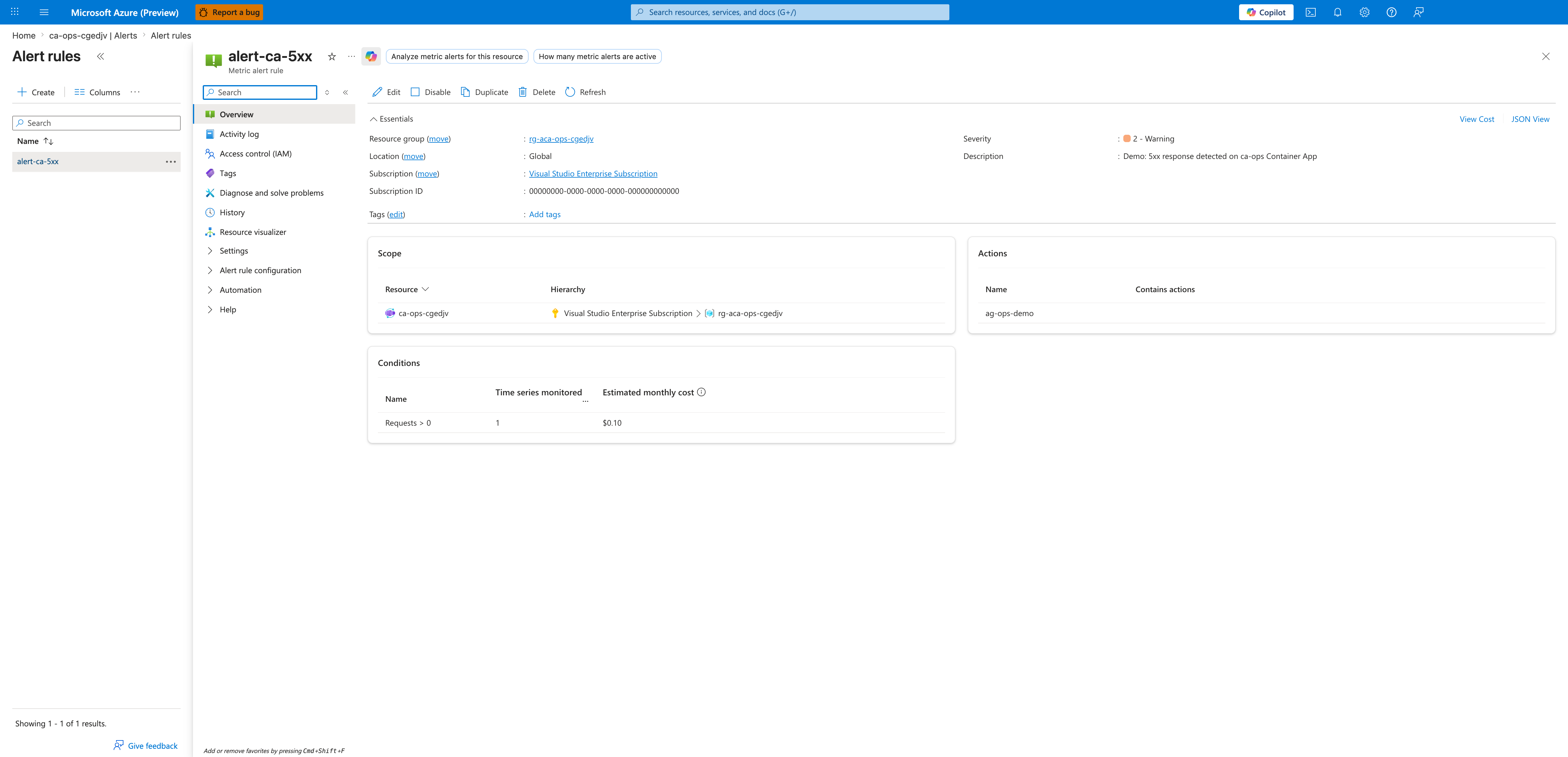

Portal view: Alert rule configuration¶

Click the rule name (alert-ca-5xx) to open the metric alert rule detail blade. This view shows the resolved scope, condition, and action group binding in a single place.

[Observed] The Essentials section reads Resource group: rg-aca-ops-cgedjv, Location: Global, Subscription: Visual Studio Enterprise Subscription, Severity: 2 - Warning, Description: Demo: 5xx response detected on ca-ops Container App. The Scope card shows Resource: ca-ops-cgedjv with hierarchy Visual Studio Enterprise Subscription > rg-aca-ops-cgedjv. The Conditions card lists Requests > 0 with Time series monitored: 1 and Estimated monthly cost: $0.10. The Actions card lists Name: ag-ops-demo.

[Inferred] The rule is fully bound: a Container App scope (ca-ops-cgedjv), a metric condition (Requests > 0), and an action group (ag-ops-demo) are all present. Because the condition counts every request (> 0) rather than filtering on status code, this rule will fire on any incoming traffic in the evaluation window and is therefore a demonstration rule rather than a production 5xx detector - the Description field reinforces this intent. The Location: Global value is expected for metric alerts because Azure Monitor evaluates them out of a regional pool independent of the monitored resource's region.

[Not Proven] This overview does not display the rule's evaluation-frequency or window-size (they live in the Alert rule configuration sub-blade), nor does it expand the action group to show notification channels. The action group's configured notifications must be inspected separately (next capture).

Pre-alert baseline checks from real deployment (PII scrubbed):

az containerapp revision list \
  --name "$APP_NAME" \
  --resource-group "$RG" \
  --output json

az containerapp job execution list \
  --name "$JOB_NAME" \
  --resource-group "$RG" \
  --output json

[
  {
    "name": "ca-myapp--0000001",
    "active": true,
    "trafficWeight": 100,
    "replicas": 1,
    "healthState": "Healthy",
    "runningState": "Running"
  }
]

[
  {
    "name": "job-myapp-w6gm0ew",
    "status": "Succeeded",
    "startTime": "2026-04-04T12:53:54+00:00",
    "endTime": "2026-04-04T12:54:29+00:00"
  }
]

Log-Based Alerts with KQL¶

Use log alerts for pattern detection, retries, and error semantics from application logs.

Sample KQL (5xx spike):

ContainerAppConsoleLogs_CL
| where TimeGenerated > ago(5m)
| where ContainerAppName_s == "$APP_NAME"
| where Log_s has "\"status\":500" or Log_s has "\"status\":503"
| summarize ErrorCount = count() by bin(TimeGenerated, 1m)
| where ErrorCount > 20

Example query result format:

TimeGenerated               ErrorCount
-------------------------  ----------
2026-04-04T12:50:00Z       0
2026-04-04T12:51:00Z       0

Sample KQL (job failures):

ContainerAppSystemLogs_CL
| where TimeGenerated > ago(15m)
| where Log_s has "$JOB_NAME" and Log_s has "Failed"
| summarize FailureCount = count()
| where FailureCount >= 1

Action Groups and Notification Channels¶

Route alerts by criticality:

• Severity 0-1: paging channel (PagerDuty, SMS, phone)
• Severity 2-3: team chat + email
• Severity 4: ticketing/backlog for non-urgent trends

Keep ownership explicit by mapping each alert to an on-call team.

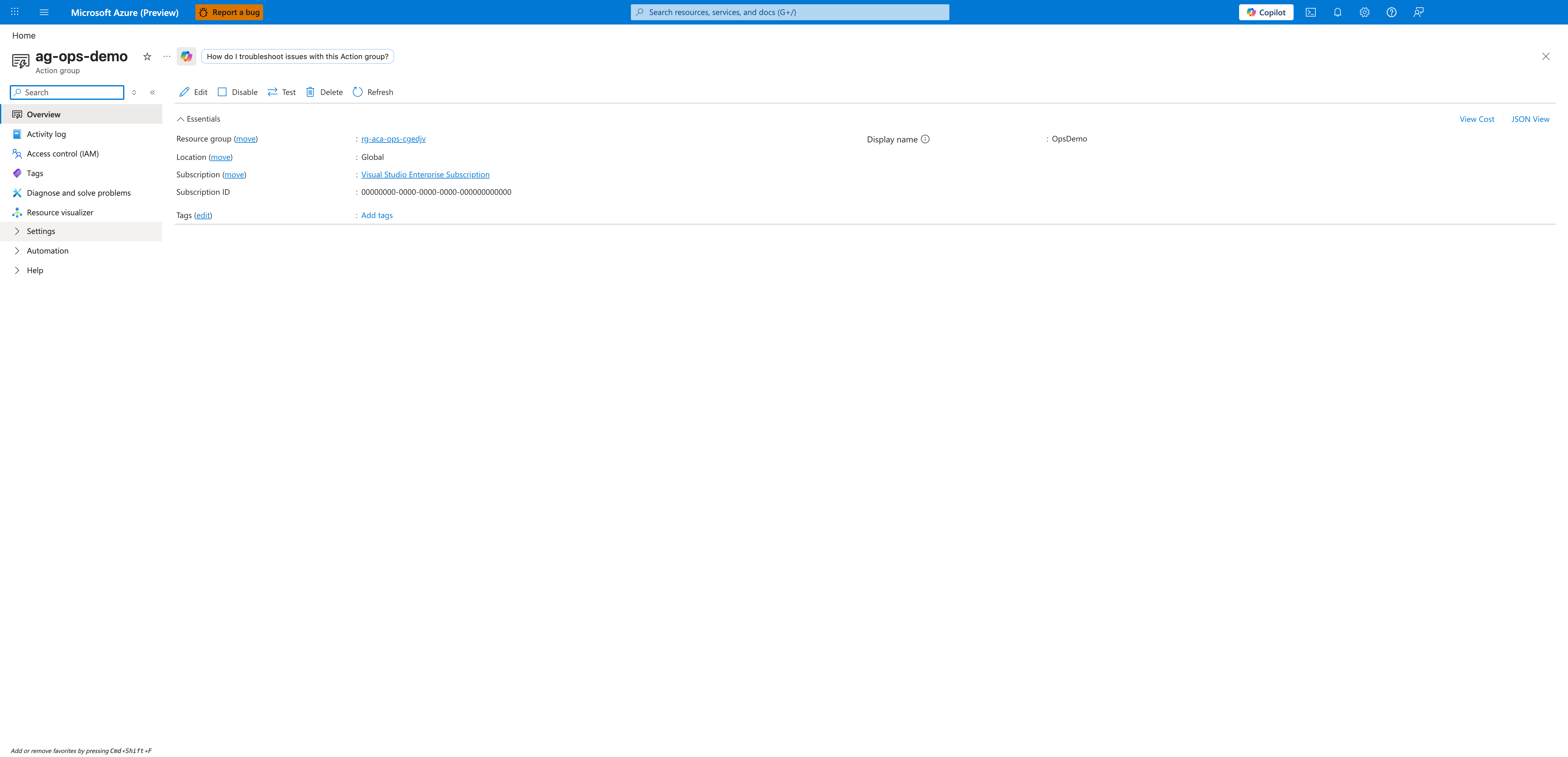

Portal view: Action group overview¶

From the alert rule overview, click ag-ops-demo in the Actions card to open the action group resource. The action group bound to an alert rule is itself an Azure resource. Opening it confirms the display name (used in notification payloads), the subscription, and the resource group, and acts as the entry point to inspect or edit notification channels (Settings → Notifications, Actions).

[Observed] The header reads ag-ops-demo with subtitle Action group. The Essentials section reports Resource group: rg-aca-ops-cgedjv, Location: Global, Subscription: Visual Studio Enterprise Subscription, Display name: OpsDemo. The left navigation exposes Overview, Activity log, Access control (IAM), Tags, Diagnose and solve problems, Resource visualizer, Settings, Automation, Help.

[Inferred] The action group exists and is reachable, which confirms that the action group resource ID referenced by alert-ca-5xx is valid. Location: Global is the expected value for Action Groups - they are routed through the regional notification pipeline regardless of the monitored resource's region. Display name: OpsDemo is the short name that Azure Monitor injects into email subjects, SMS bodies, and webhook payloads when the action group fires, so it is the user-facing label that on-call responders will see, distinct from the resource name ag-ops-demo.

[Not Proven] This Overview blade does not enumerate the actual notification channels (email, SMS, webhook, ITSM, Logic App, etc.) - those live under Settings → Notifications and Settings → Actions. An empty Overview here is also consistent with an action group that has no configured channels, which would cause alerts to fire silently. To prove notifications will actually reach a responder, the Notifications sub-blade must be opened and at least one channel verified.

Recommended Threshold Baseline¶

• HTTP 5xx rate > 2% for 5 minutes (sev2)
• p95 latency > 1.5s for 10 minutes (sev2)
• Ready replicas = 0 for 2 minutes (sev1)
• Memory > 85% for 10 minutes (sev2)
• Job failures >= 1 in last 15 minutes (sev2)

Tune these values using your normal load patterns after 2-4 weeks of baseline data.

Alert Lifecycle Flow¶

flowchart TD
    A[Metric or Log Threshold Breach] --> B[Azure Monitor Alert Rule]
    B --> C[Action Group Triggered]
    C --> D[Notify On-call Channel]
    D --> E[Run Investigation Queries]
    E --> F{Customer Impact?}
    F -->|Yes| G[Mitigate and Rollback]
    F -->|No| H[Track and Tune Threshold]

Alert Rule Decision Matrix¶

Activity Log Alert Example¶

az monitor activity-log alert create \
  --name "aca-config-change" \
  --resource-group "$RG" \
  --scope "/subscriptions/<subscription-id>/resourceGroups/$RG/providers/Microsoft.App/containerApps/$APP_NAME" \
  --condition category=Administrative and operationName=Microsoft.App/containerApps/write and level=Informational \
  --action-group "/subscriptions/<subscription-id>/resourceGroups/$RG/providers/microsoft.insights/actionGroups/ag-oncall"

See Also¶

• Monitoring
• Troubleshooting
• Recovery and Incident Readiness

Sources¶

• Set alerts in Azure Container Apps
• Monitor logs in Azure Container Apps
