06 - CI/CD with GitHub Actions

Automate build and deployment so every commit can produce a new Container App revision. This tutorial uses GitHub Actions, ACR, and Azure Container Apps deploy actions.

Infrastructure Context

Service: Container Apps (Consumption) | Network: VNet integrated | VNet: ✅

This tutorial assumes a production-ready Container Apps deployment with a custom VNet, ACR with managed identity pull, and private endpoints for backend services.

flowchart TD
    INET[Internet] -->|HTTPS| CA["Container App\nConsumption\nLinux Node 18 LTS"]

    subgraph VNET["VNet 10.0.0.0/16"]
        subgraph ENV_SUB["Environment Subnet 10.0.0.0/23\nDelegation: Microsoft.App/environments"]
            CAE[Container Apps Environment]
            CA
        end
        subgraph PE_SUB["Private Endpoint Subnet 10.0.2.0/24"]
            PE_ACR[PE: ACR]
            PE_KV[PE: Key Vault]
            PE_ST[PE: Storage]
        end
    end

    PE_ACR --> ACR[Azure Container Registry]
    PE_KV --> KV[Key Vault]
    PE_ST --> ST[Storage Account]

    subgraph DNS[Private DNS Zones]
        DNS_ACR[privatelink.azurecr.io]
        DNS_KV[privatelink.vaultcore.azure.net]
        DNS_ST[privatelink.blob.core.windows.net]
    end

    PE_ACR -.-> DNS_ACR
    PE_KV -.-> DNS_KV
    PE_ST -.-> DNS_ST

    CA -.->|System-Assigned MI| ENTRA[Microsoft Entra ID]
    CAE --> LOG[Log Analytics]
    CA --> AI[Application Insights]

    style CA fill:#107c10,color:#fff
    style VNET fill:#E8F5E9,stroke:#4CAF50
    style DNS fill:#E3F2FD

CI/CD Pipeline Flow

graph TD
    PUSH[Push to main] --> GHA[GitHub Actions]
    GHA --> ACR[ACR Build]
    ACR --> DEPLOY[Deploy Revision]
    DEPLOY --> HEALTH[Health Check]

Prerequisites

Never expose credentials in workflow logs

Keep all credential material in GitHub Secrets and avoid printing secret-derived values in shell steps. Use masked placeholders in documentation and workflow examples.

Step-by-step

  1. Configure repository variables and secrets

    • Variables: RESOURCE_GROUP, APP_NAME, ACR_NAME
    • Secrets: AZURE_CREDENTIALS, REGISTRY_USERNAME, REGISTRY_PASSWORD

    Example AZURE_CREDENTIALS JSON (masked):

    {
  "clientId": "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
  "clientSecret": "<client-secret>",
  "subscriptionId": "<subscription-id>",
  "tenantId": "<tenant-id>"
}

  2. Create workflow file

    Create a file at .github/workflows/deploy.yml in your repository:

    name: Deploy Node.js App to Azure Container Apps

on:
  push:
    branches: [ main ]
    paths:
      - 'apps/nodejs/**'
      - '.github/workflows/deploy.yml'

jobs:
  build-and-deploy:
    runs-on: ubuntu-latest
    steps:
      - name: Checkout
        uses: actions/checkout@v4

      - name: Azure Login
        uses: azure/login@v2
        with:
          creds: ${{ secrets.AZURE_CREDENTIALS }}

      - name: ACR Login
        uses: azure/docker-login@v2
        with:
          login-server: ${{ vars.ACR_NAME }}.azurecr.io
          username: ${{ secrets.REGISTRY_USERNAME }}
          password: ${{ secrets.REGISTRY_PASSWORD }}

      - name: Build and push image
        run: |
          docker build --tag ${{ vars.ACR_NAME }}.azurecr.io/${{ vars.APP_NAME }}:${{ github.sha }} ./apps/nodejs
          docker push ${{ vars.ACR_NAME }}.azurecr.io/${{ vars.APP_NAME }}:${{ github.sha }}

      - name: Deploy Container App
        uses: azure/container-apps-deploy-action@v1
        with:
          imageToDeploy: ${{ vars.ACR_NAME }}.azurecr.io/${{ vars.APP_NAME }}:${{ github.sha }}
          resourceGroup: ${{ vars.RESOURCE_GROUP }}
          containerAppName: ${{ vars.APP_NAME }}

  3. Validate rollout behavior

    • Trigger workflow from a commit to main.
    • Confirm a new revision was created.
    • Confirm traffic moved to healthy revision.
    az containerapp revision list \
  --name "$APP_NAME" \
  --resource-group "$RG" \
  --query "[].{name:name,active:properties.active,trafficWeight:properties.trafficWeight,healthState:properties.healthState}"
    Command Why it is used
    az containerapp revision list ... Lists revisions so rollout state, traffic, and health can be verified.
    Expected output
    [
  {
    "name": "<your-app-name>--0000001",
    "active": false,
    "trafficWeight": 0,
    "healthState": "Healthy"
  },
  {
    "name": "<your-app-name>--0000002",
    "active": true,
    "trafficWeight": 100,
    "healthState": "Healthy"
  }
]

Node.js Specific CI Tips

  • Run Tests: Add a step to run npm test before building the Docker image.
  • Security Audit: Use npm audit to check for known vulnerabilities in your dependencies.
  • Linting: Run npm run lint to ensure code quality before deployment.
          - name: Install dependencies
            run: npm install
            working-directory: ./apps/nodejs

          - name: Run tests
            run: npm test
            working-directory: ./apps/nodejs

Advanced Topics

  • Implement multi-environment pipelines (dev -> staging -> prod) with approval gates.
  • Use GitHub environments to manage secrets and variables for different stages.
  • Integrate with Azure Load Testing to validate performance after deployment.

Use immutable image tags in pipelines

Prefer commit SHA or release-based tags for image versions. Immutable tags make revision-to-commit tracing straightforward during incident response.

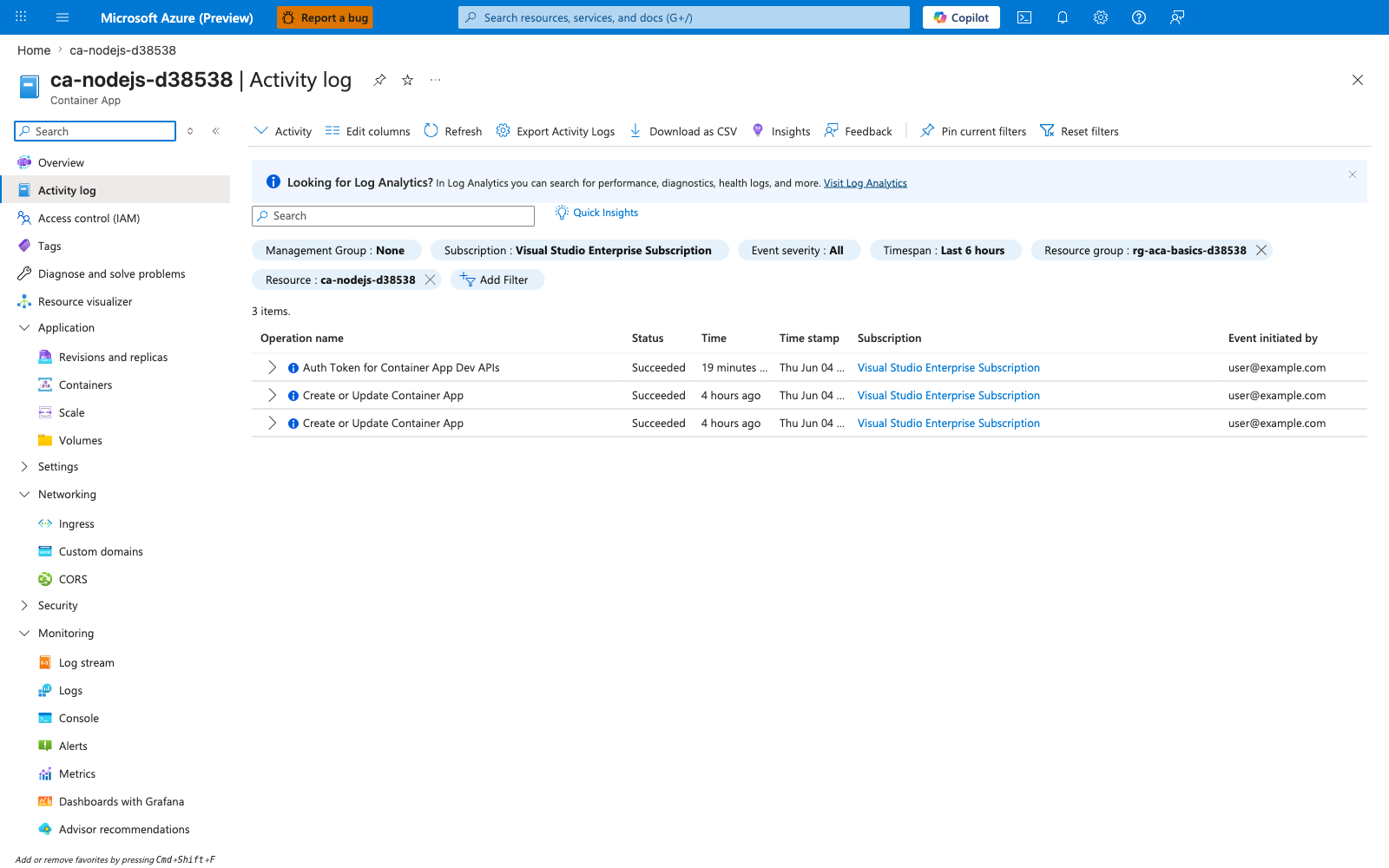

Verify deployment activity in Azure Portal

Management Group|None|Subscription|Visual Studio Enterprise Subscription|Event severity|All|Timespan|Last 6 hours|Resource group|rg-aca-basics-d38538|Resource|ca-nodejs-d38538|Status|Succeeded|Event initiated by|user@example.com

[Observed] Microsoft Azure (Preview). Report a bug. Search resources, services, and docs (G+/). Copilot. Home. ca-nodejs-d38538. Container App. Activity log. Activity. Edit columns. Refresh. Export Activity Logs. Download as CSV. Insights. Feedback. Pin current filters. Reset filters. Looking for Log Analytics?. Visit Log Analytics. Search. Quick Insights. Management Group. None. Subscription. Visual Studio Enterprise Subscription. Event severity. All. Timespan. Last 6 hours. Resource group. rg-aca-basics-d38538. Resource. ca-nodejs-d38538. Add Filter. 3 items.. Operation name. Status. Time. Time stamp. Subscription. Event initiated by. Auth Token for Container App Dev APIs. Create or Update Container App. Succeeded. 19 minutes .... 4 hours ago. Thu Jun 04 .... user@example.com. Overview. Activity log. Access control (IAM). Tags. Diagnose and solve problems. Resource visualizer. Application. Revisions and replicas. Containers. Scale. Volumes. Settings. Networking. Ingress. Custom domains. CORS. Security. Monitoring. Log stream. Logs. Console. Alerts. Metrics. Dashboards with Grafana. Advisor recommendations.

[Inferred] The resource-scoped filter chips Resource group value rg-aca-basics-d38538 and Resource value ca-nodejs-d38538 appear to map to the same ${{ vars.RESOURCE_GROUP }} and ${{ vars.APP_NAME }} values passed to resourceGroup and containerAppName by the azure/container-apps-deploy-action@v1 step in Step-by-step Step 2. The Create or Update Container App row appears consistent with the deployment outcome that the same azure/container-apps-deploy-action@v1 step in Step-by-step Step 2 is expected to trigger when the workflow runs against the configured containerAppName. The Succeeded Status appears consistent with the healthy rollout signal that Step-by-step Step 3 looks for via az containerapp revision list, where healthState: "Healthy" and trafficWeight: 100 are expected on the active revision. The repeated Create or Update Container App rows with Succeeded Status within the Last 6 hours Timespan appear consistent with multiple workflow runs invoking the azure/container-apps-deploy-action@v1 step in Step-by-step Step 2 against the same containerAppName.

[Not Proven] Additional GitHub Actions workflow output and CLI command output are not visible on this view.
