06 - CI/CD with GitHub Actions

Automating the build and deployment of your Spring Boot application ensures consistent, repeatable releases to Azure Container Apps. This guide covers how to set up a GitHub Actions workflow to build, push, and deploy your Java app on every commit.

Infrastructure Context

Service: Container Apps (Consumption) | Network: VNet integrated | VNet: ✅

This tutorial assumes a production-ready Container Apps deployment with a custom VNet, ACR with managed identity pull, and private endpoints for backend services.

flowchart TD
    INET[Internet] -->|HTTPS| CA["Container App\nConsumption\nLinux Java 17"]

    subgraph VNET["VNet 10.0.0.0/16"]
        subgraph ENV_SUB["Environment Subnet 10.0.0.0/23\nDelegation: Microsoft.App/environments"]
            CAE[Container Apps Environment]
            CA
        end
        subgraph PE_SUB["Private Endpoint Subnet 10.0.2.0/24"]
            PE_ACR[PE: ACR]
            PE_KV[PE: Key Vault]
            PE_ST[PE: Storage]
        end
    end

    PE_ACR --> ACR[Azure Container Registry]
    PE_KV --> KV[Key Vault]
    PE_ST --> ST[Storage Account]

    subgraph DNS[Private DNS Zones]
        DNS_ACR[privatelink.azurecr.io]
        DNS_KV[privatelink.vaultcore.azure.net]
        DNS_ST[privatelink.blob.core.windows.net]
    end

    PE_ACR -.-> DNS_ACR
    PE_KV -.-> DNS_KV
    PE_ST -.-> DNS_ST

    CA -.->|System-Assigned MI| ENTRA[Microsoft Entra ID]
    CAE --> LOG[Log Analytics]
    CA --> AI[Application Insights]

    style CA fill:#107c10,color:#fff
    style VNET fill:#E8F5E9,stroke:#4CAF50
    style DNS fill:#E3F2FD

CI/CD Workflow

graph TD
    PUSH[Git Push] --> BUILD[Maven Build]
    BUILD --> TEST[Maven Test]
    TEST --> IMAGE[ACR Build & Push]
    IMAGE --> DEPLOY[ACA Update]
    DEPLOY --> VERIFY[ACA Health Check]

Prerequisites

  • GitHub repository with your source code
  • Existing Azure Container App and Container Registry (created in 02 - First Deploy)
  • Azure CLI 2.57+

Setting up GitHub Secrets

To allow GitHub Actions to authenticate with Azure, you must store credentials as GitHub Secrets.

  1. Create a Service Principal

    az ad sp create-for-rbac \
  --name "gh-actions-sp-java" \
  --role Contributor \
  --scopes /subscriptions/<subscription-id>/resourceGroups/$RG \
  --json-auth
    Command Why it is used
    az ad sp create-for-rbac ... Creates or inspects service principal settings for automation identity.

  2. Add Secrets to GitHub

    Add the following secrets in your GitHub repository's Settings > Secrets and variables > Actions:

    • AZURE_CREDENTIALS: The entire JSON output from the service principal command.
    • AZURE_RG: Your resource group name.
    • ACR_NAME: Your Azure Container Registry name.
    • ACA_NAME: Your Azure Container App name.

Creating the Workflow File

Create a file named .github/workflows/deploy.yml in your repository.

name: Build and Deploy Java to ACA

on:
  push:
    branches:
      - main
    paths:
      - 'apps/java-springboot/**'

jobs:
  build:
    runs-on: ubuntu-latest
    steps:
      - name: Checkout Code
        uses: actions/checkout@v4

      - name: Set up JDK 21
        uses: actions/setup-java@v4
        with:
          java-version: '21'
          distribution: 'temurin'
          cache: 'maven'

      - name: Build and Test with Maven
        run: |
          cd apps/java-springboot
          mvn package -DskipTests

      - name: Azure Login
        uses: azure/login@v2
        with:
          creds: ${{ secrets.AZURE_CREDENTIALS }}

      - name: Build and Push to ACR
        run: |
          cd apps/java-springboot
          az acr build \
            --registry ${{ secrets.ACR_NAME }} \
            --image java-guide:${{ github.sha }} \
            --file Dockerfile .

      - name: Deploy to ACA
        run: |
          az containerapp update \
            --resource-group ${{ secrets.AZURE_RG }} \
            --name ${{ secrets.ACA_NAME }} \
            --image ${{ secrets.ACR_NAME }}.azurecr.io/java-guide:${{ github.sha }}
Command Why it is used
az acr build ... Builds and pushes the container image to Azure Container Registry.

Verifying the Deployment

  1. Check the GitHub Actions tab

    Navigate to the Actions tab in your repository and verify that the workflow has run successfully.

  2. Verify the new revision

    az containerapp revision list \
  --resource-group $RG \
  --name $APP_NAME \
  --query "[0].name" --output tsv
    Command Why it is used
    az containerapp revision list ... Lists revisions so rollout state, traffic, and health can be verified.
    Expected output
    <your-app-name>--xxxxxxx

  3. Verify the application health

    curl https://<your-aca-fqdn>/health

CI/CD Checklist

  • [x] Service principal has Contributor permissions on the resource group
  • [x] Maven cache is enabled in GitHub Actions to speed up builds
  • [x] Workflow uses specific commit SHAs for container image tags (avoid latest)
  • [x] Workflow triggers only on changes to the application's source path
  • [x] Deployment is verified by a health check endpoint

Using Federated Credentials (OIDC)

For enhanced security, consider using Workload Identity Federation (OIDC) instead of storing secrets in GitHub. This removes the need for long-lived service principal keys.

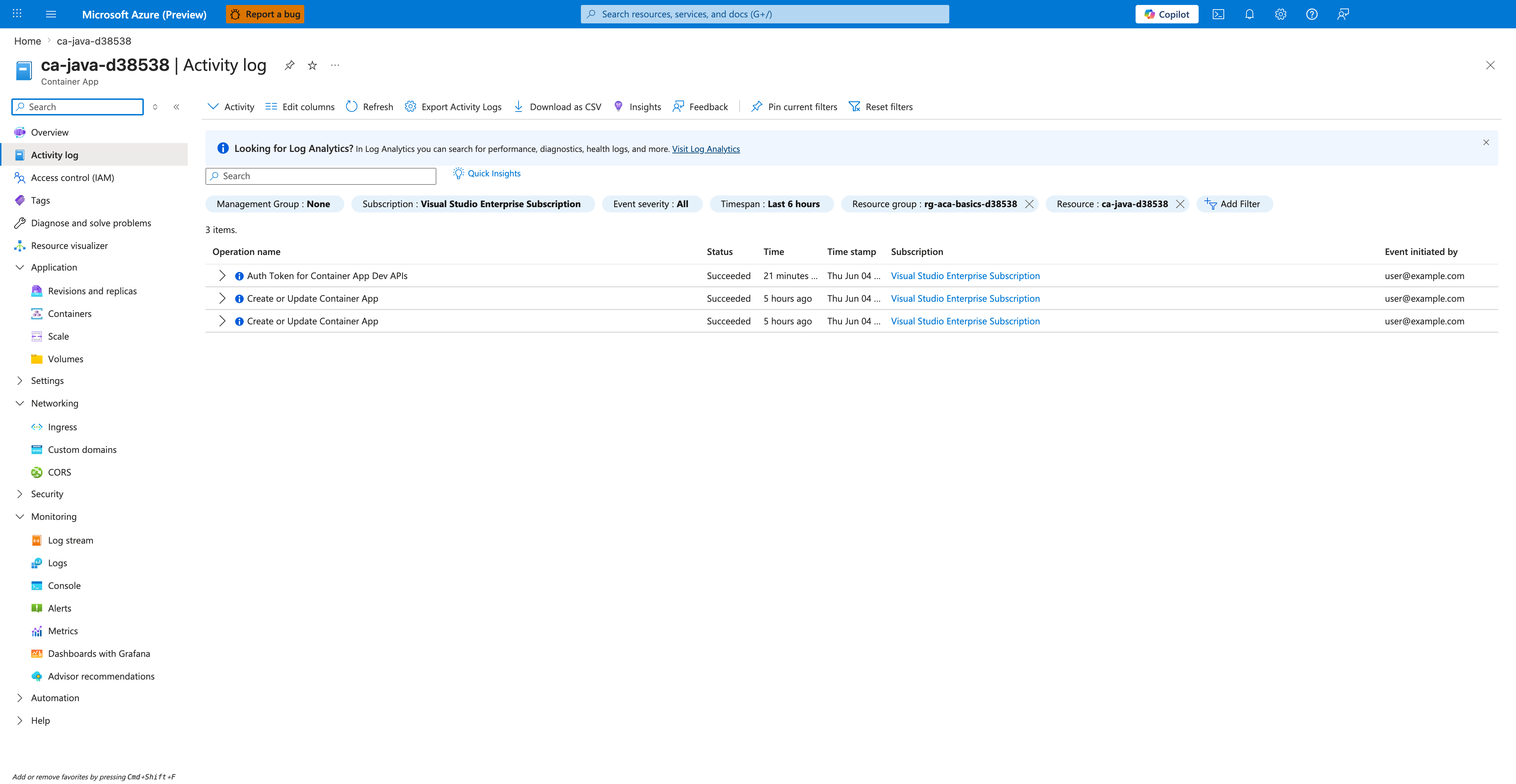

Verify deployment activity in Azure Portal

Management Group|None|Subscription|Visual Studio Enterprise Subscription|Event severity|All|Timespan|Last 6 hours|Resource group|rg-aca-basics-d38538|Resource|ca-java-d38538|Status|Succeeded|Event initiated by|user@example.com

[Observed] Microsoft Azure (Preview). Report a bug. Search resources, services, and docs (G+/). Copilot. Home. ca-java-d38538. Container App. Activity log. Activity. Edit columns. Refresh. Export Activity Logs. Download as CSV. Insights. Feedback. Pin current filters. Reset filters. Looking for Log Analytics?. Visit Log Analytics. Search. Quick Insights. Management Group. None. Subscription. Visual Studio Enterprise Subscription. Event severity. All. Timespan. Last 6 hours. Resource group. rg-aca-basics-d38538. Resource. ca-java-d38538. Add Filter. 3 items.. Operation name. Status. Time. Time stamp. Subscription. Event initiated by. Auth Token for Container App Dev APIs. Create or Update Container App. Succeeded. 21 minutes .... 5 hours ago. Thu Jun 04 .... user@example.com. Overview. Activity log. Access control (IAM). Tags. Diagnose and solve problems. Resource visualizer. Application. Revisions and replicas. Containers. Scale. Volumes. Settings. Networking. Ingress. Custom domains. CORS. Security. Monitoring. Log stream. Logs. Console. Alerts. Metrics. Dashboards with Grafana. Advisor recommendations.

[Inferred] The resource-scoped filter chips Resource group value rg-aca-basics-d38538 and Resource value ca-java-d38538 appear to map to the same ${{ secrets.AZURE_RG }} and ${{ secrets.ACA_NAME }} values passed to --resource-group and --name by the az containerapp update step in Creating the Workflow File. The Create or Update Container App row appears consistent with the deployment outcome that the same az containerapp update step in Creating the Workflow File is expected to trigger when the workflow runs against the configured ACA_NAME secret. The Succeeded Status appears consistent with the healthy rollout signal that Verifying the Deployment looks for via az containerapp revision list, which returns the active revision name when the rollout completes without error. The repeated Create or Update Container App rows with Succeeded Status within the Last 6 hours Timespan appear consistent with multiple workflow runs invoking the az containerapp update step in Creating the Workflow File against the same ACA_NAME secret.

[Not Proven] Additional GitHub Actions workflow output and CLI command output are not visible on this view.
