02 - First Deploy to Azure Container Apps

In this step, you provision the core Azure resources, build your image in Azure Container Registry, and deploy your first revision to Azure Container Apps.

Infrastructure Context

Service: Container Apps (Consumption) | Network: VNet integrated | VNet: ✅

This tutorial assumes a production-ready Container Apps deployment with a custom VNet, ACR with managed identity pull, and private endpoints for backend services.

flowchart TD
    INET[Internet] -->|HTTPS| CA["Container App\nConsumption\nLinux .NET 8"]

    subgraph VNET["VNet 10.0.0.0/16"]
        subgraph ENV_SUB["Environment Subnet 10.0.0.0/23\nDelegation: Microsoft.App/environments"]
            CAE[Container Apps Environment]
            CA
        end
        subgraph PE_SUB["Private Endpoint Subnet 10.0.2.0/24"]
            PE_ACR[PE: ACR]
            PE_KV[PE: Key Vault]
            PE_ST[PE: Storage]
        end
    end

    PE_ACR --> ACR[Azure Container Registry]
    PE_KV --> KV[Key Vault]
    PE_ST --> ST[Storage Account]

    subgraph DNS[Private DNS Zones]
        DNS_ACR[privatelink.azurecr.io]
        DNS_KV[privatelink.vaultcore.azure.net]
        DNS_ST[privatelink.blob.core.windows.net]
    end

    PE_ACR -.-> DNS_ACR
    PE_KV -.-> DNS_KV
    PE_ST -.-> DNS_ST

    CA -.->|System-Assigned MI| ENTRA[Microsoft Entra ID]
    CAE --> LOG[Log Analytics]
    CA --> AI[Application Insights]

    style CA fill:#107c10,color:#fff
    style VNET fill:#E8F5E9,stroke:#4CAF50
    style DNS fill:#E3F2FD

Deployment Workflow

graph TD
    BICEP[Bicep Deploy] --> ACR[ACR Build]
    ACR --> UPDATE[Container App Update]
    UPDATE --> VERIFY[Verify URL]

Prerequisites

Step-by-step

  1. Set standard variables
RG="rg-dotnet-guide"
BASE_NAME="dotnet-guide"
LOCATION="koreacentral"
DEPLOYMENT_NAME="main"
  1. Create a resource group
az group create --name "$RG" --location "$LOCATION"
Command Why it is used
az group create ... Creates the isolated resource group used by the example.

???+ example "Expected output"

{
  "id": "/subscriptions/<subscription-id>/resourceGroups/rg-dotnet-guide",
  "location": "koreacentral",
  "name": "rg-dotnet-guide",
  "properties": {
    "provisioningState": "Succeeded"
  }
}

  1. Deploy infrastructure (environment, Log Analytics, ACR, Container App)
az deployment group create \
   --name "$DEPLOYMENT_NAME" \
   --resource-group "$RG" \
   --template-file infra/main.bicep \
   --parameters baseName="$BASE_NAME" location="$LOCATION"
Command Why it is used
az deployment group create ... Deploys the Bicep or ARM template into the target resource group.

???+ example "Expected output" This command takes 2-3 minutes to complete. When successful, it returns a JSON object containing the deployment details.

    ```json
    {
      "id": "/subscriptions/<subscription-id>/resourceGroups/rg-dotnet-guide/providers/Microsoft.Resources/deployments/main",
      "name": "main",
      "properties": {
        "provisioningState": "Succeeded",
        "outputs": {
          "containerAppName": { "type": "String", "value": "ca-dotnet-guide-<unique-suffix>" },
          "containerAppUrl": { "type": "String", "value": "https://ca-dotnet-guide-<unique-suffix>.<env-suffix>.koreacentral.azurecontainerapps.io" }
        }
      }
    }
    ```

    !!! note "Unique suffix"
        The `<unique-suffix>` is generated by `uniqueString(resourceGroup().id)` in Bicep to ensure globally unique resource names.

!!! note "Initial revision health can appear unhealthy" The Bicep template creates the Container App before your custom image is built and pushed. Until you complete Step 5 and update the app image, the initial revision may show as unhealthy. This is expected.

  1. Capture generated resource names from Bicep outputs
APP_NAME=$(az deployment group show \
  --name "$DEPLOYMENT_NAME" \
  --resource-group "$RG" \
  --query "properties.outputs.containerAppName.value" \
  --output tsv)

ACA_ENV_NAME=$(az deployment group show \
  --name "$DEPLOYMENT_NAME" \
  --resource-group "$RG" \
  --query "properties.outputs.containerAppEnvName.value" \
  --output tsv)

ACR_NAME=$(az deployment group show \
  --name "$DEPLOYMENT_NAME" \
  --resource-group "$RG" \
  --query "properties.outputs.containerRegistryName.value" \
  --output tsv)

ACR_LOGIN_SERVER=$(az deployment group show \
  --name "$DEPLOYMENT_NAME" \
  --resource-group "$RG" \
  --query "properties.outputs.containerRegistryLoginServer.value" \
  --output tsv)

APP_URL=$(az deployment group show \
  --name "$DEPLOYMENT_NAME" \
  --resource-group "$RG" \
  --query "properties.outputs.containerAppUrl.value" \
  --output tsv)

| Command | Purpose |
|---|---|
| `APP_NAME=$(az deployment group show --name "$DEPLOYMENT_NAME" --resource-group "$RG" --query "properties.outputs.containerAppName.value" --output tsv)` | Captures the generated Container App resource name from the Bicep deployment so later CLI steps target the exact app that was provisioned. |
| `ACA_ENV_NAME=$(az deployment group show --name "$DEPLOYMENT_NAME" --resource-group "$RG" --query "properties.outputs.containerAppEnvName.value" --output tsv)` | Captures the generated Container Apps environment name so environment-scoped follow-up commands use the same deployment outputs. |
| `ACR_NAME=$(az deployment group show --name "$DEPLOYMENT_NAME" --resource-group "$RG" --query "properties.outputs.containerRegistryName.value" --output tsv)` | Captures the ACR resource name that stores the tutorial image tags. |
| `ACR_LOGIN_SERVER=$(az deployment group show --name "$DEPLOYMENT_NAME" --resource-group "$RG" --query "properties.outputs.containerRegistryLoginServer.value" --output tsv)` | Captures the ACR login server so later image references can be assembled without hardcoding the registry hostname. |
| `APP_URL=$(az deployment group show --name "$DEPLOYMENT_NAME" --resource-group "$RG" --query "properties.outputs.containerAppUrl.value" --output tsv)` | Captures the app URL emitted by the deployment so you can compare it with later ingress verification results. |

???+ example "Expected output" These commands capture the values silently. You can verify them by running:

   ```bash
   echo "APP_NAME=$APP_NAME"
   echo "ACA_ENV_NAME=$ACA_ENV_NAME"
   echo "ACR_NAME=$ACR_NAME"
   echo "ACR_LOGIN_SERVER=$ACR_LOGIN_SERVER"
   echo "APP_URL=$APP_URL"
   ```

   Output:
    ```text
    APP_NAME=ca-dotnet-guide-<unique-suffix>
    ACA_ENV_NAME=cae-dotnet-guide-<unique-suffix>
    ACR_NAME=crdotnetguide<unique-suffix>
    ACR_LOGIN_SERVER=crdotnetguide<unique-suffix>.azurecr.io
    APP_URL=https://ca-dotnet-guide-<unique-suffix>.<env-suffix>.koreacentral.azurecontainerapps.io
    ```
  1. Build and push container image with ACR Tasks
az acr build \
   --registry "$ACR_NAME" \
   --image "dotnet-guide:latest" \
   ./apps/dotnet-aspnetcore
Command Why it is used
az acr build ... Builds and pushes the container image to Azure Container Registry.

???+ example "Expected output (az acr build)" The build output shows the multi-stage Docker build progress. The last few lines should look like this:

   ```text
   Step 13/13 : ENTRYPOINT ["dotnet", "AzureContainerApps.dll"]
    ---> Running in abc123
    ---> def456
   Successfully built def456
   Successfully tagged dotnet-guide:latest
   ```

Update the Container App to use the new image:

az containerapp update \
   --name "$APP_NAME" \
   --resource-group "$RG" \
   --image "$ACR_LOGIN_SERVER/dotnet-guide:latest"
Command Why it is used
az containerapp update ... Updates the existing Container App configuration without recreating the app.

???+ example "Expected output (az containerapp update)"

{
   "latestRevision": "<your-app-name>--xxxxxxx",
   "name": "<your-app-name>",
   "provisioningState": "Succeeded"
}

  1. Verify deployment state and URL
az containerapp show \
   --name "$APP_NAME" \
   --resource-group "$RG" \
   --query "{state:properties.provisioningState,url:properties.configuration.ingress.fqdn}"
Command Why it is used
az containerapp show ... Reads the Container App configuration so the documented setting can be verified.

???+ example "Expected output"

{
  "state": "Succeeded",
  "url": "ca-dotnet-guide-<unique-suffix>.<env-suffix>.koreacentral.azurecontainerapps.io"
}

Verify the /health endpoint with curl:

curl "$APP_URL/health"


???+ example "Expected output (health check)"
    ```json
    {"status":"healthy","timestamp":"2026-04-04T16:13:19.2964050Z"}
    ```
  1. Deploy an update (creates a new revision)
az acr build --registry "$ACR_NAME" --image "dotnet-guide:v2" ./apps/dotnet-aspnetcore

az containerapp update \
   --name "$APP_NAME" \
   --resource-group "$RG" \
   --image "$ACR_LOGIN_SERVER/dotnet-guide:v2"
Command Why it is used
az acr build --registry ... Builds and pushes the container image to Azure Container Registry.
???+ example "Expected output"
    ```json
    {
      "name": "<your-app-name>",
      "provisioningState": "Succeeded",
      "latestRevisionName": "<your-app-name>--0000002"
    }
    ```

Confirm revision status — you should now see two revisions. In single-revision mode, the old revision is retained but inactive:

az containerapp revision list \
   --name "$APP_NAME" \
   --resource-group "$RG" \
   --query "[].{name:name,active:properties.active,trafficWeight:properties.trafficWeight,healthState:properties.healthState,runningState:properties.runningState}"
Command Why it is used
az containerapp revision list ... Lists revisions so rollout state, traffic, and health can be verified.

???+ example "Expected output (revision list)"

[
  {
    "name": "<your-app-name>--0000001",
    "active": false,
    "trafficWeight": 0,
    "healthState": "Healthy",
    "runningState": "Running"
  },
  {
    "name": "<your-app-name>--0000002",
    "active": true,
    "trafficWeight": 100,
    "healthState": "Healthy",
    "runningState": "Running"
  }
]

What to validate

  • Image exists in ACR: dotnet-guide:latest and dotnet-guide:v2
  • App endpoint responds with HTTP 200 for /health with JSON payload
  • A new revision appears after az containerapp update
  • Kestrel is listening on the expected port (default 8000)

Advanced Topics

  • Build optimization: Use Docker layer caching in ACR Tasks to speed up subsequent builds.
  • Revision names: Customize revision names for better traceability using --revision-suffix.
  • Private connectivity: Use internal ingress for APIs that don't need public exposure.

CLI Alternative (No Bicep)

Use these commands to deploy without Bicep templates. This creates the same resources imperatively.

Step 1: Set variables

RG="rg-dotnet-containerapp"
LOCATION="koreacentral"
APP_NAME="ca-dotnet-demo"
BASE_NAME="dotnet-app"
ACA_ENV_NAME="cae-dotnet-demo"
ACR_NAME="crdotnetdemo"
LOG_NAME="log-dotnet-demo"
Expected output
Variables initialized for the .NET Container Apps deployment.

Step 2: Create resource group

az group create --name $RG --location $LOCATION
Command Why it is used
az group create ... Creates the isolated resource group used by the example.
Expected output
{
  "id": "/subscriptions/<subscription-id>/resourceGroups/rg-dotnet-containerapp",
  "location": "koreacentral",
  "name": "rg-dotnet-containerapp",
  "properties": {
    "provisioningState": "Succeeded"
  }
}

Step 3: Create Log Analytics workspace

az monitor log-analytics workspace create --resource-group $RG --workspace-name $LOG_NAME --location $LOCATION
Command Why it is used
az monitor log-analytics ... Creates or inspects Azure Monitor alerts, diagnostic settings, or metrics.
Expected output
{
  "customerId": "b2c3d4e5-f6a7-8901-bcde-f23456789012",
  "id": "/subscriptions/<subscription-id>/resourceGroups/rg-dotnet-containerapp/providers/Microsoft.OperationalInsights/workspaces/log-dotnet-demo",
  "name": "log-dotnet-demo",
  "provisioningState": "Succeeded"
}

Step 4: Create Azure Container Registry

az acr create --resource-group $RG --name $ACR_NAME --sku Basic
Command Why it is used
az acr create --resource-group ... Creates Azure Container Registry for container image storage.
Expected output
{
  "id": "/subscriptions/<subscription-id>/resourceGroups/rg-dotnet-containerapp/providers/Microsoft.ContainerRegistry/registries/crdotnetdemo",
  "loginServer": "crdotnetdemo.azurecr.io",
  "name": "crdotnetdemo",
  "provisioningState": "Succeeded"
}

Step 5: Create Container Apps environment

LOG_ID=$(az monitor log-analytics workspace show --resource-group $RG --workspace-name $LOG_NAME --query customerId --output tsv)
LOG_KEY=$(az monitor log-analytics workspace get-shared-keys --resource-group $RG --workspace-name $LOG_NAME --query primarySharedKey --output tsv)
az containerapp env create --resource-group $RG --name $ACA_ENV_NAME --location $LOCATION --logs-workspace-id $LOG_ID --logs-workspace-key $LOG_KEY
Command Why it is used
az monitor log-analytics ... Creates or inspects Azure Monitor alerts, diagnostic settings, or metrics.
Expected output
{
  "id": "/subscriptions/<subscription-id>/resourceGroups/rg-dotnet-containerapp/providers/Microsoft.App/managedEnvironments/cae-dotnet-demo",
  "name": "cae-dotnet-demo",
  "provisioningState": "Succeeded"
}

Step 6: Build and push image with ACR Tasks

az acr build --registry $ACR_NAME --image $BASE_NAME:v1 ./apps/dotnet-aspnetcore
Command Why it is used
az acr build --registry ... Builds and pushes the container image to Azure Container Registry.
Expected output
Packing source code into tar to upload...
Queued a build with ID: cg1
Run ID: cg1 was successful after 1m 05s

Step 7: Create Container App

az containerapp create --resource-group $RG --name $APP_NAME --environment $ACA_ENV_NAME --image $ACR_NAME.azurecr.io/$BASE_NAME:v1 --target-port 8000 --ingress external --query "properties.configuration.ingress.fqdn"
Command Why it is used
az containerapp create --resource-group ... Creates the Container App with the documented image, ingress, scale, and environment settings.
Expected output
"<container-app-fqdn>"

Step 8: Verify deployment

FQDN=$(az containerapp show --resource-group $RG --name $APP_NAME --query "properties.configuration.ingress.fqdn" --output tsv)
curl https://$FQDN/health
Command Purpose
FQDN=$(az containerapp show --resource-group $RG --name $APP_NAME --query "properties.configuration.ingress.fqdn" --output tsv) Reads the app's live ingress hostname from Azure so the verification request targets the actual deployed endpoint instead of a copied URL.
curl https://$FQDN/health Calls the health endpoint exposed by the deployed .NET app to confirm the revision is reachable and healthy over ingress.
Expected output
{"status":"healthy","timestamp":"2026-04-09T09:24:33.5123345Z"}

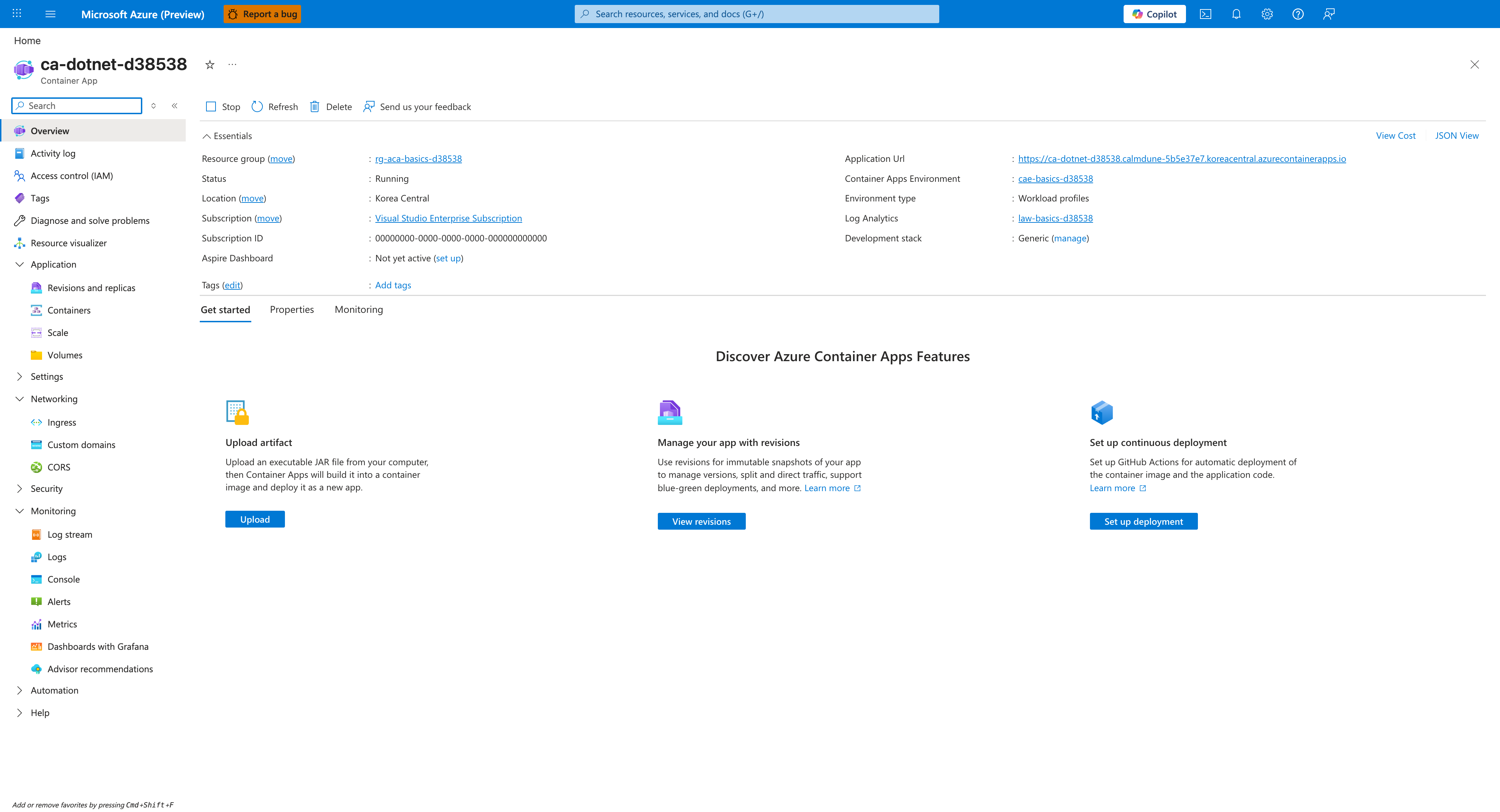

Step 9: Verify deployment in Azure Portal

ca-dotnet-d38538 | Container App | Overview | Stop | Refresh | Delete | Send us your feedback | Essentials | Resource group | rg-aca-basics-d38538 | Status | Running | Location | Korea Central | Subscription | Visual Studio Enterprise Subscription | Subscription ID | 00000000-0000-0000-0000-000000000000 | Aspire Dashboard | Not yet active | Tags | Add tags | Application Url | https://<app-name>.<unique-id>.<region>.azurecontainerapps.io | Container Apps Environment | cae-basics-d38538 | Environment type | Workload profiles | Log Analytics | law-basics-d38538 | Development stack | Generic | View Cost | JSON View | Get started | Properties | Monitoring | Discover Azure Container Apps Features | Upload artifact | Manage your app with revisions | Set up continuous deployment | Application | Revisions and replicas | Containers | Scale | Volumes | Networking | Ingress | Custom domains | CORS | Security | Settings | Monitoring | Log stream | Logs | Console | Alerts | Metrics

[Observed] ca-dotnet-d38538 | Container App Overview Stop Refresh Delete Send us your feedback Essentials Resource group rg-aca-basics-d38538 Status Running Location Korea Central Subscription Visual Studio Enterprise Subscription Subscription ID 00000000-0000-0000-0000-000000000000 Aspire Dashboard Not yet active Tags Add tags Application Url https://<app-name>.<unique-id>.<region>.azurecontainerapps.io Container Apps Environment cae-basics-d38538 Environment type Workload profiles Log Analytics law-basics-d38538 Development stack Generic View Cost JSON View Get started Properties Monitoring Discover Azure Container Apps Features Upload artifact Manage your app with revisions Set up continuous deployment Application Revisions and replicas Containers Scale Volumes Networking Ingress Custom domains CORS Security Settings Monitoring Log stream Logs Console Alerts Metrics.

[Inferred] The Status field value of Running appears consistent with the state:properties.provisioningState of Succeeded returned by the CLI verification in Step 8: Verify deployment. The Application Url value https://<app-name>.<unique-id>.<region>.azurecontainerapps.io appears to surface the same properties.configuration.ingress.fqdn value queried in Step 7: Create Container App. The Container Apps Environment link value cae-basics-d38538 appears to map to the $ACA_ENV_NAME value supplied to --environment in Step 7: Create Container App. The left-navigation entries Containers, Scale, Ingress, and Logs are consistent with the artifacts created across Step 5: Create Container Apps environment and Step 7: Create Container App.

[Not Proven] Additional runtime detail and revision detail are not visible on this view.
