App Service to Azure Storage: Firewall and Authorization Confusion (Linux)¶

1. Summary¶

Symptom¶

Outbound calls from an Azure App Service Linux app to an Azure Storage account (Blob, Files, Queue, or Table) fail. Symptoms include connection timeouts, AuthorizationFailure / 403 responses, This request is not authorized to perform this operation, or a hostname that resolves to a public IP instead of the expected private endpoint IP.

Why this scenario is confusing¶

An App Service to Storage connection must pass through four independent layers — DNS resolution, routing / egress path, storage firewall (network authorization), and data-plane authorization — and each layer fails with a different signature. A 403 / AuthorizationFailure is ambiguous on its own: the storage firewall (a network-rule denial) and a data-plane authorization gap (missing role, expired SAS, disabled shared key) can both surface as 403 AuthorizationFailure. Do not assume a 403 is a role problem until you have checked the Storage error detail, the account's network rules, the request's effective source, and the identity's role assignments. Conversely, a timeout is a network path problem that no RBAC change will fix.

Troubleshooting decision flow¶

flowchart TD
    A[Symptom: App to Storage call fails] --> B{Resolve storage FQDN in-app}
    B --> C[Wrong IP / NXDOMAIN]
    B --> D[Correct IP resolves]
    C --> H1[H1: DNS / private DNS zone issue]
    D --> E{TCP connect to endpoint}
    E --> F[Timeout / connection refused]
    E --> G[Connect succeeds]
    F --> H2[H2: Routing or storage firewall block]
    G --> I{HTTP status of data call}
    I --> J[403 / AuthorizationFailure]
    J --> L{Check error detail, network rules, effective source, role assignments}
    L --> H3[H3: Storage firewall / network rule mismatch]
    L --> H4[H4: Data-plane authorization gap]

Scope and limitations¶

• Linux/OSS scope only; Windows worker specifics are out of scope.
• Covers Blob, Files, Queue, and Table data-plane connectivity from App Service.
• Vendor-specific NVA/firewall tuning is intentionally excluded.

Quick conclusion¶

Prove each layer independently and in order: (1) the storage FQDN resolves to the intended IP, (2) TCP reaches the endpoint, (3) the storage firewall admits the request's effective source, and (4) the calling identity holds a valid data-plane credential or role. Most durable fixes come from correcting private DNS links, aligning VNet integration with a service or private endpoint, and adding the missing data-plane RBAC role.

2. Common Misreadings¶

• "The firewall passed, so the app is authorized." (Network access and data authorization are separate layers.)
• "Route All is on, so Storage is private." (Route All changes the egress path, not the storage account's public endpoint.)
• "I added the app's outbound IPs to the storage firewall." (Same-region App Service IPs are not honored; a service endpoint switches the source to a private address anyway.)
• "It works from my laptop, so DNS is correct." (In-app resolution can differ, especially with private endpoints.)

3. Competing Hypotheses¶

• H1 (DNS layer): The storage FQDN resolves to the wrong IP — a missing/unlinked privatelink.<service>.core.windows.net zone, a wrong A record, or a custom DNS forwarder that does not resolve the privatelink chain.
• H2 (Routing layer): VNet integration/route-all/UDR is not steering traffic through the path the storage firewall expects, so the request never reaches the account.
• H3 (Storage firewall layer): The storage network rules do not admit the request's effective source — for example an IP allowlist that is ignored for same-region service-endpoint traffic, or a missing subnet/private-endpoint rule.
• H4 (Authorization layer): The network path is fine but the calling identity lacks a valid data-plane credential — no data-plane RBAC role, an expired SAS, a disabled shared key, or 403 AuthorizationFailure.

4. What to Check First¶

Metrics¶

• App Service HTTP 5xx and latency trend during storage calls.
• Storage account Transactions metric split by ResponseType (look for AuthorizationError, NetworkError, Success).
• Firewall or NVA deny counters for the storage private IP/port (443).

Logs¶

• Connect errors: ETIMEDOUT, ECONNREFUSED, No route to host.
• Resolver errors: ENOTFOUND, EAI_AGAIN, Name or service not known.
• Data-plane errors: AuthorizationFailure, AuthorizationPermissionMismatch, 403, This request is not authorized to perform this operation using this permission.

Platform Signals¶

• VNet Integration state and integration subnet assignment.
• Storage account publicNetworkAccess, defaultAction, virtual network rules, IP rules, and private endpoint connections.
• Private DNS zone links and A record values for the storage privatelink zone.
• Role assignments on the storage account for the app's managed identity.

Investigation Notes¶

• Always validate from inside the Linux App Service runtime; external resolver behavior is not authoritative.
• A 403 / AuthorizationFailure is ambiguous: it can be a storage network-rule (firewall) denial or a data-plane role/credential gap. Distinguish them by checking the Storage error detail, the account network rules, the request's effective source, and the role assignments — a data-plane gap is confirmed only after the network path is proven open.
• Passing the storage network rules does not grant data access — that still requires a shared key, SAS, or data-plane RBAC role.
• When a service endpoint is used, the request's source becomes a private VNet address, so public IP allowlist rules no longer apply.
• Keep all timeline correlation in UTC.

5. Evidence to Collect¶

Required Evidence¶

• In-app resolution output for the exact storage FQDN (nslookup, getent hosts).
• Storage account network configuration (publicNetworkAccess, defaultAction, virtualNetworkRules, ipRules).
• Private endpoint NIC IP and subresource (blob/file/queue/table) mapping.
• Role assignments for the app's managed identity on the storage scope.
• UTC timestamped app failures and the HTTP status of the failing data call.

Useful Context¶

• Custom DNS architecture and forwarder chain.
• Current vnetRouteAllEnabled setting for the app.
• Recent changes to the storage firewall, endpoint, DNS, or role assignments.
• Authentication method in use (managed identity vs shared key vs SAS).

CLI Investigation Commands¶

# App VNet integration and route-all state
az webapp show --resource-group <resource-group> --name <app-name> --query "{virtualNetworkSubnetId:virtualNetworkSubnetId,vnetRouteAllEnabled:siteConfig.vnetRouteAllEnabled}" --output table

# Storage network configuration
az storage account show --resource-group <resource-group> --name <storage-account-name> --query "{publicNetworkAccess:publicNetworkAccess,defaultAction:networkRuleSet.defaultAction,ipRules:networkRuleSet.ipRules,vnetRules:networkRuleSet.virtualNetworkRules}" --output json

# Private endpoint state and private IP
az network private-endpoint show --resource-group <resource-group> --name <private-endpoint-name> --query "{name:name,provisioningState:provisioningState}" --output table

# Data-plane role assignments for the app identity
az role assignment list --assignee <app-managed-identity-object-id> --scope <storage-account-resource-id> --query "[].{role:roleDefinitionName,scope:scope}" --output table

6. Validation and Disproof by Hypothesis¶

H1: DNS resolves to the wrong IP¶

Signals that support - App resolves the storage FQDN to a public IP when a private endpoint is expected, or returns NXDOMAIN. - The privatelink.<service>.core.windows.net zone is missing or not linked to the integration VNet.

Signals that weaken - App resolves consistently to the current private endpoint NIC IP.

Validation

nslookup <storage-account-name>.blob.core.windows.net
getent hosts <storage-account-name>.blob.core.windows.net
az network private-dns link vnet list --resource-group <resource-group> --zone-name privatelink.blob.core.windows.net --output table
az network private-dns record-set a list --resource-group <resource-group> --zone-name privatelink.blob.core.windows.net --output table

H2: Routing / egress path blocked¶

Signals that support - DNS resolves correctly, but TCP to port 443 times out. - vnetRouteAllEnabled is off while the storage firewall requires the VNet path, or a UDR steers traffic to a firewall that denies the storage IP.

Signals that weaken - Effective routes are valid and a direct connect test to the endpoint succeeds.

Validation

az webapp show --resource-group <resource-group> --name <app-name> --query "siteConfig.vnetRouteAllEnabled"
az network vnet subnet show --resource-group <resource-group> --vnet-name <vnet-name> --name <integration-subnet-name> --query "{serviceEndpoints:serviceEndpoints,routeTable:routeTable.id}"
nc -vz <storage-account-name>.blob.core.windows.net 443

H3: Storage firewall rule mismatch¶

Signals that support - defaultAction is Deny and the integration subnet is not in virtualNetworkRules. - An IP allowlist was added for App Service outbound IPs but the app and storage are in the same region (rules not honored), or a service endpoint changed the source to a private address the IP rule does not match.

Signals that weaken - The integration subnet has a Microsoft.Storage service endpoint AND a matching virtual network rule, or a private endpoint exists and is approved.

Validation

az storage account network-rule list --resource-group <resource-group> --account-name <storage-account-name> --output json
az network vnet subnet show --resource-group <resource-group> --vnet-name <vnet-name> --name <integration-subnet-name> --query "serviceEndpoints"

H4: Data-plane authorization gap¶

Signals that support - The data call returns 403 AuthorizationFailure or AuthorizationPermissionMismatch after the network path is proven open. - The app uses managed identity but has no data-plane role (for example Storage Blob Data Contributor) on the storage scope. - Shared key access is disabled on the account, or a SAS token has expired.

Signals that weaken - The identity holds a data-plane role at the correct scope and the same call succeeds intermittently (points back to a network/transient issue).

Validation

az role assignment list --assignee <app-managed-identity-object-id> --scope <storage-account-resource-id> --output table
az storage account show --resource-group <resource-group> --name <storage-account-name> --query "allowSharedKeyAccess"

Normal vs Abnormal Comparison¶

7. Likely Root Cause Patterns¶

• Pattern A: Storage publicNetworkAccess Disabled / defaultAction Deny without a service endpoint or private endpoint for the integration subnet.
• Pattern B: Private DNS zone for the storage service not linked to the integration VNet, so the FQDN resolves publicly.
• Pattern C: IP allowlist added for App Service outbound IPs in the same region (silently ignored).
• Pattern D: App migrated to managed identity but never granted a data-plane RBAC role.
• Pattern E: Shared key access disabled on the account while the app still uses a connection string.

8. Immediate Mitigations¶

• Add a Microsoft.Storage service endpoint on the integration subnet and a matching virtual network rule on the storage account. Risk: Low.
• Create/approve a private endpoint and link the privatelink.<service>.core.windows.net zone to the integration VNet. Risk: Medium (DNS change).
• Assign the correct data-plane RBAC role to the app's managed identity. Risk: Low.
• Re-enable shared key access temporarily if the app depends on a connection string, then plan the migration to managed identity. Risk: Medium (weakens auth posture).

9. Prevention¶

• Standardize on managed identity + data-plane RBAC for storage access; avoid connection strings.
• Automate storage onboarding checks: firewall default action, VNet/private-endpoint rule, private DNS link, and required data-plane role.
• Add synthetic probes from App Service runtime that both resolve and perform a real data-plane read against critical storage dependencies.
• Document the four-layer model in runbooks so a 403 is disambiguated across the storage firewall (network authorization) and data-plane authorization, instead of being assumed to be one or the other.

10. Portal Evidence¶

This section walks the four connectivity layers in diagnostic order (Layer 1 → Layer 4), each as a step-by-step trail rather than a single blade. Layers 2, 3, and 4 are backed by real, PII-cleaned Azure Portal captures taken from a live repro environment (a Linux Python App Service and a Standard StorageV2 account, both in the same resource group). Layer 1 is a reproducible command procedure with representative output, because DNS resolution is verified from inside the runtime rather than from a static blade — the Kudu SSH console renders its output on an HTML canvas that the repository PII text-replacement tooling cannot sanitize, so it is intentionally documented as text, not a screenshot. Do not treat the Layer 1 command output as if a verified screenshot exists.

Layer 1 — DNS resolution (command procedure, no screenshot)¶

Resolve the storage FQDN from inside the runtime, because the app's own resolver — not your workstation — decides which endpoint the app reaches.

Step 1 — Open a shell on the app:

1. Open the App Service in the Azure Portal.
2. Go to Development Tools → Advanced Tools (Kudu) → Go, then open SSH (or use Diagnose and solve problems for a read-only view).

Step 2 — Resolve the storage endpoint and inspect the CNAME chain:

nslookup <storage-account-name>.blob.core.windows.net

This example targets the Blob endpoint; substitute the relevant suffix (.queue., .table., .file.) for the service the app actually calls.

Representative output for a public-access account (no private endpoint):

<storage-account-name>.blob.core.windows.net    canonical name = blob.<stamp>.store.core.windows.net.
Name:   blob.<stamp>.store.core.windows.net
Address: 20.150.x.x

Purpose: Prove the app resolves the storage FQDN to the intended endpoint before blaming the firewall or RBAC. Look for: The CNAME target (blob.<stamp>.store.core.windows.net for the public path, or a privatelink.blob.core.windows.net chain for a private endpoint) and the final Address. Expected result: A public-access path resolves to a public Azure Storage IP from Microsoft-published Azure public ranges (validate a specific address against the Storage service tag in the Azure IP Ranges and Service Tags JSON; observed examples may include 20.x.x.x or 4.x.x.x); a private endpoint path resolves through the privatelink.blob.core.windows.net zone to the private endpoint NIC IP inside the integrated VNet. Abnormal: NXDOMAIN (name does not exist); a public IP returned when a private endpoint is required (missing privatelink Private DNS zone link); or a private IP that does not match the expected private endpoint NIC IP. Any of these supports an H1 (DNS) finding. Only after DNS resolves to the intended endpoint should you move to Layer 2.

Layer 2 — App Service outbound routing evidence (captured)¶

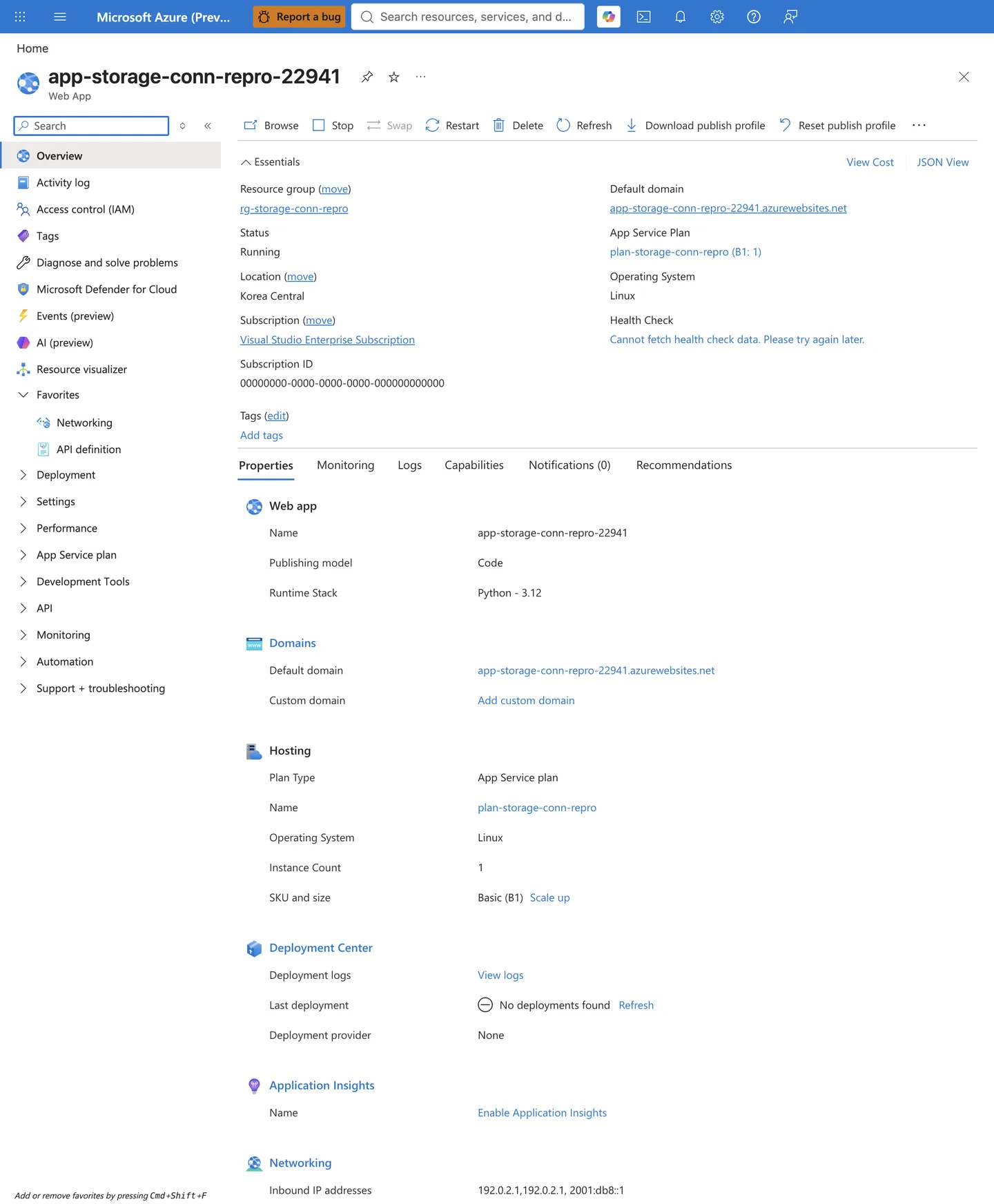

Step 1 — Confirm the app and its hosting from the Overview blade:

Purpose: Establish the app baseline (runtime, plan, region) so the routing state you inspect next is attributed to the right resource. Look for: Status: Running, the Operating System / Runtime Stack, the App Service Plan, and the Networking section at the bottom listing the app's outbound IP addresses. Expected result: A running app with a known plan and region. Note the outbound IP addresses — these are the source addresses a storage IP-rule allowlist would have to match on the public path. Caveat: When the app and the storage account are in the same Azure region, storage IP network rules do not reliably match these public outbound IPs — Azure may route the traffic over the backbone so it arrives with an internal address the IP rule never sees. Do not rely on a same-region IP allowlist; use a VNet rule or private endpoint instead (this is expanded in Layer 3, Step 2, and Section 6, H3). Next step: Open the Networking blade (left nav) to read the outbound routing configuration.

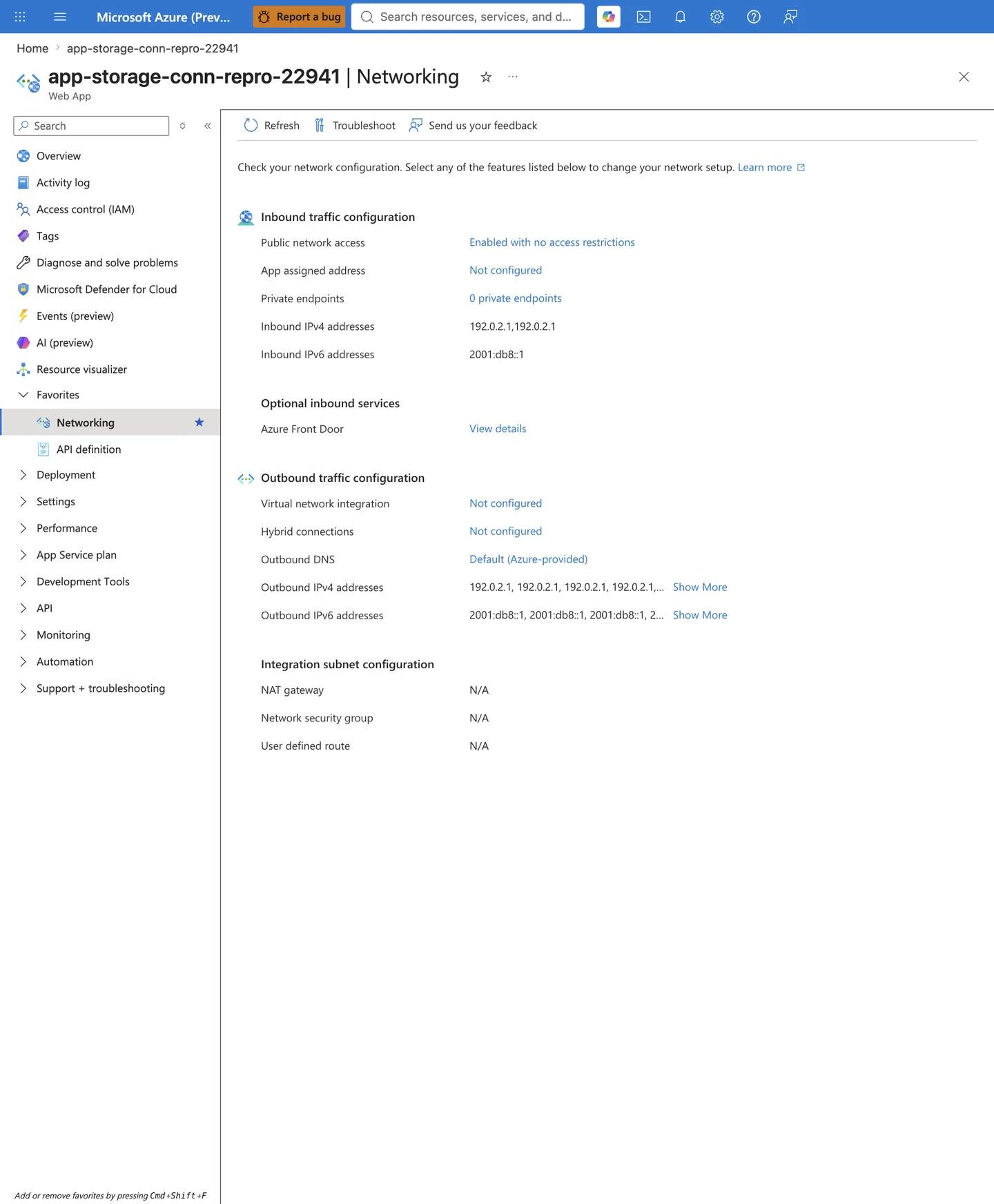

Step 2 — Read the outbound routing configuration on the Networking blade:

Purpose: Confirm the App Service outbound routing state before diagnosing the storage firewall or a private endpoint, because a routing gap masquerades as a firewall or authorization problem. Look for: The Outbound traffic configuration panel — specifically Virtual network integration: Not configured, Outbound DNS: Default (Azure-provided), and the Integration subnet configuration rows (NAT gateway / Network security group / User defined route all N/A when no VNet is attached). Expected result: For a storage private endpoint or a storage VNet rule to take effect, Virtual network integration must be configured to the intended subnet. The captured Not configured state means the app egresses over the public path with Azure-default DNS — so a private endpoint or VNet rule on the storage side cannot be reached, supporting an H2 (routing) finding. Next step: If the app is supposed to reach storage privately, configure VNet integration to the delegated subnet (and set vnetRouteAllEnabled as needed) before treating the failure as a storage firewall (Layer 3) or RBAC (Layer 4) problem. If the app is supposed to use the public path, proceed to Layer 3.

Layer 3 — Storage firewall evidence (captured)¶

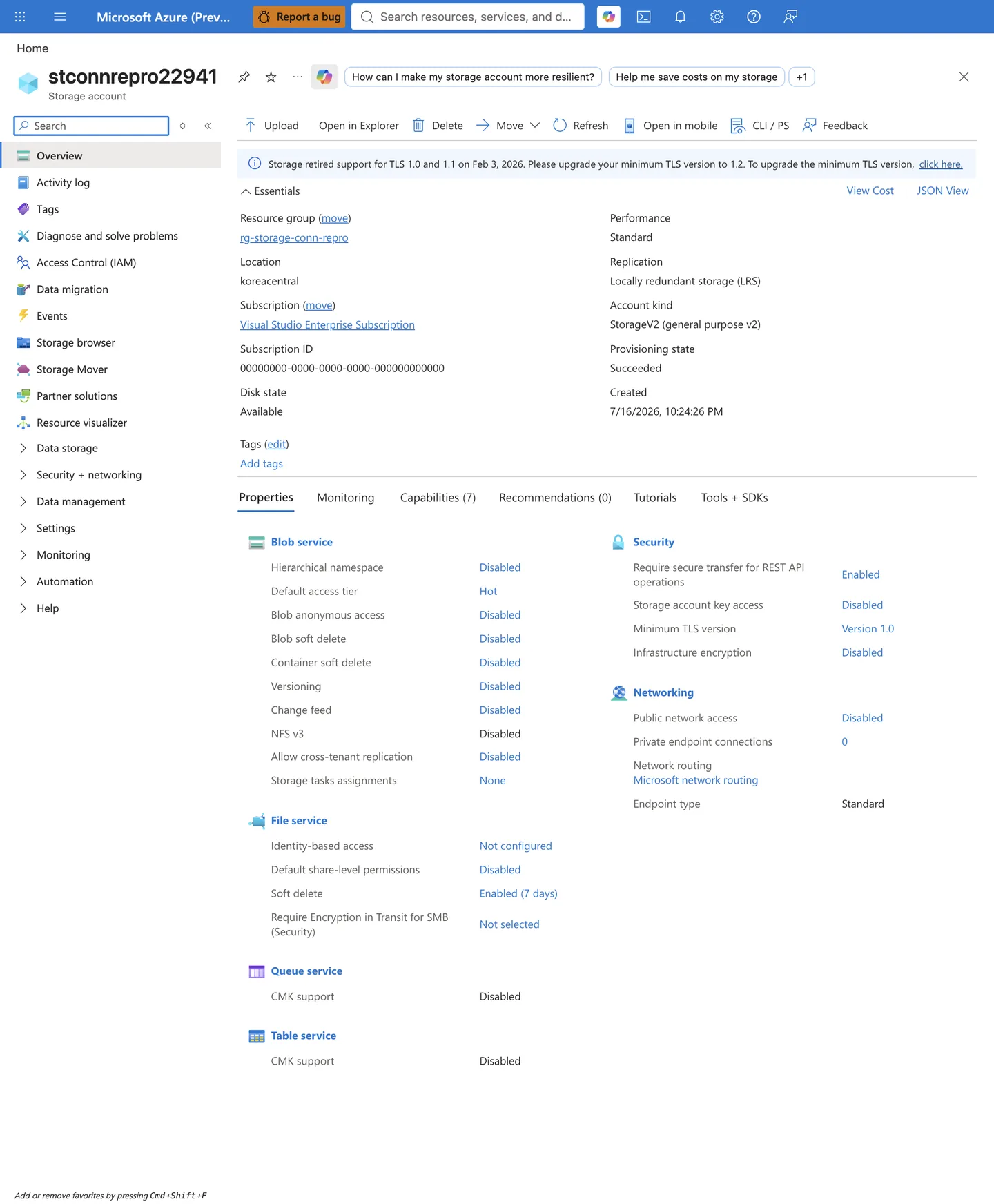

Step 1 — Read the storage firewall state at a glance from the Overview blade:

Purpose: Get the storage-side network and key posture in one view before opening the detailed Networking blade, because Public network access: Disabled alone explains a total egress block. Look for: The Networking section (Public network access, Private endpoint connections) and the Security section (Storage account key access). The captured account shows Public network access: Disabled and Storage account key access: Disabled. Expected result: For the app to reach the account over the public path, Public network access must be either Enabled from all networks (no rule required) or Enabled from selected virtual networks and IP addresses with a VNet/IP rule that matches the app's source. A Disabled state blocks all public egress — including the app's public outbound path. Next step: Open the Networking blade to confirm exactly why the rules are not in effect.

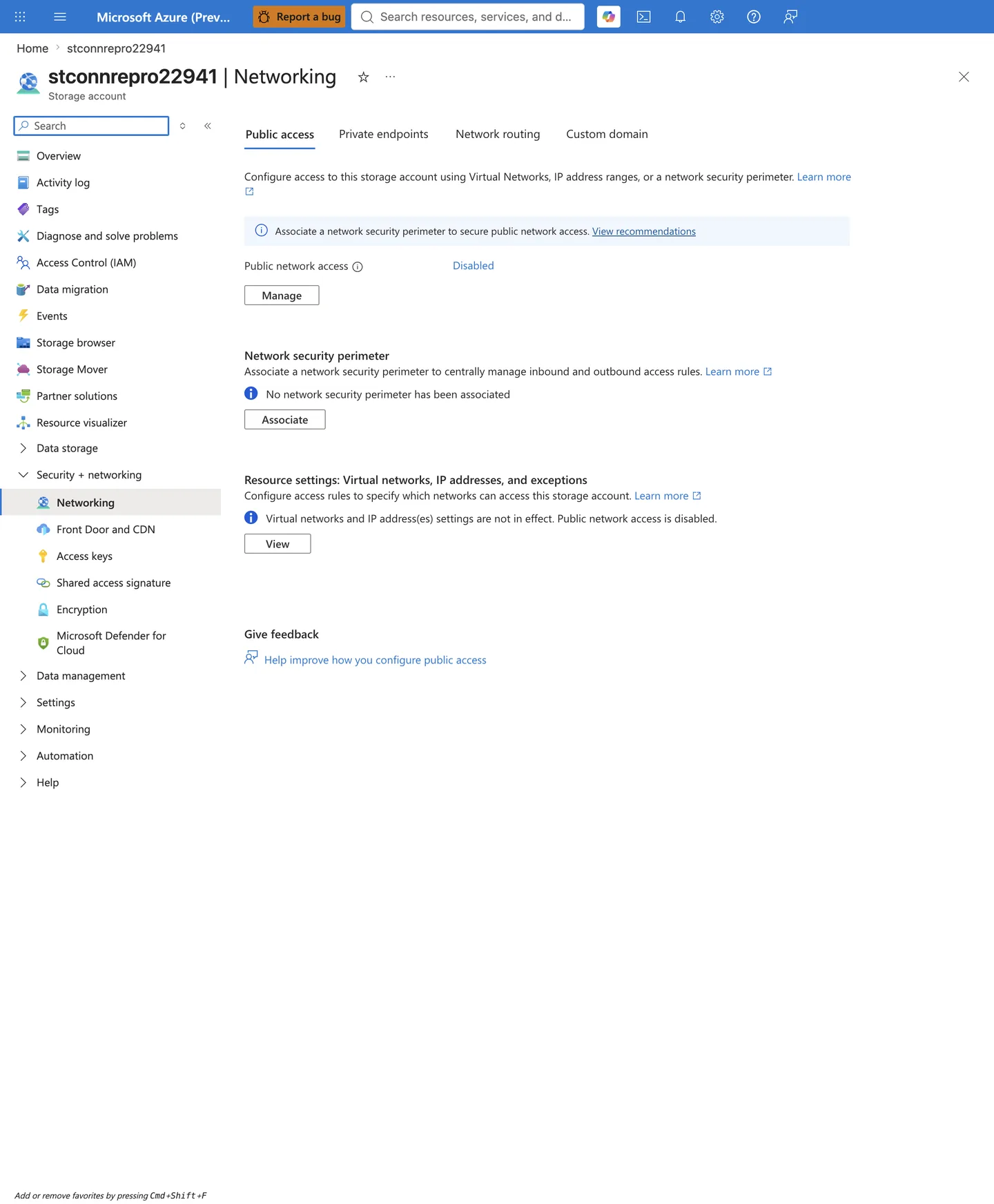

Step 2 — Confirm the firewall detail on the Networking blade:

Purpose: Disambiguate a firewall block from a data-plane authorization gap (Layer 4), since both surface as 403. Look for: The Public access tab — Public network access, and the Resource settings note about whether virtual network and IP rules are in effect. Expected result: The captured Public network access: Disabled state (with the note Virtual networks and IP address(es) settings are not in effect. Public network access is disabled.) supports an H3 (storage firewall) finding. Next step: For this Disabled state, use a private endpoint plus matching private DNS. A Microsoft.Storage service endpoint plus a virtual network rule is not sufficient on its own here — service-endpoint and IP rules are ignored while public access is disabled, so that path also requires re-enabling public access to Selected networks first. Resolve the network path before treating the failure as a Layer 4 authorization problem. Remember that same-region App Service IP allowlist rules are ignored (see the warning in Section 6, H3).

Layer 4 — Data-plane authorization evidence (captured)¶

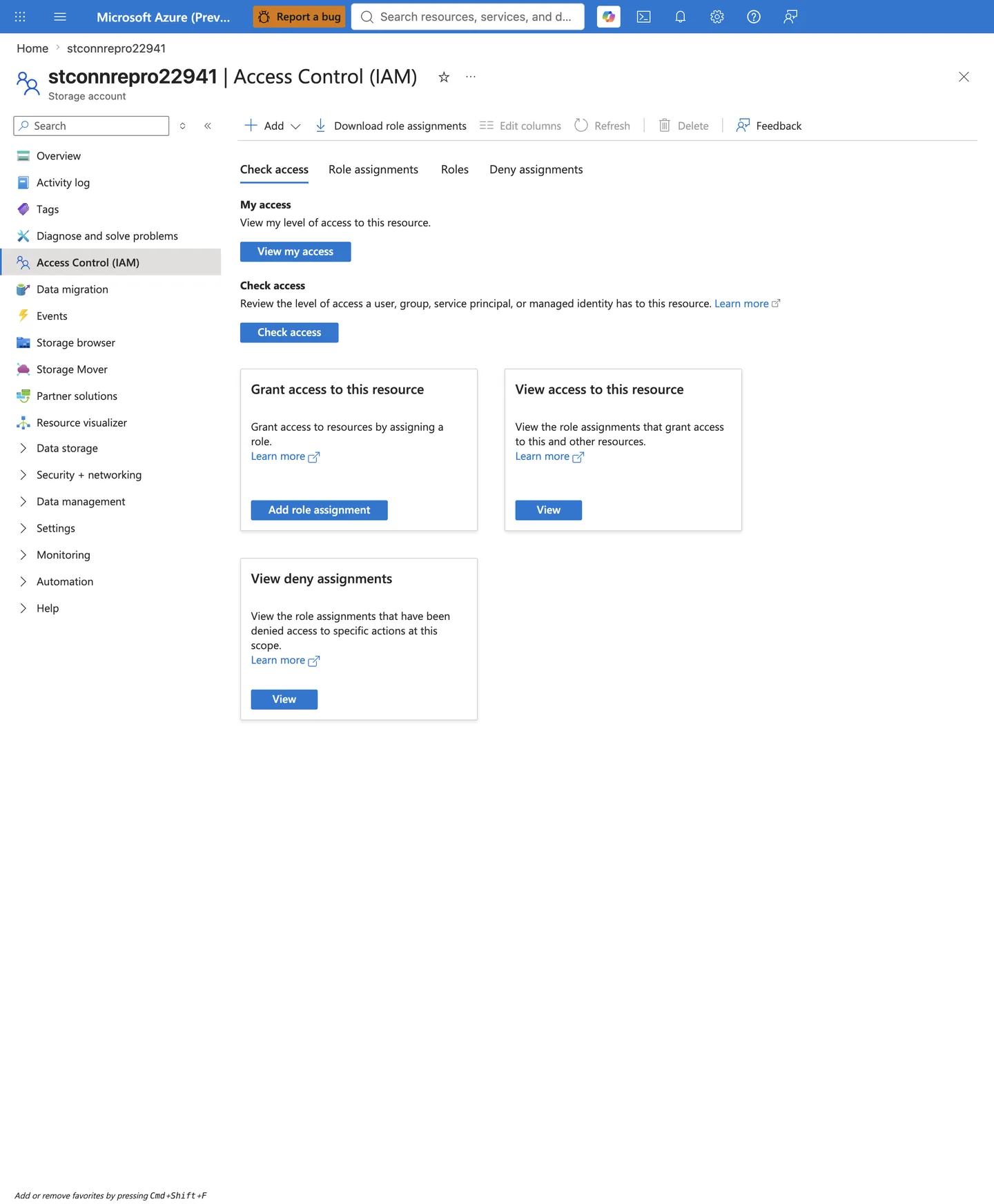

Step 1 — Open the storage account Access control (IAM) blade:

Purpose: Reach the storage-account IAM surface — the only place that reveals whether the app's managed identity holds a data-plane role. This is only meaningful after the network path (Layer 3) is proven open. Look for: The Access control (IAM) blade with the Check access / Role assignments / Roles / Deny assignments tabs. Next step: Open the Role assignments tab to enumerate the identity's roles and their scopes.

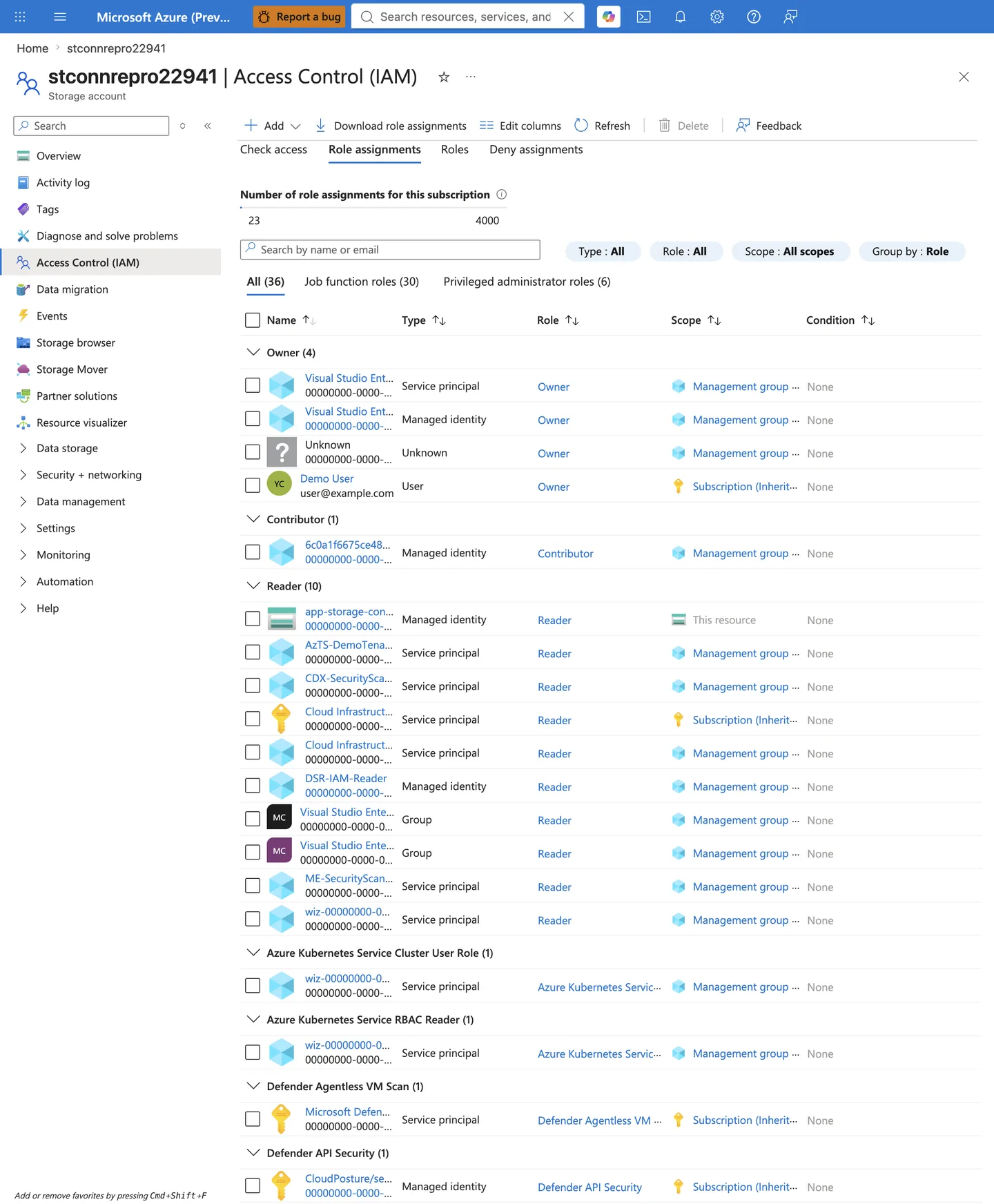

Step 2 — Enumerate the managed identity's roles on the Role assignments tab:

Purpose: Confirm whether the App Service managed identity holds a data-plane storage role (Layer 4). Look for: The Role assignments tab (grouped by Role). Locate the app's managed identity and read its Role and Scope columns. In the capture, the app identity appears under the Reader group with Reader at This resource scope. Expected result: The identity must hold an appropriate data-plane role for the operation — choose the least-privilege role that covers the required action (read vs write):

• Blob: Storage Blob Data Reader / Contributor / Owner as appropriate.
• Queue: Storage Queue Data Contributor (or the equivalent required role).
• Table: Storage Table Data Contributor (or the equivalent required role).

Abnormal: The captured state shows the managed identity holding only a management-plane Reader role at This resource scope and no data-plane role — a Reader grants control-plane read but zero blob/queue/table data access, so managed-identity data-plane calls return HTTP 403 with a Storage authorization error such as AuthorizationPermissionMismatch or AuthorizationFailure unless another valid credential (shared key or SAS) is used. This supports an H4 (data-plane authorization) finding. Evaluate this layer only once DNS (Layer 1), routing (Layer 2), and the storage firewall (Layer 3) are aligned — i.e. when the app receives a Storage 403 rather than a DNS failure, timeout, or connection refusal; otherwise the data plane is still unreachable and RBAC cannot be meaningfully diagnosed. Next step: Assign the correct data-plane role at the appropriate scope. If the app uses shared-key authorization, check the storage account Configuration blade for Allow storage account key access (the Overview capture in Layer 3, Step 1 shows it Disabled). If it uses a SAS, note that Allow storage account key access: Disabled invalidates account SAS and service SAS (both signed with the account key) but not user delegation SAS (signed with a Microsoft Entra key) — confirm which SAS type the app uses and that the token has not expired.
