Detector Map

Quick reference for Azure App Service Diagnostics detectors relevant to Linux/OSS troubleshooting.

graph TD
    A[Troubleshooting scenario] --> B{Scenario type}
    B --> C[Startup or availability]
    B --> D[Performance degradation]
    B --> E[Outbound connectivity]
    C --> F[Web App Down]
    C --> G[Running Containers]
    D --> H[HTTP Server Errors]
    D --> I[Plan CPU and Memory]
    E --> J[SNAT Port Exhaustion]
    E --> K[TCP Connections]
    F --> L[Validate with logs and metrics]
    I --> L
    J --> L

How to Access

Navigate to your App Service in the Azure Portal → Diagnose and solve problems.

Portal view: Diagnose and solve problems hub (category landing)

Diagnose and solve problems landing page with a Risk alerts card and troubleshooting category cards

Purpose: Show the Portal entry point to the App Service detectors.

Look for: The Troubleshooting categories cards, such as Availability and Performance, and the search box.

Expected result: Choose the category that matches the symptom to open its detectors.

This is the landing page for every detector in the reference table below. The seven category cards map directly to the Category column - the visible quick links under Availability and Performance are Application Logs, App Down Workflow, and Web App Down, while Networking and Configuration and Management expose their own troubleshoot links (the table below maps the full detector set per category). The Risk alerts Availability card with 2 Critical surfaces detectors that have already flagged anomalies for this app, so triaging risks here before running individual detectors is the fastest path to a hypothesis. The Common Solutions tab (currently selected) lists pre-built workflows; the adjacent AI-powered Diagnostics (preview) tab gives a synthesized narrative across detectors, but per the Detector Limitations section it remains a starting point - validate with logs.

Detector Reference

Detector Category What It Shows When to Use Related Playbook
Web App Down Availability Whether the app is responding to requests App not loading, 503 errors container-didnt-respond-to-http-pings
Linux - Number of Running Containers Availability Container count over time, start/stop events Startup failures, unexpected restarts container-didnt-respond-to-http-pings
SNAT Port Exhaustion Networking SNAT port allocation and usage per instance Outbound connection failures, intermittent timeouts snat-or-application-issue
TCP Connections Networking Active TCP connections per instance Connection leak detection, pool exhaustion snat-or-application-issue
HTTP Server Errors Performance 5xx error trends over time Intermittent server errors under load intermittent-5xx-under-load
App Service Plan CPU Performance Plan-level CPU utilization percentage Performance degradation investigation slow-response-but-low-cpu
App Service Plan Memory Performance Plan-level memory utilization percentage Memory pressure, gradual degradation memory-pressure-and-worker-degradation
Application Logs Diagnostics App stdout/stderr output Runtime errors, crash investigation All playbooks
Deployment Logs Configuration Deployment history and status Post-deployment failures All startup playbooks

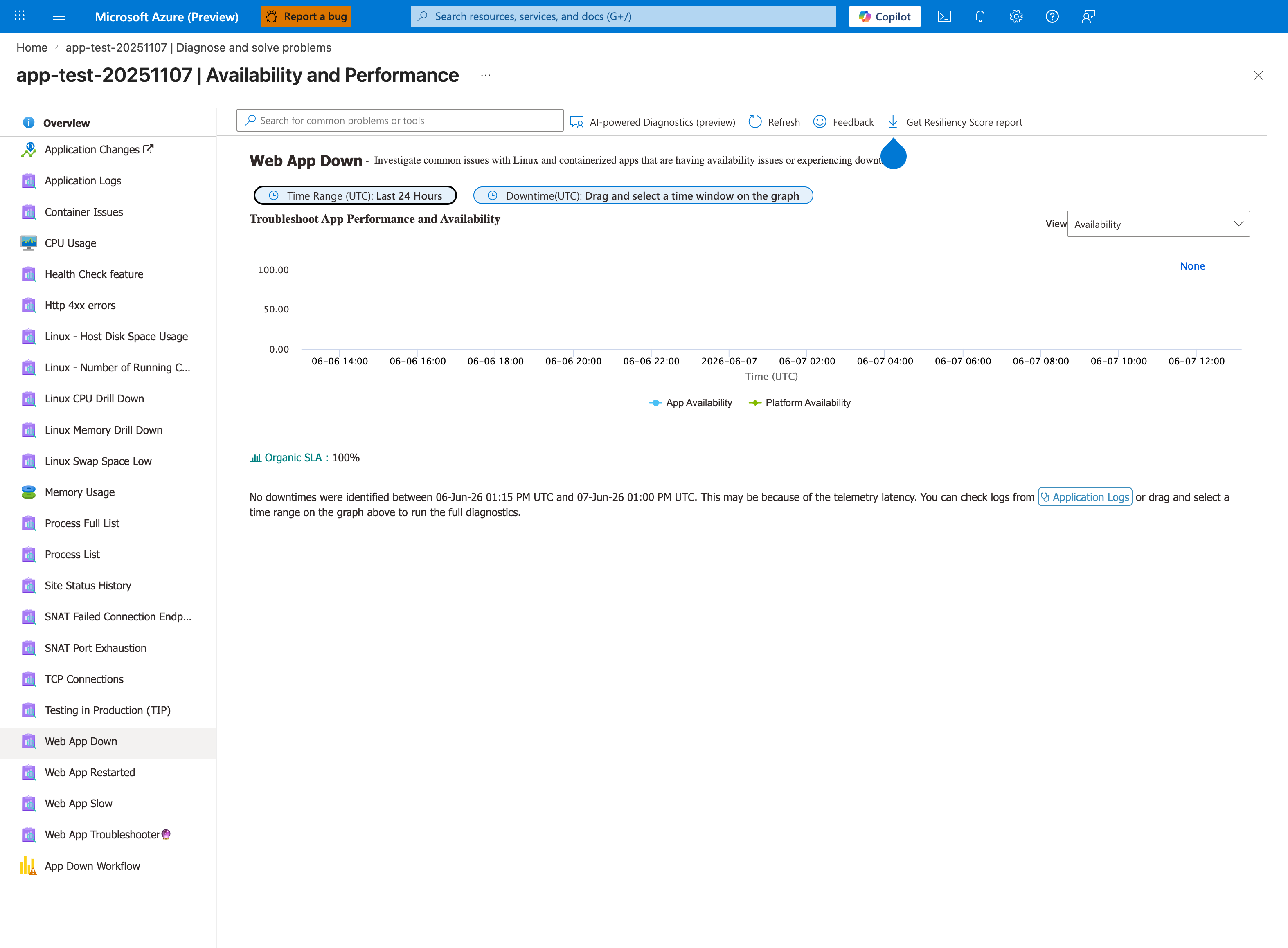

Portal view: Web App Down detector (healthy baseline output)

Web App Down detector showing 100 percent availability over the last 24 hours and a message that no downtime was identified

Purpose: Show a healthy baseline of the Web App Down detector.

Look for: The availability chart, Organic SLA, and the downtime message below it.

Expected result: A healthy app shows flat 100 percent availability and no downtime; during an outage the chart dips and a downtime window can be selected.

This is what Web App Down looks like when the app is healthy - both App Availability and Platform Availability at 100%, Organic SLA: 100%, and the explicit "No downtimes were identified" banner. The distinction between App Availability (your code responding) and Platform Availability (the App Service infrastructure healthy) is critical for triage: a low App Availability with high Platform Availability points to application/container issues (use container-didnt-respond-to-http-pings); a low Platform Availability points to platform incidents - check Azure Status before code changes. The left-rail detector list also reveals the sibling detectors you'd hop to next: Container Issues, Linux CPU Drill Down, Web App Restarted. The 24-hour scope shown here is the detector default and matches the Time scope limitation noted below.

Detector Limitations

  • Data refresh delay: 5–15 minute lag between an event and its appearance in diagnostics.
  • Sampling: High-volume detectors may sample events rather than capturing every occurrence.
  • Linux coverage gaps: Some Windows-only profiling tools (e.g., CLR Profiler) have no Linux equivalent.
  • Platform-level focus: Detectors see stdout/stderr but cannot inspect application memory or stack without Application Insights.
  • Time scope: Some detectors only analyze the last 24 hours — use Log Analytics directly for older data.
  • Starting point, not conclusion: Detector output is a hypothesis generator. Always validate with logs and metrics.

CLI Equivalents

# Application logs (same data as Application Logs detector)
az webapp log show --resource-group $RG --name $APP_NAME

# CPU metrics (same data as App Service Plan CPU detector)
az monitor metrics list --resource $RESOURCE_ID --metric "CpuPercentage" --interval PT5M

# Memory metrics (same data as App Service Plan Memory detector)
az monitor metrics list --resource $RESOURCE_ID --metric "MemoryPercentage" --interval PT5M

# Container log stream (useful for startup troubleshooting)
az webapp log tail --name $APP_NAME --resource-group $RG
Command Purpose
az webapp log show --resource-group $RG --name $APP_NAME Shows the current App Service logging configuration and enabled log outputs for this web app.
--resource-group $RG --name $APP_NAME Looks up the resource in this resource group.
--name $APP_NAME Targets this web app.
az monitor metrics list --resource $RESOURCE_ID --metric "CpuPercentage" --interval PT5M Fetches Azure Monitor metrics for the selected resource and incident window.
--resource $RESOURCE_ID Scopes the metric query to this specific Azure resource.
--metric "CpuPercentage" Requests exactly these metrics from Azure Monitor for this check.
--interval PT5M Samples the metrics at this time granularity.
az monitor metrics list --resource $RESOURCE_ID --metric "MemoryPercentage" --interval PT5M Fetches Azure Monitor metrics for the selected resource and incident window.
--resource $RESOURCE_ID Scopes the metric query to this specific Azure resource.
--metric "MemoryPercentage" Requests exactly these metrics from Azure Monitor for this check.
--interval PT5M Samples the metrics at this time granularity.
az webapp log tail --name $APP_NAME --resource-group $RG Streams live web app logs so you can watch startup, runtime, or dependency errors as they happen.
--resource-group $RG Looks up the web app in this resource group.
--name $APP_NAME --resource-group $RG Targets this web app.
