Lab Guide (Level 3): Failed to Forward Request on Azure App Service Linux¶

This lab is a full reference investigation for the App Service Linux startup/binding failure pattern where the app process listens on loopback (127.0.0.1) and the platform reverse proxy cannot reach it. The guide includes deep background, a falsifiable hypothesis, a deterministic runbook, and an artifact-backed experiment log.

Lab Metadata¶

1) Background¶

1.1 What “failed to forward request” means on Linux App Service¶

Inbound traffic to App Service Linux does not connect directly from internet clients to your Gunicorn process. There is an App Service front-end/reverse-proxy chain and warmup/startup probes before the site is considered ready.

If your app listens only on loopback (127.0.0.1) inside the container, proxy-to-container forwarding can fail because the proxy expects the application to be reachable on the container interface.

1.2 Request forwarding chain¶

flowchart TD
    A[Client] --> B[App Service Front End]
    B --> C[Worker + Container Network]
    C --> D[Gunicorn listener]
    D --> E[Flask app]

    style B fill:#1976d2,color:#fff
    style C fill:#455a64,color:#fff
    style D fill:#ef6c00,color:#fff

When D binds to 0.0.0.0:8000, C can reach D. When D binds to 127.0.0.1:8000, forwarding can fail depending on network path assumptions.

1.3 Why 127.0.0.1 can fail while app is “running”¶

A process can be healthy in-process but unreachable from platform forwarding path.

You can see this paradox in incidents:

• Gunicorn boots workers normally.
• App process exists.
• Startup probe still fails (ContainerTimeout, warmup not successful).
• External requests return 503 or probe 000.

1.4 Startup command and port environment mechanics¶

On App Service Linux, startup behavior commonly depends on:

• Startup file (az webapp config set --startup-file ...)
• PORT
• WEBSITES_PORT (in certain deployment modes)

If startup command explicitly hardcodes --bind=127.0.0.1:8000, it can override otherwise-correct defaults and make forwarding fail.

1.5 Causal path with warmup probes¶

sequenceDiagram
    participant FE as Front End / Proxy
    participant WK as Worker Host
    participant CT as Container
    participant GN as Gunicorn

    FE->>WK: Route request / startup warmup
    WK->>CT: Probe app port
    CT->>GN: Forward to listener
    alt GN on 0.0.0.0:8000
        GN-->>CT: Responds
        CT-->>WK: Probe success
        WK-->>FE: Site ready
    else GN on 127.0.0.1:8000 (bad path for proxy)
        GN--x CT: Not reachable on expected interface
        CT--x WK: Probe timeout
        WK-->>FE: Startup failure / 503 surface
    end

1.6 Why this appears as startup timeout, not bind syntax error¶

In this lab, 127.0.0.1 is a valid socket bind. Gunicorn starts successfully.

Therefore logs often show:

• Gunicorn startup lines present.
• Worker boot lines present.
• Yet platform logs report probe timeout and container startup timeout.

This is why naive “process started = app reachable” assumptions fail.

1.7 Diagram: bind decision outcomes¶

flowchart TD
    A[Startup command parsed] --> B{Bind address}
    B -->|0.0.0.0:8000| C[Platform can forward]
    C --> D[Warmup succeeds]
    D --> E[HTTP 200 expected]

    B -->|127.0.0.1:8000| F[Forwarding path blocked]
    F --> G[Warmup probe timeout]
    G --> H[ContainerTimeout events]
    H --> I[HTTP 503 and curl 000]

    style C fill:#2e7d32,color:#fff
    style F fill:#ef6c00,color:#fff
    style I fill:#b71c1c,color:#fff

1.8 Relevant lab app endpoints¶

1.9 Baseline evidence from artifacts¶

Primary baseline files:

• baseline/app-config.json
• baseline/startup-command.txt

Observed baseline startup command:

gunicorn --bind=127.0.0.1:8000 --timeout=120 --workers=2 app:app

This baseline directly encodes the fault condition.

Portal view: Diagnose and solve (Web App Down baseline reading)¶

Purpose: Show a healthy baseline of the Web App Down detector.

Look for: The availability chart, Organic SLA, and the downtime message below it.

Expected result: A healthy app shows flat 100 percent availability and no downtime; during an outage the chart dips and a downtime window can be selected.

The Web App Down detector is the deceptive baseline reading that traps inexperienced responders on this failure mode. Both App Availability and Platform Availability tiles read 100% and the green banner declares No downtimes were identified for this Web App in the last 24 hours - because the container is technically running and the platform is healthy, the detector cannot mark availability as degraded even when every request returns 502/503 from the front-end proxy. The actual fault (failed to forward request between the proxy and 127.0.0.1:8000) surfaces one or two detectors deeper in the left rail: Container Issues, Web App Restarted, and HTTP Server Errors are the right next clicks. Always pair this detector reading with the KQL queries in section 3.9 - AppServicePlatformLogs and AppServiceHTTPLogs show the proxy-side error truth this top-level detector understates.

2) Hypothesis¶

2.1 Statement (falsifiable)¶

Hypothesis:

When a Gunicorn process binds to 127.0.0.1 instead of 0.0.0.0, the App Service reverse proxy cannot forward requests to the container, resulting in container didn't respond to HTTP pings-class startup/probe failures.

2.2 Causal chain under test¶

flowchart TD
    A[Startup command uses 127.0.0.1] --> B[Gunicorn reachable only on loopback]
    B --> C[Platform warmup probe cannot reach app]
    C --> D[Startup timeout / ContainerTimeout logs]
    D --> E[HTTP 503 and curl 000 symptoms]
    E --> F[Change bind to 0.0.0.0]
    F --> G[Proxy forwarding restored]
    G --> H[Health endpoint 200]

    style A fill:#ef6c00,color:#fff
    style D fill:#d84315,color:#fff
    style H fill:#2e7d32,color:#fff

2.3 Proof criteria¶

All must be observed:

1. Baseline startup command shows --bind=127.0.0.1:8000.
2. Failure probes show 000 and/or HTTP logs show sustained 503 with long TimeTaken.
3. Platform logs contain startup probe timeout and container timeout language.
4. Post-fix diagnostics show effective bind as 0.0.0.0:8000.
5. Post-fix health reaches HTTP 200.

2.4 Disproof criteria¶

Any one disconfirms the hypothesis for this run:

• Startup command was already 0.0.0.0 before failures.
• Platform logs show a different root cause (for example image pull failure) with no probe timeout pattern.
• Switching bind to 0.0.0.0 does not restore reachability.

2.5 Confounders and interpretation notes¶

3) Runbook¶

This runbook reproduces the failure and verifies fix using long-form flags.

3.1 Prerequisites¶

3.2 Variables¶

export RG="rg-lab-forward"
export LOCATION="koreacentral"
export TEMPLATE_FILE="labs/failed-to-forward-request/main.bicep"

3.3 Deploy infrastructure¶

az group create --name "$RG" --location "$LOCATION"

az deployment group create \
  --resource-group "$RG" \
  --template-file "$TEMPLATE_FILE" \
  --parameters baseName="labfwd"

3.4 Resolve app name and URL¶

export APP_NAME=$(az webapp list \
  --resource-group "$RG" \
  --query "[0].name" \
  --output tsv)

export APP_HOST=$(az webapp show \
  --resource-group "$RG" \
  --name "$APP_NAME" \
  --query "defaultHostName" \
  --output tsv)

export APP_URL="https://$APP_HOST"

3.5 Confirm baseline startup command¶

az webapp config show \
  --resource-group "$RG" \
  --name "$APP_NAME" \
  --query "appCommandLine" \
  --output tsv

Expected failure-mode baseline:

gunicorn --bind=127.0.0.1:8000 --timeout=120 --workers=2 app:app

3.6 Deploy app package¶

az webapp deploy \
  --resource-group "$RG" \
  --name "$APP_NAME" \
  --src-path "labs/failed-to-forward-request/app" \
  --type zip \
  --restart true

3.7 Trigger script (reproduce + fix)¶

bash "labs/failed-to-forward-request/trigger.sh" "$RG" "$APP_NAME"

Script behavior summary:

1. Deploys app code.
2. Calls app while bind is 127.0.0.1.
3. Applies startup fix: --bind=0.0.0.0:8000.
4. Polls /health for recovery.

3.8 Manual probe loop (optional)¶

Before fix:

for attempt in $(seq 1 5); do
  curl \
    --silent \
    --show-error \
    --max-time 15 \
    --output /dev/null \
    --write-out "%{http_code},%{time_total}\n" \
    "$APP_URL/"
done

Apply fix explicitly:

az webapp config set \
  --resource-group "$RG" \
  --name "$APP_NAME" \
  --startup-file "gunicorn --bind=0.0.0.0:8000 --timeout=120 --workers=2 app:app"

After fix:

for attempt in $(seq 1 12); do
  curl \
    --silent \
    --show-error \
    --max-time 15 \
    --output /dev/null \
    --write-out "%{http_code},%{time_total}\n" \
    "$APP_URL/health"
  sleep 5
done

3.9 KQL queries¶

Log stream is the quickest way to confirm whether the app bound to a host the platform proxy can reach. Keep the Runtime radio selected and pin Instances to a single worker so the listen-port banner isn't interleaved, then toggle to Platform for the front-end proxy's startup probe and warmup messages. Once the bind-address evidence is visible, use the queries below to quantify the resulting 502 and 503 rates from AppServiceHTTPLogs.

HTTP behavior¶

AppServiceHTTPLogs
| where TimeGenerated > ago(2h)
| where CsUriStem in ("/", "/health", "/diag/stats", "/diag/env", "/diag/bind")
| project TimeGenerated, CsUriStem, ScStatus, TimeTaken, CsHost
| order by TimeGenerated desc

Platform startup/probe behavior¶

AppServicePlatformLogs
| where TimeGenerated > ago(2h)
| where Message has_any (
    "startup probe failed",
    "Container did not start within expected time limit",
    "Pinging warmup path",
    "Failed to start site"
)
| project TimeGenerated, Level, Message
| order by TimeGenerated desc

Console startup bind evidence¶

AppServiceConsoleLogs
| where TimeGenerated > ago(2h)
| where ResultDescription has_any (
    "Site's appCommandLine",
    "Listening at:",
    "Starting gunicorn"
)
| project TimeGenerated, ResultDescription
| order by TimeGenerated desc

3.10 Post-fix verification endpoints¶

curl --silent --show-error "$APP_URL/health"
curl --silent --show-error "$APP_URL/diag/stats"
curl --silent --show-error "$APP_URL/diag/env"
curl --silent --show-error "$APP_URL/diag/bind"

Expected post-fix:

• /health returns HTTP 200.
• /diag/bind infers gunicorn_bind_from_cmdline as 0.0.0.0:8000.

4) Experiment Log¶

This section uses real files from:

labs/failed-to-forward-request/artifacts-sanitized/

4.1 Artifact inventory used¶

4.2 Baseline evidence¶

4.2.1 Baseline startup command¶

Source: baseline/startup-command.txt

gunicorn --bind=127.0.0.1:8000 --timeout=120 --workers=2 app:app

Source: baseline/app-config.json (appCommandLine)

"appCommandLine": "gunicorn --bind=127.0.0.1:8000 --timeout=120 --workers=2 app:app"

This fully satisfies proof criterion #1 (faulting bind present pre-trigger).

4.2.2 Baseline app-state artifact¶

baseline/app-state.json is empty in this dataset. This does not block diagnosis because startup command state is already captured in two independent artifacts.

4.3 Trigger probe evidence¶

4.3.1 Failure probes¶

Source: trigger/failure-probes-20260404T054545Z.csv

Rows:

1,000000,2026-04-04T05:46:16Z
2,000000,2026-04-04T05:46:29Z
3,000000,2026-04-04T05:46:41Z
4,000000,2026-04-04T05:46:54Z
5,000000,2026-04-04T05:47:07Z

Summary:

4.3.2 Recovery probes¶

Source: trigger/recovery-probes-20260404T054545Z.csv

Rows:

1,000000,2026-04-04T05:48:03Z
2,000000,2026-04-04T05:48:22Z
3,000000,2026-04-04T05:48:35Z

Summary:

Important interpretation:

• Recovery probe capture appears to have occurred during restart/warmup churn.
• Postfix diagnostics (below) later prove successful recovery and corrected bind.

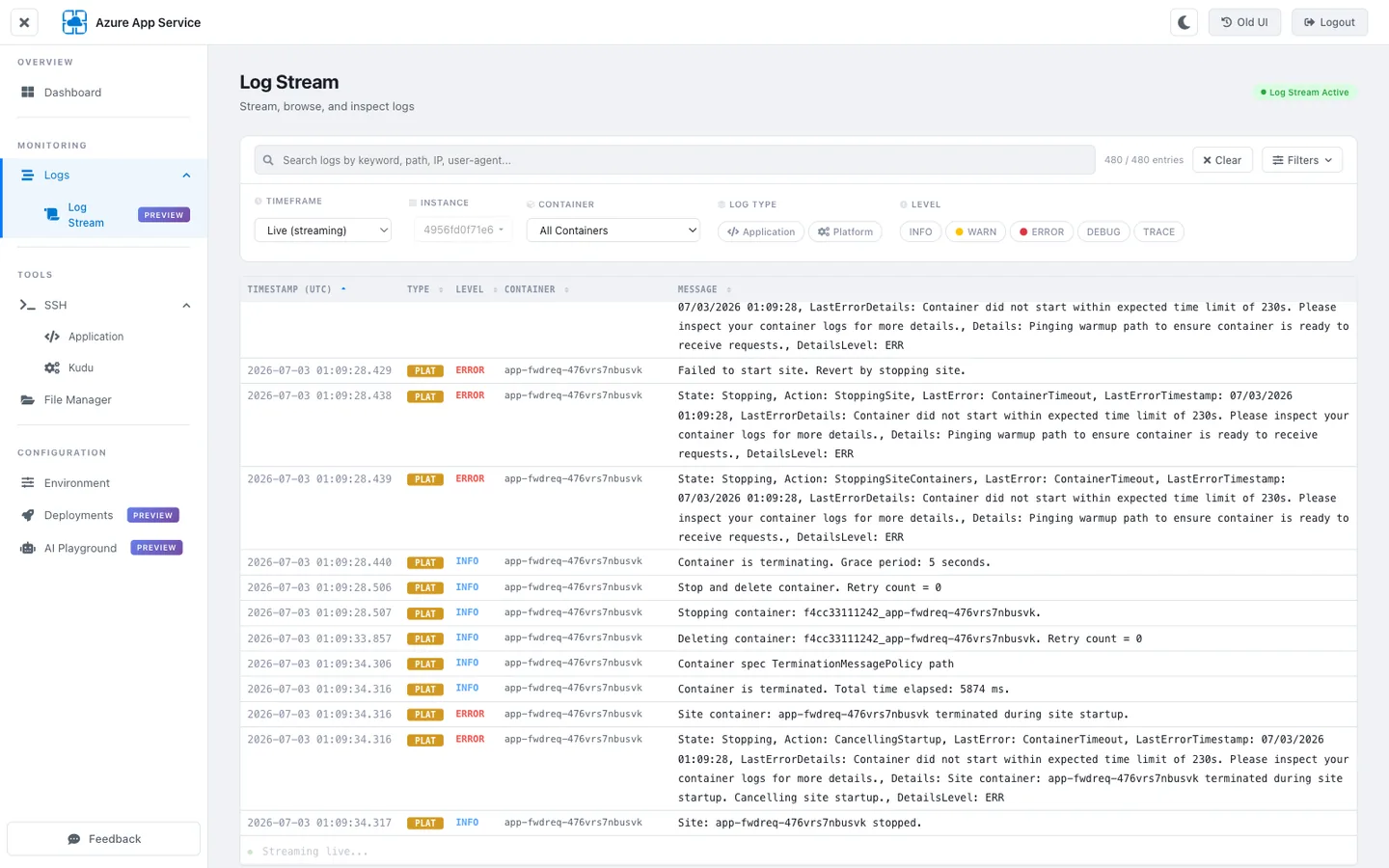

4.3.3 Live Log Stream during a fresh reproduction¶

To visually confirm the container never completes startup during the failing phase, a fresh reproduction against a newly-deployed instance produced this Kudu Log Stream evidence:

Purpose: Prove that the container never completes startup during the failing phase, so no worker process ever listens on any port. Complements the process-level view that Windows-only Kudu Process Explorer would show, since the equivalent Linux endpoint (/api/processes) is not supported on the Linux stack.

Look for:

• PLAT ERROR rows citing LastError: ContainerTimeout.
• Repeated Container did not start within expected time limit of 230s.
• State: Stopping, Action: StoppingSite / StoppingSiteContainers sequences.
• Site container ... terminated during site startup events.
• No Listening at: bind announcement from gunicorn anywhere in the stream.

Expected result: A continuous stream of ContainerTimeout and Stopping events with no worker bind lines. This confirms the container fails during startup, before or during gunicorn's bind attempt.

Next step: Cross-check programmatically with a Log Analytics KQL query (section 4.5.1) to confirm that AppServiceConsoleLogs contains zero bind-line events in the same window.

4.4 HTTP KQL analysis¶

Source: trigger/kql-http-20260404T060610Z.json

Dataset summary:

Interpretation:

• Long-duration 503 rows align with startup forwarding failures.
• Later 200 rows on /health and diag endpoints indicate eventual recovery.

Representative sequence from the same dataset:

4.5 Console KQL analysis (bind evidence)¶

Source: trigger/kql-console-20260404T060610Z.json

Rows: 47

Key lines:

Site's appCommandLine: gunicorn --bind=127.0.0.1:8000 --timeout=120 --workers=2 app:app
[2026-04-04 05:55:02 +0000] [1896] [INFO] Listening at: http://127.0.0.1:8000 (1896)

Interpretation:

• Confirms runtime listener used loopback during failing phase.
• This supports the exact hypothesized mechanism.

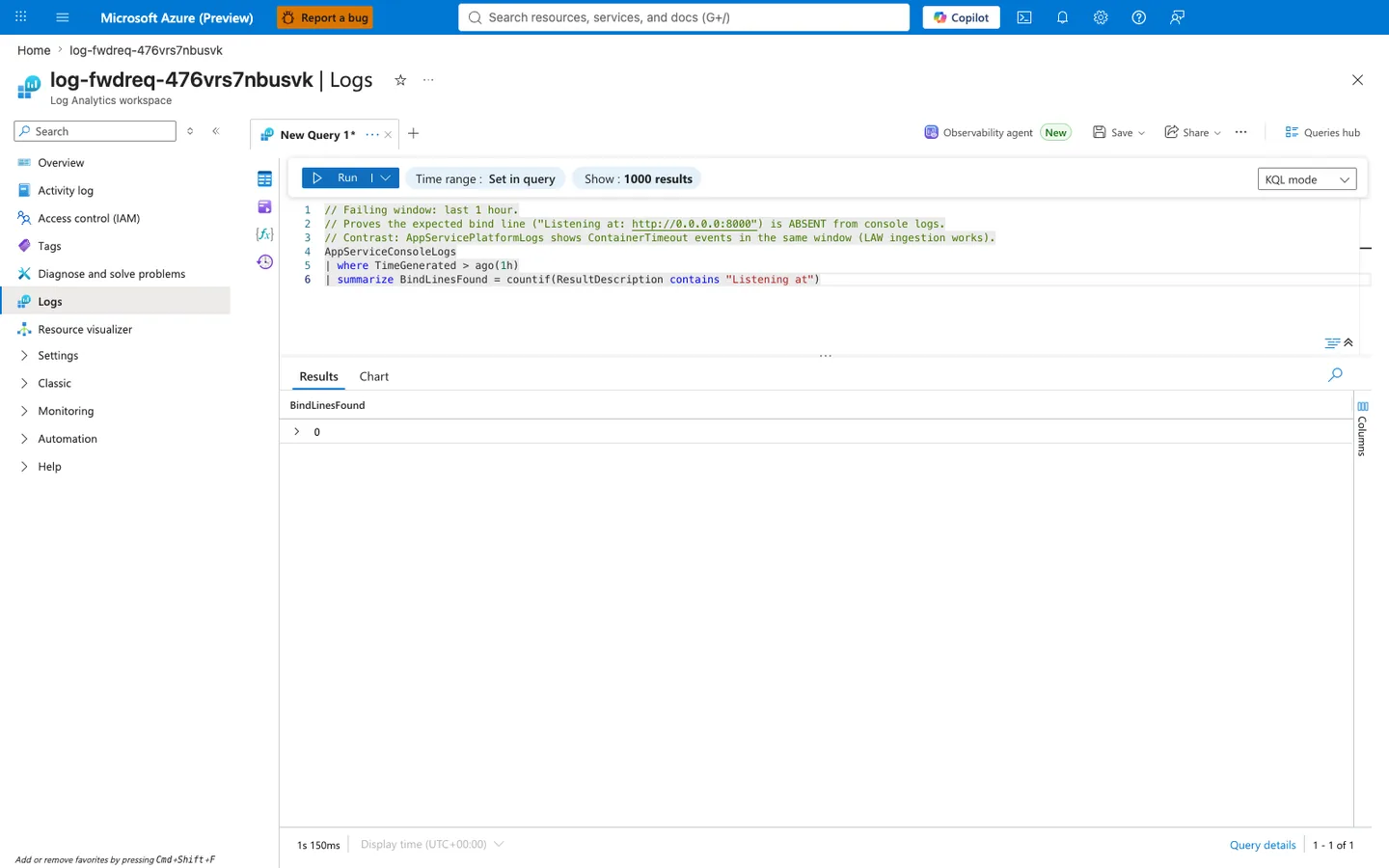

4.5.1 Live KQL confirmation from a fresh reproduction¶

To confirm the analysis programmatically against a freshly-deployed instance, the following Log Analytics query counted bind-line events in the failing 1-hour window:

Purpose: Prove programmatically that no Listening at: bind announcement was recorded in AppServiceConsoleLogs during the failing window in the fresh reproduction, and that this vacuous-zero result is consistent with the container never completing startup (as shown in section 4.3.3).

Look for:

• BindLinesFound = 0 scalar result.
• Query execution time (1s 150ms) indicating a successful query, not a timeout.
• Row counter 1 - 1 of 1 confirming a single scalar aggregate.
• Query text matches the stored analysis pattern (ResultDescription contains "Listening at").

Expected result: BindLinesFound = 0. The container terminated before gunicorn flushed any bind announcement to stdout, so no bind-line events were ingested into AppServiceConsoleLogs. This differs from the stored dataset (section 4.5, 47 rows including a loopback bind), which captured a run where gunicorn briefly bound to 127.0.0.1:8000 before the platform gave up on the warmup probe. Both failure modes share the same root cause (loopback binding hard-coded in appCommandLine).

Next step: Compare with AppServicePlatformLogs in the same window, which still contains ContainerTimeout events, to prove that the zero bind-line count is a real absence of stdout output, not a Log Analytics ingestion outage.

4.6 Platform KQL analysis (startup/probe timeout evidence)¶

Source: trigger/kql-platform-20260404T060610Z.json

Rows: 200

Signal counts (from this snapshot):

Representative platform messages:

Site startup probe failed after 231.0055547 seconds.
State: Starting, Action: WaitingForSiteWarmUpProbeSuccess, LastError: ContainerTimeout ...
Failed to start site. Revert by stopping site.

This satisfies proof criterion #3.

4.7 Postfix diagnostics (recovery and fixed bind)¶

4.7.1 Bind corrected to 0.0.0.0¶

Source: postfix/diag-bind-20260404T055117Z.json

Core fields:

Raw excerpt:

{"gunicorn_bind_from_cmdline":"0.0.0.0:8000","cmdline":{"argv":["...","gunicorn","--bind=0.0.0.0:8000","--timeout=120","--workers=2","app:app"]}}

4.7.2 Health recovered¶

Source: postfix/health-20260404T055117Z.json

{"status":"healthy"}

4.7.3 Process stats after recovery¶

Source: postfix/diag-stats-20260404T055117Z.json

{"endpoint_counters":{"health":1},"pid":1898,"process_start_time":"2026-04-04T05:51:00.340146+00:00","request_count":2,"uptime_seconds":17.466}

4.8 Experiment timeline (reconstructed)¶

timeline
    title Failed-to-forward-request lab timeline
    05:46:16 : Failure probes start returning 000
    05:47:07 : Failure probe series still all 000
    05:48:03 : Recovery probe capture begins (still 000 during churn)
    05:49:48 : HTTP logs show long 503 responses
    05:51:02 : Transitional 499 entries on /health
    05:51:05 : /health returns 200 in HTTP logs
    05:55:xx : Postfix diagnostics confirm 0.0.0.0:8000 bind

4.9 Data quality notes¶

4.10 Hypothesis verdict¶

Final verdict: Hypothesis supported by artifacts.

4.11 Root-cause statement¶

The dominant root cause in this lab run is startup command misbinding (127.0.0.1) that prevented successful proxy forwarding/warmup. Changing listener bind to 0.0.0.0:8000 restored endpoint reachability.

4.12 Recommended production guardrails¶

4.13 Suggested continuous validation checklist¶

Before each deployment to Linux App Service:

1. Validate startup command bind address is 0.0.0.0.
2. Validate listener port matches expected platform port (8000 in this lab).
3. Deploy and check /health externally.
4. Query platform logs for startup probe anomalies in first 10 minutes.
5. Record artifact snapshot for incident regression history.

Expected Evidence¶

This section defines what you SHOULD observe at each phase of the lab. Use it to validate your investigation is on track.

Before Trigger (Baseline)¶

During Incident¶

After Recovery¶

Evidence Timeline¶

graph TD
    A[Baseline Capture] --> B[Trigger Fault]
    B --> C[During: Collect Evidence]
    C --> D[After: Compare to Baseline]
    D --> E[Verdict: Confirmed/Falsified]

Evidence Chain: Why This Proves the Hypothesis¶

Clean Up¶

az group delete --name "$RG" --yes --no-wait

Related Playbook¶

• Failed to Forward Request

See Also¶

• Playbook: Failed to Forward Request
• Troubleshooting: First 10 Minutes

Sources¶

• Configure a custom container for Azure App Service
• Troubleshoot HTTP 502/503 errors in Azure App Service
• Enable diagnostic logging for apps in Azure App Service
• Azure App Service diagnostics overview
• App Service Linux FAQ and runtime behavior
