Scaling¶

Scaling in Azure App Service is the process of adjusting compute capacity to meet traffic demand while balancing reliability and cost. Effective scaling combines platform features (scale up/out, autoscale) with application architecture (statelessness, externalized state, dependency resilience).

Prerequisites¶

• App Service Plan with production-capable tier
• Azure Monitor access for metrics and autoscale rules
• Basic load profile data (expected baseline and peak)

Main Content¶

Core scaling dimensions¶

graph TD
    Traffic[Traffic Change] --> Choice{Scaling Strategy}
    Choice --> Up["Scale Up (Vertical)"]
    Choice --> Out["Scale Out (Horizontal)"]
    Up --> Bigger[Bigger Instance Size]
    Out --> More[More Instance Count]

Scale up (vertical)¶

Scale up changes the size/SKU of compute instances in your plan.

Use when:

• Workload needs more memory per instance
• CPU saturation happens before scale-out helps
• Required features exist only in higher tiers

Trade-offs:

• Usually triggers recycle/restart
• Has finite ceiling per instance size
• Can increase cost rapidly if used alone for growth

Portal view: Scale up blade¶

The Scale up blade is the vertical scaling control for changing the per-instance resource envelope. Tier cards such as Production V3 and the SKU table with vCPU, RAM, and storage values show that scale-up means selecting a larger worker shape like P0v3 or P1mv3, not adding more instances. The Upgrade action also hints at the operational consequence this page calls out: changing plan size is a control-plane mutation that can recycle workers while giving each instance more headroom.

Scale out (horizontal)¶

Scale out adds more instances to distribute load.

Use when:

• Traffic volume is growing
• You need higher availability and fault tolerance
• Application is stateless and can run on multiple instances

Trade-offs:

• Requires shared external state (sessions/cache/locks)
• Dependency services must handle increased parallelism
• Operational complexity increases with instance count

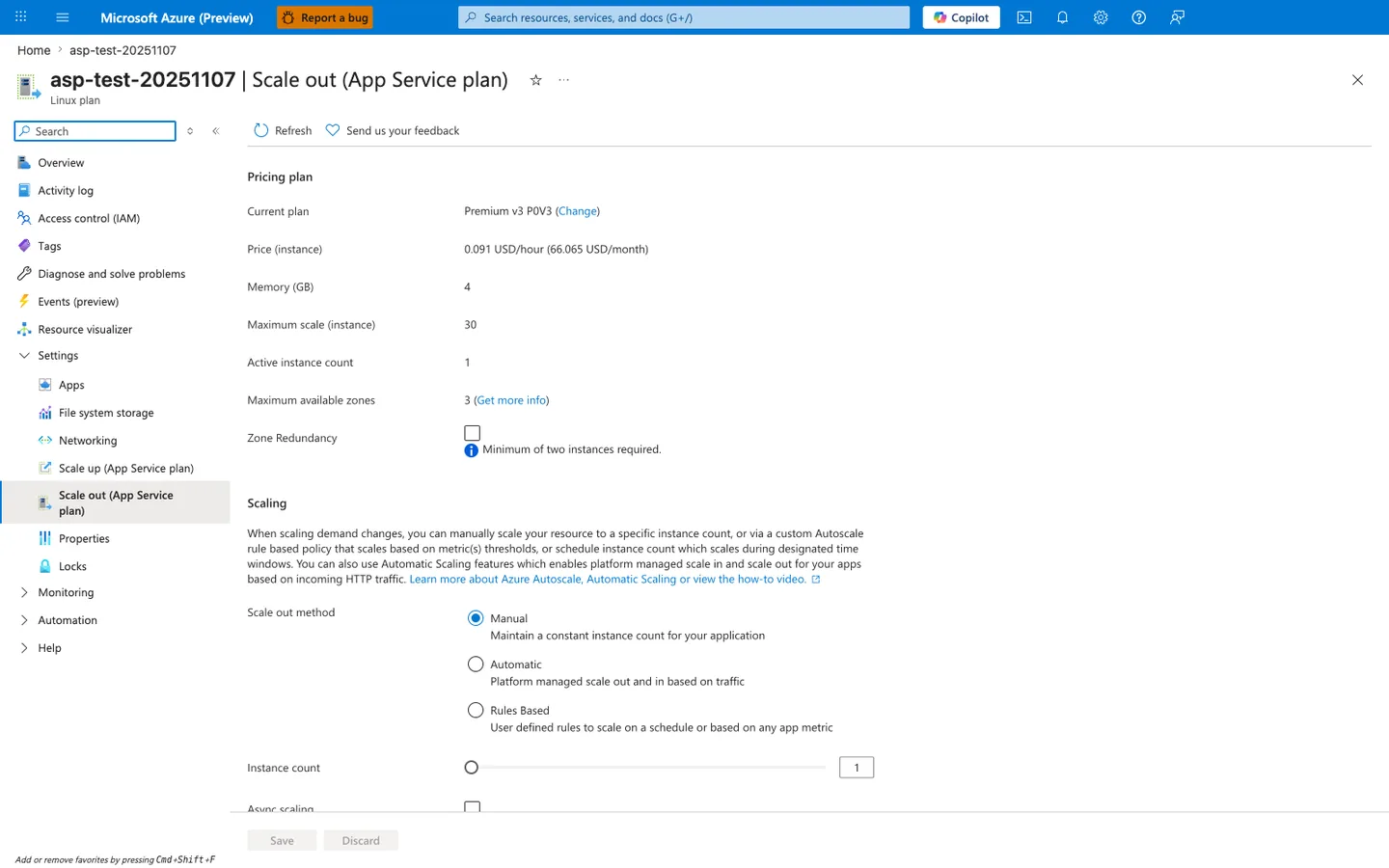

Portal view: Scale out blade¶

The Scale out blade is the horizontal scaling surface for changing how many workers serve the app. Manual, Automatic, and Rules Based modes separate fixed instance counts from autoscale-driven behavior, while the Instance count slider makes the current worker fan-out explicit for the selected Premium V3 plan. This is the UI expression of scale-out architecture: App Service can add parallel instances for capacity and resilience, but only within the limits allowed by the plan SKU and the application's stateless design.

Stateless design requirement¶

Horizontal scale works best when instances are interchangeable.

Stateless patterns:

• Session data in distributed cache
• Durable workflows in queues/storage/database
• Shared file/content access via managed storage services

Anti-patterns:

• In-memory session-only state
• Local file writes used as source-of-truth
• Single-instance background jobs without leader control

Autoscale fundamentals¶

Autoscale adjusts instance count based on metric rules and schedules.

Common rule signals:

• CPU percentage
• Memory percentage
• HTTP queue depth/request count
• Custom Azure Monitor metrics

flowchart TD
    Metric[Metric Breach] --> Rule[Autoscale Rule Evaluation]
    Rule --> Action[Scale Out or Scale In]
    Action --> Cooldown[Cooldown Window]
    Cooldown --> Reevaluate[Next Evaluation Cycle]

Designing good autoscale rules¶

Rule quality matters more than rule quantity.

Best practices:

• Use separate thresholds for scale-out and scale-in
• Add cooldown periods to avoid oscillation
• Set a non-zero minimum instance floor for production
• Set a maximum instance cap for cost control
• Monitor if rules trigger before user-visible saturation

Session affinity considerations¶

Session affinity can keep users on the same instance, but this can undermine even load distribution.

graph TD
    FE[Frontend] --> A[Instance A]
    FE --> B[Instance B]
    FE --> C[Instance C]
    Sticky[Affinity Cookie] -.biases routing.-> A

Prefer distributed state patterns over sticky routing when designing for scale and resilience.

Plan-level scaling behavior¶

Because apps in the same plan share compute:

• One noisy app can impact others
• Autoscale affects plan capacity used by all co-hosted apps
• Capacity planning should consider aggregate workload patterns

For critical workloads, dedicate plans to reduce blast radius.

Dependency-aware scaling¶

Scaling app instances increases outbound concurrency to dependencies.

Potential downstream bottlenecks:

• Database connection limits
• API rate limits
• Cache throughput caps
• Outbound port/SNAT constraints

Scale strategy should include dependency capacity tests, not only app-layer tests.

CLI examples for scaling operations¶

Manual scale out to 3 instances:

az appservice plan update \
    --resource-group "$RG" \
    --name "$PLAN_NAME" \
    --number-of-workers 3

Scale up SKU to Premium:

az appservice plan update \
    --resource-group "$RG" \
    --name "$PLAN_NAME" \
    --sku "P1v3"

Create autoscale profile:

az monitor autoscale create \
    --resource-group "$RG" \
    --resource "$PLAN_NAME" \
    --resource-type "Microsoft.Web/serverfarms" \
    --name "$AUTOSCALE_NAME" \
    --min-count 2 \
    --max-count 10 \
    --count 2

Add CPU-based scale-out rule:

az monitor autoscale rule create \
    --resource-group "$RG" \
    --autoscale-name "$AUTOSCALE_NAME" \
    --condition "Percentage CPU > 70 avg 10m" \
    --scale out 1

Add CPU-based scale-in rule:

az monitor autoscale rule create \
    --resource-group "$RG" \
    --autoscale-name "$AUTOSCALE_NAME" \
    --condition "Percentage CPU < 35 avg 20m" \
    --scale in 1

Example autoscale output snippet (PII masked):

{
  "enabled": true,
  "profiles": [
    {
      "capacity": {
        "default": "2",
        "maximum": "10",
        "minimum": "2"
      },
      "name": "default"
    }
  ],
  "targetResourceUri": "/subscriptions/<subscription-id>/resourceGroups/rg-<masked>/providers/Microsoft.Web/serverfarms/plan-<masked>"
}

Scaling playbooks¶

Traffic spike playbook¶

1. Verify autoscale trigger latency
2. Increase minimum instance floor temporarily
3. Confirm dependency saturation is not primary bottleneck
4. Roll back temporary floor after event

Memory pressure playbook¶

1. Identify memory growth pattern (steady vs burst)
2. Scale up if per-instance memory headroom is insufficient
3. Scale out if concurrency pressure dominates
4. Investigate leaks and object retention behavior

Cost optimization playbook¶

1. Use schedule-based profiles for predictable low-traffic windows
2. Tune scale-in aggressively but safely
3. Review maximum instance cap monthly

Advanced Topics¶

Warm instance strategy¶

Keep at least one extra warmed instance during critical periods to absorb sudden bursts while autoscale catches up.

Multi-region scaling patterns¶

Distribute traffic across regions for resiliency and lower client latency. Coordinate scale profiles with global routing health checks.

Autoscale oscillation avoidance¶

Use wider hysteresis between scale-out and scale-in thresholds. Oscillation increases recycle frequency and can worsen tail latency.

KPI baseline for scaling governance¶

• p95/p99 latency
• Error rate by status family
• CPU and memory utilization
• Queue depth
• Restart count per hour

Language-Specific Details¶

For language-specific implementation details, see: - Node.js Guide - Python Guide - Java Guide - .NET Guide
