Kudu on Windows¶

This page covers the Kudu surfaces that only exist on Windows App Service — Debug Console (CMD and PowerShell), Process Explorer with live IIS worker metrics, Site Extensions, and memory dump capture from the Process Explorer UI — followed by six diagnostic scenarios that use these surfaces end-to-end.

For the parts of Kudu that behave the same on both platforms (SCM URL, authentication, REST API, file system layout, security hardening), see Kudu Overview. For the Linux counterparts (WebSSH, KuduLite modern UI at /, and classic UI at /oldui), see Kudu on Linux.

Windows-Specific Kudu Surfaces¶

The Kudu UI shipped with Windows App Service is the full projectkudu/kudu implementation. It exposes several surfaces that do not exist on Linux App Service:

flowchart TD
    SCM["SCM site<br/>app-name.scm.azurewebsites.net"] --> ENV["Environment<br/>/Env"]
    SCM --> DBG["Debug Console<br/>/DebugConsole"]
    SCM --> PE["Process Explorer<br/>/ProcessExplorer"]
    SCM --> EXT["Site Extensions<br/>/SiteExtensions"]
    SCM --> API["REST API<br/>/api/*"]
    DBG --> CMD["CMD shell<br/>?shell=cmd (default)"]
    DBG --> PS["PowerShell shell<br/>?shell=powershell"]
    PE --> APP_W3WP["w3wp.exe unbadged<br/>user traffic"]
    PE --> SCM_W3WP["w3wp.exe scm badge<br/>Kudu itself"]
    PE --> DUMP["Download memory dump<br/>POST /api/processes/PID/dump"]
    API --> DEPLOY["/api/deployments<br/>rollback via PUT"]
    API --> WJ["/api/triggeredwebjobs<br/>WebJob history and logs"]
    API --> ZIP["/api/zipdeploy?isAsync=true<br/>async CI/CD deploys"]

    style SCM fill:#0078d4,color:#fff
    style APP_W3WP fill:#e8f4fd
    style SCM_W3WP fill:#fff4e6
    style DUMP fill:#ffe6e6

The rest of this page walks through each surface, then applies them to six diagnostic scenarios.

Kudu Web UI Tour (Environment Home)¶

When you open the SCM URL on a Windows App Service, you land on the Kudu Environment home page. The top navigation exposes the major diagnostic surfaces; the page body itself is a REST API inventory.

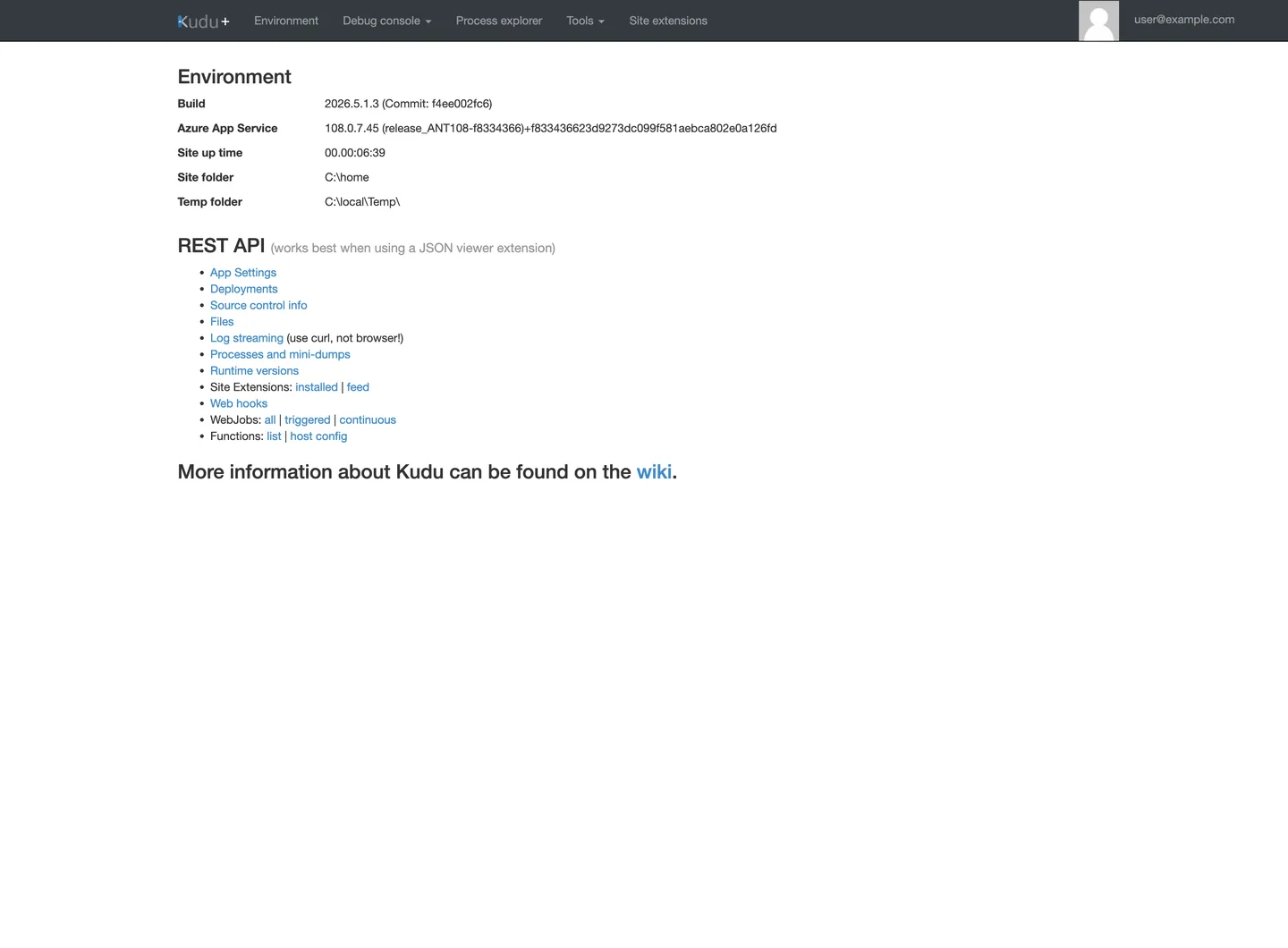

Portal view: Kudu Environment home with REST API inventory¶

[Observed] The Environment landing page exposes build/version info (Build 2026.5.1.3, Azure App Service 108.0.7.45), site uptime, and filesystem roots (Site folder C:\home, Temp folder C:\local\Temp\). Below that, a REST API section lists eleven entries: App Settings, Deployments, Source control info, Files, Log streaming, Processes and mini-dumps, Runtime versions, Site Extensions, Web hooks, WebJobs, Functions. The top nav separately exposes five tabs: Environment, Debug console, Process explorer, Tools, Site extensions.

[Inferred] The REST API list on this page is the discoverability entry for Kudu's JSON endpoints — the (works best when using a JSON viewer extension) caption confirms these endpoints return raw JSON rather than HTML. The REST list and the top nav are not a 1:1 mapping: some REST categories (Deployments, WebJobs, Functions) have no dedicated top-nav tab on this screen, so scripted callers typically hit the JSON endpoints directly rather than driving those categories through the UI.

Use the top-nav tabs (Environment, Debug console, Process explorer, Tools, Site extensions) for interactive triage. Switch to the REST URLs listed in the page body (/api/processes, /api/vfs, /api/deployments, /api/triggeredwebjobs) when you need to script the same checks for an incident runbook.

App Settings and Environment¶

The Environment page is one of the most commonly used Kudu tools. It reveals exactly what values your runtime sees — no guessing about whether an App Setting was applied.

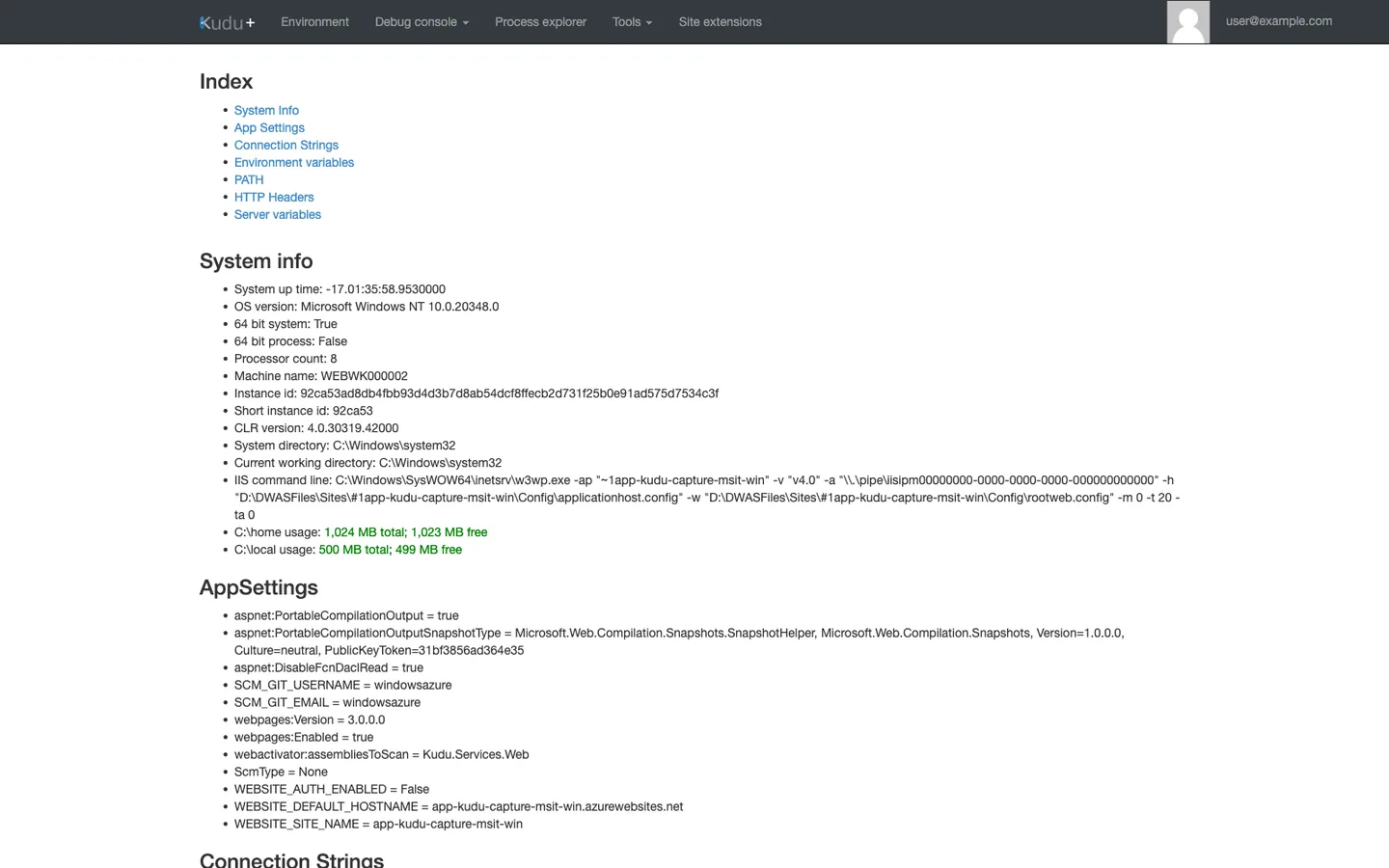

Portal view: Kudu Environment / App Settings page¶

[Observed] The Index navigates to seven anchored sections on the same scrollable page (System Info, App Settings, Connection Strings, Environment variables, PATH, HTTP Headers, Server variables). System info reports a clean disk picture (C:\home 1,023 MB free of 1,024 MB; C:\local 499 MB free of 500 MB, both in green), and AppSettings shows platform-injected keys like WEBSITE_DEFAULT_HOSTNAME and WEBSITE_SITE_NAME alongside ScmType=None.

[Inferred] The Index is purely a same-page jump table — there are no sub-pages. ScmType=None indicates no source-control-based deployment is configured (this is a freshly created app); a Git or GitHub Actions setup would change this value. The WEBSITE_* keys visible here are how every runtime sees its own identity, and /api/environment returns the same values as JSON for scripted callers.

The page groups the information into seven index-linked sections:

For scripted access, GET /api/environment returns the same data as JSON. That is the endpoint runbooks should call rather than screen-scraping the HTML page.

Debug Console¶

Windows Kudu exposes both CMD and PowerShell as browser-based shells. Both share the same split-pane UI — a file tree rooted at /home on top, a shell at the bottom.

CMD Console¶

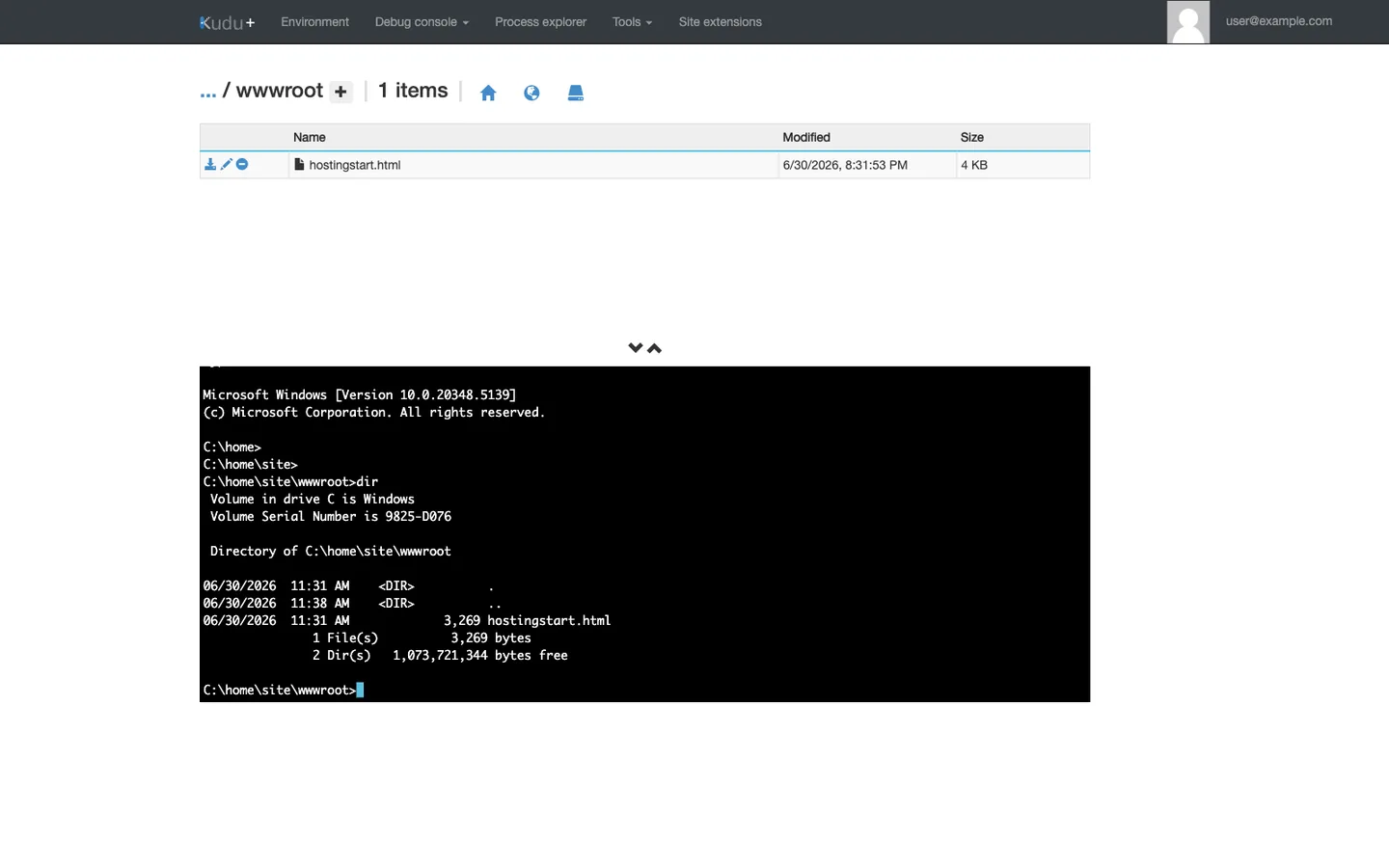

Portal view: Kudu Debug Console (CMD) with site/wwwroot listing¶

[Observed] The Debug Console is a split-pane UI — a file tree rooted at /home on top, a CMD shell at C:\home\site\wwwroot> on the bottom. Running dir from the shell shows the contents of C:\home\site\wwwroot\.

[Inferred] The file tree and the shell are wired to the same filesystem view — clicking a folder in the tree changes the shell's working directory and vice versa. That two-way binding is what makes Kudu Debug Console faster than separate browser-to-shell tools for one-off file checks.

Use the CMD console for quick file operations and legacy tools that expect cmd.exe syntax:

:: List deployed files
dir C:\home\site\wwwroot

:: Dump web.config (verify the deployed one, not the local repo copy)
type C:\home\site\wwwroot\web.config

:: Show tail of the newest log
for /f "delims=" %f in ('dir /b /a-d /o-d C:\home\LogFiles\*.log') do type "C:\home\LogFiles\%f" & goto :done
:done

PowerShell Console¶

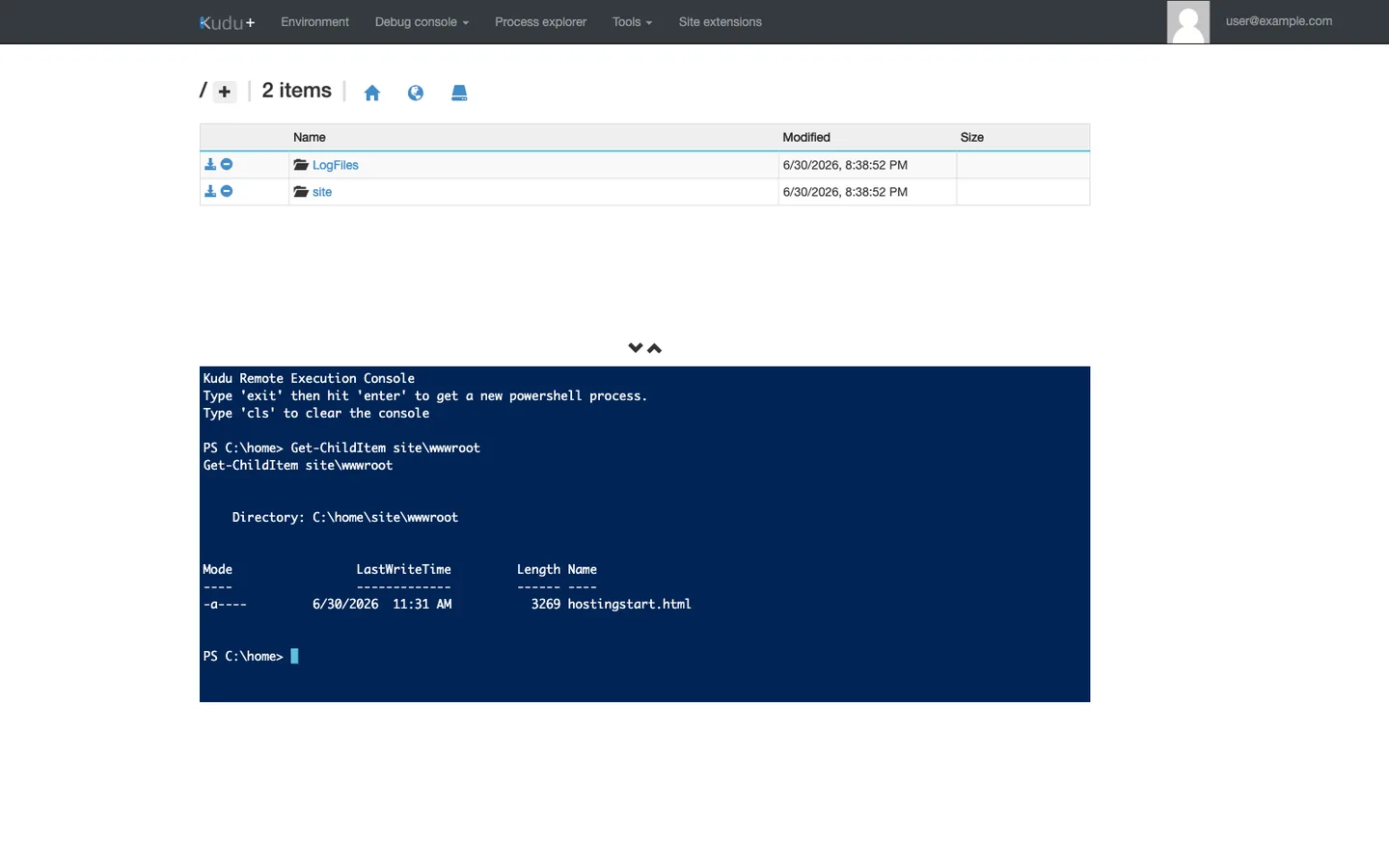

Portal view: Kudu Debug Console (PowerShell) variant¶

[Observed] The split-pane layout is identical to the CMD variant, but the bottom shell renders PowerShell's columnar object output (Mode / LastWriteTime / Length / Name) instead of CMD's flat text.

[Inferred] The URL path differs from the CMD variant — it is /DebugConsole/?shell=powershell (NOT /DebugConsole/PowerShell, which returns 404). Switching shells is therefore a query-string flip, meaning the front-end is the same UI bound to a different backend shell process.

PowerShell mode is preferable when you need richer scripting — object pipelines, Select-Object, structured filtering:

# Enumerate workers with resource usage
Get-Process | Where-Object { $_.ProcessName -eq 'w3wp' } |
  Select-Object Id, WorkingSet64, PrivateMemorySize64, Handles, Threads

# Find the freshest log file
Get-ChildItem -Path C:\home\LogFiles -Recurse -File |
  Sort-Object LastWriteTime -Descending |
  Select-Object -First 5 FullName, LastWriteTime, Length

# Dump the resolved web.config
Get-Content -Path C:\home\site\wwwroot\web.config

Process Explorer¶

Process Explorer is the only Kudu surface that exposes live per-process state: CPU time, working set, private memory, thread count, and handle count.

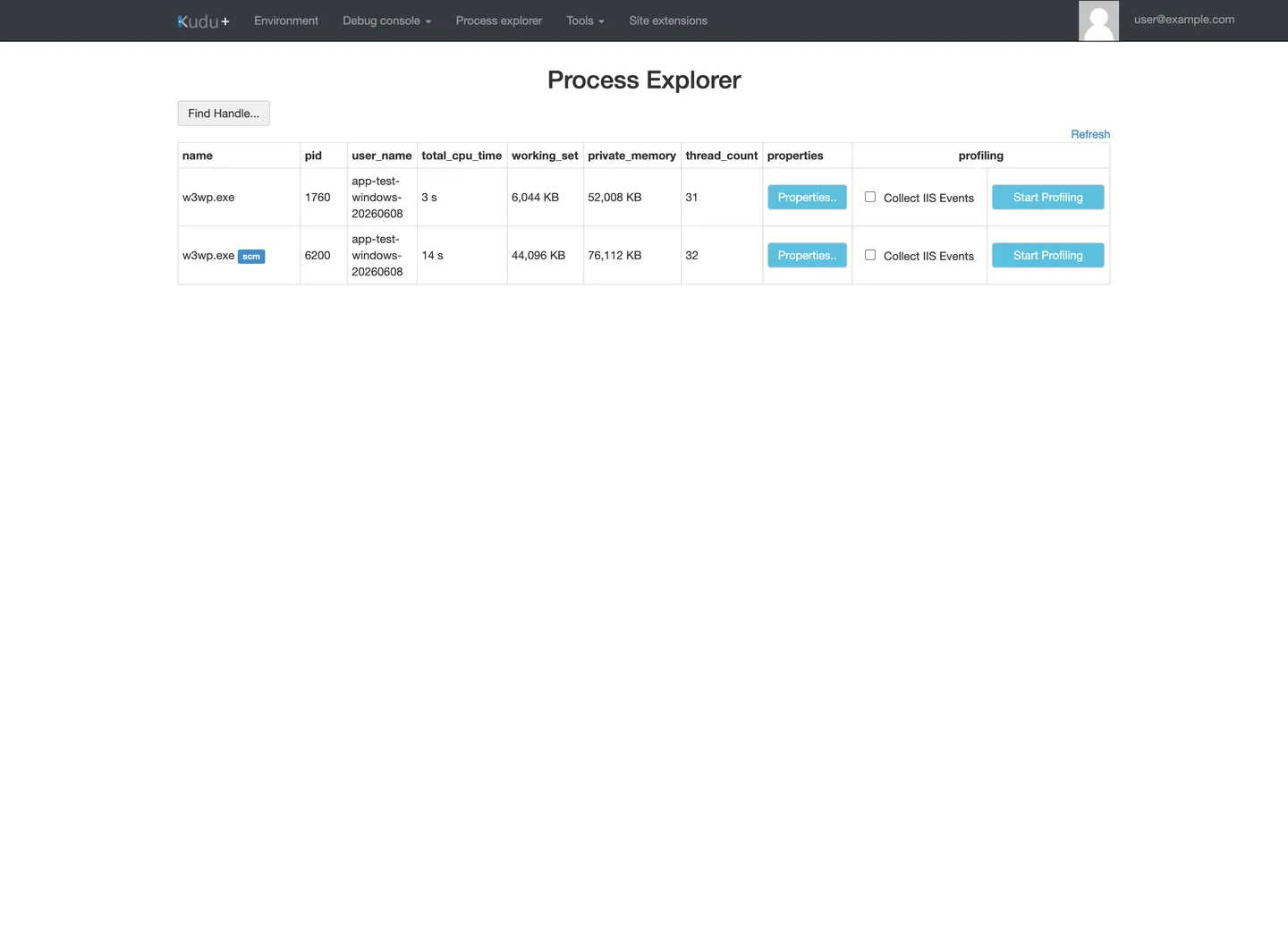

Portal view: Kudu Process Explorer with w3wp.exe rows¶

[Observed] The table lists two w3wp.exe rows on this idle app — one unbadged (pid 1760, private memory 52,008 KB, 31 threads) and one carrying an scm badge (pid 6200, private memory 76,112 KB, 32 threads). Each row exposes Properties.., a Collect IIS Events checkbox, and a Start Profiling button.

[Inferred] The scm-badged row is the Kudu worker itself (serving the page you are looking at); the unbadged row is the user-traffic worker. Kudu therefore runs in a separate IIS app pool from the user site, which is why disabling the user site does not disable Kudu, and why memory pressure on one worker does not necessarily affect the other. Start Profiling triggers CPU sampling on the selected process — pair it with Collect IIS Events when investigating request-scoped CPU spikes.

The two w3wp.exe rows illustrate the dual-process model on every Windows App Service:

For memory-leak and thread-exhaustion suspicions, sort by private_memory and refresh every 30-60 seconds to spot growth. The per-row action buttons (Properties.., Collect IIS Events, Start Profiling) drive the diagnostic scenarios later on this page.

Site Extensions¶

Site Extensions add gallery-installed agents (Application Insights Profiler, Crash Diagnoser, .NET Snapshot Debugger, third-party APMs). They are Windows-only.

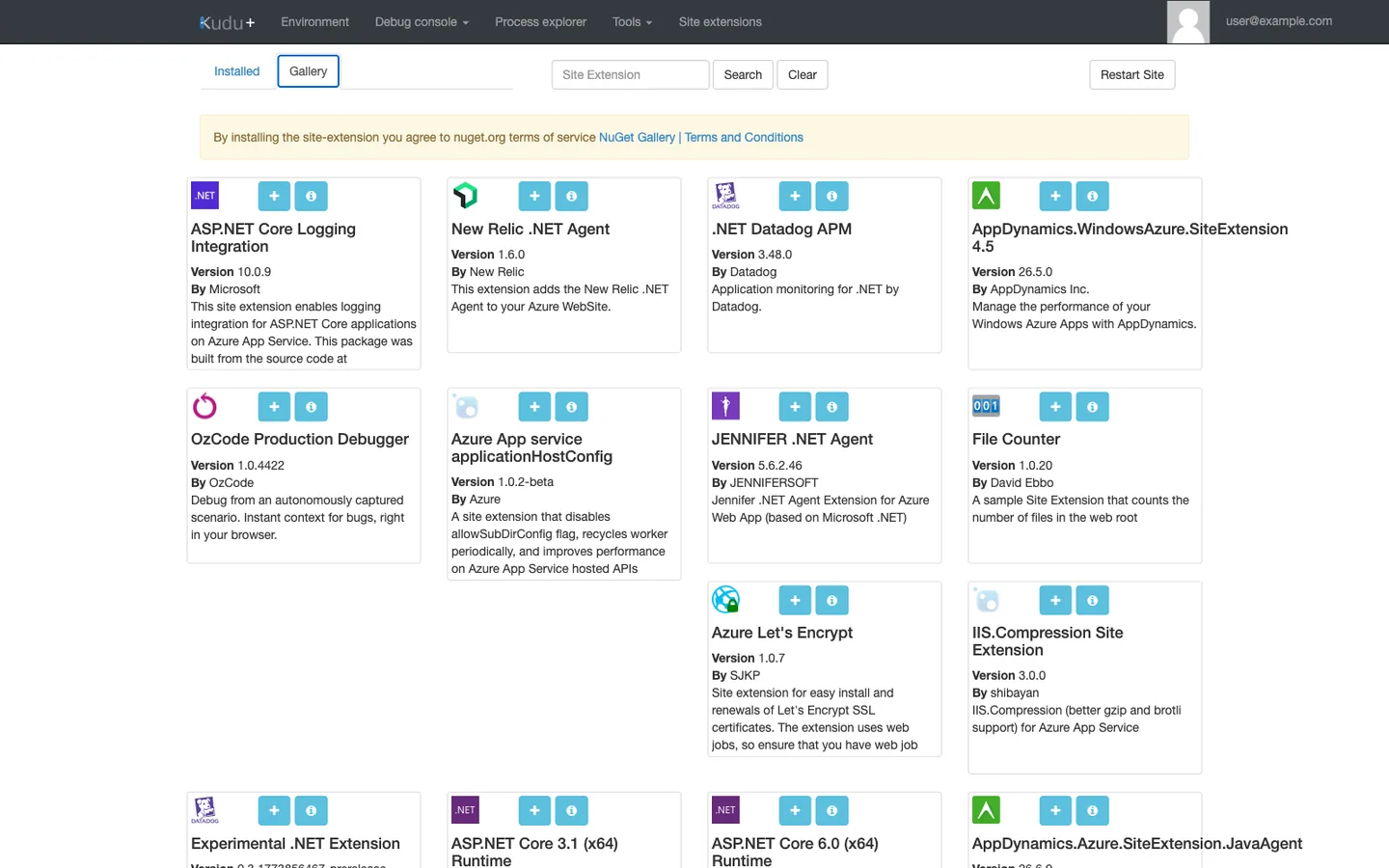

Portal view: Kudu Site Extensions gallery¶

[Observed] The Gallery tab is active (vs the Installed tab). The visible cards span observability agents (New Relic, Datadog, AppDynamics, JENNIFER), debugging tools (OzCode), and platform utilities (Azure Let's Encrypt, IIS.Compression).

[Inferred] The gallery is a curated NuGet feed surface; every card is one click away from installation into the same SCM sandbox the rest of Kudu runs in. Most production-grade extensions here are observability sidecars — choose them only after Application Insights is shown to be insufficient, because each adds startup cost and another moving part to the worker process.

Extensions are installed into %HOME%\SiteExtensions\<extension-id>\ and persist across worker recycles (they live under /home, which is the shared mounted storage). To install non-interactively, use the REST API:

# Install Application Insights Profiler site extension
curl --silent --request PUT \
  --header "Authorization: Bearer ${ACCESS_TOKEN}" \
  --header "Content-Type: application/json" \
  --data '{"id": "Microsoft.ApplicationInsights.Profiler.AspNetCore"}' \
  "https://${APP_NAME}.scm.azurewebsites.net/api/siteextensions/Microsoft.ApplicationInsights.Profiler.AspNetCore"

Common production extensions:

Reach for a Site Extension only after Application Insights is shown to be insufficient — each extension adds startup cost and another moving part to the worker process.

Capture a Memory Dump from Process Explorer¶

A memory dump captures a full process image (heap, stacks, loaded modules, thread state) for offline analysis in WinDbg, Visual Studio, or dotnet-dump analyze. This is the primary evidence for hang and memory-leak investigations where live logs cannot explain the state.

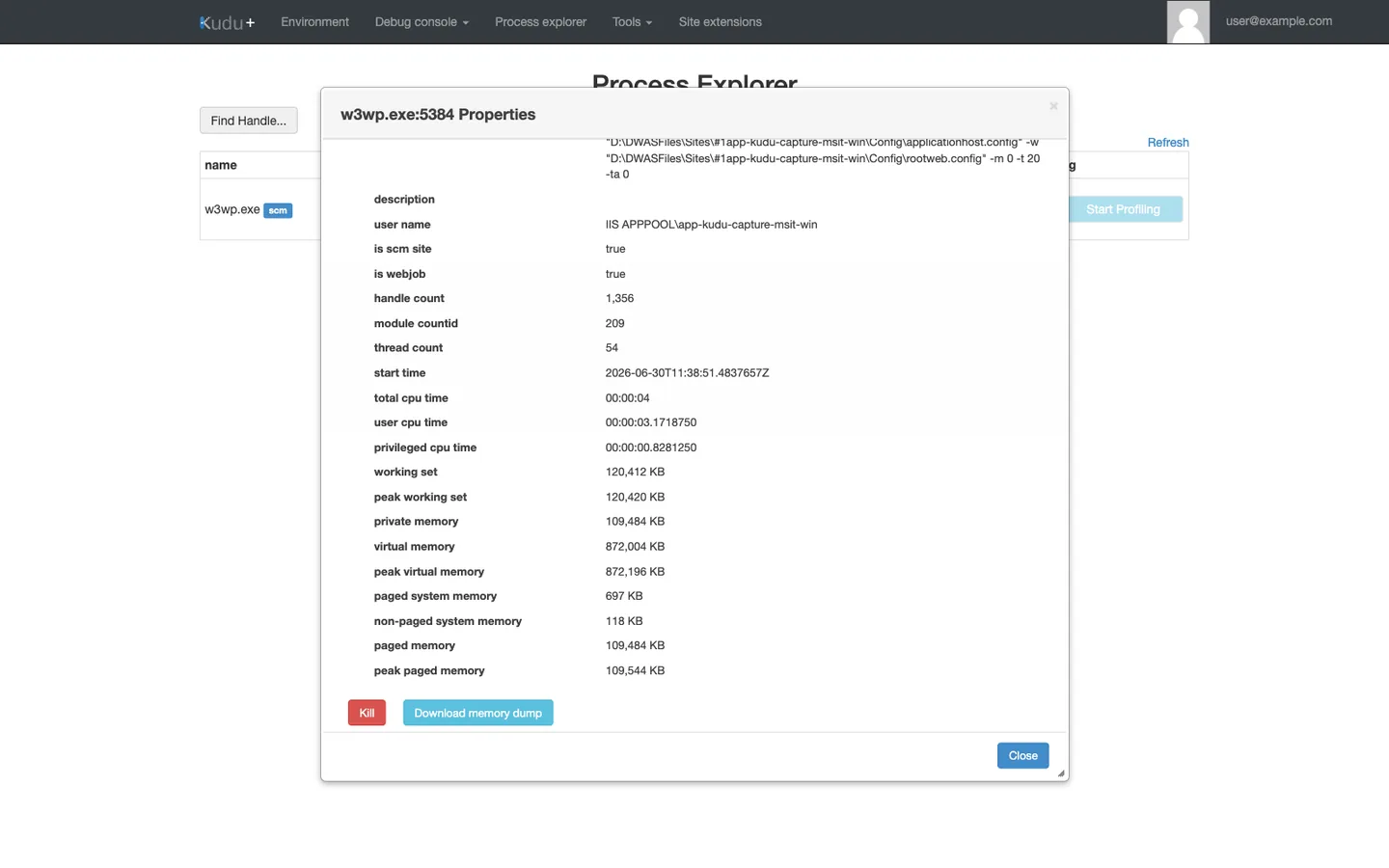

Portal view: Kudu Process page with diagnostic dump capture¶

[Observed] The General tab shows process metadata (id, working binary, command line, identity, handle/thread counts) and exposes two action buttons: Kill (red) and Download memory dump (blue). The is scm site : true field is set on this process row.

[Inferred] Kill (immediate process termination) and Download memory dump (expensive full-process capture that briefly pauses the worker) are both consequential — Download memory dump is the UI surface for POST /api/processes/{pid}/dump, which is what incident runbooks should call to avoid the wrong PID being clicked under pressure. The is scm site : true field marks this row as the SCM worker (the worker serving Kudu itself), not the user-traffic worker. The IIS pipe GUID is masked (all-zero) in this capture but is real on a live system — it is a per-worker named pipe identifier, not a security secret.

The four remaining tabs of the Properties dialog expose additional detail without requiring a full dump:

For non-interactive capture (incident automation, scheduled diagnostics), use the REST endpoint documented in Kudu Overview — Diagnostic Dumps.

Diagnostic Scenarios¶

The remaining sections apply the Windows Kudu surfaces to six recurring incident patterns. Each scenario names the symptom, the Kudu surface to use, the concrete steps, and what the resulting evidence looks like.

Scenario 1: w3wp Production Hang — Capture and Preserve Evidence¶

Symptom. The main site is returning 502.5 or timing out on /healthz, but the worker process is still running (Portal Overview shows the app as Running, not Stopped). Restart-and-hope loses the evidence needed to prevent recurrence.

Diagnostic path. Process Explorer → identify the hung user-traffic worker → capture a dump → collect a matching w3wp counter snapshot → THEN restart.

Steps.

1. Confirm the site is hung, not just slow. From your laptop:

   curl --max-time 30 --write-out "\nHTTP %{http_code} in %{time_total}s\n" \
     "https://${APP_NAME}.azurewebsites.net/healthz"


   Parameter	Purpose
   --max-time 30	Fail fast — a healthy /healthz responds in <500 ms. If curl times out at 30 s, the worker is not just slow, it is hung.
   --write-out "\nHTTP %{http_code} in %{time_total}s\n"	Prints the HTTP status and wall-clock latency in a machine-parseable line — useful for pasting into incident tickets.

2. Open Process Explorer. Navigate to https://${APP_NAME}.scm.azurewebsites.net/ProcessExplorer/. Identify the unbadged w3wp.exe row (the user-traffic worker — not the scm-badged row). Note its PID.

3. Snapshot the counters BEFORE dumping. Click Properties.. on the unbadged row and screenshot the General tab. This preserves handle count, thread count, private_memory, and total_cpu_time at the moment of hang — values that will be lost after restart.

4. Capture a memory dump. Click Download memory dump (the blue button on the General tab). The button is a UI wrapper for POST /api/processes/{pid}/dump; the browser streams the .dmp file (typically 200 MB - 2 GB depending on WorkingSet).

   Dump capture pauses the worker

   The Download memory dump action briefly freezes the target process (typically 2-30 seconds depending on memory size) while the runtime writes the dump. Do not click this button on a healthy production worker. If you must capture from a healthy instance, scale out first so at least one other worker keeps serving traffic.

5. Restart the app. Portal Overview → Restart. This kills all workers and recycles them; the dump you just captured is the only evidence left of the hang state.

6. Analyze offline with dotnet-dump analyze or WinDbg.

   # Install dotnet-dump globally (one-time)
   dotnet tool install --global dotnet-dump

   # Load the dump
   dotnet-dump analyze "dump-${APP_NAME}-20260701T143000.dmp"

   # Inside the SOS prompt
   > clrstack --all       # Every managed thread's call stack
   > sync                 # Managed locks and monitors — shows deadlocks
   > dumpheap --stat      # Object counts by type — spot leaks


What the evidence proves. A dump captured at the hang moment lets you distinguish deadlock (all threads blocked in Monitor.Wait), thread pool starvation (all worker threads busy in the same downstream call), and native-code deadlock (managed threads blocked in WaitForSingleObject). Restart-without-dump leaves you unable to distinguish these.

Scenario 2: Memory Dump Analysis — Track Down a Growing Working Set¶

Symptom. Application Insights shows a slow upward drift in private_memory on one instance over several hours, eventually triggering the WEBSITE_MEMORY_LIMIT_MB recycle. Restart resets the counter but the drift resumes.

Diagnostic path. Take TWO dumps at different times, compare heap statistics to identify the growing object type.

Steps.

1. First dump — captured when memory is still moderate. Wait until Process Explorer → w3wp.exe (unbadged) → private_memory shows ~50% of the recycle threshold. Capture and label the dump dump-t1-${TIMESTAMP}.dmp.

2. Second dump — captured when memory is high but before recycle. Wait until private_memory reaches ~80% of the threshold. Capture and label dump-t2-${TIMESTAMP}.dmp.

3. Compare heap stats between the two dumps.

   # Dump t1 heap summary
   dotnet-dump analyze "dump-t1-20260701T100000.dmp" --command "dumpheap --stat" > heap-t1.txt

   # Dump t2 heap summary
   dotnet-dump analyze "dump-t2-20260701T140000.dmp" --command "dumpheap --stat" > heap-t2.txt

   # Compare
   diff heap-t1.txt heap-t2.txt | head -30


   The dumpheap --stat output has three columns: MT (method table), Count, TotalSize. Types whose Count and TotalSize grew significantly between t1 and t2 are your leak suspects.

4. Drill into the suspect type.

   dotnet-dump analyze "dump-t2-20260701T140000.dmp"
   > dumpheap --type Contoso.OrderCache+CacheEntry
   # Prints every instance address
   > gcroot <address-from-previous-line>
   # Prints the reference chain keeping this instance alive


5. Common Windows-specific leak patterns.

   Pattern	dumpheap --stat signature	Root cause
   Unbounded in-memory cache	Growing Dictionary<TKey, TValue> entries	Missing eviction / TTL
   HttpClient socket exhaustion	Growing SocketAsyncEventArgs	new HttpClient() per request instead of IHttpClientFactory
   Event handler leak	Growing EventHandler-derived types with roots via +=	Missing -= on dispose
   Static list accumulation	Growing List<T> rooted by a static field	Log buffer never flushed / drained

What the evidence proves. Two dumps taken at different memory levels, with a diffed dumpheap --stat, isolate exactly which type is growing. This is far more actionable than a single high-memory dump (which shows what is in memory, but not what is growing).

Scenario 3: CPU Spike — Collect IIS Events and Profile the Worker¶

Symptom. Portal metrics show CPU on the App Service Plan pegged at 90-100% for a 5-15 minute window, then subsides. It repeats intermittently. You need to catch it in the act.

Diagnostic path. Process Explorer → Collect IIS Events + Start Profiling on the unbadged w3wp.exe → wait for the spike → download the trace → analyze in PerfView.

Steps.

1. Enable IIS Events collection. In Process Explorer, tick the Collect IIS Events checkbox on the unbadged w3wp.exe row. This starts an ETW session that captures every IIS_RequestNotification event, including request URL, response code, and duration.

2. Start CPU profiling. Click Start Profiling on the same row. This begins CPU sampling (1000 Hz by default) — the trace grows at ~50 MB per minute of active profiling, so do not leave it running longer than needed.

3. Wait for the spike or reproduce the load. If the spike is triggered by a known cron / user action, trigger it now. Otherwise, wait for the next observed spike (check the Metrics blade in a second Portal tab).

4. Stop profiling immediately after the spike. Click Stop Profiling — the button becomes an Download profile link. Download the .diagsession file.

5. Analyze in PerfView (Windows-only tool).

   # Open the trace
   & 'C:\tools\PerfView.exe' 'w3wp-profile-20260701T143000.diagsession'

   # Inside PerfView:
   # - "CPU Stacks" view → sort by "Inc %" (inclusive CPU percentage)
   # - Right-click hottest frame → "Include Item" to filter down
   # - Look at "By Name" tab to identify the top managed methods burning CPU


6. Correlate profile stacks to IIS request events. In the same trace, open the IIS_Trace/IIS_Request Handlers view. Filter by the time range of the spike. This gives you the URL → method-hot-path pairing that identifies which endpoint drove the CPU burn.

What the evidence proves. A CPU trace shows what code burned CPU; IIS events show which requests were in flight at the same time. Together they answer: "at 14:32:15 the app was pegged because 300 concurrent requests to /api/reports/generate were spending 78% of their CPU time in System.Text.RegularExpressions.Match." That level of specificity is not derivable from metrics alone.

Scenario 4: Roll Back to a Previous Deployment via /api/deployments¶

Symptom. A deployment succeeded (green in Deployment Center), but the app now returns 500 errors on paths that worked yesterday. You need to roll back now while investigating.

Diagnostic path. GET /api/deployments → identify the last-known-good deployment ID → PUT /api/deployments/{id} to reactivate it. On Windows, this leverages Kudu's built-in ability to swap the active deployment atomically at the filesystem level.

Steps.

1. List recent deployments and pick the previous active one.

   ACCESS_TOKEN=$(az account get-access-token --resource https://management.azure.com/ --query accessToken --output tsv)

   curl --silent --header "Authorization: Bearer ${ACCESS_TOKEN}" \
     "https://${APP_NAME}.scm.azurewebsites.net/api/deployments" |
     jq '.[] | {id, message, author, status, active, received_time, end_time}'


   Parameter	Purpose
   az account get-access-token --resource https://management.azure.com/	Obtains a Microsoft Entra bearer token for the ARM audience, which Kudu accepts after basic auth is disabled.
   --header "Authorization: Bearer ${ACCESS_TOKEN}"	Presents the token on the request.
   jq '.[] | {...}'	Reduces each deployment object to the fields that matter for rollback decisions.

   Look for the deployment where active: true (the current broken one) and the one immediately before it (the last-known-good).

2. Read the deployment log for the current active deployment to confirm the failure signature.

   BAD_ID=<current-active-id-from-step-1>
   curl --silent --header "Authorization: Bearer ${ACCESS_TOKEN}" \
     "https://${APP_NAME}.scm.azurewebsites.net/api/deployments/${BAD_ID}/log" |
     jq '.[] | select(.type != "0") | {message, log_time}'


   Filtering select(.type != "0") shows only warning/error entries (type: "1" warning, type: "2" error), suppressing routine info entries.

3. Reactivate the last-known-good deployment.

   GOOD_ID=<last-known-good-id-from-step-1>
   curl --silent --request PUT \
     --header "Authorization: Bearer ${ACCESS_TOKEN}" \
     --header "Content-Type: application/json" \
     --data '{}' \
     "https://${APP_NAME}.scm.azurewebsites.net/api/deployments/${GOOD_ID}"


   Parameter	Purpose
   --request PUT	Kudu treats PUT on /api/deployments/{id} as "make this deployment active" — the artifact is already stored under /home/site/deployments/${GOOD_ID}/, so this is a filesystem symlink flip, not a re-deploy.
   --data '{}'	Kudu requires a JSON body even though the operation is idempotent. Empty object is accepted.

4. Verify the rollback took effect.

   # The 'active' field should now be true on GOOD_ID
   curl --silent --header "Authorization: Bearer ${ACCESS_TOKEN}" \
     "https://${APP_NAME}.scm.azurewebsites.net/api/deployments" |
     jq '.[] | select(.active == true) | {id, message}'


   Then hit the previously failing endpoint from your laptop and confirm the 500 is gone.

What the evidence proves. The active: true flag in the deployments API is exactly what the platform uses to route requests at /home/site/wwwroot. Flipping this flag is functionally equivalent to a slot swap in the deployment plane but happens in <2 seconds without requiring a Standard tier or higher.

Scenario 5: Debug a WebJob Failure¶

Symptom. A triggered WebJob shows Failed status in the WebJobs blade, but the failure reason is not obvious from the Portal UI.

Diagnostic path. /api/triggeredwebjobs/{jobName}/history to list runs → /api/triggeredwebjobs/{jobName}/history/{runId}/log for the specific run's stdout/stderr.

Steps.

1. List the recent runs of the failing WebJob.

   JOB_NAME=nightly-report
   curl --silent --header "Authorization: Bearer ${ACCESS_TOKEN}" \
     "https://${APP_NAME}.scm.azurewebsites.net/api/triggeredwebjobs/${JOB_NAME}/history" |
     jq '.runs[] | {id, status, start_time, end_time, duration, trigger}'


   Parameter	Purpose
   /api/triggeredwebjobs/{name}/history	Returns the last N runs (default 50) with status, timing, and per-run log URL.
   .runs[]	Kudu returns { runs: [...] } — dereference to iterate.

   Identify the failing run's id (typically a timestamp like 202607010200000).

2. Pull the full log for that specific run.

   RUN_ID=202607010200000
   curl --silent --header "Authorization: Bearer ${ACCESS_TOKEN}" \
     "https://${APP_NAME}.scm.azurewebsites.net/api/triggeredwebjobs/${JOB_NAME}/history/${RUN_ID}/log"


   This returns the raw stdout + stderr the WebJob wrote during that run. Unlike Application Insights, this captures unhandled exceptions that crashed the process before they could be logged programmatically.

3. For continuous WebJobs, use the /api/continuouswebjobs/{name} endpoint.

   curl --silent --header "Authorization: Bearer ${ACCESS_TOKEN}" \
     "https://${APP_NAME}.scm.azurewebsites.net/api/continuouswebjobs/${JOB_NAME}"

   # Continuous jobs also expose their most recent log
   curl --silent --header "Authorization: Bearer ${ACCESS_TOKEN}" \
     "https://${APP_NAME}.scm.azurewebsites.net/api/continuouswebjobs/${JOB_NAME}/log"


4. Common WebJob failure signatures.

   Log signature	Root cause	Fix
   System.IO.FileNotFoundException: Could not load file or assembly ...	Missing runtime dependency	Ensure the WebJob's bin/ folder was included in the deploy artifact
   Exit code -1073741819 (0xC0000005 access violation)	Native crash	Check LogFiles/eventlog.xml for the CLR crash record
   WebJob timed out. Cancelling.	Job exceeded WebJob timeout	Split into smaller jobs or migrate to Functions with a durable orchestration
   Access denied to path 'D:\home\site\wwwroot\...'	Writing to wwwroot from a Run-From-Package deployment	Write to D:\home\data\ (writable) instead; see Run From Package

What the evidence proves. The Kudu WebJobs API returns the raw process output that ran, unfiltered by the runtime's exception handler. That is often the ONLY way to see a startup failure that occurred before your application logging was initialized.

Scenario 6: Track ZipDeploy Async Status¶

Symptom. A large ZipDeploy artifact (>200 MB) exceeds the synchronous deploy timeout. az webapp deploy returns a 202 with a status URL, and you need to programmatically watch it to completion for a CI pipeline gate.

Diagnostic path. Use POST /api/zipdeploy?isAsync=true explicitly, then poll GET /api/deployments/{id} until status transitions from 3 (pending) to 4 (succeeded) or 5 (failed).

Steps.

1. Trigger the async deploy.

   ARTIFACT=./release.zip
   ACCESS_TOKEN=$(az account get-access-token --resource https://management.azure.com/ --query accessToken --output tsv)

   RESPONSE=$(curl --silent --show-error --write-out "\n%{http_code}\n" \
     --request POST \
     --header "Authorization: Bearer ${ACCESS_TOKEN}" \
     --header "Content-Type: application/zip" \
     --data-binary "@${ARTIFACT}" \
     "https://${APP_NAME}.scm.azurewebsites.net/api/zipdeploy?isAsync=true")

   HTTP_CODE=$(echo "$RESPONSE" | tail -n1)
   LOCATION_HEADER=$(curl --silent --head --header "Authorization: Bearer ${ACCESS_TOKEN}" \
     --request POST --header "Content-Type: application/zip" --data-binary "@${ARTIFACT}" \
     "https://${APP_NAME}.scm.azurewebsites.net/api/zipdeploy?isAsync=true" | grep -i '^location:')
   echo "$LOCATION_HEADER"


   Parameter	Purpose
   --request POST	ZipDeploy is a POST that streams the archive body to Kudu.
   --header "Content-Type: application/zip"	Kudu uses this to decide the deploy handler (zip vs. gzipped tar vs. war).
   --data-binary "@${ARTIFACT}"	@ prefix instructs curl to read from a file; --data-binary preserves binary content without newline translation.
   ?isAsync=true	Kudu returns 202 Accepted immediately instead of blocking until the deploy finishes.
   Location response header	Contains the /api/deployments/{id} URL to poll for status.

2. Extract the deployment ID from the Location header.

   # Location header looks like: https://<app>.scm.azurewebsites.net/api/deployments/latest
   # Follow it once to get the concrete deployment ID
   DEPLOY_ID=$(curl --silent --header "Authorization: Bearer ${ACCESS_TOKEN}" \
     "https://${APP_NAME}.scm.azurewebsites.net/api/deployments/latest" | jq --raw-output '.id')
   echo "Tracking deployment ${DEPLOY_ID}"


3. Poll until terminal status.

   while true; do
     STATUS=$(curl --silent --header "Authorization: Bearer ${ACCESS_TOKEN}" \
       "https://${APP_NAME}.scm.azurewebsites.net/api/deployments/${DEPLOY_ID}" | jq --raw-output '.status')

     echo "$(date -u +%FT%TZ) status=${STATUS}"

     case "$STATUS" in
       4) echo "Deployment succeeded"; break ;;
       5) echo "Deployment failed"; exit 1 ;;
       3) sleep 10 ;;
       *) echo "Unexpected status: $STATUS"; exit 1 ;;
     esac
   done


   Status code	Meaning	Terminal?
   3	Pending / in progress	No — keep polling
   4	Succeeded	Yes — mark CI job green
   5	Failed	Yes — fetch log, mark CI job red
   6	Cancelled (rare)	Yes — treat as failure for CI

4. On failure, fetch the deployment log to fail the CI with a useful error.

   curl --silent --header "Authorization: Bearer ${ACCESS_TOKEN}" \
     "https://${APP_NAME}.scm.azurewebsites.net/api/deployments/${DEPLOY_ID}/log" |
     jq '.[] | select(.type == "2") | {message, log_time}'


   type: "2" filters to error entries only — the concrete reason the deploy failed (Oryx build error, startup command mismatch, missing dependency).

What the evidence proves. The async polling loop with concrete status-code handling is what turns "ZipDeploy sometimes times out on the sync path" from a flaky CI failure into a deterministic gate. Combined with the log-on-failure step, it produces a CI failure message that names the exact deploy step that failed, not "curl exited 22 with HTTP 500".

See Also¶

• Kudu Overview — cross-platform architecture, authentication, REST API, security hardening
• Kudu on Linux — KuduLite modern UI at /, classic UI at /oldui, WebSSH, and Linux-specific diagnostic scenarios
• Kudu API Reference — per-endpoint cheatsheet with curl examples
• Windows Kudu and Diagnostic Tools Playbook — hypothesis-driven tool selection for Windows-specific incidents

Sources¶

• Kudu service overview (Microsoft Learn)
• Deploy Files to Azure App Service (Microsoft Learn) — ZipDeploy synchronous and async modes, isAsync=true semantics
• Run background tasks with WebJobs (Microsoft Learn)
• Web Apps - Get Site Extension (Microsoft Learn REST API reference) — the SiteExtensionInfo schema, including extension_type (Gallery / WebRoot) and feed_url
• Enable diagnostic logging (Microsoft Learn)
• Application Insights Profiler for App Service (Microsoft Learn) — the recommended alternative to Kudu's built-in profiler for continuous production profiling
• projectkudu/kudu Wiki (GitHub, archived 2024-09-04) — Windows Kudu REST API reference, Debug Console (?shell=powershell), Process Explorer semantics
• projectkudu/kudu Wiki — REST API — /api/triggeredwebjobs, /api/continuouswebjobs, /api/deployments, /api/zipdeploy endpoint documentation
• Debug a .NET Core app on Azure App Service with dotnet-dump (Microsoft Learn) — offline analysis workflow for Kudu-captured dumps
