Kudu Overview¶

Kudu is the engine behind App Service deployment and the SCM (source control manager) companion site that ships with every Web App. It gives you a browser-based control surface, a REST API, and shell access for inspecting environment, processes, files, and deployment history.

This overview covers the parts of Kudu that behave the same on both platforms — architecture, authentication, REST API, file system layout, and security hardening. For platform-specific web UIs and diagnostic workflows, jump to the companion pages:

• Kudu on Windows — Debug Console (CMD/PowerShell), Process Explorer, Site Extensions, and Windows-specific diagnostic scenarios.
• Kudu on Linux — KuduLite modern UI (default at /) and classic UI (at /oldui), WebSSH into the app container, and Linux-specific diagnostic scenarios.

Once you finish this page, jump to Kudu API Reference for the per-endpoint cheatsheet.

Why Kudu Matters¶

Most App Service deployment paths—ZIP deploy, Run from Package (local package; a remote package URL is read by the App Service runtime instead, see Run From Package), Local Git, GitHub Actions, FTP, OneDeploy—either talk to Kudu directly or rely on it for the post-deploy step (unpacking the artifact, running Oryx, recycling the worker). When something goes wrong between "deployment succeeded" and "app responds 200 OK," Kudu is usually where the evidence lives.

Three concrete capabilities make Kudu non-replaceable:

1. It runs in a separate sandbox. SCM has its own filesystem snapshot, its own credentials surface, and its own restart lifecycle. That separation is why deployments survive worker recycles and why you can inspect a hung app from a healthy companion site.
2. It exposes both UI and REST. Operators get a clickable console for one-off investigation; CI pipelines and runbooks call the same endpoints non-interactively.
3. It is the only deployment surface that disabling basic auth still leaves accessible—via Microsoft Entra ID OAuth tokens. Modern Azure environments increasingly require this token-based path.

Architecture: How Kudu Fits with Your App¶

Every App Service app is paired with a companion Kudu site at a related hostname. The two sites share the same App Service Plan compute, but they run in different sandbox contexts and serve different traffic.

flowchart TD
    Browser["Browser / CLI / CI pipeline"]
    Browser -->|App traffic| AppHost["app-name.azurewebsites.net<br/>Main site"]
    Browser -->|Deployment / diagnostics| ScmHost["app-name.scm.azurewebsites.net<br/>SCM / Kudu site"]
    AppHost --> Plan[App Service Plan]
    ScmHost --> Plan
    ScmHost -->|Writes deployment artifact| Storage["/home/site/wwwroot<br/>Shared persistent storage"]
    AppHost -->|Reads| Storage
    ScmHost -->|REST + UI| Tools["Process Explorer / Debug Console / Site Extensions / WebSSH"]

Kudu, KuduLite, and the Modern Linux UI¶

Kudu ships in two implementations. On Linux, KuduLite additionally exposes two UI variants (modern and classic) at different routes. Which one you land on determines what tools are available and where to click.

Where to go next:

• Windows apps → Kudu on Windows covers the full classic UI (Debug Console, Process Explorer, Site Extensions) plus Windows-specific diagnostic scenarios.
• Linux apps → Kudu on Linux covers the KuduLite modern UI (/) and classic UI (/oldui) feature-by-feature, WebSSH, and Linux-specific diagnostic scenarios (including custom containers).

Accessing the Kudu Site¶

There are three supported access paths, each appropriate for a different use case:

flowchart TD
    Start[Need to use Kudu] --> Q1{Interactive or automated?}
    Q1 -->|Interactive| Q2{Microsoft Entra enabled?}
    Q1 -->|Automated CI/CD or script| Q3{Basic auth disabled?}
    Q2 -->|Yes recommended| EntraUI["Portal: Advanced Tools button<br/>Single sign-on via Entra"]
    Q2 -->|No / Legacy| BasicUI["Direct URL with deployment user/password"]
    Q3 -->|Yes recommended| EntraAPI["OAuth 2.0 access token<br/>az account get-access-token"]
    Q3 -->|No / Legacy| BasicAPI["Basic auth with publishing credentials"]
    EntraUI --> Done[Kudu web UI]
    BasicUI --> Done
    EntraAPI --> RestAPI[Kudu REST API]
    BasicAPI --> RestAPI

Path 1: Portal Advanced Tools button (recommended for interactive use)¶

The Azure Portal exposes Kudu under Development Tools > Advanced Tools in every Web App blade.

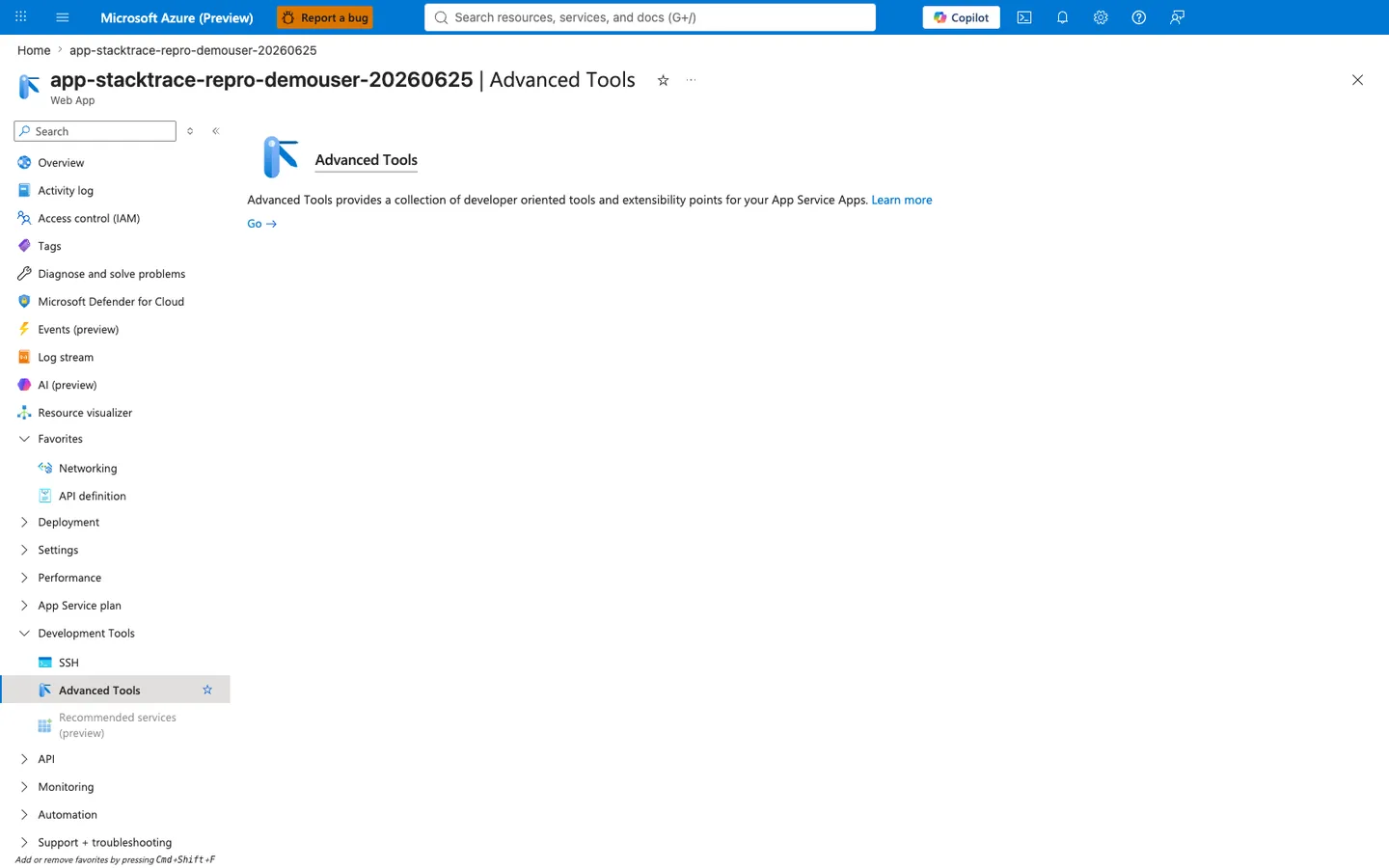

Portal view: Advanced Tools entry point in the Web App blade¶

[Observed] The Development Tools group is expanded in the left nav, and Advanced Tools is the highlighted entry. The right pane shows only a short Kudu description plus a primary Go → button — there is no inline Kudu UI on this blade.

[Inferred] The same blade exists with the same layout for both Linux and Windows apps — Advanced Tools is platform-agnostic. Because the blade hosts only a launch button (no embedded console), Kudu is intentionally a separate companion site rather than an in-portal blade. Clicking Go → launches Kudu using your existing portal-authenticated browser session, so no extra credentials are prompted.

Use the Advanced Tools blade when you want a one-click path that piggybacks on your existing portal sign-in. For headless scripts and CI/CD callers, prefer the REST API path described in Path 3.

Path 2: Direct URL¶

If you already know the app name, you can navigate straight to the SCM hostname:

# Replace with your app name
APP_NAME=app-test-20251107
echo "https://${APP_NAME}.scm.azurewebsites.net"

Browser-based access prompts for Microsoft Entra sign-in (if the user has the required RBAC role) or basic authentication (if SCM basic auth is enabled).

Path 3: REST API or CLI¶

Both az CLI and curl can hit Kudu endpoints non-interactively. See Authentication and RBAC for which auth method to choose.

# Microsoft Entra OAuth (recommended, works even when basic auth is disabled)
ACCESS_TOKEN=$(az account get-access-token --resource https://management.azure.com --query accessToken --output tsv)
curl --silent --header "Authorization: Bearer ${ACCESS_TOKEN}" \
  "https://${APP_NAME}.scm.azurewebsites.net/api/environment"

Authentication and RBAC¶

Kudu supports two authentication models. Microsoft Entra ID is the recommended path for both interactive and automated access.

Required Azure RBAC role¶

To access Kudu in the browser using Microsoft Entra authentication, the role assigned to your user/principal must include the Microsoft.Web/sites/publish/Action operation. Built-in roles that satisfy this:

Disabling basic authentication¶

Both scm (Kudu/Git/Web Deploy) and ftp (FTP/FTPS) basic auth flags are independently controlled. SCM basic auth is required as a prerequisite for FTP basic auth.

# Disable SCM basic auth
az resource update \
  --resource-group $RG \
  --name scm \
  --namespace Microsoft.Web \
  --resource-type basicPublishingCredentialsPolicies \
  --parent sites/$APP_NAME \
  --set properties.allow=false

# Disable FTP basic auth (independent flag, but disabling SCM forces FTP off too)
az resource update \
  --resource-group $RG \
  --name ftp \
  --namespace Microsoft.Web \
  --resource-type basicPublishingCredentialsPolicies \
  --parent sites/$APP_NAME \
  --set properties.allow=false

After disabling, basic-auth-only tools fail with 401 Unauthenticated. Modern Azure CLI (>= 2.48.1) falls back to Entra authentication automatically for az webapp deploy, az webapp log tail, az webapp ssh, and related commands.

File System and Logs¶

Kudu exposes the App Service file system both interactively (file browser) and programmatically (/api/vfs/{path} endpoint).

# Browse persistent storage via REST
curl --silent --header "Authorization: Bearer ${ACCESS_TOKEN}" \
  "https://${APP_NAME}.scm.azurewebsites.net/api/vfs/home/"

# Download a specific log file
curl --location --header "Authorization: Bearer ${ACCESS_TOKEN}" \
  "https://${APP_NAME}.scm.azurewebsites.net/api/vfs/LogFiles/application/app.log" \
  --output app.log

For the complete endpoint reference, see Kudu API Reference.

Diagnostic Dumps and Deployments¶

Diagnostic dumps¶

Kudu can generate a full process dump for offline analysis (WinDbg, Visual Studio, dotnet-dump analyze). Dumps are essential when a process hangs or deadlocks and live logs cannot explain the state. The cross-platform entry point is POST /api/processes/{pid}/dump.

# Trigger a dump for PID 1234 (works on both Windows and Linux where dump capture is supported)
curl --silent --request POST --header "Authorization: Bearer ${ACCESS_TOKEN}" \
  --output "dump-${APP_NAME}-$(date +%Y%m%dT%H%M%S).dmp" \
  "https://${APP_NAME}.scm.azurewebsites.net/api/processes/1234/dump"

Deployment history and source control¶

Kudu owns the deployment ledger. Every push, ZIP deploy, or container pull writes an entry under /home/site/deployments/ and is exposed via the Deployments page and the /api/deployments endpoint.

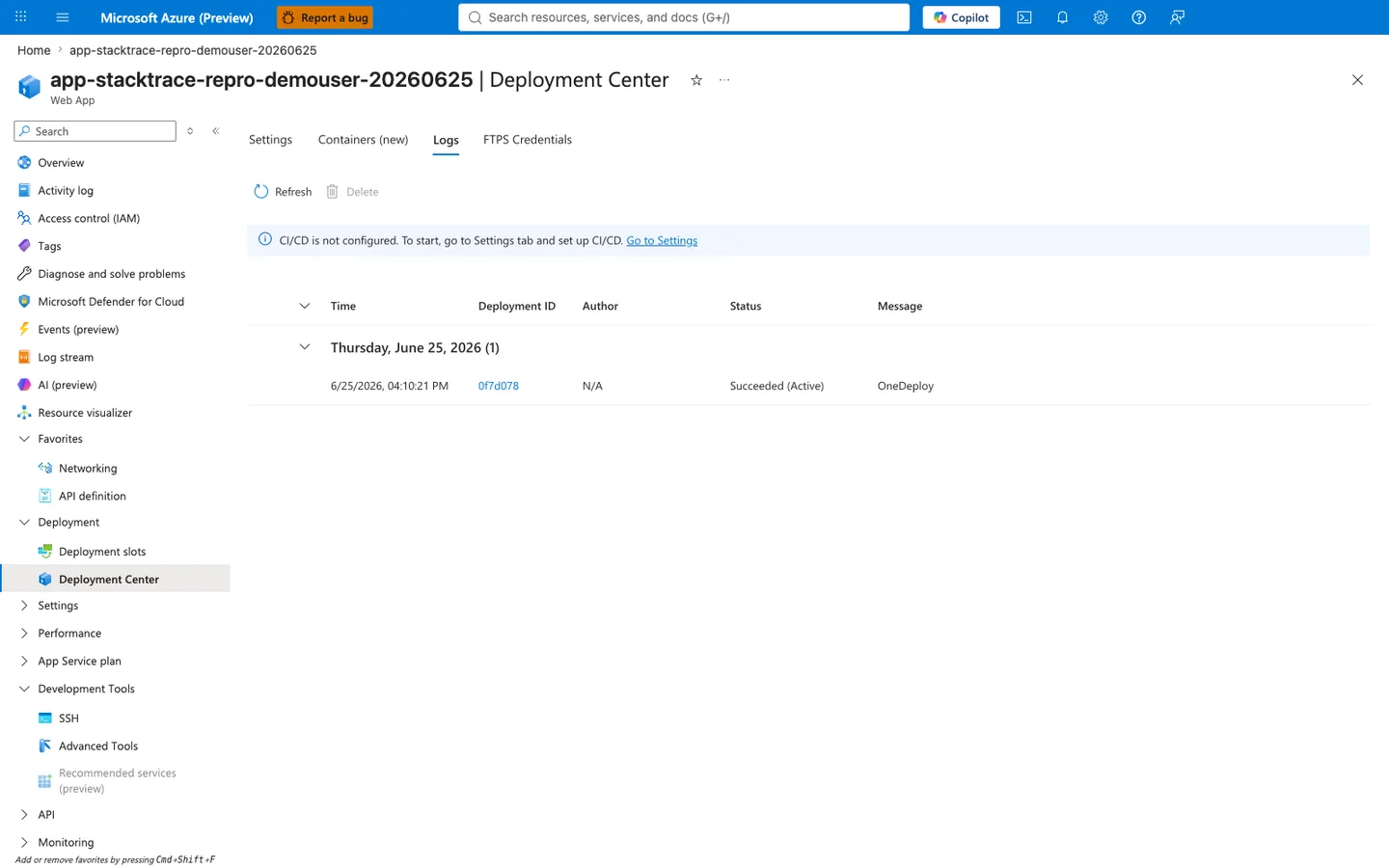

Portal view: Deployment Center Logs tab (the portal-side view of Kudu deployment history)¶

[Observed] The Logs tab lists one deployment from 2026-06-25 16:10:21, deployment ID 0f7d078, status Succeeded (Active), message OneDeploy. The CI/CD banner indicates no automated pipeline is currently wired to this app.

[Inferred] The portal Logs tab is rendering the same data that GET /api/deployments returns as JSON — verified against the live API, the same row surfaces with id 0f7d0782-774d-4379-8b15-1200563e0b61, deployer OneDeploy, complete:true, active:true. Active flags the row whose artifact is currently live at /home/site/wwwroot; that flag is exactly what slot swap and rollback ultimately flip.

The Deployments view records every deployment with its commit ID, author, timestamp, status, and detailed per-step log. When a deploy "succeeded" but the app fails to start, this is where you confirm the deployment ID, then follow the log link to see Oryx build output, dependency installation, and startup command resolution. Failed deployments stay in the history—use id, status, and message fields to filter.

REST API Quick Reference¶

For full request/response examples, see Kudu API Reference.

Windows vs Linux Capability Matrix¶

Security Hardening¶

Kudu is a powerful management surface—exposed to the public internet by default. Lock it down systematically:

1. Disable basic authentication. Use the CLI commands in Authentication and RBAC. After this change, only Microsoft Entra-authenticated callers can use Kudu.
2. Apply IP access restrictions on the SCM site separately from the main site. The Access Restrictions blade has two tabs—Main site and Advanced tool site. Hardening the main site does not by itself determine SCM exposure: SCM can inherit the main-site rules (Use main site rules) or use its own, and default-endpoint access is also gated by publicNetworkAccess. Review the SCM rules and their inheritance explicitly.
3. Audit Kudu access. Enable AppServiceAuditLogs shipping to Log Analytics or storage; every successful and failed Kudu/FTP login is recorded with timestamp, user, source IP, and protocol.
4. Use Azure Policy to enforce. The built-in audit policies for FTP and SCM basic auth flag any app where basic auth is still enabled; pair them with remediation policies to auto-disable.
5. Scope RBAC narrowly. Use Website Contributor (not Contributor/Owner) and assign at the Web App level, not the resource group or subscription level, for routine operator access.
6. Rotate publishing credentials after exposure. If a deployment user/password leaks, use Reset publish profile in the Portal Overview blade to invalidate the leaked credentials.

# Restrict SCM site to corporate CIDR (example)
az webapp config access-restriction add \
  --resource-group $RG \
  --name $APP_NAME \
  --scm-site true \
  --rule-name AllowCorp \
  --action Allow \
  --ip-address 203.0.113.0/24 \
  --priority 100

Common Operational Tasks¶

Language-Specific Details¶

Kudu is platform-level and shared across stacks, but the diagnostic surface differs by OS. For platform-specific playbooks, see the companion docs:

• Kudu on Windows — Kudu Web UI tour, Debug Console (CMD/PS), Process Explorer, Site Extensions, and 6 Windows scenarios (w3wp hang, memory dump analysis, CPU spike, /api/deployments rollback, WebJob failure, ZipDeploy status tracking).
• Kudu on Linux — KuduLite modern UI (default at /) and classic UI (at /oldui), WebSSH tour, and 6 Linux scenarios (instance selector + per-instance SSH, per-instance process comparison, custom container startup logs, app-vs-Kudu container boundary debugging, crash-loop triage, deployment regression / Oryx investigation).

For runtime-specific patterns (custom container SSH setup, package inspection, build log location):

• Node.js Custom Container Recipe — SSH on port 2222 setup
• Python Runtime Guide — Oryx build logs in Kudu/Deployment Center
• .NET CI/CD Tutorial — Kudu diagnostics for failed deploys

See Also¶

• Kudu on Windows — Windows-specific Kudu tour and 6 diagnostic scenarios
• Kudu on Linux — KuduLite modern UI (/) and classic UI (/oldui), plus 6 Linux-specific scenarios
• Kudu API Reference — per-endpoint cheatsheet with curl examples
• Windows Kudu and Diagnostic Tools — Windows-specific tool selection playbook
• How App Service Works — main site vs SCM plane in the broader architecture
• Deployment Options Reference — how each deployment method uses Kudu
• Run From Package — mounted read-only wwwroot instead of extraction
• Networking Best Practices — SCM access restrictions in context
• Troubleshooting Reference — broader diagnostic surface map
