Incoming Client Certificates¶

Use this runbook to enable inbound mutual TLS on Azure App Service, forward the client certificate to your application, and verify the platform-to-app handoff before you add application-level authorization logic.

Prerequisites¶

• App Service plan in Basic, Standard, Premium, or Isolated tier
• HTTPS-only enabled on the web app
• A client certificate and private key available for testing
• Permission to update the App Service site configuration
• Variables set:
  • $RG
  • $APP_NAME

When to Use¶

Use inbound client certificates when:

• API callers must present a client certificate before the request reaches your app logic
• Partner integrations require certificate-based caller identity
• You want App Service to terminate TLS and forward the client certificate in a normalized header
• You need route-specific exceptions such as /health or webhook endpoints

Procedure¶

flowchart TD
    A[Client with certificate] --> B[App Service front end]
    B --> C{clientCertMode policy}
    C -->|Allowed| D[X-ARR-ClientCert]
    D --> E[Application validation]
    C -->|Rejected| F[403 / handshake failure]

1) Enable HTTPS-only first¶

az webapp update \
  --resource-group $RG \
  --name $APP_NAME \
  --https-only true \
  --output json

Verify:

az webapp show \
  --resource-group $RG \
  --name $APP_NAME \
  --query "{httpsOnly:httpsOnly,hostNames:hostNames}" \
  --output json

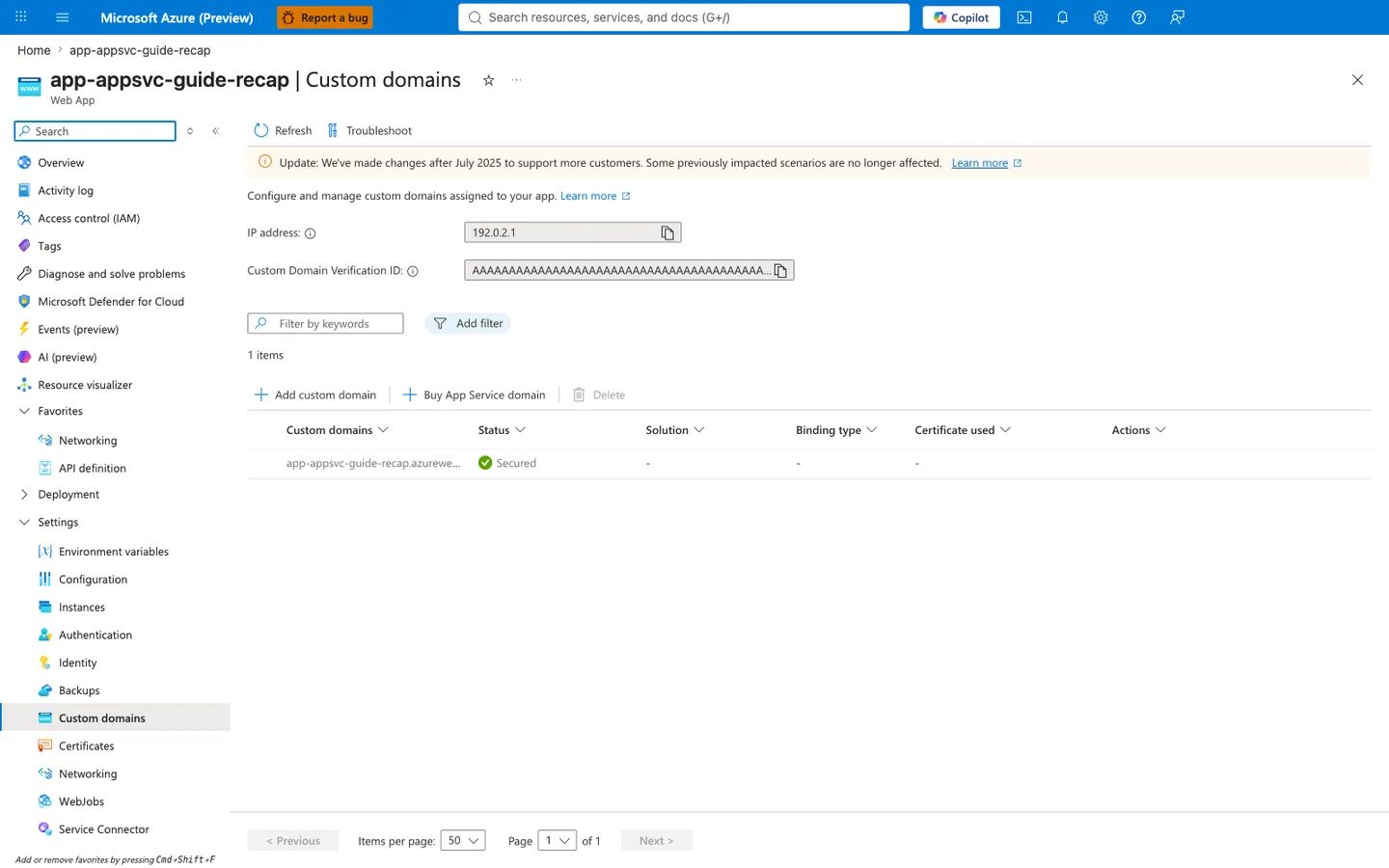

Portal view: Custom domains blade (HTTPS bindings)¶

The Custom domains blade is the prerequisite check for inbound mTLS that the --https-only true command above enforces at the protocol level. The default *.azurewebsites.net hostname is always Secured using the platform-managed wildcard certificate, but any custom domain you add later requires an explicit binding before mTLS can work on that hostname — an unbound custom domain cannot complete HTTPS on that hostname, so the TLS/mTLS handshake for that domain never succeeds and clients see a certificate or connection error instead of a redirect. After running the az webapp update --set clientCertEnabled=true command in step 2, return to this blade and confirm every custom domain you intend to enforce mTLS on appears with Status: Secured, Binding type: SNI SSL, and a valid Certificate used value.

2) Enable client certificate mode¶

Use Azure CLI:

az webapp update \
  --resource-group $RG \
  --name $APP_NAME \
  --set clientCertEnabled=true clientCertMode=Required \
  --output json

Common values:

• Required
• Optional
• OptionalInteractiveUser

Portal path:

1. Open App Service in Azure Portal.
2. Go to Settings → Configuration → General settings.
3. Set Client certificate mode.
4. Save and restart if required by your rollout policy.

3) Add exclusion paths when needed¶

Use exclusion paths only for endpoints that cannot present a client certificate.

az webapp update \
  --resource-group $RG \
  --name $APP_NAME \
  --set clientCertExclusionPaths="/health;/webhooks/github" \
  --output json

4) Use Bicep for declarative configuration¶

resource webApp 'Microsoft.Web/sites@2023-12-01' = {
  name: appName
  location: location
  kind: 'app,linux'
  properties: {
    serverFarmId: plan.id
    httpsOnly: true
    clientCertEnabled: true
    clientCertMode: 'Required'
    clientCertExclusionPaths: '/health;/webhooks/github'
    siteConfig: {
      linuxFxVersion: 'PYTHON|3.11'
    }
  }
}

5) Understand what reaches the app¶

When App Service forwards the request to your application, it adds:

• Header name: X-ARR-ClientCert
• Header content: base64-encoded certificate content
• Parsing implication: add PEM markers in code before using libraries that expect PEM format

Example reconstruction pattern:

-----BEGIN CERTIFICATE-----
<value from X-ARR-ClientCert>
-----END CERTIFICATE-----

Verification¶

Check effective site settings¶

az webapp show \
  --resource-group $RG \
  --name $APP_NAME \
  --query "{clientCertEnabled:clientCertEnabled,clientCertMode:clientCertMode,clientCertExclusionPaths:clientCertExclusionPaths}" \
  --output json

Test with curl¶

curl --include \
  --cert ./client.pem \
  --key ./client.key \
  "https://$APP_NAME.azurewebsites.net/cert-info"

Expected results:

• Required mode + valid test certificate: request reaches the app
• Required mode + no client certificate: request fails before normal app handling
• Excluded path such as /health: request succeeds without a client certificate if explicitly excluded

Inspect app-level header handling¶

Add a temporary diagnostics endpoint or application log entry that confirms:

• X-ARR-ClientCert exists
• The header can be converted into PEM format
• Certificate parsing succeeds in your framework

Rollback / Troubleshooting¶

Disable inbound client certificate enforcement:

az webapp update \
  --resource-group $RG \
  --name $APP_NAME \
  --set clientCertEnabled=false clientCertExclusionPaths= \
  --output json

Common issues:

• X-ARR-ClientCert missing:
  • clientCertEnabled is false
  • the request matched an excluded path
  • the client did not use HTTPS
• Front-end rejection with Required mode:
  • caller did not present a certificate
  • TLS negotiation failed before the app received the request
• App code cannot parse the certificate:
  • code treated the header as full PEM instead of base64 content
  • certificate markers were not added before parsing
